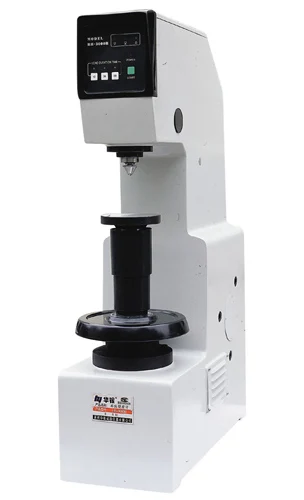

Bench type Brinell hardness tester HB 3000B with readout microscope for indent measurement

Feature & Use

* Mechanical reversing switch
* It's steady and reliable for testing of curved surface
* Precision conforms to the Standards of GB/T 231.2, ISO 6506-2 and ASTM E10

It's suitable to determine the Brinell hardness of unquenched steel, cast iron, non-ferrous metals and soft bearing alloys, etc.

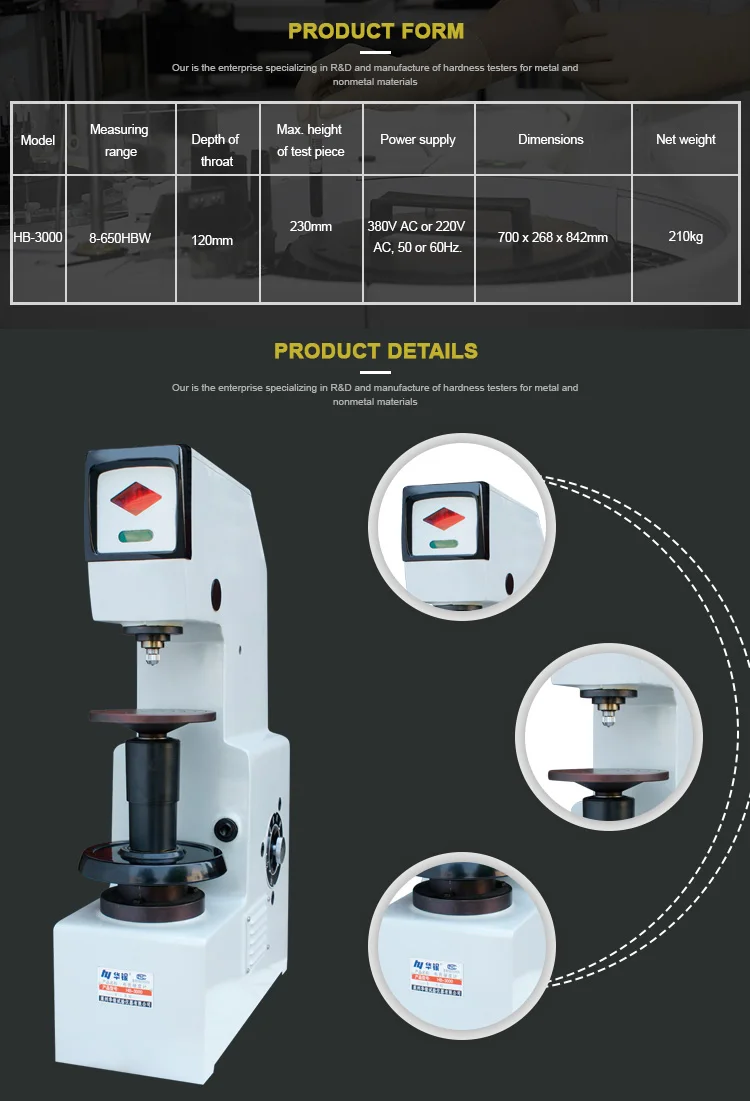

Specifications

Measuring range: 8-650HBW
Test force: 1838.8, 2451.8, 7355.3, 9807, 29421N
(187.5, 250, 750, 1000, 3000kgf)
Max. height of test piece: 230mm
Depth of throat: 120mm
Power supply: 380V AC or 220V AC, 50 or 60Hz.
Dimensions: 700 x 268 x 842mm
Weight: approx. 210kg

Standard accessories

Large flat anvil: 1 pc.
Small flat anvil: 1 pc.
V-notch anvil: 1 pc.
Tungsten carbide ball penetrator: Φ2.5, Φ5, Φ10mm, 1 pc. each
Brinell standardized block: 2 pcs.
20X Readout microscope: 1 pc.

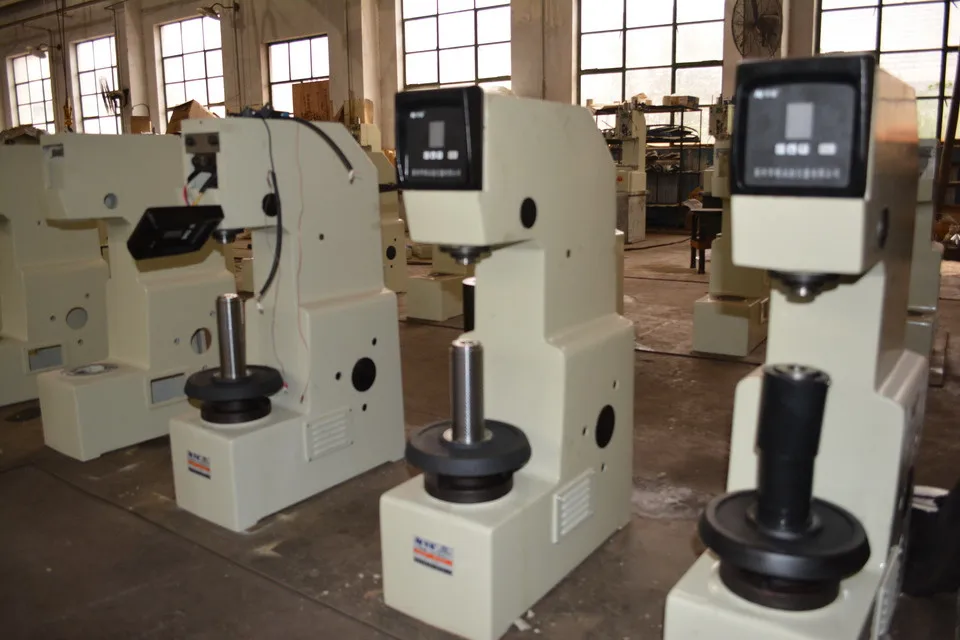

Assembling line

Packing & Delivery
