3 Years Warranty Tire Recycling Mixer For Reclaimed Rubber Powder Production Line/rubber mixing mill

1.The roller is made of alloy chilled cast iron .Their surfance are hard and wear resistance . Its hardness of surface is HRC68-75

2.The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life

3.The roll gap adjustment is manual control type . It is simple for operation

4.The machine is equipped with overloading protection device , in order to protect the main parts from being damanged

5.The machine adopts the single drive type transmission structure . It adopts the nylon pin coupling to prevent main parts from being damanged due to the overload of transmission part

6.The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use

7.The machine is installed with the emergency button and pulling rope as the safety device

8.This machine are installed with four sets lubrication device and suitable for grease lubrication

9.The machine adopts the PLC control cabinet , the machine will be suitable for your local industrial voltage and frequency

Model	XK-160	XK-250	XK-360	XK-400
roller diameter	160	250	360	400
roller length	320	620	900mm	1000
front roll linear speed	9	15.1	16.25	18.65
friction ratio	1:1.35	1:1.1	1:1.25	1:1.27
batch capacity	1-2	10-15	20-25	18-35
driving motor	5.5	18.5	30	37
machine size	1380*860*1320	3400*1350*1500	3940*1780*1740	4200*1850*1870
weight	1000 kg	3500 kg	5600	7600

model	XK-450	XK-550	XK-560
roller diameter	450mm	550mm	560/510mm
roller working length	1200mm	1500	1500
front roll linear speed	24.5	27.94	27.87
frictio ratio of roller	1:1.27	1:1.22	1:1.2
motor	55	110	90
Batch capacity	25-50	50-60	50-60
machine size	5200*2380*1770	5900*2680*2080	6500*2300*2000
machine weight	about 12000 kg	27000 kg	19500 kg

Detailed Images

The roller is made of alloy chilled cast iron .Their surface are hard and wear resistance . Its hardness of surface is HRC 68-75

The end of rollers are supported by the roller ball bearing bush .It has the advantages of running smoothy ,energy saving , low noise and long life

Machine can be installed with stock blender for mixing rubber material

The base is integral type , the transmission mode is of closed transmission . so it is safe and easy for use

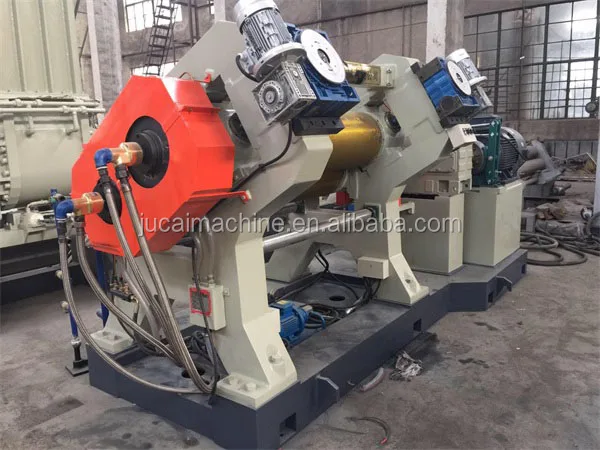

Rotary joint for the closed type water cooling device

Our machine adopts the hardened teeth gearbox

Certifications

Our Service

1.we will one year guarantee for the machine . During this period if there is anything wrong with machine , supplier are responsible for it and should offer the best spare part freely for buyer

2.supplier should send professional if required by customer


3.we will offer service for whole life of machine

Packing & Delivery

Our Company

Qingdao Jiuzhou Jucai Machine Co .,Ltd is one of biggest rubber machine manufacturer in north part of china .

Our company mainly produce semi automatic and automatic type vulcanizing machine , rubber injection molding machine , eva foaming machine , rubber mixing machine , rubber kneader machine , tire recycling machine , etc .

Our machine has been widely exported to USA , UK ,Russian , South Korea , Japanese , India , Poland , Spanish , Iran , Mexico and many other areas

Our machine has passed ISO9001:2008 , SGS , BV and CE certificate

Welcome to inquiry and visit factory for cooperation
