TLXGM 400/600/700/800 Infrared Bridge Saw CNC Stone Cutting Machine for marble and granite and automa cutting machine
- Category: Stone Machinery >>>
- Supplier: Suzhou Jinhefeng Machines & Tools Co. Ltd.
Share on (62068198239):
Product Overview
Description

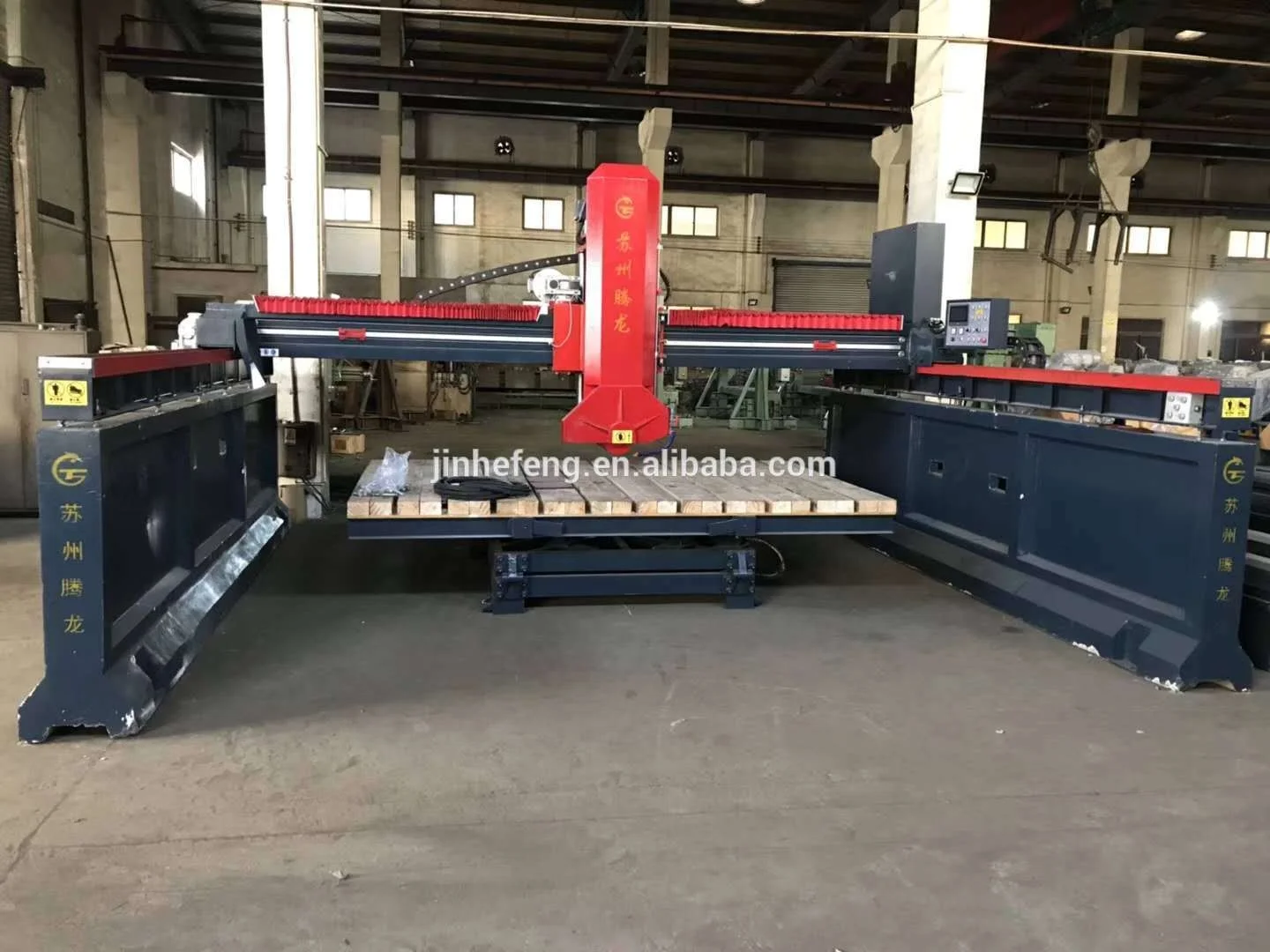

TLXGM-400/600/700/800 Infrared Bridge Cutting Machine
Technical Parameters
Model | TLXGM-400 | TLXGM-600 | TLXGM-700 | TLXGM-800 |
Max size | 3200×3200×70mm | 3200×3200×180mm | 3200×3200×220mm | 3200×3200×280mm |
Diameter of blade | Φ350-Φ400mm | Φ400-Φ600mm | Φ400-Φ700mm | Φ400-Φ800mm |
Size of worktable | 3200×2000mm | 3200×2000mm | 3200×2000mm | 3200×2000mm |
Vertical turning angle of worktable | 0-85° | 0-85° | 0-85° | 0-85° |
Rotation angle of worktable | 90-360° | 90-360° | 90-360° | 90-360° |
Main power supply | 15KW | 15KW | 18.5KW | 18.5KW |
Water consumption | 4m³ /h | 4m³ /h | 4m³ /h | 4m³ /h |
Overall dimension | 6000×5000×2800mm | 6000×5000×2800mm | 6000×5000×2800mm | 6000×5000×2800mm |
