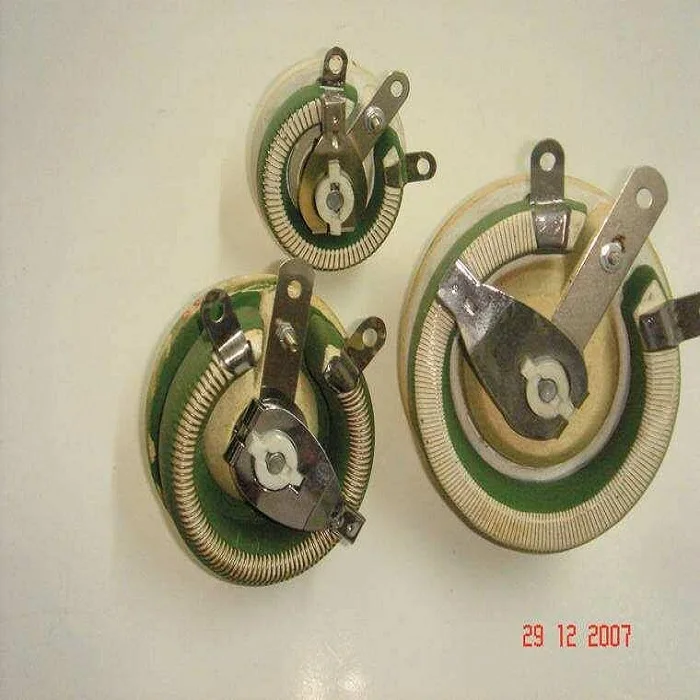

BC1 High power wirewound adjustable slide sliding resistance resistor rheostat
1.Introduction
1.BC1 ceramic tray variable series are wound with chromium-alloy wire as a resistor element.
2.The entire component is coated non-flammable and high-temperature resin exception for the
slide contact surface.
3.After cooling and drying, insulation is applied through a high-temperature process. Installed
centered roating adjuster component slides along the resistance element to vary the
to the desired value.
4.High power rating,resistance to humidity, resistance value in great adjustable range.
5.On one resistor ,can have the different resistance requirement(flat and round wire can be in the same rheostat).
2.Specification
1. Limit operating voltage of rheostat: 1000V: insulation voltage 2500V
2. Temperature rise of rheostat: 25-100W varieties < 300K; > 150W varieties: < 350K
3. Sliding Degree: 25-50W Varieties: 280+5 degrees; > 100W Varieties: 300+5 degrees
4. Resistance Law, Linear Deviation: During the whole journey, the resistance law changes into a linear law,
the linear deviation is not (+10%).
5. The rheostat control shaft should rotate for 5000 weeks in no less than 90% of the journey. There should be
no visible damage to the rheostat.
6. The resistance of the rheostat is less than 1.5 after 6 weeks (six days) of alternating humidity and heat at
40℃ at high temperature.

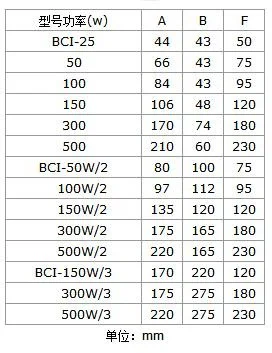

3.Type and size

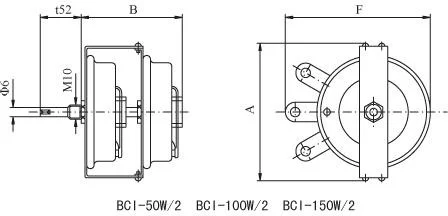

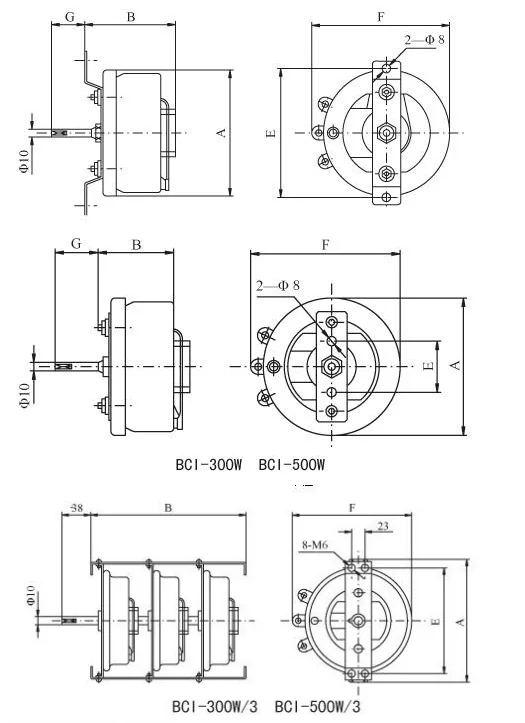

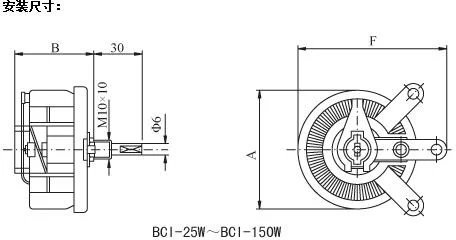

4.Install drawing
5.Test method
The first safty inspection:Industrial frequency withstand voltage and insulation resistance
The test voltage: 2500 v, 50 hz
Pressure time: 1 min
Pressure parts: wiring head and diameter10 mm of the axis of rotation
Potentiometer no breakdown or flashover phenomenon
Judge : meets the requirements
The second inspection:Power and resistance (500W 5R)
Test current and resistance: In 5 r = 10 a
Current time: half an hour to hour
Requirements: 10 a current through the potentiometer no short circuit phenomenon properly 5 r
value:
Requirements: error of plus or minus 10%
Judge: meets the requirements
The third working temperature test:50V 10A
Test results: glass glaze layer surface temperature rise of electricity for 3 minutes, 43.2 ° 15 minutes: 85.3 °
and a half hours: 81.9 ° Judge: meets the requirements
