Hualong machinery HLZM 2500 high efficiency CNC natural Stone Column base cap Cutting Machine for ganite marble round shaping
- Category: >>>
- Supplier: Fujian Province Hualong Machinery Co. Ltd.
Share on (62072275474):
Product Overview
Description

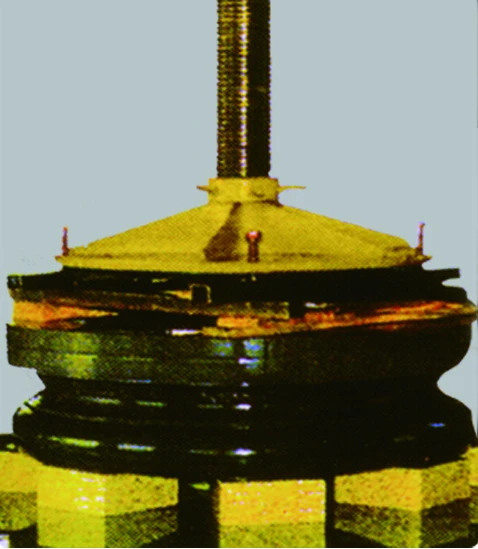

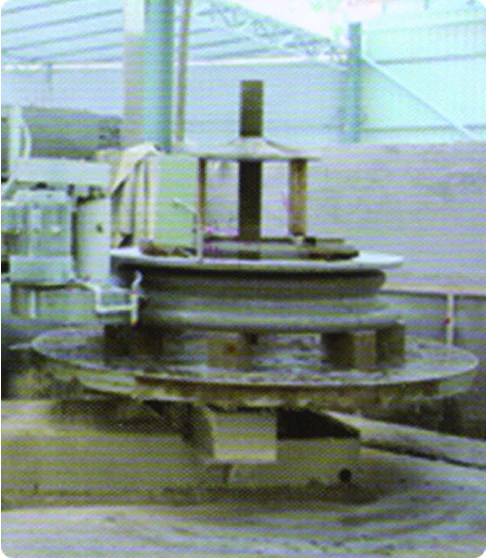

Stone Column cap/base Cutting Machine
HLZM-2500 equiped with microcomputer control system and optical fiber measuring and monitoring system, is applicable for cutting various revolution bodies including column bases, column caps and columns etc.
Main Features
1) CNC control, easy operation.
2) Optical fiber-based precise profiling.
3) Copying model is available.
4) Hollow column base can be processed also.
5) Low consumption and high pricision.
Technical Data for HLZM-2500 | ||||||
Configuration | Diameter of workbench | mm | 2000 | |||
Diameter of blade | mm | 600 | ||||
Power of main motor | kw | 11 | ||||
Main Performance Parameters | Max. cutting diameter | mm | 250 | |||
Max. cutting height | mm | 1000 | ||||
Water consumption | m3/h | 4 | ||||
Measurement | Gross weight | kg | 6000 | |||
Dimensions (L x W x H) | mm | 4500 x2500 x3500 | ||||
Quality Fabrication Equipment
* Made with 30 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available
* Many machines available to order
* Experienced techs for all your questions
* Customization available
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Technical cooperation.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
