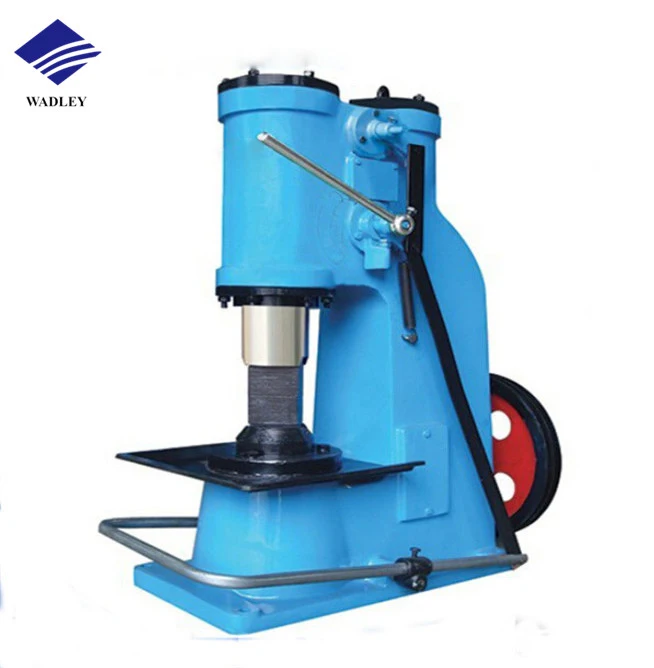

C41 25KG air hammer power forging hammer
- Category: Metal Forging Machinery >>>
- Supplier: Henan Wadley Cnc Machinery Co. Ltd.
Share on (62074464592):
Product Overview
Description

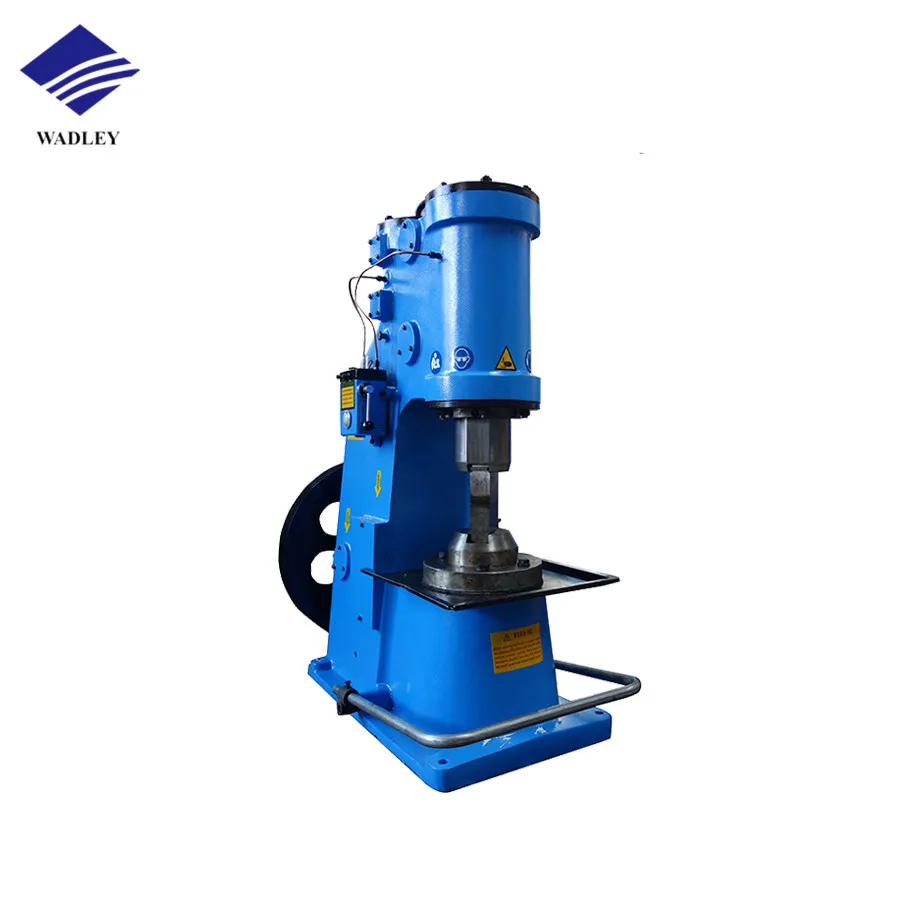

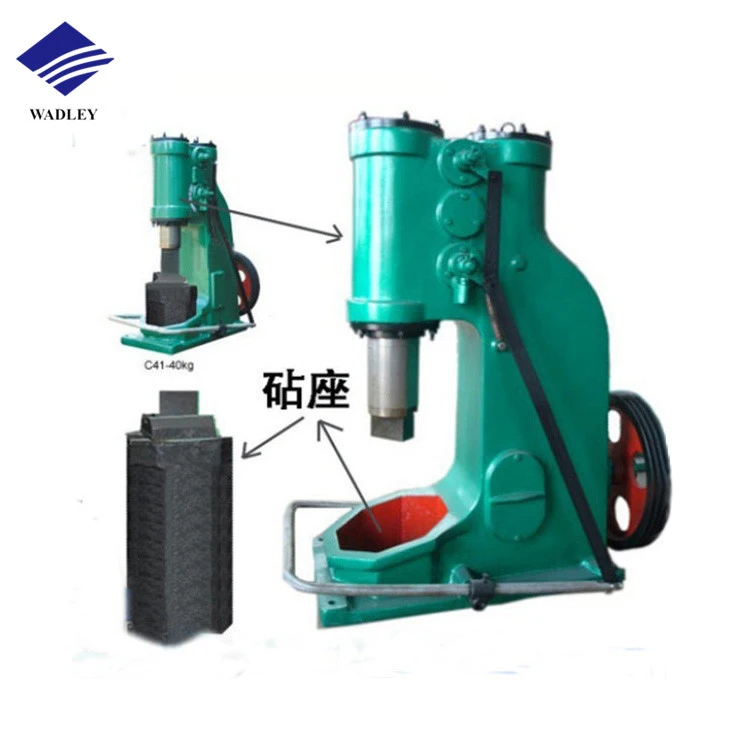

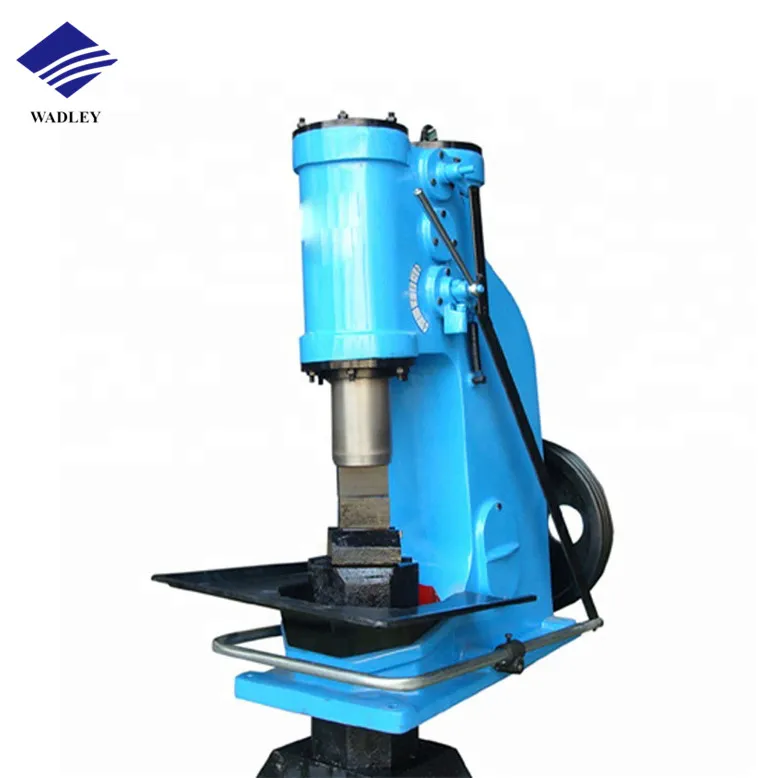

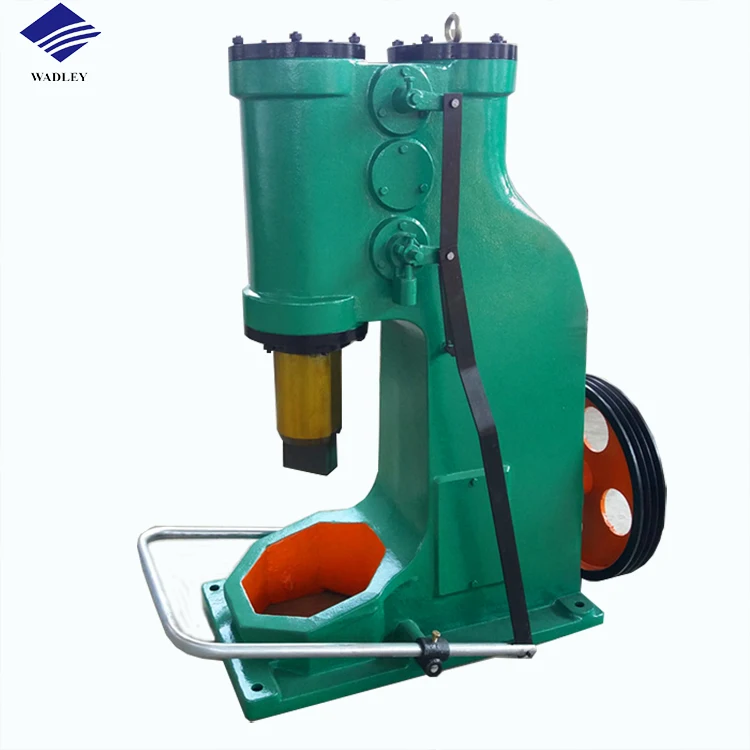

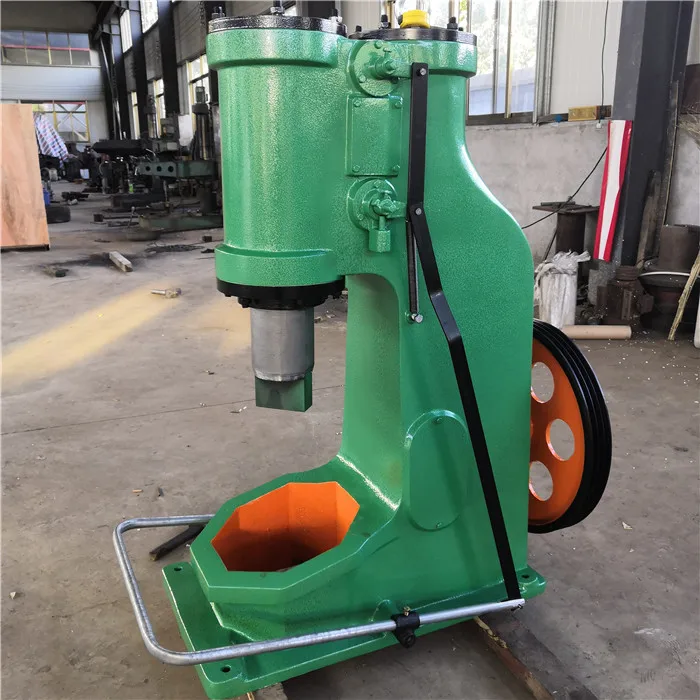

C41-25KG air hammer power forging hammer
Product Description

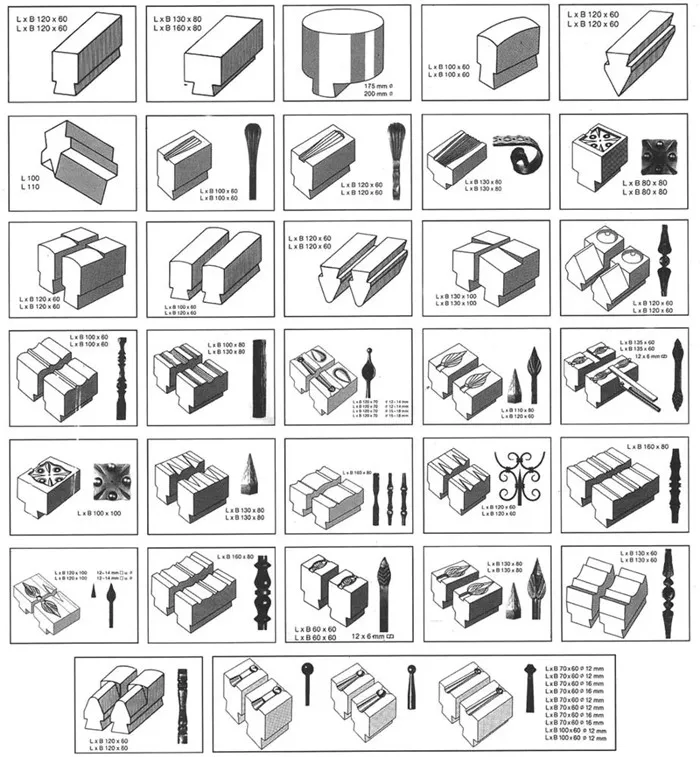

Pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forging, welding, bending and twisting. It is also used for forge in bolster dies. Air hammer is also called forging hammer, blacksmithing hammer, pneumatic forging hammer, power hammer and so on. Air hammer falling weight at 6kg, 16kg, 20kg, 25kg, 40kg, 55kg, 75kg, 150kg,250kg mainly for artistic wrought iron, artistic forging, blacksmith, agriculture tools and small open die forging parts.
Parameters
| Model | C41-150 | C41-250B | C41-400B | C41-560B | C41-750B | C41-1000 | |
| Weight of falling parts(kg) | 150 | 250 | 400 | 560 | 750 | 1000 | |
| Maximum hit energy(kj) | 2.5 | 5.6 | 9.5 | 13.7 | 19 | 27 | |
| Hit number(min-1) | 180 | 140 | 120 | 115 | 105 | 95 | |
| Height of working area(mm) | 370 | 450 | 530 | 600 | 670 | 800 | |
| Top axis to frame front(mm) | 350 | 420 | 520 | 550 | 750 | 770 | |
| Dimension of top die surface(L x W) (mm) | 200*85 | 220*100 | 250*120 | 300*140 | 330*160 | 365*180 | |
| Dimension of bottom die surface(L x W) (mm) | 200*85 | 220*100 | 250*120 | 300*140 | 330*160 | 365*180 | |
| Forges | Square(mmxmm) | 130*130 | 145*145 | 220*220 | 270*270 | 270*270 | 290*290 |
| Round(mm) | Φ145 | Φ175 | Φ240 | Φ280 | Φ300 | Φ320 | |
| Motor | Type | Y180M-4-B3 | Y180M-4-B3 | Y200L-4-B3 | Y280S-6-B3 | Y280M-6-B3 | Y315S-6-B3 |
| Power(kw) | 18.5 | 22 | 30 | 45 | 55 | 75 | |
| Weight | Hammer(kg) | 3260 | 5000 | 8000 | 9800 | 17000 | 20000 |
| Anvil block(kg) | 1500 | 2500 | 4800 | 6720 | 9000 | 13000 | |
| Outside Size | 2390*1085*2150 | 2639*1155*2540 | 2785*1400*2884 | 3464*1500*3157 | 3905*1370*3175 | 4125*1500*3770 | |
Product details
Feature
1.With small frame body,easy to carry and move
2.With reasonable structure and less noise,easy to operate

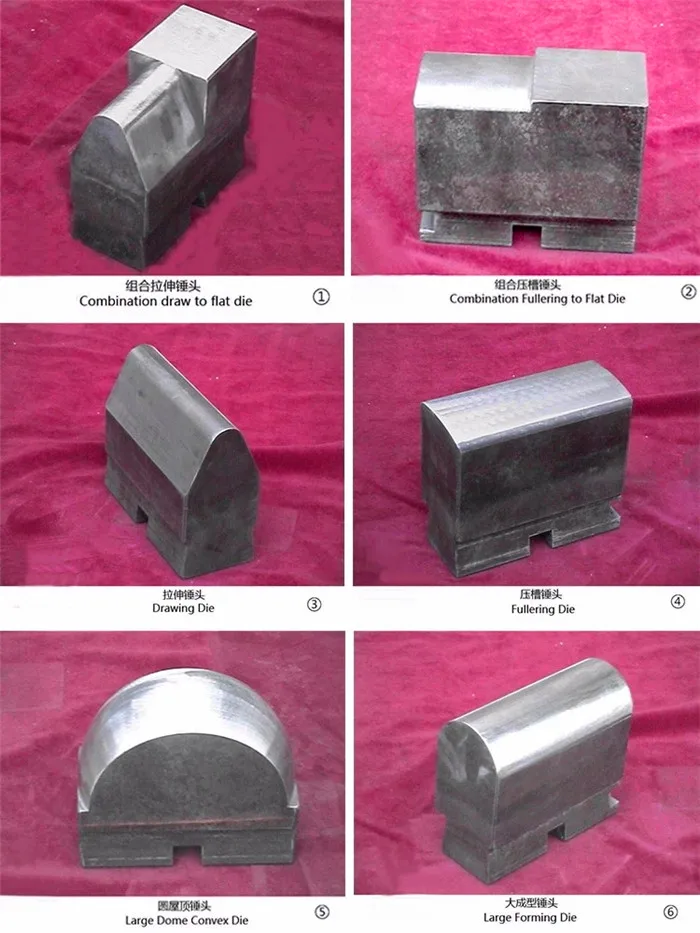

3.Easy to replace hammer die,fit to forge small workpiece
4.With stable function and durable frame

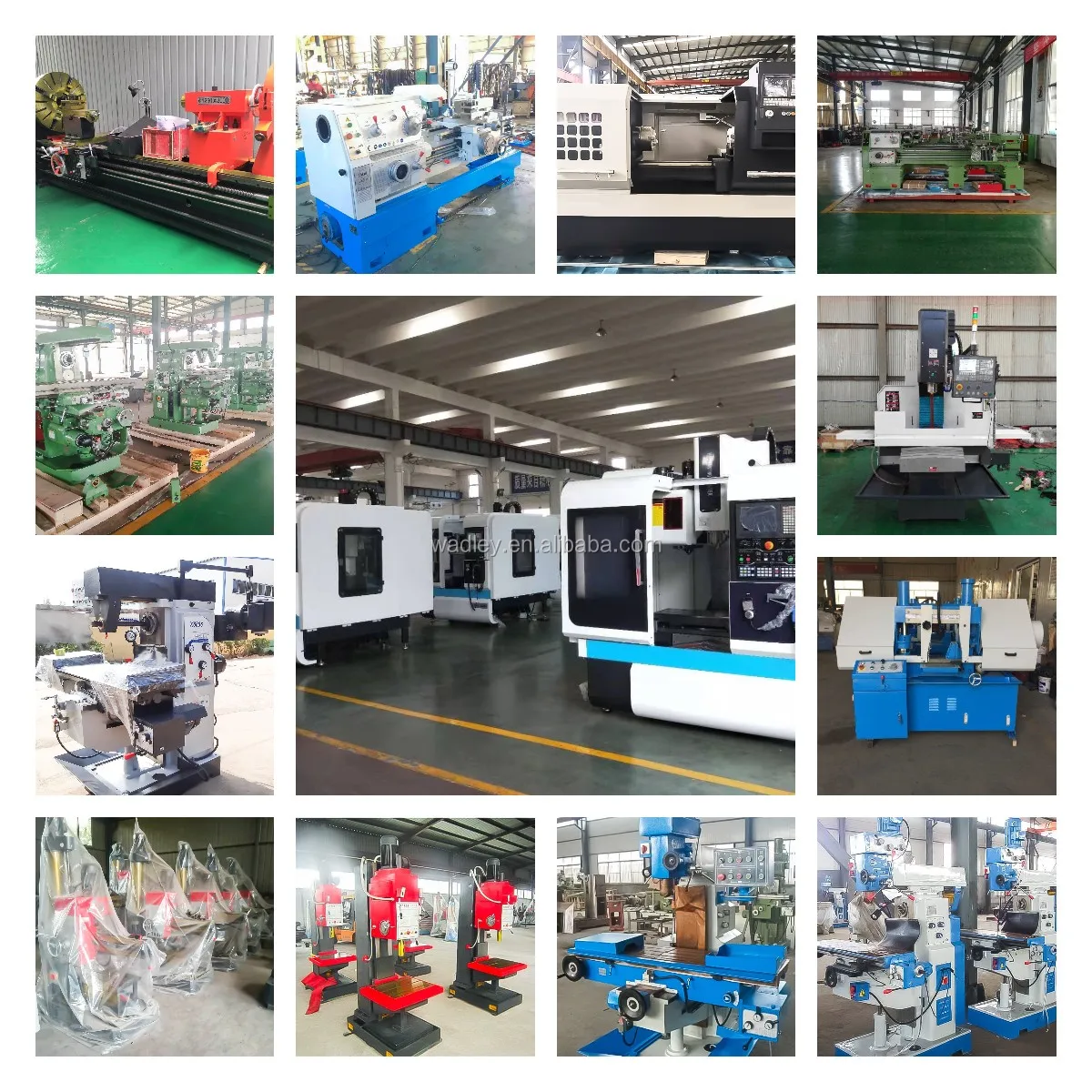

Company Information
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
5: What's the MOQ?
A: 1 set .
We want to know:
a.What's your Industrial Voltage?
b.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
c.If need CIF Price, please kindly tell us the port of destination.
