Product Overview

Description

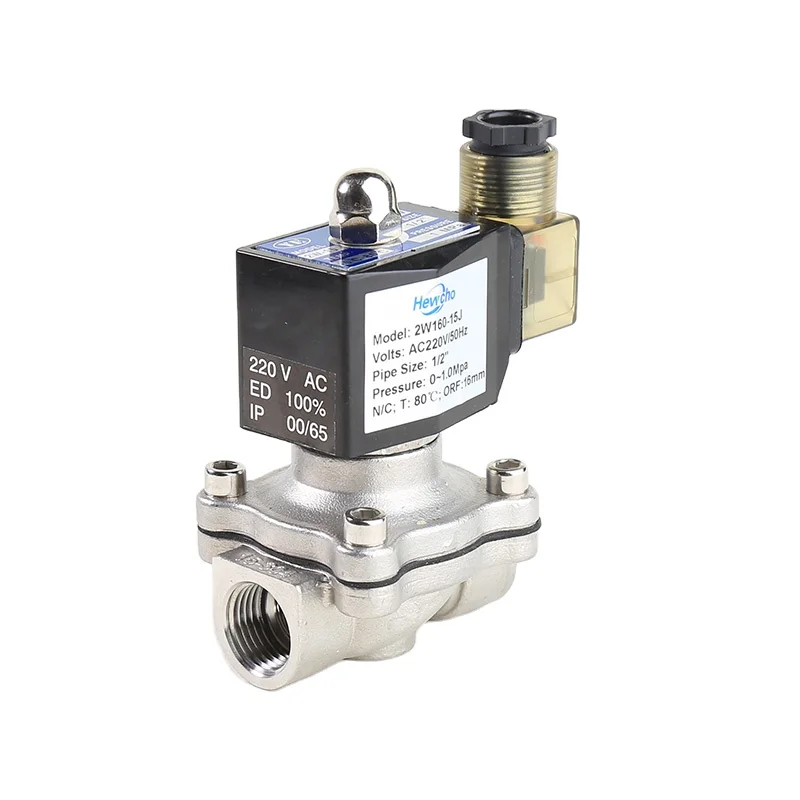

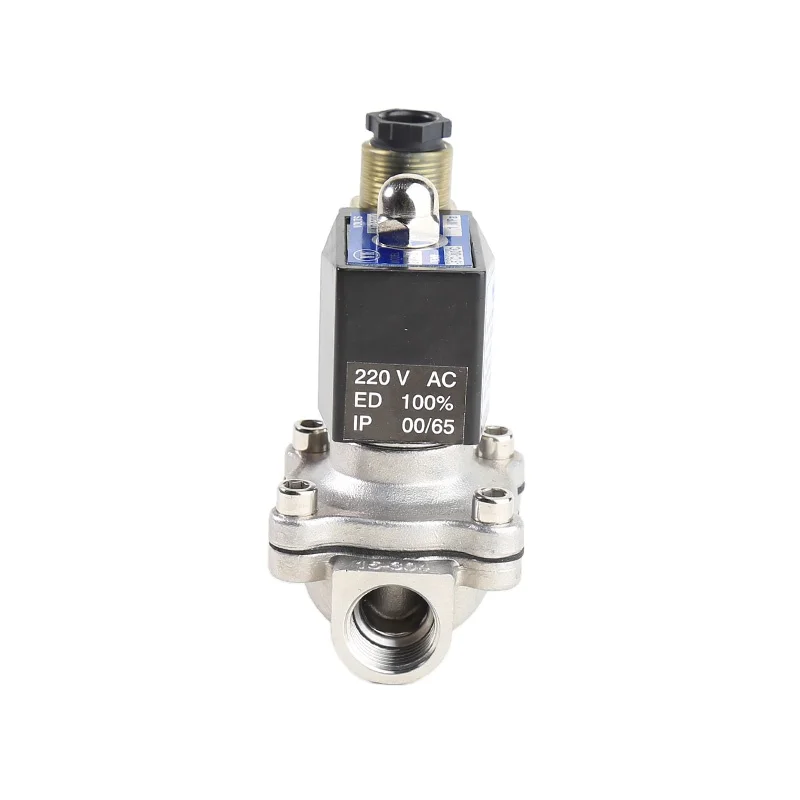

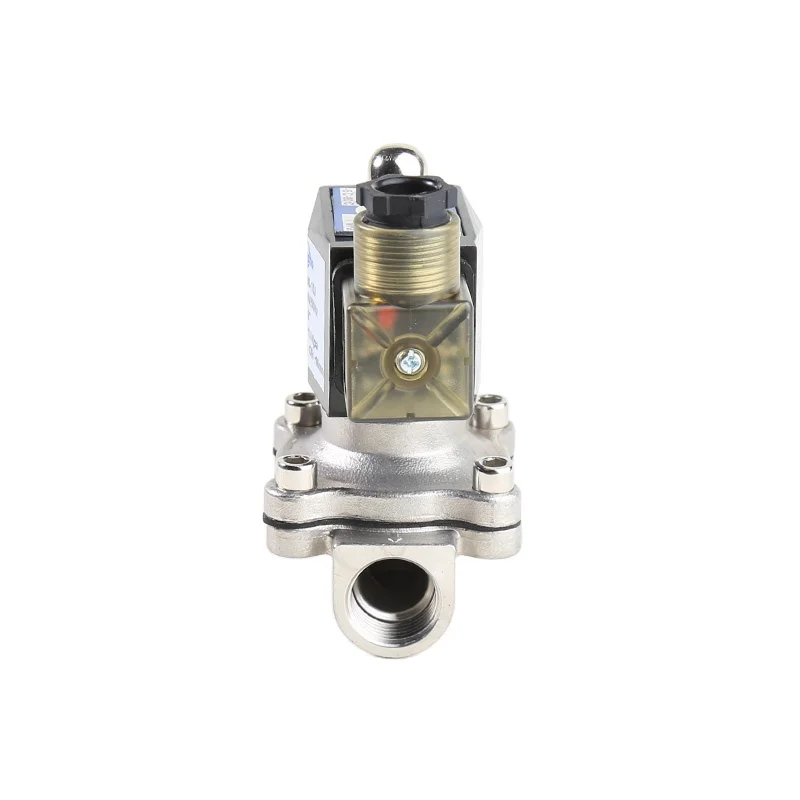

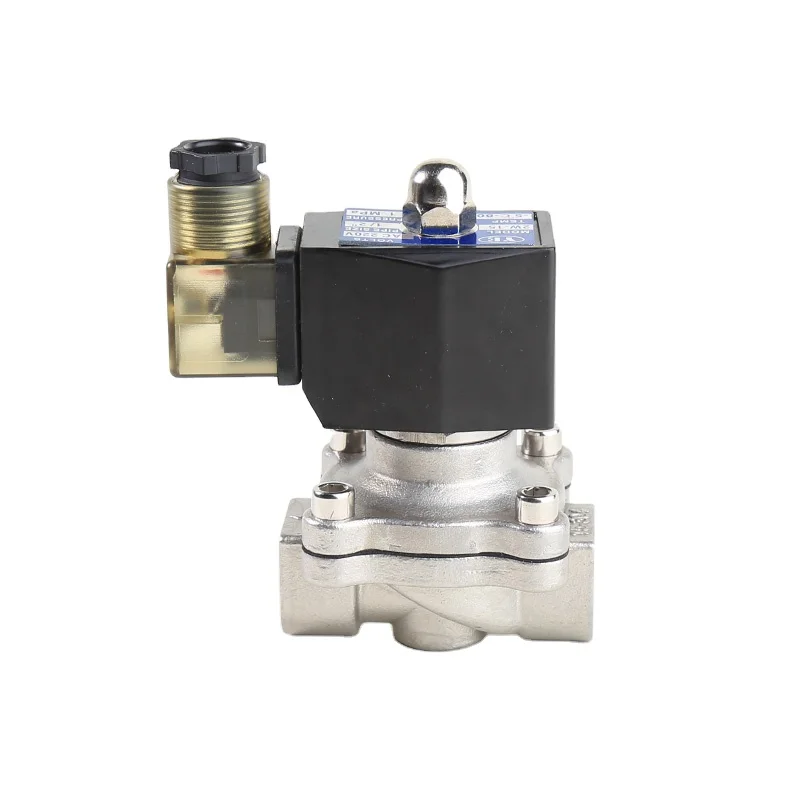

Direct Acting Diaphragm Water Stainless Steel Solenoid Valve



2W160-15J	Pressure:0-1.0Mpa
Material:Stainless Steel	Temperature:-5-80℃
Coil Material:Copper	Voltage:AC220V, AC110V(50Hz/60Hz)
Medium:Water, Gas, Air, Fluid	DC12V,DC24V
Type:Normally Closed	Sealing:NBR, EPDM, FKM

Direct Acting Diaphragm Water Stainless Steel Solenoid Valve

Solenoid Valve Size Chart(mm)
Valve NO.	Orifice	CV	A	B	C	Thread	Weight(kg)
2W160-10J	10	4.8	69	52	112	3/8"	0.78
2W160-15J	15	4.8	69	52	112	1/2"	0.75
2W200-20J	20	7.6	73	57	117	3/4"	0.85
2W250-25J	25	12	98	77	122	1"	1.2
2W350-35J	35	24	111	86	155	1 1/4"	2.0
2W400-40J	40	29	120	94	165	1 1/2"	2.2
2W500-50J	50	48	163	112	190	2"	3.8
2W650-65J	65	60	180	130	215	2 1/2"	4.2



Description

1/2 Inch Direct Acting Diaphragm Water Stainless Steel Solenoid Valve Manufacturer. It's two way two position direct acting diaphragm electric solenoid valve with available voltage AC220V, AV110V, DC24V and DC12V. It can be used for liquid , air, water, gas in a variety of different applications. This valve uses NBR or Viton seal material that is compatible with many liquid such as water up to 80°C. The valve is normally closed, closed when de-energized and open when energized. It is capable of operating at zero differential pressure. This compact solenoid features with female BSP thread or NPT thread.
1/2 Inch Direct Acting Diaphragm Water Stainless Steel Solenoid Valve Manufacturer has four coil with voltage AC220V, AV110V, DC24V and DC12V. The coil head is fitted with a DIN connection that can easily be connected with your own choice of terminals. This model is mountable in any position and features a conveniently positioned arrow on the body to indicate the direction of flow. Its response time is very low; in fact, it acts in less than one second, making it a great choice for all types of applications.
Non-applicable fluid
When the temperature is high, it is liquid, and solid when cooled; Corrsive Fluid; Fluid above 20 cst concentration.
Attention
The impurities in the line must be cleaned first before installation. In order to prolong service life, Y filter should be installed on the front end of solenoid valve.
