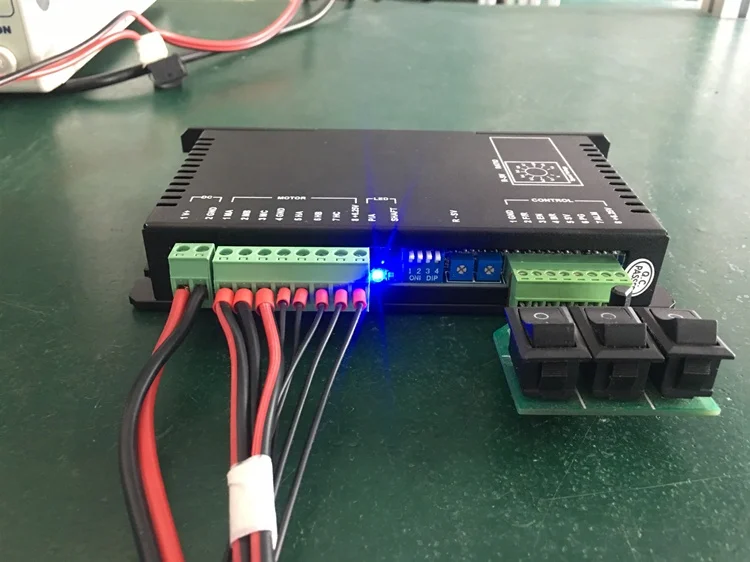

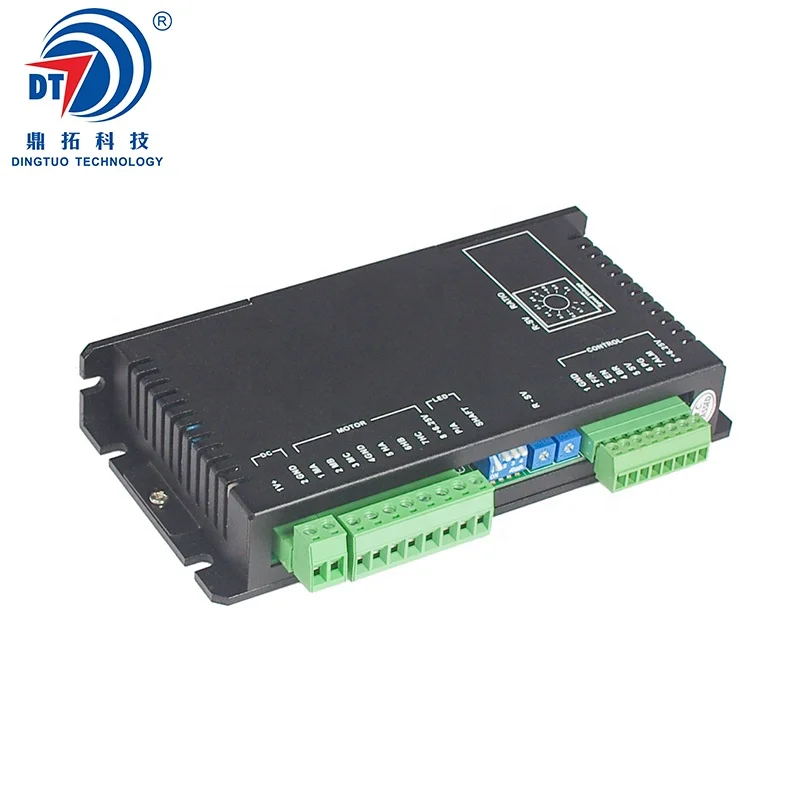

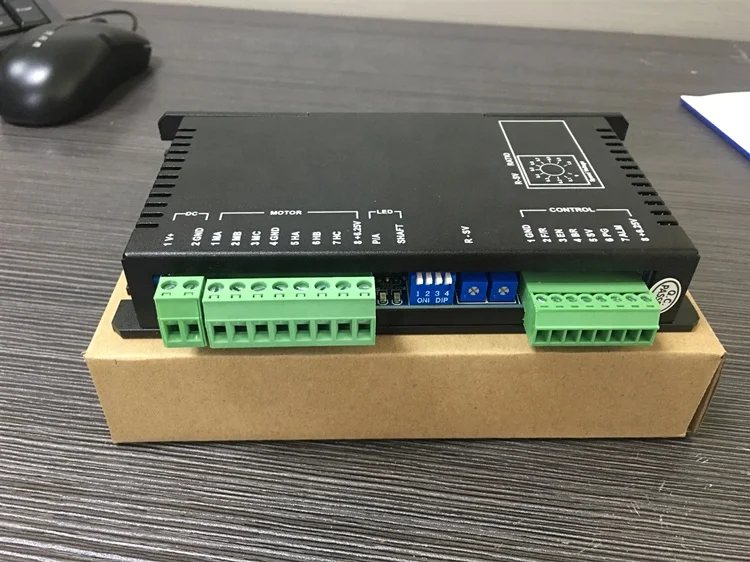

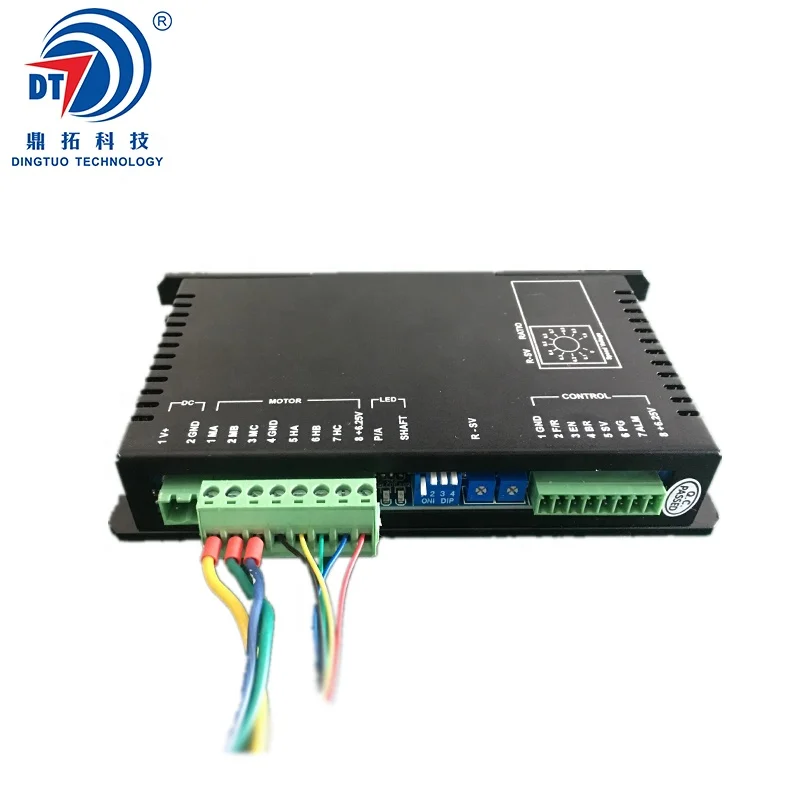

12V 24V 36V Brushless BLDC DC Motor Controller

Summary

This is closed-loop speed controller is designed with the latest type IGBT and MOS power devices. It takes advantage of DC brushless motor's Hall signal to double frequency for closed-loop speed control. PID control links with the speed controller. The control system is stable and reliable, especially at low speed, it always can reach the maximum torque. The speed control range is from 150 to 10000rpm.

Specification and Description

-PID speed and current double loop regulator

-High performance, low price

-20KHZ Chopper frequency

-Electrical stop to ensure the quickly action of motor

-Over load radio larger then 2, torque always can achieve the max in low speed

-Provide OVP, LVP, OCP, OTP, illegal horal signal and other fault alarm.

Product Characteristic

System Characteristic

Input Voltage: 24VDC~36VDC

Continuous input over-load protection current: 5A/15A
Accelerate time constant Default : 2 seconds. Others can be customized
Working temp.: 0~+45
Storage temp.: -20~+85
Working & storage humidity: <85% no frosting

Terminal Connection

1. Power Input

1	V+	24VDC~36VDC input
2	GND	GND input

2. Motor Input

1	MA	Motor A phase
2	MB	Motor B phase
3	MC	Motor C phase
4	GND	GND
5	HA	Hall signal A phase input
6	HB	Hall signal B phase input
7	HC	Hall signal C phase input
8	+6.25V	Hall signal power line

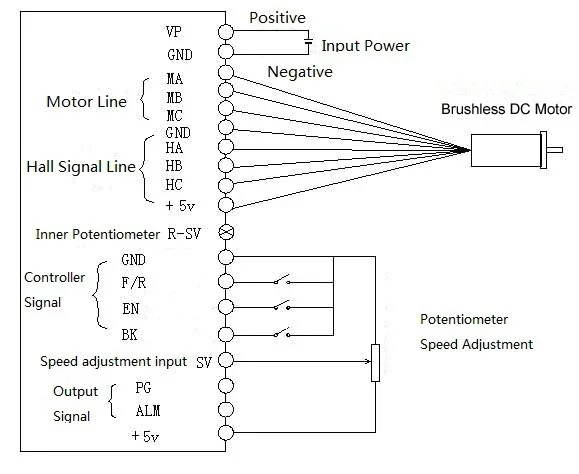

Connection Diagram of motor and driver

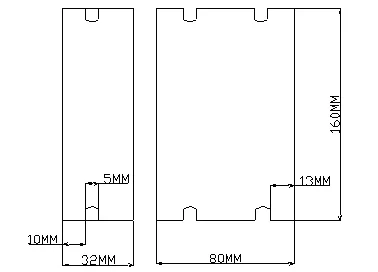

Dimension: 162x83x33mm

Dial Code Switch Description

No.	SW1	SW2	SW3	SW4	State
1	OFF	OFF	OFF	OFF	No working
2	ON	OFF	OFF	OFF	100% Speed
3	OFF	ON	OFF	OFF	80% speed
4	OFF	OFF	ON	OFF	40% speed
5	OFF	OFF	OFF	ON	20% speed

Inner potentiometer 1: Adjusting the speed gain of the motor, in the range of 0~100%
Inner potentiometer 2: Max. protection current setting. build-in potentiometer can be set the current 20%~100% for current protection. Generally the current is set to the maximum to ensure the torque characteristics of the motor.

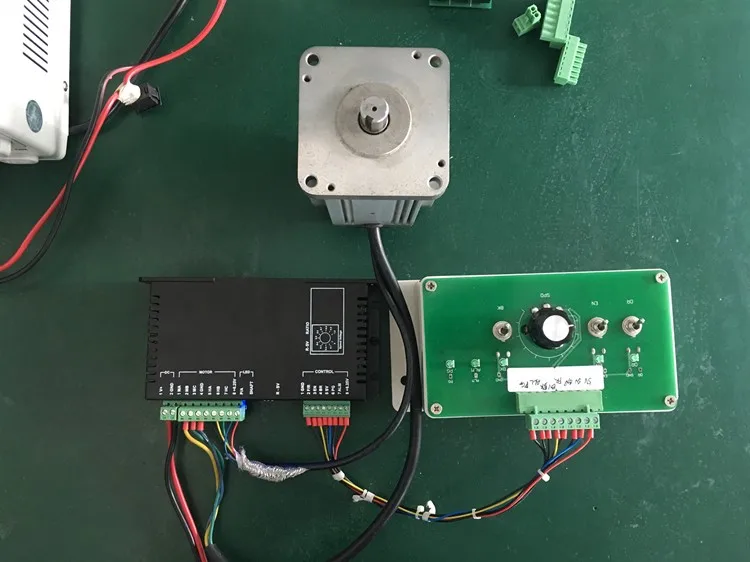

Application

Customized Application Case

Certificates

As CE, ROHS, National Hi-tech Enterprise certified quality company, we strictly abide by Quality Control System, pursuing continuous improvement of products quality.

CE Declaration
DINGTUO' assures that our motors meet the European Norm Standard.

RoHS Compliant
DINGTUO' is committed to offering products compliant with the EU RoHS directive.

National Hi-tech Enterprise
DINGTUO continues to carry out research and development and transformation of technological achievements in the "High-tech Fields Supported by the State", and forms core intellectual property rights of the enterprise, and conducts business activities based on this.

Computer Software Copyright Registration
DINGTUO obtained the computer software copyright registration certificate issued by the Copyright Bureau to realize the protection of computer software developed independently.

Customer Evaluation

Customer satisfaction is DINGTUO's primary aim, our drives and motors are designed to your exact specifications and we choose the right materials for client's samples.

Our Company

Who we are

Shenzhen Dingtuoda Electromechanics Co.,Ltd(DINGTUO TECHNOLOGY) was established in 2006. As a professional electric motor and driver manufacturer operating over 13 years, DINGTUO is first and foremost a reflection of its people.

Our company focus on professional R & D, production and sales of Servo/Stepper/BLDC motor system. We also committed to provide Customized OEM & ODM services to Global electrical distributors, industrial equipment manufacturers and automotive markets.

DINGTUO manufacturing center covering area around 2,500 M², and owning three production workshops, 9 production lines.

We are also continuously improving the performance and power efficiency of our products to help our customers enable new markets and applications.

Technology & Innovation

Manufacturing

Quality and delivery are the most important aspects of DINGTUO Motor Driver's manufacturing processes. DINGTUO prides itself on offering the highest quality products with the best possible delivery times. It all begins with DINGTUO's manufacturing process. DINGTUO manufactures all of its products under strict quality standards at plants within Guangdong China.

Quality is Built-In

DINGTUO operates in a Just-in-time and a Lean Manufacturing environment. Quality is built-in to the product throughout the entire manufacturing process. This is achieved by utilizing the One-Piece Flow System on our Flexible U-line work cells wherein all necessary equipment are positioned in the sequence in which it is used. In the simplest of terms, one-piece flow means that each motor is carefully built one-piece-at-a-time allowing it to be thoroughly inspected and tested, thus, quality defects are easily detected and contained.

Additionally, defect prevention is also the direct result of the continuous error proofing of our processes.

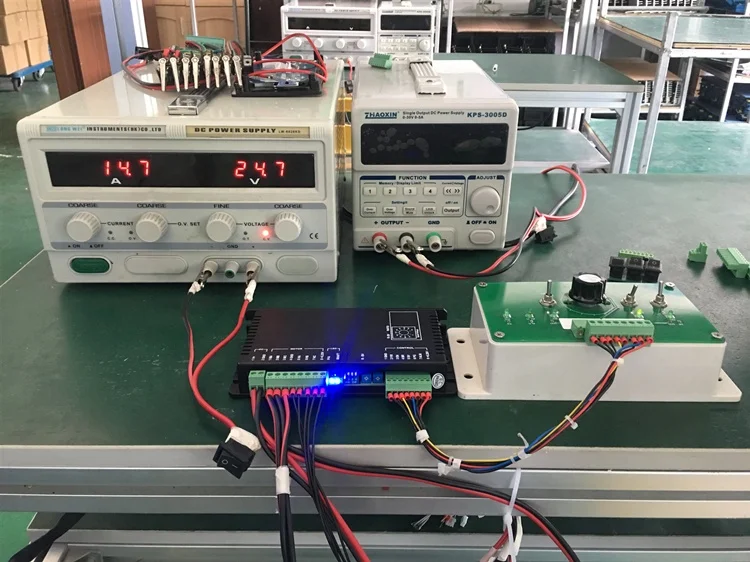

Product Testing

Every DINGTUO product undergoes reliability testing before they are released to the market. These test subject the product to the harshest of operating conditions and intentional misuse to discover the limits of their durability.

1 Year Warranty

DINGTUO stands behind every product with a 1 Year Warranty. Visit our warranty section for complete details.

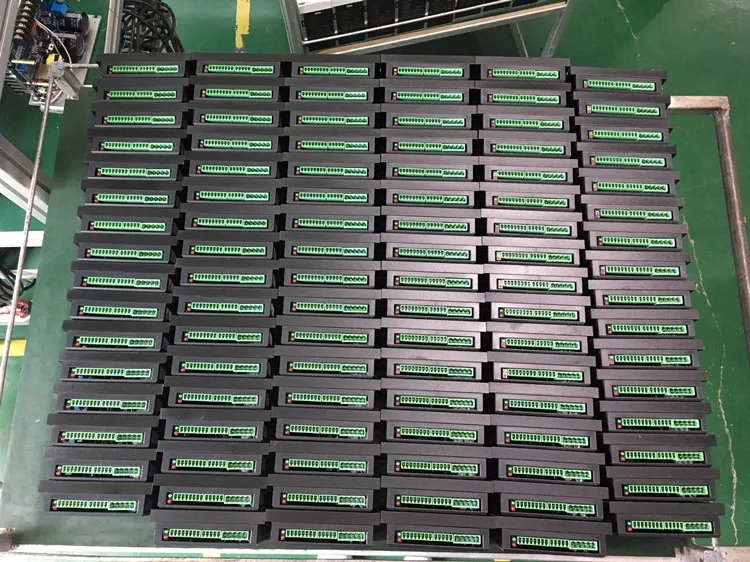

Production Line
