Китай поставщиком древесины мебель ламинационная машина/вакуумная мембранная пресс для деревообработки TM 2480E 2

Product Overview

Description

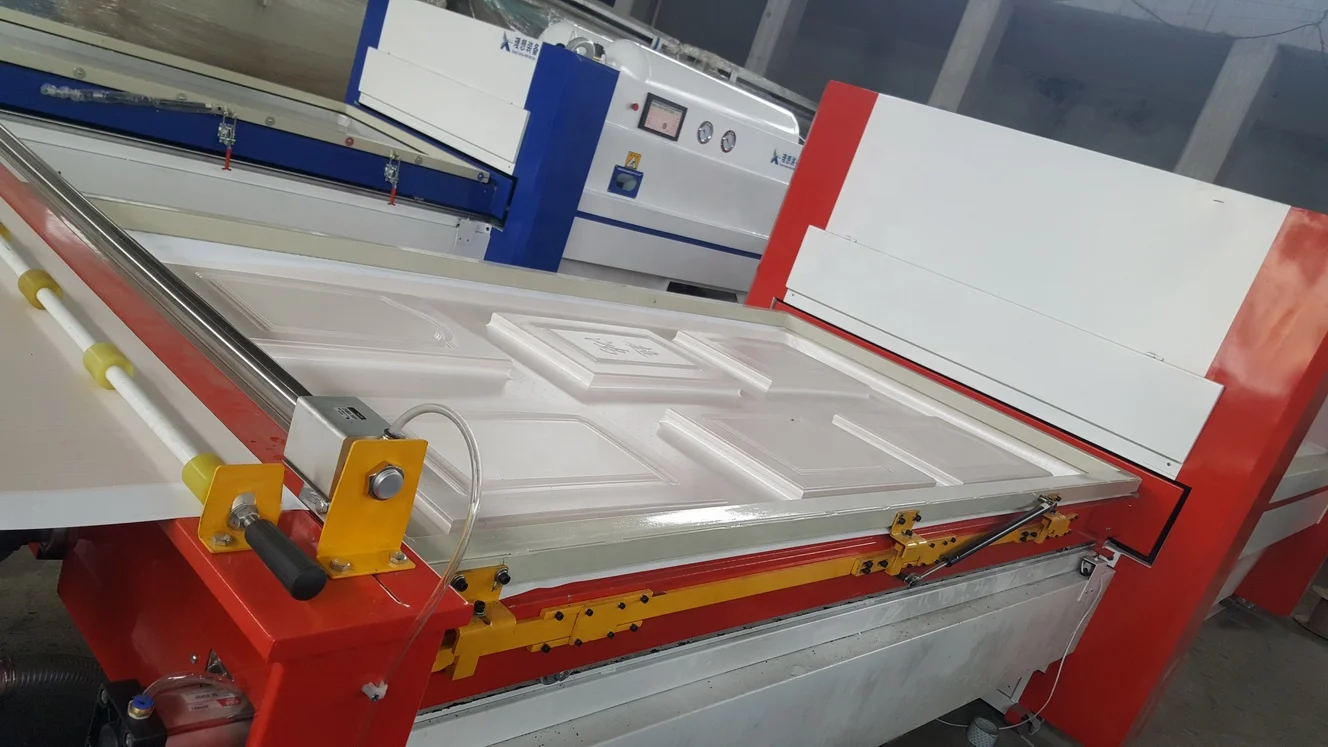

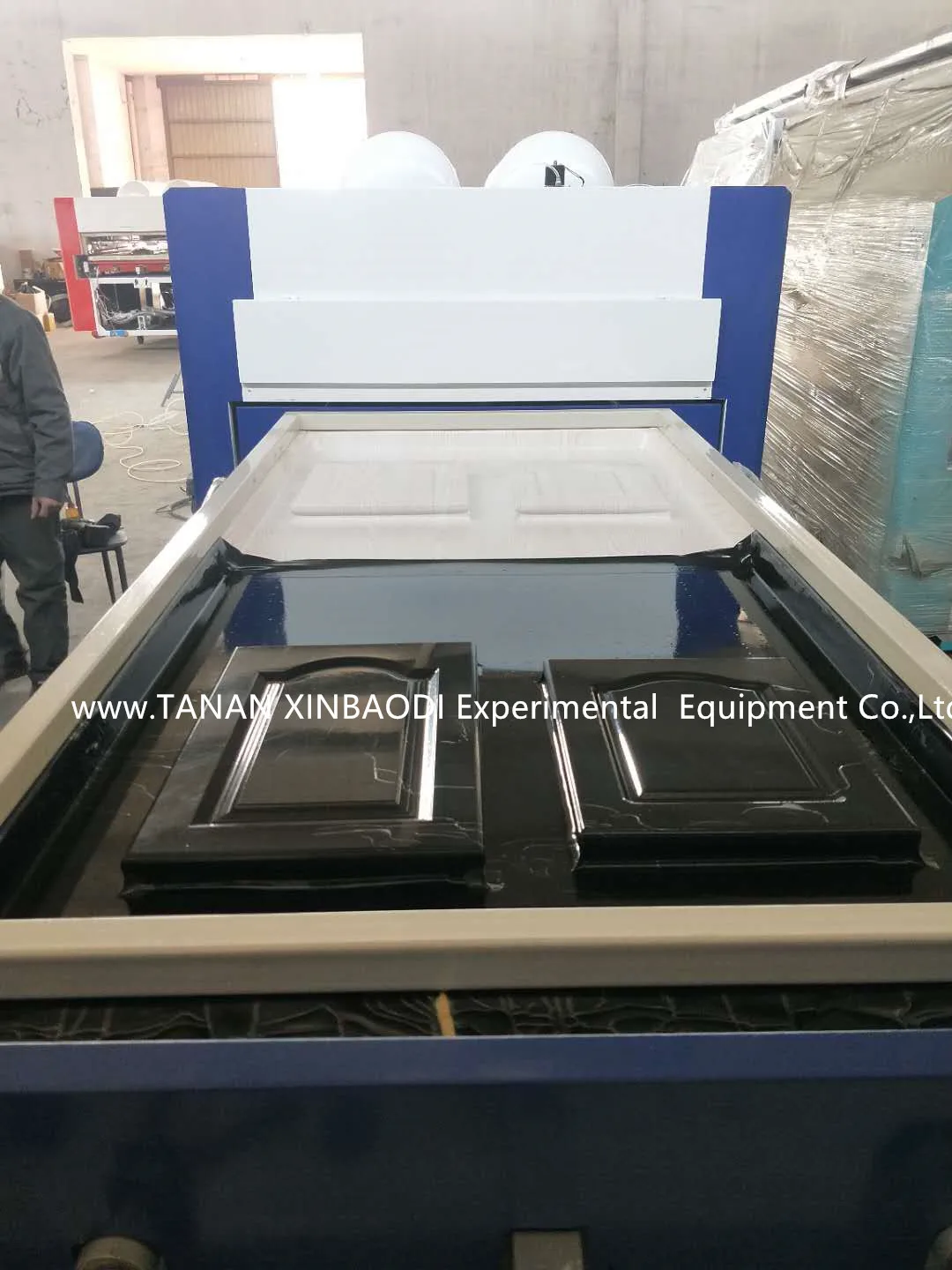

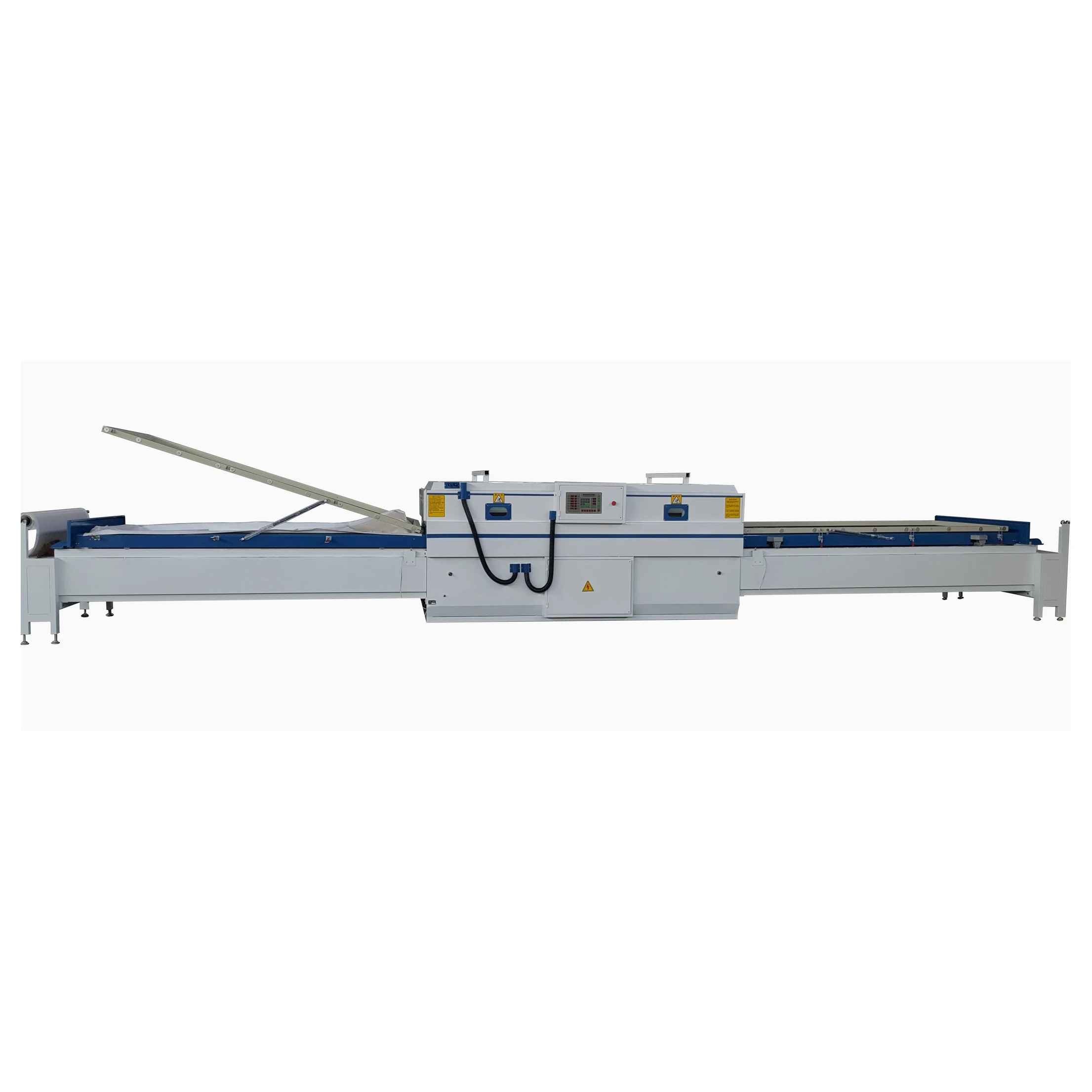

LB-TM2480E-2 vacuum membrane press machine for wood furniture

Specifications

1 Power: 27kw
2 Overall Dimension:Overall Dimension
3 pressure: 0.9Mpa
4 Overseas service center available
5 CE

LB-TM2480E-2 vacuum machine just for decoration



Brief Introduction of LB- TM2480 vacuum machine just for decoration

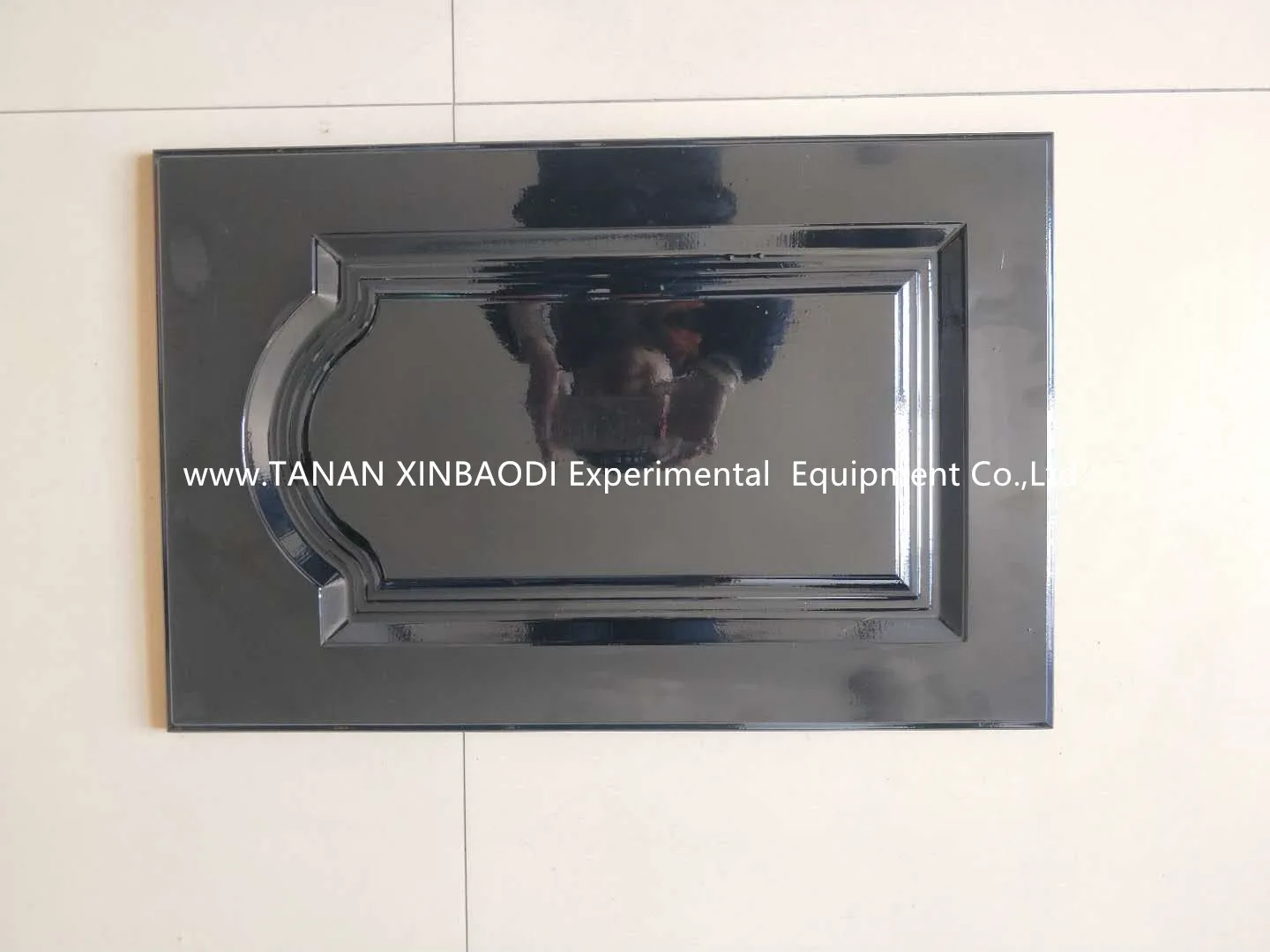

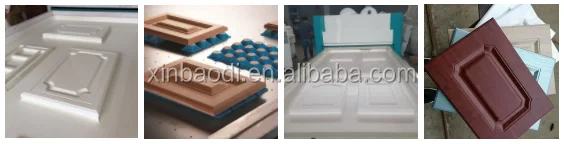

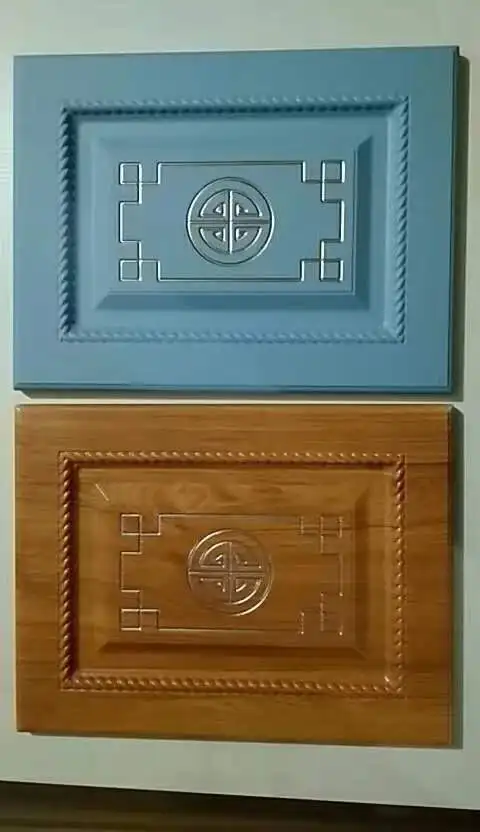

TM2480 vacuum machine just for decoration can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes. With a special silicon sheet, it can also work with hot transfer and veneer.

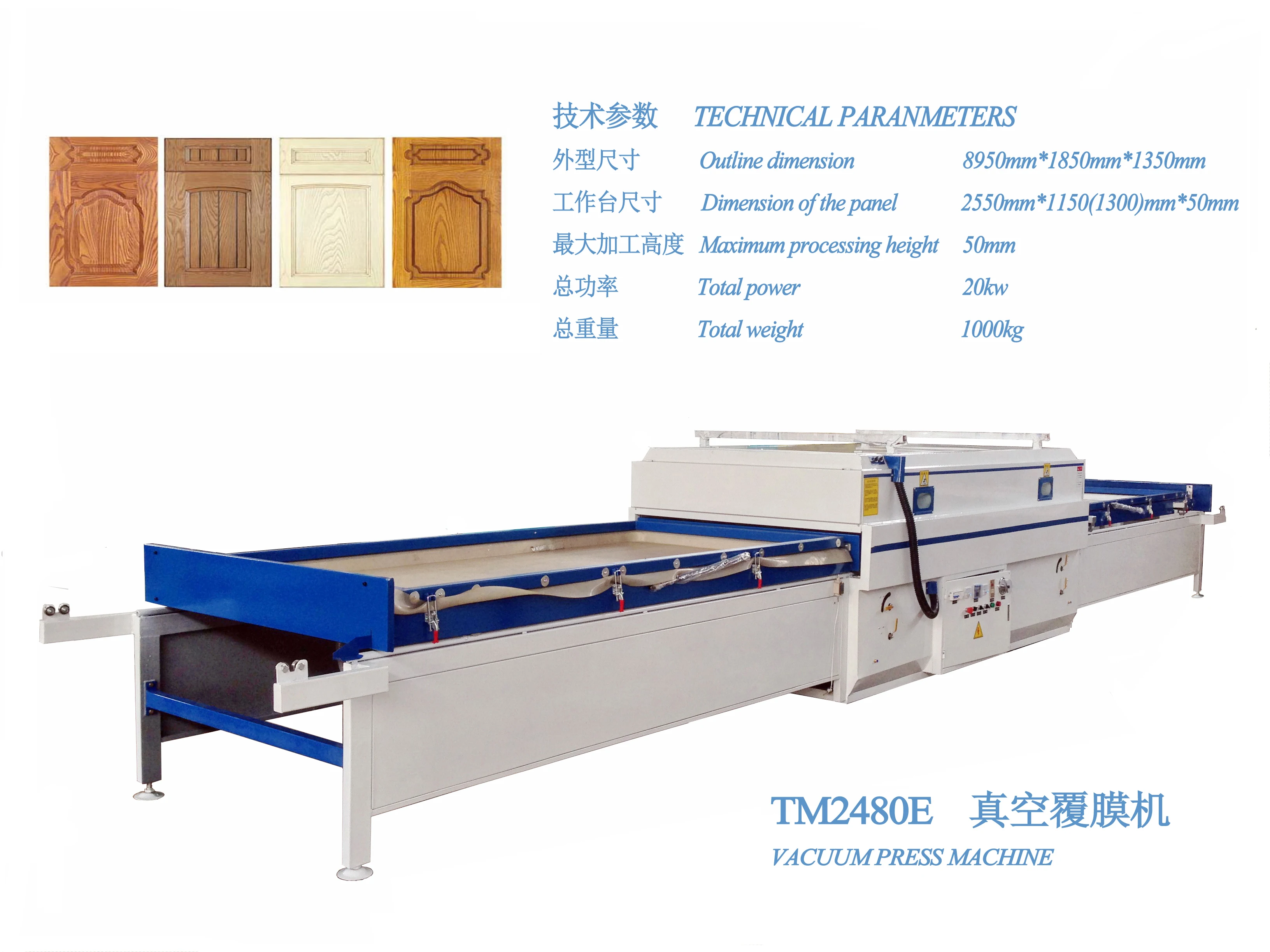

Technical Specification Of LB- TM2480E vacuum machine just for decoration







Overall Dimension	8950×1850×1350mm
Platen Size	2550×1150×50mm
Rated working pressure	Negative pressure ≥-0.095Mpa
Power	20kw
Heating	upper and lower heating
Actual Power Consumable	8kw
Weight	2T
Voltage	380V 50HZ / 220V 60HZ
Packing Size	3500×2100×2400mm



Features of  LB-TM 2480E vacuum machine just for decoration



1. The electronic part of vacuum machine just for decoration is fully automatic and digitalized control. The components are produced by famous domestic enterprises with good quality. The temperature is controlled by computer chips so that the heating speed is adjustable and the temperature can be perfectly managed.



2. Use infrared heating system and high quality heat preservation material, which can ensure even heating and energy saving.
3. This machine uses integrated movement electromotor. It produces less noise and seldom breaks down.
4. This machine uses Germany technology vacuum pump. It is stable and reliable and the maintenance work is simple. (You can also opt for German-made vacuum pump, which is strong and tough).
5. Large volume vacuum tank. It charges with double channels so that it can work with strong power.



Exterior size 5800(one plate)/8800(double plate)×1500×1400mm
Working plate size 2550×1150/1300mm(inner size)
1150mm for PVC door, width of PVC film more than1260mm
1300mm for cabinet, width of PVC film more than 1400mm
Maximum height of the work piece 50mm
Rating working pressure Negative Pressure≥-0.095Mpa
General Power 15kW(the power may be different for different devices)
Actual power consumption About 5kw
Weight About 2/2.5T
Top temperature 180°C

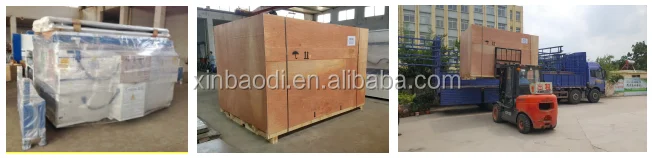

Package

The package is wooden case or plywood case, if you need, we can also pack the products according to your demands





Customer visiting





Contact

TAIAN XINBAODI EXPERIMENTAL EQUIPMENT CO., LTD

Add : NO. 1#-2-402,WEST OF DONGYUE STREET, TAIAN CITY, SHANDONG, CHINA

Mob:0086-13562896072

WeChat: 0086-13562896072

WhatsApp: 0086-13562896072

Skype: testbench201010

E-mail: testbenchina*yahoo.com

Website: https://xinbaodi.en.alibaba.com

www.testbenchchina.com





FAQ

Q: How many days to produce this test bench?

A: It need 5-20 days to produce the test bench.

Q:How can I pay for it?

A:We support TT payment, West Union, and L/C etc.

Q:How to sign an order?

A:We can sign an order offline or online on Ali.

Q:How long of warranty?

A:12 months

Q:Do you have some tools?

A:Yes, we have many kinds of tools and spare parts.



After sales Service:



1).One year warranty for machine, free maintenance service within this period.



2).7 days*24 hours online answer via skype, email.



3).Free training



4).Install ,Testing ,Training can be in your factory /workshop
