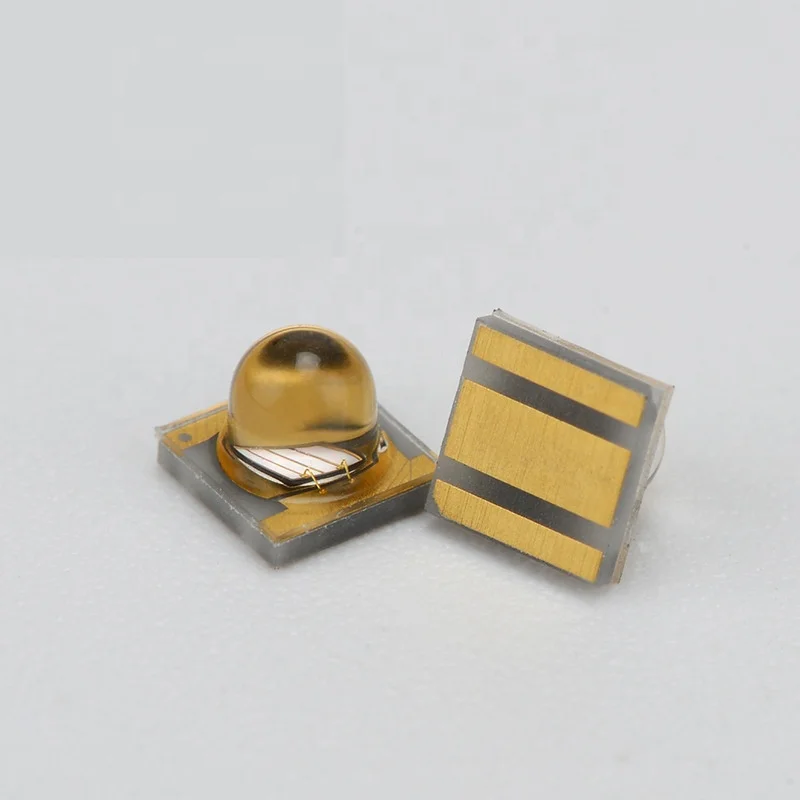

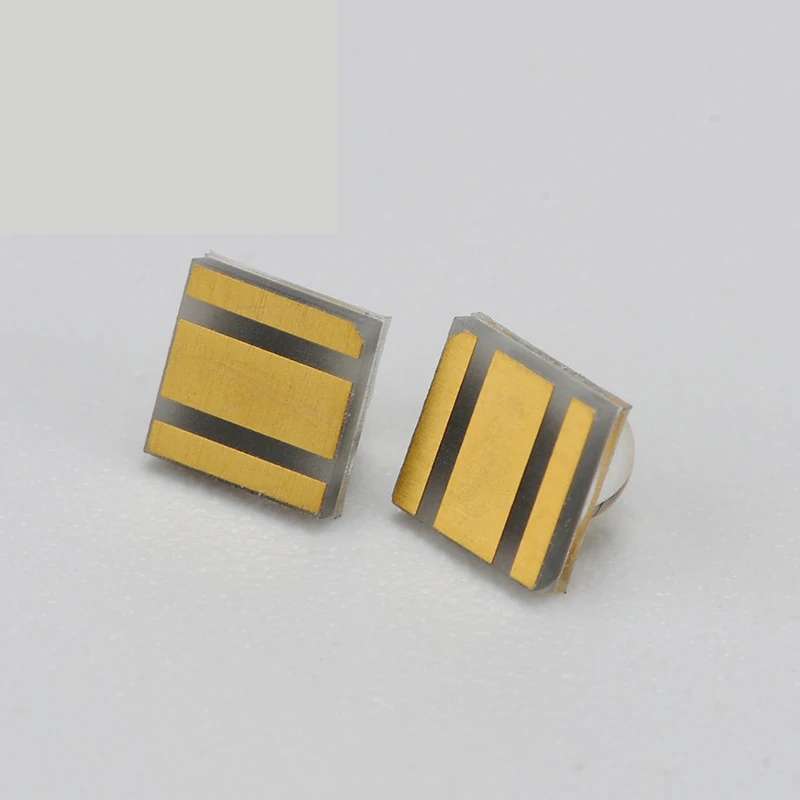

1 Вт 3 Вт высокой мощности SMD 3535 UV LED 365nm 385nm 395nm 405nm 415nm 425 435nm

Product Overview

Description

Order Code	Voltage (V)	Peak     Wavelength (nm)	Radiant   Power (mW)	Radiant Intensity (mW/sr)	Current (mA)	Half Width (nm)	Angle (0)	Electric power (W)
HYR35X43B365KN-D1	3.5-4.0	365-370	1500-2000	375	700	9	120	3
HYR35X43B380KN-D1	3.2-3.6	380-390	1800-2300	455	700	10	120	3
HYR35X43B395KN-D1	3.0-3.4	395-400	1700-1900	438	700	15	120	3
HYQ35G45N400KN-D1	3.0-3.4	400-410	1300-1500	355	700	17	120	3
HYQ35G45N410KN-D1	3.0-3.4	410-420	900-1100	346	700	17	120	3
HYQ35G45N420KN-D1	3.0-3.4	420-430	900-1100	324	700	16	120	3
HYQ35G45N430KN-D1	3.0-3.4	430-440	700-800	335	700	19	120	3
HYR35G30N365KN-D1	3.5-4.0	365-370	1000-1200	238	500	11	120	2
HYQ35G40P395KO-D1	3.2-3.4	395-397	600-800	187	500	20	120	3
HYR35X43B365KN-X1	3.5-4.0	365-370	1500-2000	375	700	9	60	3
HYR35X43B380KN-X1	3.2-3.6	380-390	1800-2300	455	700	10	60	3
HYR35X43B395KN-X1	3.0-3.4	395-400	1700-1900	438	700	15	60	3
HYQ35G45N400KN-X1	3.0-3.4	400-410	1300-1500	355	700	17	60	3
HYQ35G45N410KN-X1	3.0-3.4	410-420	900-1100	346	700	17	60	3
HYQ35G45N420KN-X1	3.0-3.4	420-430	900-1100	324	700	16	60	3
HYQ35G45N430KN-X1	3.0-3.4	430-440	700-800	335	700	19	60	3
HYR35X43B365KN-S1	3.5-4.0	365-370	1800-2300	1270	700	9	45	3
HYR35X43B380KN-S1	3.0-3.4	380-385	1800-2300	1230	700	10	45	3
HYR35X43B400KN-S1	3.0-3.6	400-405	1700-2000	1150	700	13	45	3



Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
