electric motor 25mm pm linear stepper motor

Product Overview

Description

 Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:





1. PM Stepper Motor:



Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048





2. PM Stepper Motor with gearbox(with different gear ratio):



Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048





3. PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)









Application :



HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics





Highlights :



Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushless

Winding possibilities – Bipolar







General Specification:



Item	Specification
Step Angle Accuracy	±8%(full   step, no load)
Resistance Tolerance	±10%
Inductance Tolerance	±20%
Temperature Rise	80.C Max.(rated current,2   phase on)
Ambient Temperature	-20.C~+50.C
Insulation   Resistance	100MΩMin.   ,500VDC
Dielectric Strength	600VAC   , 1s , 3mA







Specification:



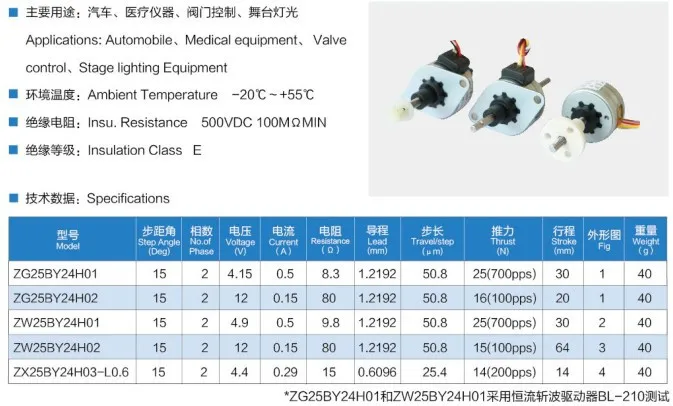

Model	Step Angle (Deg.)	No. of     Phase	Rated   Voltage (VDC)	Current/Phase (A)	Resistance     /Phase(Ω)	Step Avail   (mm)	Pull-in Torque (gf.cm)	Max Starting   Frequency (pps)	Holding Torque (gf.cm)	Wire     Diagram

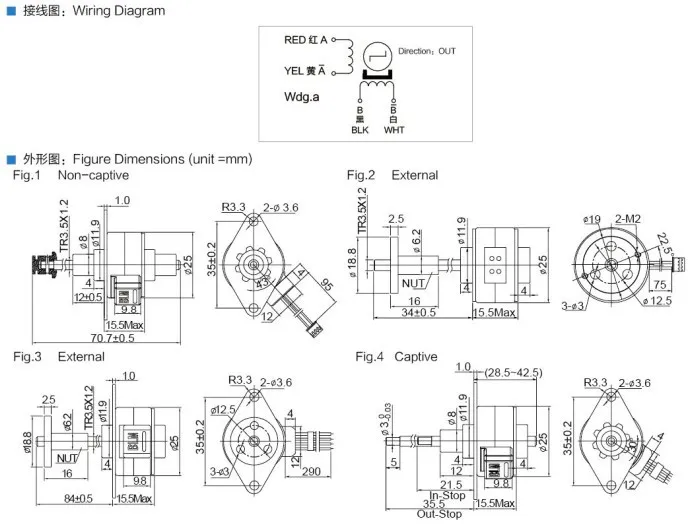

PL25T-048-01A	7.5	2	5	0.34	14.7	0.0508	25	450	120	a
