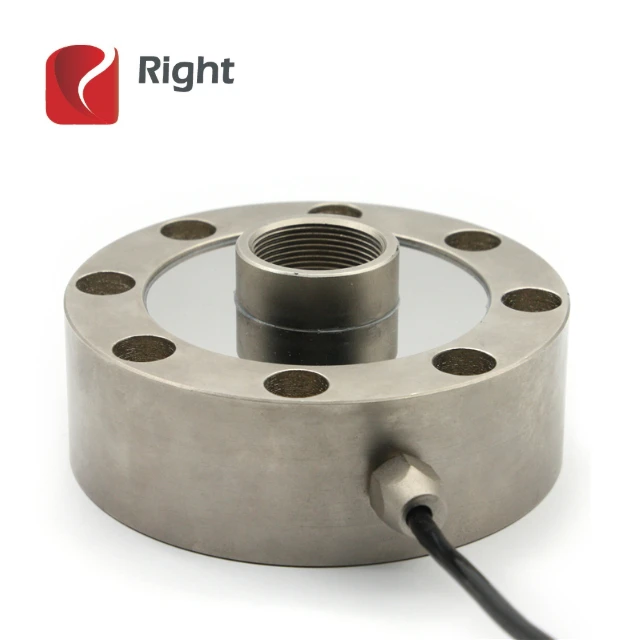

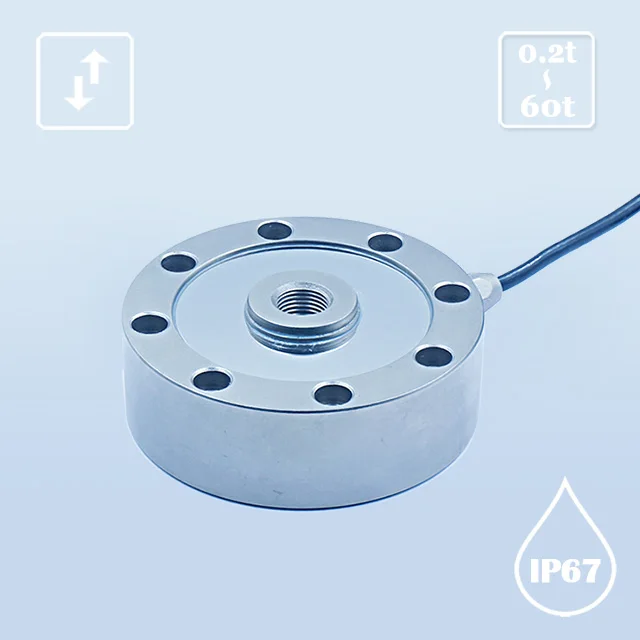

T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell
T312 compression and tension Universal Pancake Load Cell

T312 compression and tension Universal Pancake Load Cell

Share on (62077905713):


Price:$46.00 - $125.00

Quantity:


Product Overview

Description



Products Description


Specifications
Capacity
0.1,0.2,1,2,3,5,10,15,20,25,30,50,60t
Rated output
2.0±1%mV/V（50-500kg ,50-60t）
3.0±1%mV/V（1,30kN）
Zero balance
±1% F.S.
Non-linearity
0.03%F.S.
Hysteresis
0.03%F.S.
Repeatability
0.03%F.S.
Creep(30min)
0.03%F.S.
Temp.effect on output
0.02%F.S./10℃
Temp.effect on zero
0.02%F.S./10℃
Input impedance
780±10Ω
Output impedance
700±5Ω
Insulation
≥5000MΩ/100VDC
Recommended excitation
5~15V
Maximum excitation
20V
Compensated temp range
-10~40℃
Operation temp range
-10~70℃
Safe overload
150%F.S.
Ultimate overload
200%F.S.

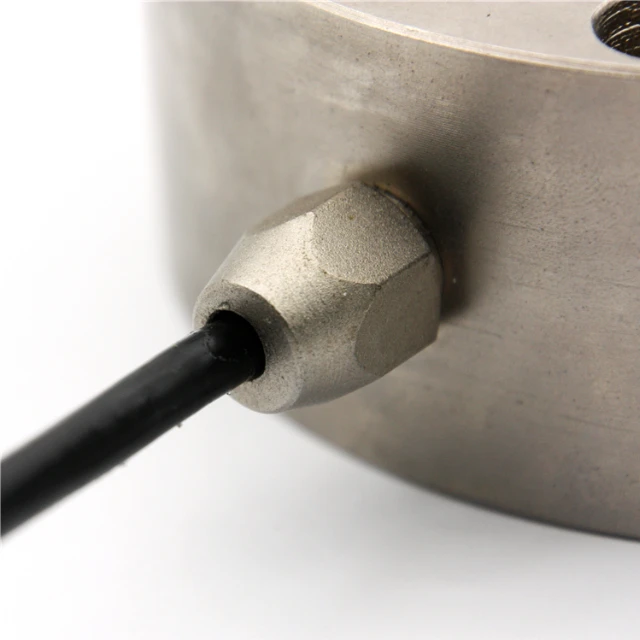

Cable size
φ5×6000mm
Material
aluminum alloy and stainless steel














Application Show








Company Profile




Certifications




Related Product Display




FAQ


Q1. What are your terms of packing?
A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container.
Q2. How about your delivery time?
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.
Q3. What is your terms of payment?
A: T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay thebalance.
Q4. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
