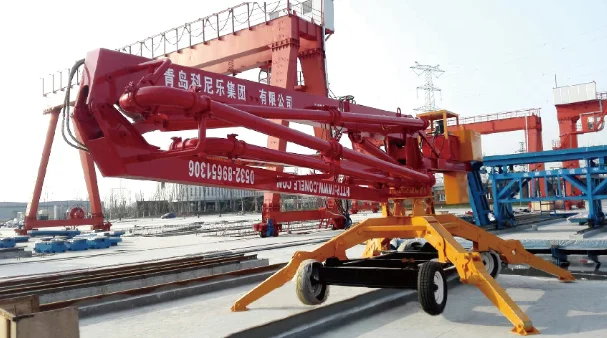

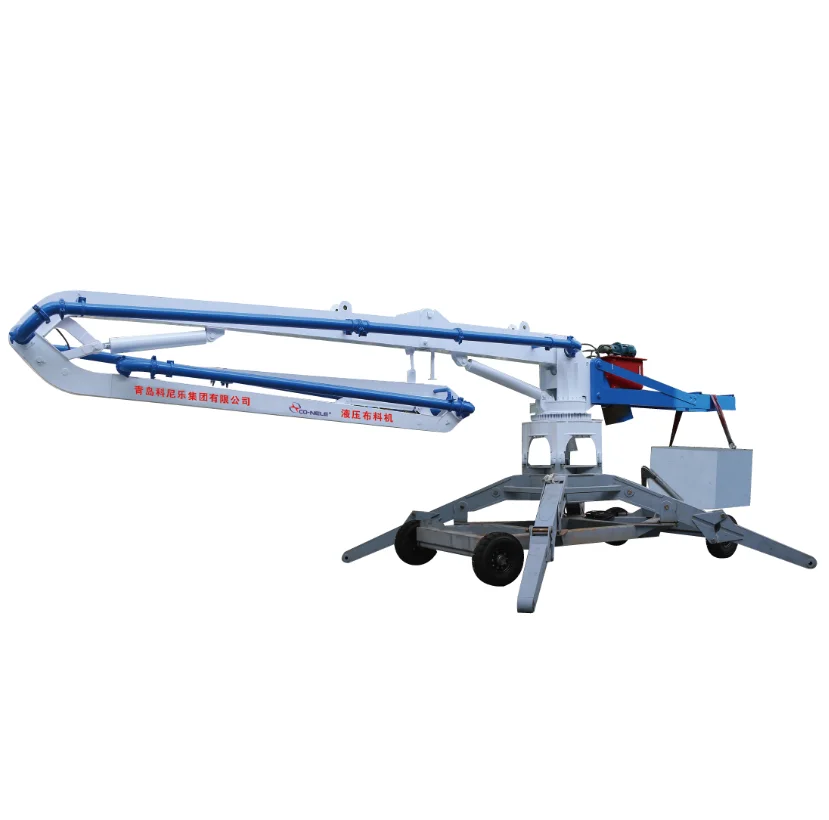

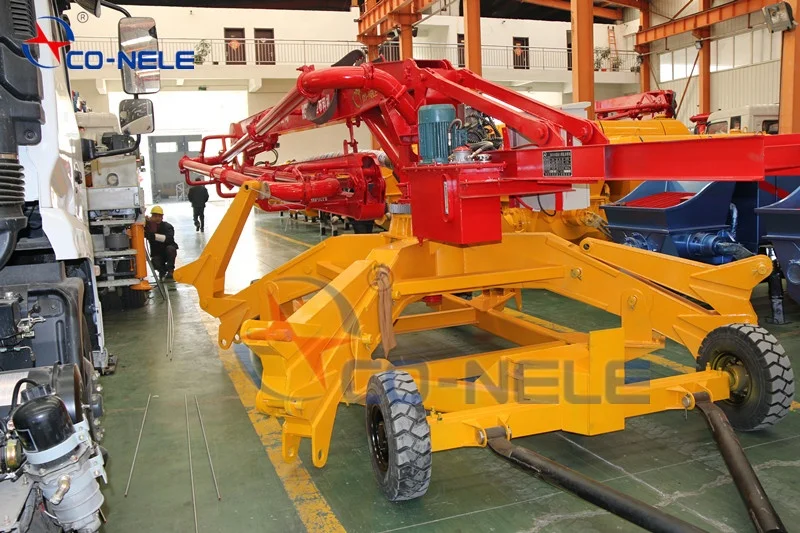

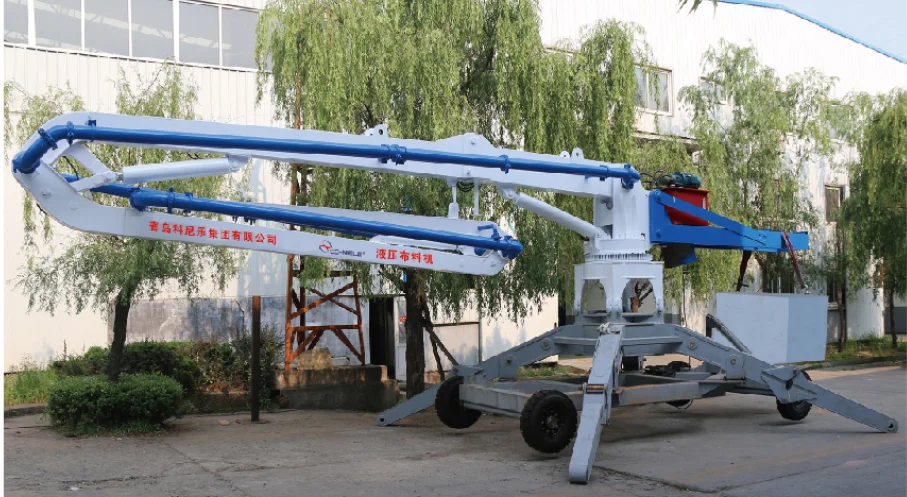

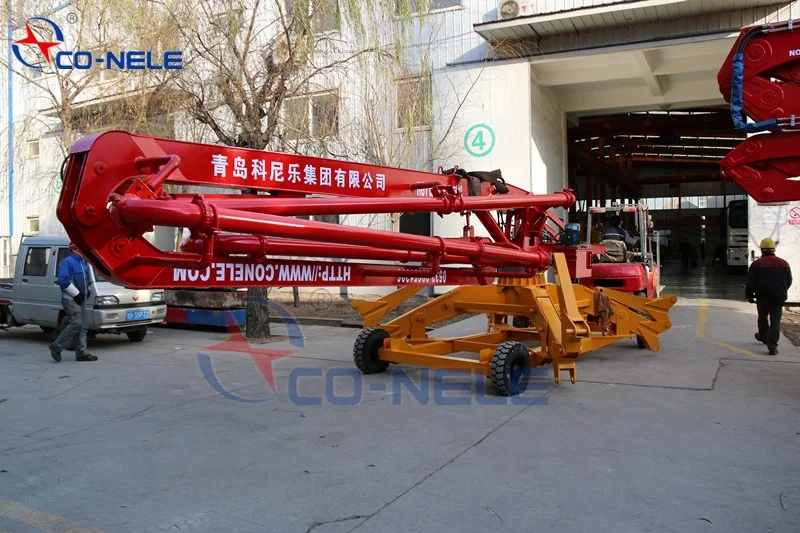

Excellent products Mini Mobile Type concrete placing boom for transporting concrete
- Category: Concrete Spreader >>>
- Supplier: Qingdao CO-NELE Group Co. Ltd.
Share on (62078210836):
Product Overview
Description
Product Description
Paramrameters

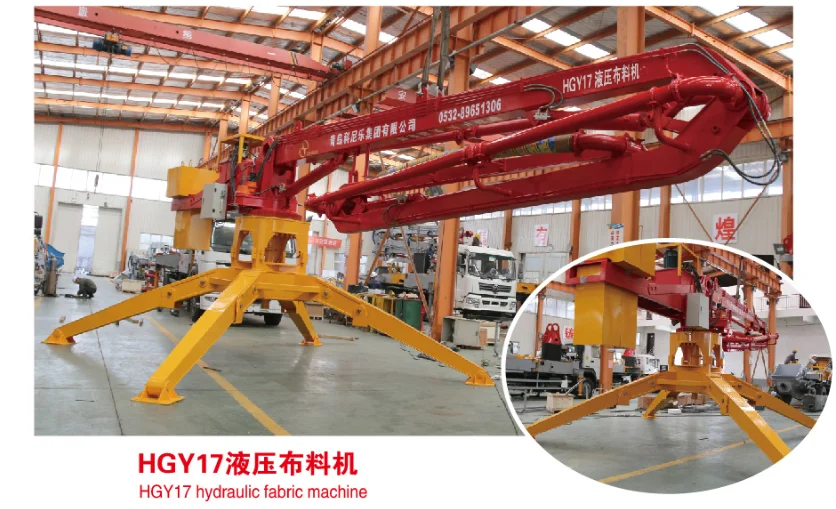

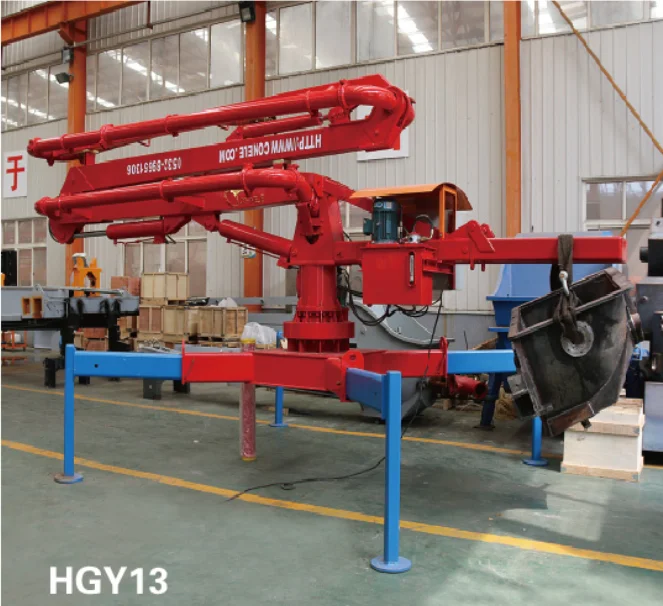

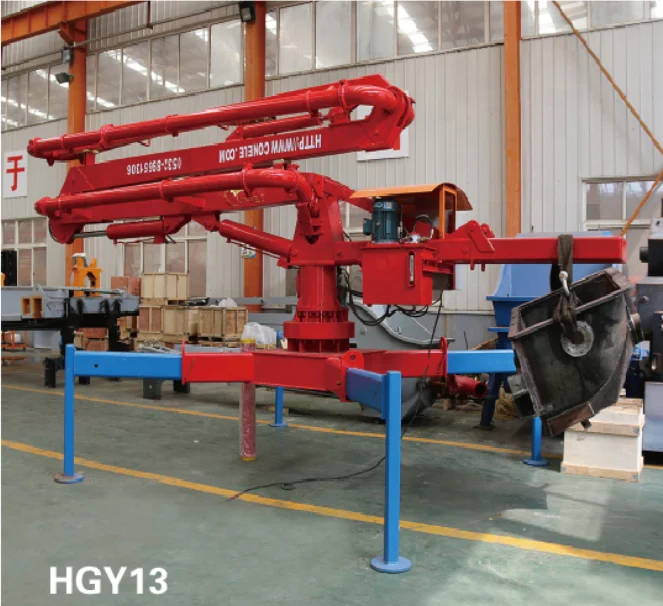

| Model | HGY13 | HGY15 | HGY17 | HGY21 | HGY23 | |
| Performance | Horizontal reach | 13 | 15 | 17 | 21 | 23 |
| Rotation | 360° | |||||
| Elevation angle(°) | 0-84 | 0-89 | 0-84 | 0-90 | -4-90 | |
| Slewing brake | Normally closed | |||||
| Working environment temperature | -5℃-40℃ | |||||
| Without /With counterweight | 2.7/4.3 | 3.23/5.43 | 5/7.2 | 7.7/9.9 | 8/10.2 | |
| Outtigger Span | 3270*3270 | 4000*4000 | 4230*4230 | 4230*4230 | 4230*4230 | |
| Control System | Power | 380V/50HZ | ||||
| Output(KW) | 4 | 5.5 | 22 | |||
| Protection grade | IP54 | |||||
| Insulation class | F | |||||
| System Pressure | 16 | 18 | 32 | |||
| Control mode | Cable/Radio remote | |||||
| Boom | Duct cleaning method | Wash/Dry cleaning | ||||
| Boom open way | Three Z | Three R | ||||
| Inner diameter of delivery pipe | 125 | |||||
| End rubber hose | 3 | |||||
| Length | 3700/4520/4780 | 6000/5000/4000 | 6670/5720/4610 | |||
| Corner | 84/210/180 | 89/180/180 | 84/180/180 | |||
Our Company
3 production bases (Qingdao,Shanxi,Guangxi)

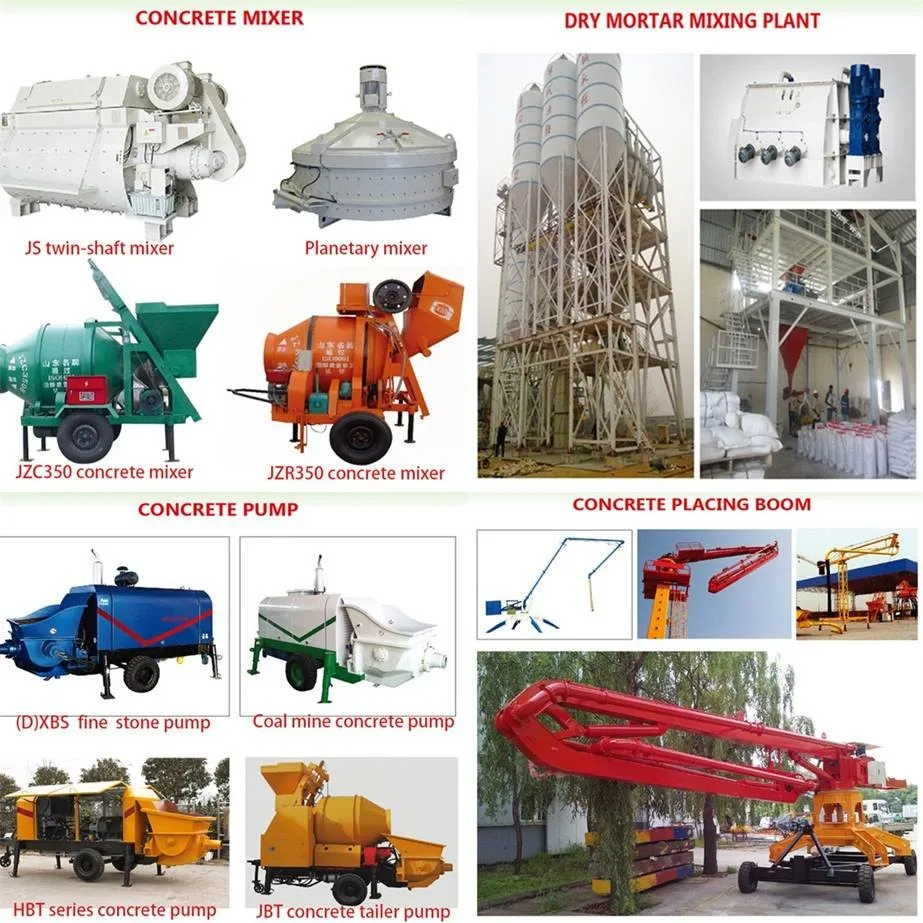

CO-NELE Group Co. Ltd. specializes in the manufacture of large-scale construction machinery. we combine technical research, producing, sales and after-sales service together. Our company is people-oriented, considers science and technology as the basis of its prosperity, invites talents widely, introduces advanced technology from home and abroad, adopts up-to-date crafts and scientific means of testing. All these make our products including HBT series concrete pump, XBS series fine stone concrete pump and mini concrete pumps for large aggregates,PJB series spraying pumps and SLJ series continuous feeding mixer, have more reliable performance. So our products are very popular with clients in construction industry.
At present, our products could be found all over China and have been exported to Russia, Kazakhstan, Pakistan, Iran, Mongolia, Philippines, Singapore, Malaysia, Vietnam, Indonesia, Australia, Romania, Armenia, Egypt, Niger, Nepal, Congo, Mauritius and other countries. The products of CO-NELE GROUP CO,.LTD are serving clients world-wide with superior performances.
3 production bases (Qingdao,Shanxi,Guangxi)
26years' experience (R&D,producing, sales and after-sales service

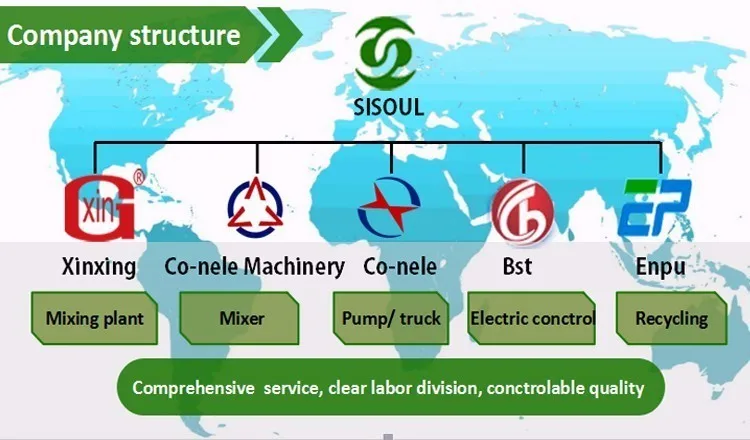

28 subsidiaries (Xinxing,Conele,Qingke,Parkhome etc.)
1000 employee (come from China,Indoesia,Thailand,Pakistan,etc.)
Certificate

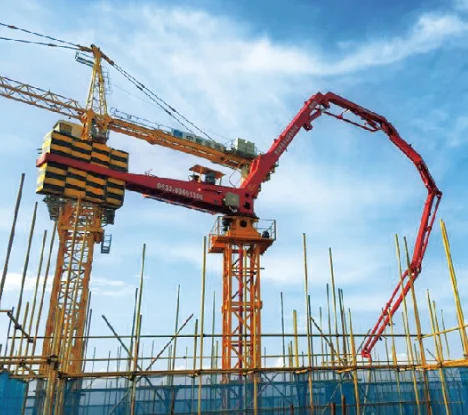

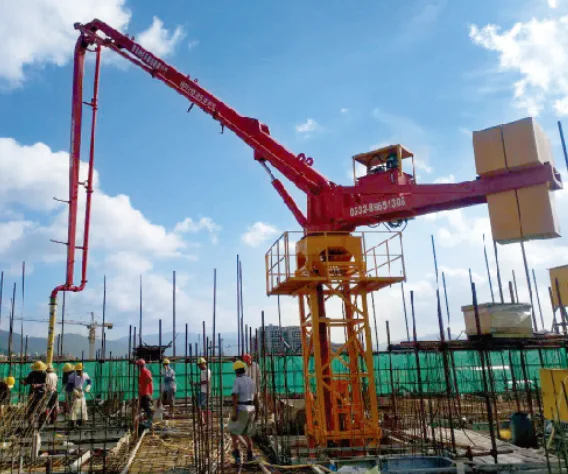

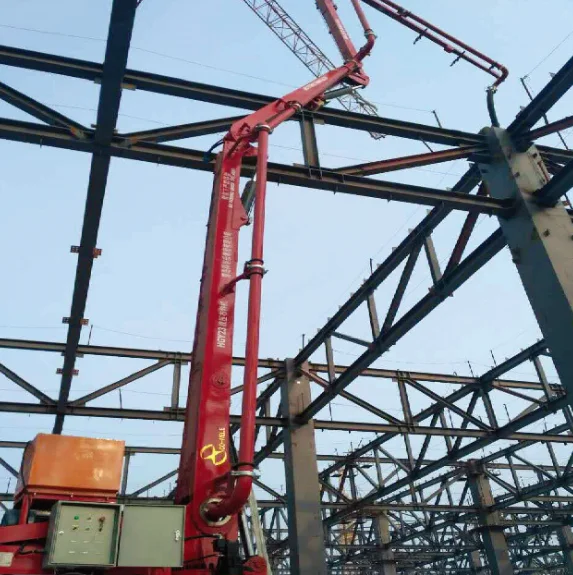

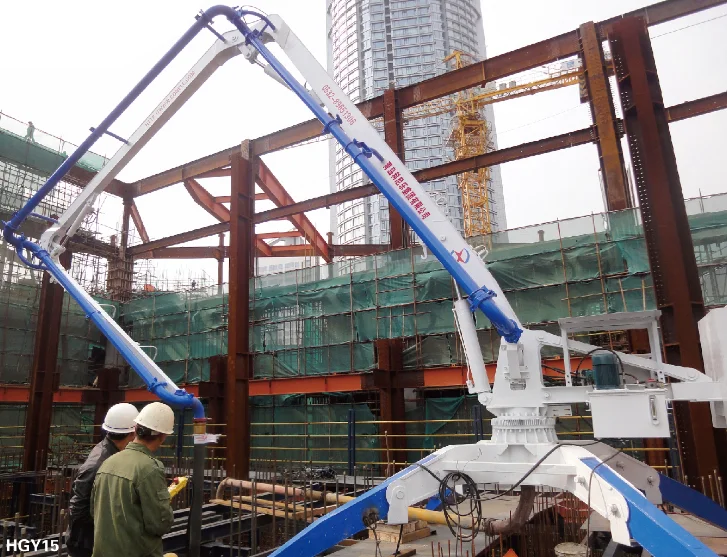

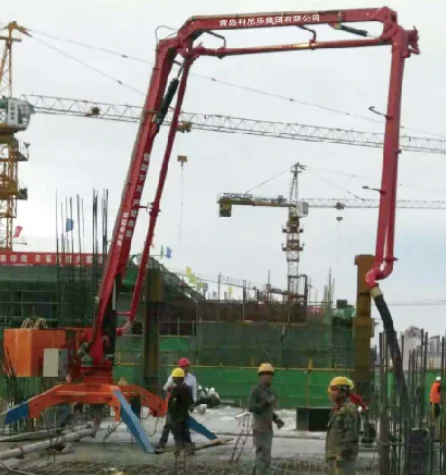

Construction site
