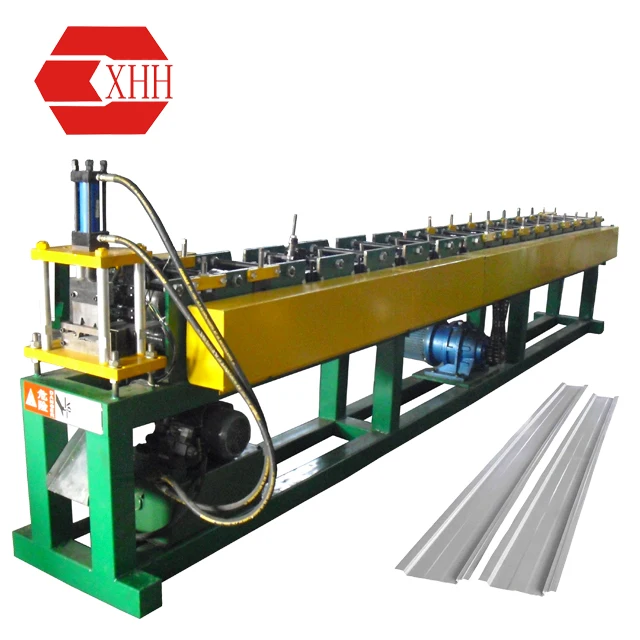

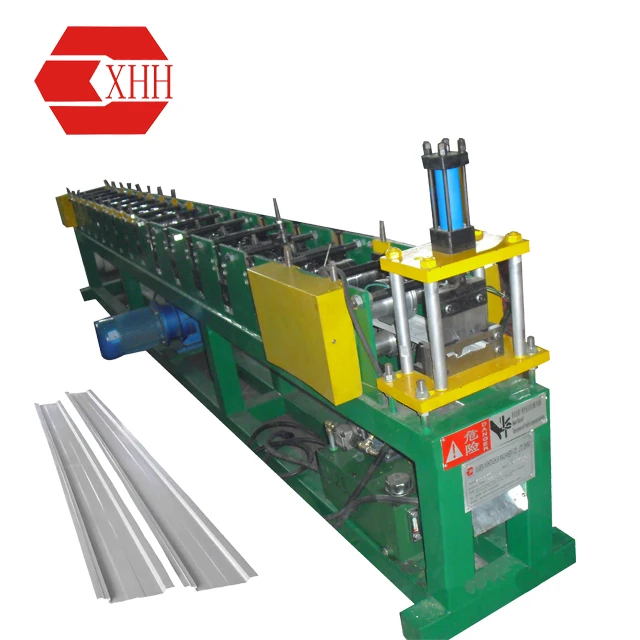

Steel Ceiling Panel Forming Strut Lip GI Channel Stud Angle Roll Forming Keel Machine

Product Overview

Description

1. Specifications of ceiling panel forming machine

1).Main Techincal Data:

1.	Model Number	KB14-105
2.	Machine name	Steel ceiling panel machine
3.	Weight	4000KGS
4.	Motor Power	4KW
5.	Hydraulic Power	3.7KW
6.	Material of principal axis	high grade 45# fogred steel
7.	Voltage	380V/50HZ/3PH
8.	Forming Steps	15steps
9.	Processing Speed	12-16m/min
10.	Thickness	0.3-0.6mm
11.	Feeding Material Width	148-152mm
12.	Effective Width	105mm
13.	Height of Roofing	14mm

2). Main Accessories:

(1).Main Forming Machines;

(2).5 Tons Manual Uncoiler;

(3).Hydraulic System;

(4).PLC Computer Controlling System With Touching Screen (Brand: Schneider for PLC, touching

     screen, cencorder and frequency changer)

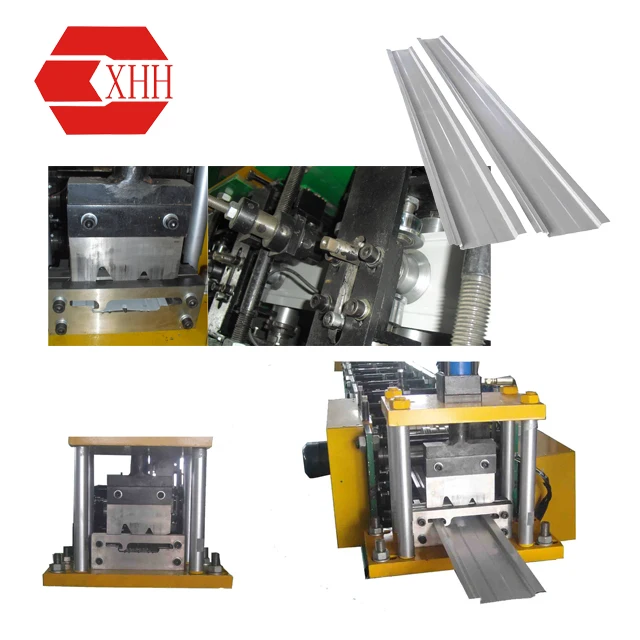

(5). Hydraulic Forming Cutter;

(6).Tools;

(7). Operation Manual;
