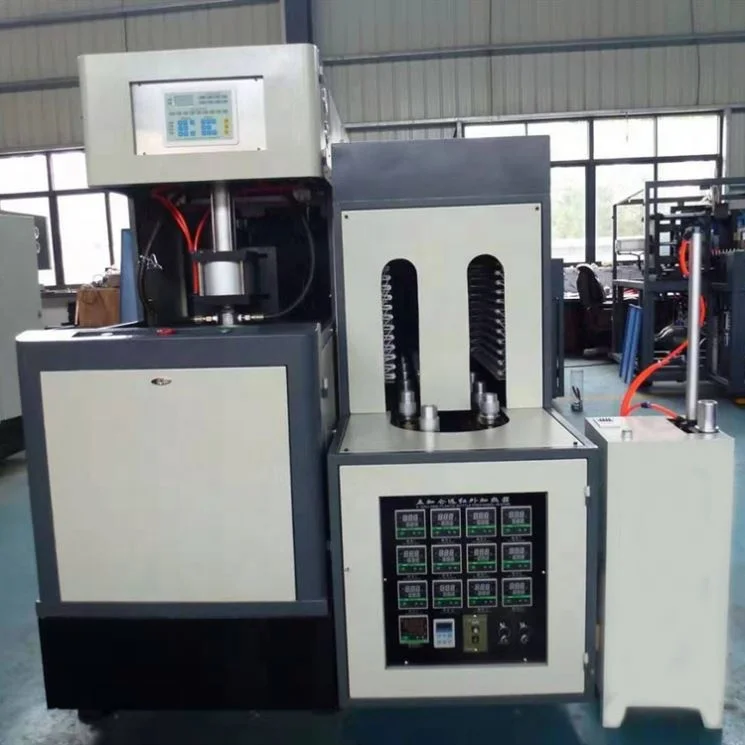

SC-100 Model 1 Cavity Semi Automatic PET Bottle Blowing Machine

Semi automatic running produce 10L-20L PET bottle with capacity 80-220 bottle per hour.

80-120BPH for 5 gallon bottle.(Bottle weight 680-750 gram)
160-220BPH for 10L-20L bottle.(Bottle weight 150-350 gram)



FEATURES AT A GLANCE


1.
Advanced PLC control system with use-friendly touch screen.
2.
Simple installation & start up operation.
3.

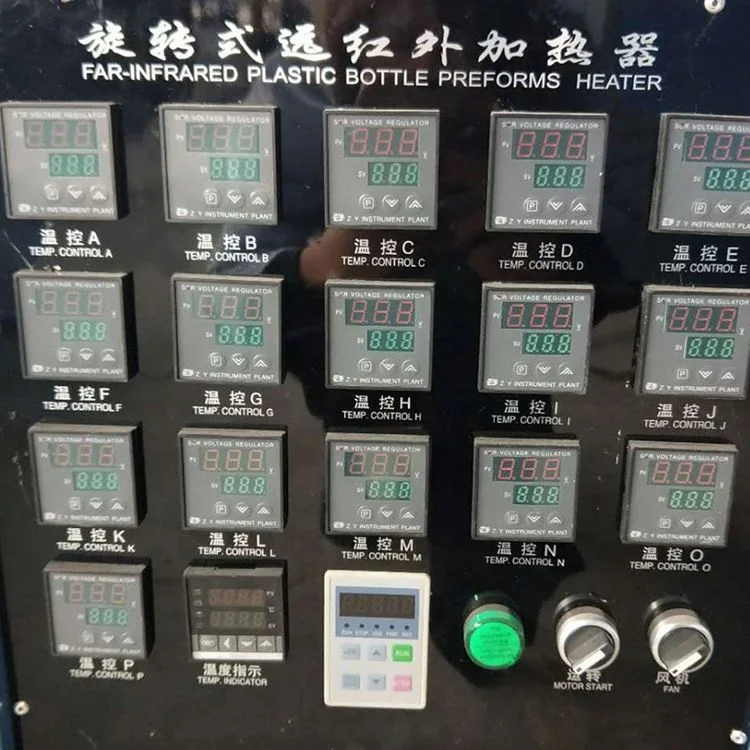

Heating oven equipped with air cooling & water cooling system ensure the bottle neck not deform.
4.
Equipped with lighting and anti-pinch device to ensure safe production.
5.
Equipped with mold clamping in-position sensing device to ensure safe production.
6.
Each wire,button and meter mark with English,easy maintenance.




PRODUCT SPECIFICATIONS


Model
SC-100 Semi Automatic PET Bottle Blowing Machine
Theoretical output
80--220 pcs/h


Finished bottle
Max. bottle volume
10L-20L
Neck diameter
38-160mm
Max. bottle diameter
270mm
Max. bottle height
520mm

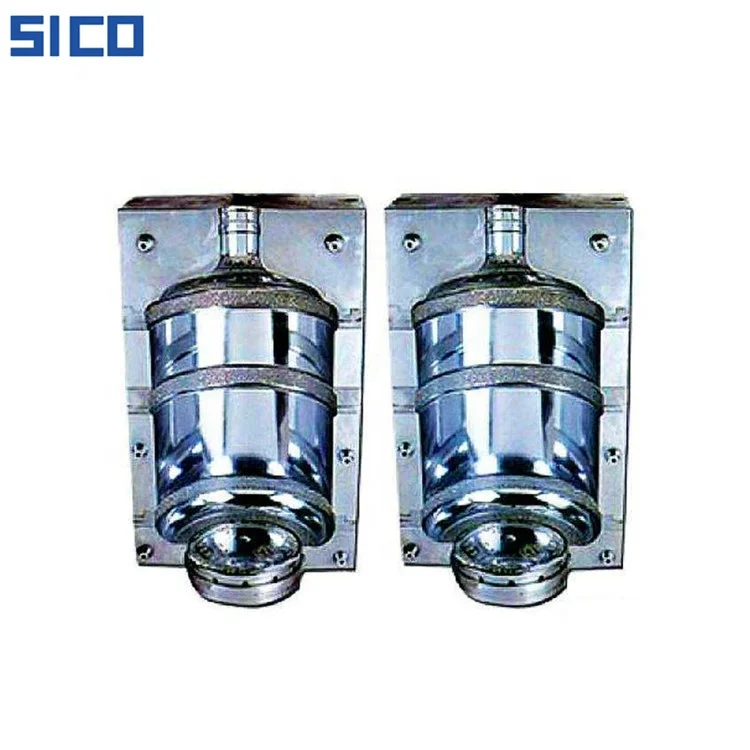

Mold specifications
Cavity
1 cavity
Mold thickness
200mm-360mm
Open stroke
350mm

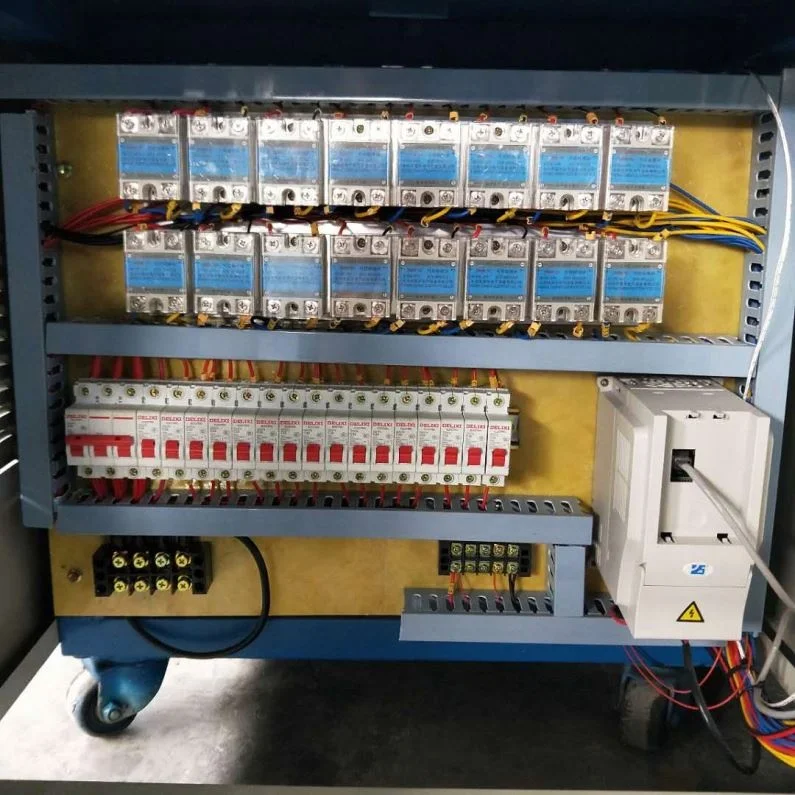

Electrical system
Power voltage
380v/3Phase/50HZ
Installation power
36kw
Actual power consumption
11kw

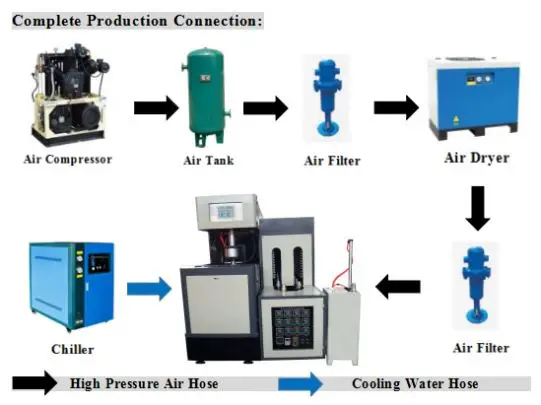

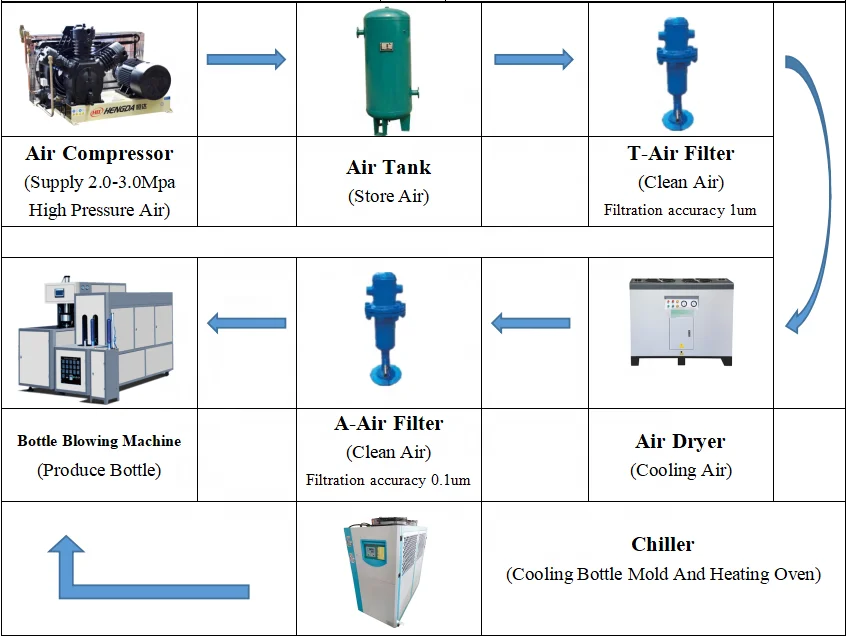

Air source
Recommend air compressor
1.6m³/min 30Kg
Cooling water
Recommend water chiller
5HP
Blowing machine size
Length*width*height/weight
2190*740*1900mm/950kg
Auto Loader size
Length*width*height/weight
2800*670*1600mm/550kg


PRODUCT CONFIGURATION


Components Name
Brand
PLC
Xinje
Touch Screen
Xinje
Cylinder
Yongcheng
Blowing valve
Quanjia
Operating valve
Airtac
S.R.C
Zhen Yu
Circuit Breaker
CHNT


SICO Machine Advantage


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


PLC with touch screen,all important parameter in one page,easy operate.
Normal PLC,operation is complex.


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


Working area equipped with lighting
No lighting


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


Anti-pinch device to ensure safe production.
No anti-pinch device.


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


1.Each cavity 3 pieces high quality blowing valve,with big and strong silencer.
2.Blowing and exhaust independently valve,blowing speed fast,prolong the life of components.
3.Equipped with Pre-blow,easy debug.
1.Each cavity only 1 piece normal blowing valve,small silencer.
2.Blowing and exhaust in one valve.

3.No Pre-blow.


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


Equip with high quality AirTac action valve,life long.
Normal action valve.


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


Equipped with mold clamping in-position sensing device to ensure safe production.
No clamping in-position sensing device.


SICO High Quality Bottle Blowing Machine
Normal Bottle Blowing Machine


Heating oven double cooling system.
Equip with air cooling and water cooling.
Only air cooling.


SALES AND SERVICE NETWORK




Terms


1. Payment Method

30% by T/T as down payment, 70% by T/T paid before delivery. (Other payment please notice in advance.)



2 . Mechanical Warranty

One year warranty and come with at least one year recommended spare parts.



3. Delivery & Packing \t

Delivery Time: 15 days after get down payment &confirm bottle design.


Packaging requirement:
1) The special packaging wooden case is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation



4. Install In Spot

1) Installment USD80/day. Person as allowance
2) Free training for buyers worker within the installation period.
