Product Overview
Description
Product Description

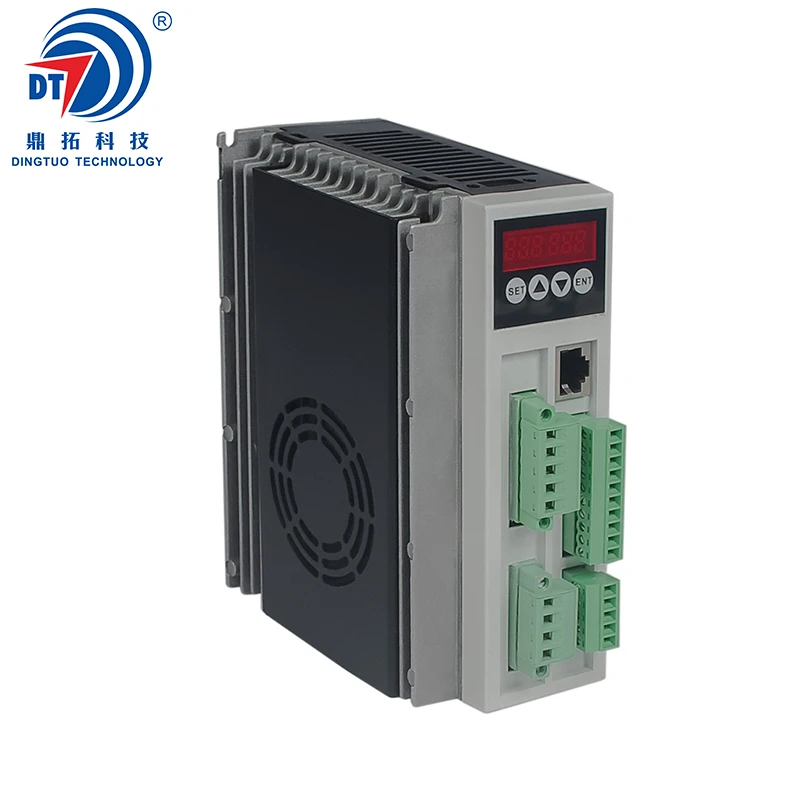

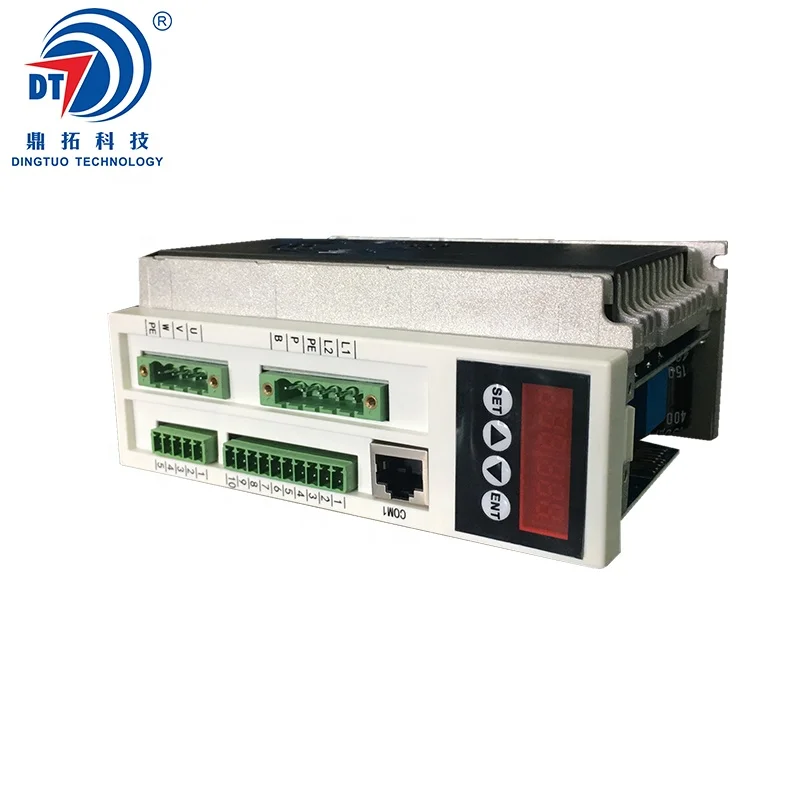

220V AC BLDC Motor Controller for Industry Appliance
Feature
-Compact size, power up to 750W
-DSP chip+IGBT intelligent module isolation drive+patent PID+PWM control
-Perfect protection functions: overvoltage, undervoltage, overcurrent, overspeed, phase error, short circuit, etc.
-Sectional speed regulation, with two input ports, can set 4 different speeds
-Using standard modbus protocol, using RS485 two-wire serial link communication
-Supply PC-side debugging software
-Size: 145*60*125mm
Summary
DBLS series brushless motor drive is a new type of Brushless DC motor speed control field which is developed independently in the field of modern industrial automation. It is composed of a series of advantages, such as high integration, small size, perfect protection, high reliability, and high reliability.
The main function of the drive is as follows:
●Choose a variety of speed adjustable, including input voltage setting, drive's internal speed setting,
communication interface setting etc.
●Complete isolation of electric supply, and Hall signal interface, guarantee of security.
●Digital display panel, abundant display content settings, abundant feature setting.
●The drive device of automatic protection, automatic control of current, with undervoltage and overvoltage, blocking and hall fault lamp protection function.
●The standard series can provide 2 times or even higher short-term overload current, different products with different supply.

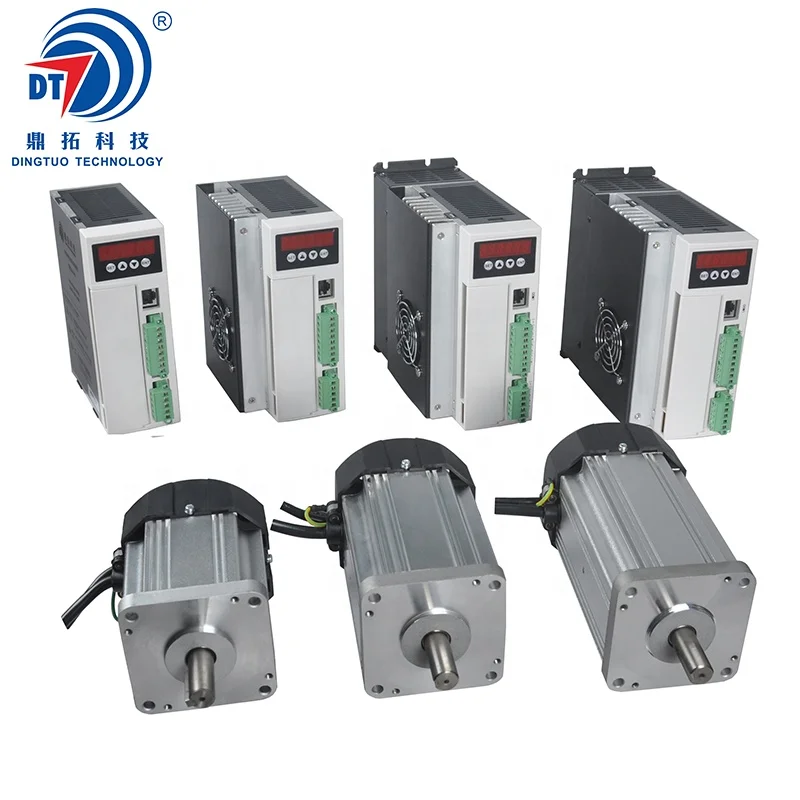

●It can be equipped with various types of Brushless DC motors, the power range from 200W to 3000W, currently contains 4 models
1) System characteristics
●Input Voltage: 110/220VAC, 50/60Hz,
●Continuous Output current: 3.5A, suit for less than 750W brushless motors
●Max. Output current: 7A,
●Working temp.: 0~+45°C
●Storage temp.:-20~+85°C
●Working & storage humidity: <85% no frosting
●Structure: wall-mountable box type
2) Basic characteristics
●Cooling mode: radiator mode
●Control input and output signal: total isolation
●Protection: over current, over voltage, over voltage, overheated, over speed, under voltage and control power abnormal.
●Panel interface: 6 bit LED display 4 bit key operation
●Input power: 50/60Hz 110/220VAC

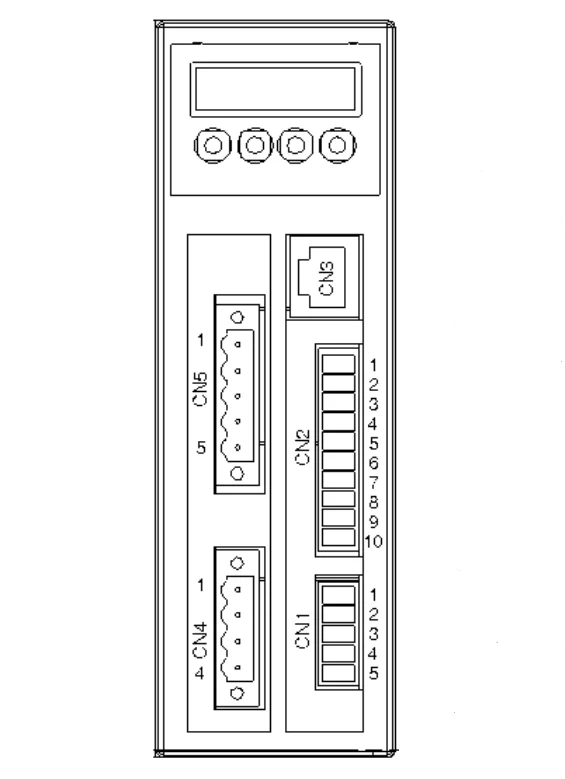

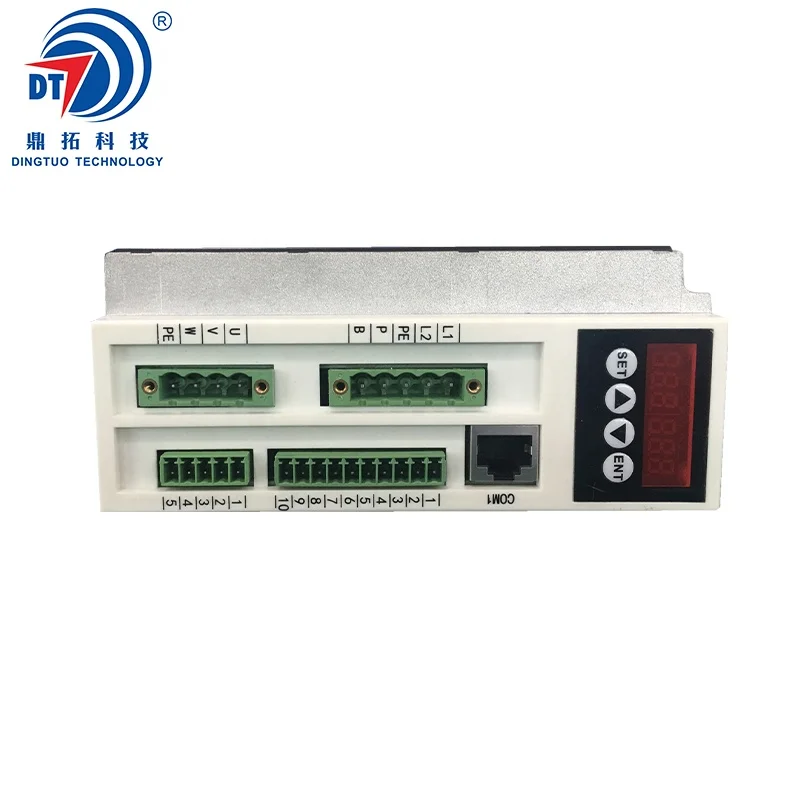

Terminal Function Specification
No. | Terminal Name | Signal | Function |
1 | L1(L)(R) | Main circuit power input terminal AC220V 50Hz, Connect L1 and L2 while using single phase voltage 220V | |
2 | L2(N)(S) | ||
3 | PE | Protection | The release way is supplied for protection motor and drive when current leakage |
4 | P | High voltage DC bus line terminal | DC bus line terminal in driver, rated power 315V, Part of the products are built in brake resistance. When using external brake resistance, connect it with P and B. |
5 | B | External brake resistance | |
No. | Terminal Name | Signal | Function |
1 | MU | Motor U phase | The power input terminal must correspond to the motor terminal one-to-one. Attention: It is not possible to reverse the motor by replacing the three-phase terminal, which is completely different from the asynchronous motor. |
2 | MV | Motor V phase | |
3 | NW | Motor W phase | |
4 | PE | Motor protection | The release way is supplied for protection motor and drive when current leakage |
CN2 Terminal
1: +5V
2: SV
3: COM
4: F/R
5: EN
6: EMG
7: IN 1
8: IN 2
9: ALM
10: PG
CN1Terminal
1: GND
2: A
3: B
4: C
5: +5V
Parameter P1
This parameter array is the underlying parameters of the motor, is currently only open to developers, users are not allowed to adjust themselves, without permission to enter the adjustment will damaged drive or motor probably.
Panel Operation
Display instruction: total 6 digital tube shows "888888", the light most is the first and the lowest.
As picture on left, there are 4 keys on the panel,
"SET": press this key can enter or quite P1 setup menu
"▲"and "▼": "+"and "-",to choose the function and adjust the parameters.

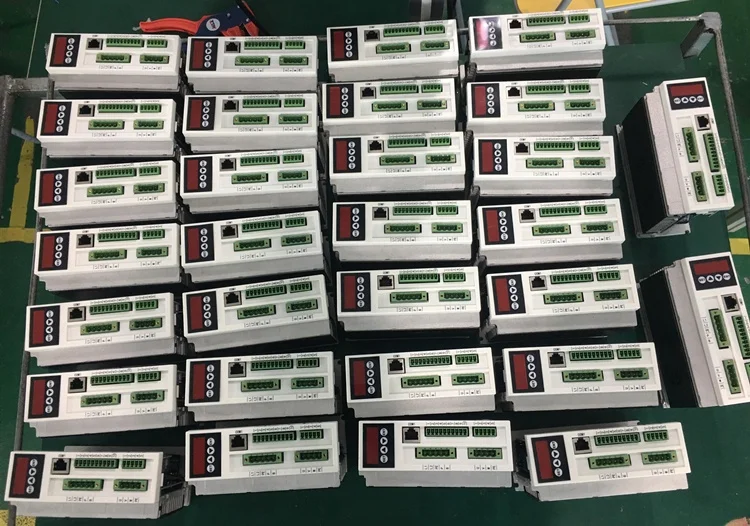

Packing & Delivery
