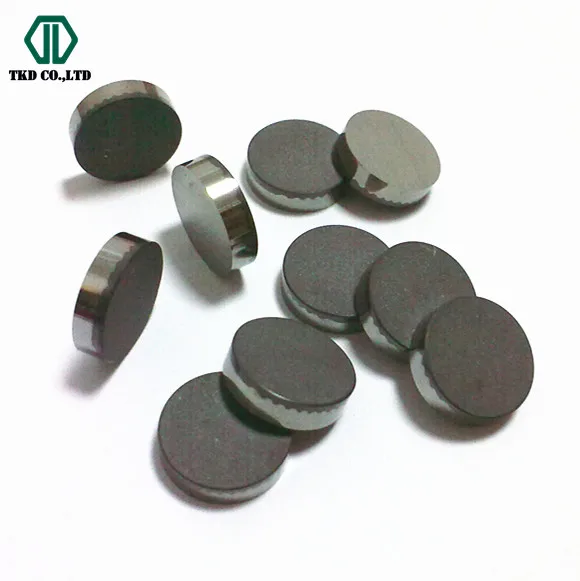

PCD BLANKS FOR CUTTING TOOLS

TKD have large diameter of hydraulic press machine for sintering process, pcd laser cutting equipment, EDM cutting machines, C-scan ultra-sonic scanning equipment for cutting and inspection process etc.PCD blanks/ plates/pads are widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramic,plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 2µm,5µm, 10 µm, 20µm,25µm,and 2+25µm etc.

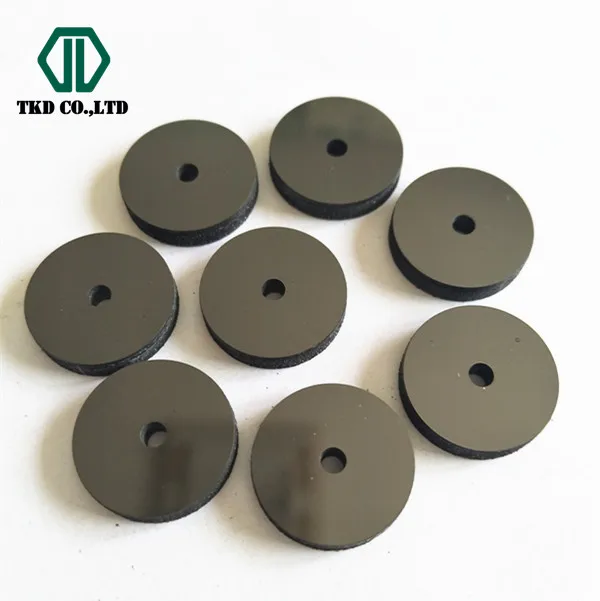

PCD Full-Round Blanks
	D/mm	Size (AxD)	T/mm	t/mm
	58	360 R x55	1.6/2.0/3.2	0.5-0.8
	50	360 R x50
	45	360 R x45
Tolerances:	40	360 R x40
D = +/- 0.1mm	32	360 R x32
T = +/- 0.05mm	18	360 R x18
Surface condition: Polished with Mirror-like diamond surface	13	360 R x13
	8	360 R x8
	6	360 R x6

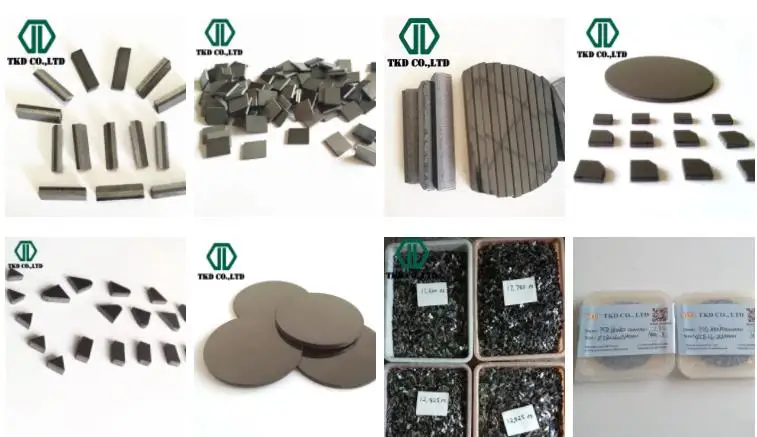

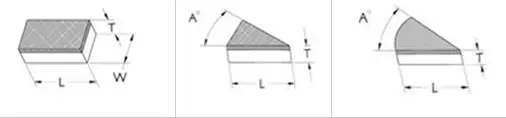

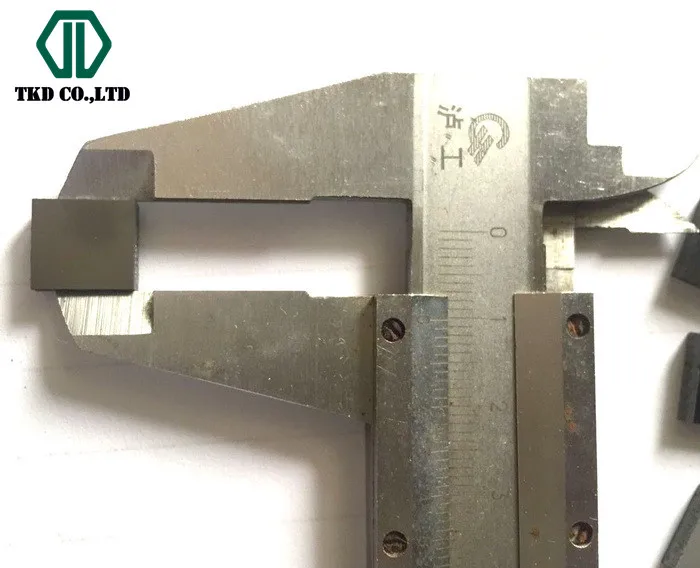

Different shape of PCD blanks / tips
		We offer straight cut, chamfering cut, hole drilling by laser cut or brass, moly-EDM cut

PCD Cutting Tool Blanks Application Recommendation:
Grades	Characters	Applications
W2-W5 fine grain	1.Average grain size:2-5μm	Aluminum, Brass/Copper, Precious metals, Wood composites, Plastic
	2.High diamond content over90%
	3.Laser cutting/ wire EDM cutting
W10 medium grain	1.Average grain size:10μm	<14% Si/Al alloys, Copper alloys, Graphite and graphite composites, Green ceramics and carbides
	2.High diamond content over90%
	3.Laser cutting/ wire EDM cutting
W20-W25 coarse grain	1.Average grain size:20-25μm	>14% Si/Al alloys, metal matrix composites, Bi-metals(aluminum/cast iron),sintered ceramics and carbides
	2.High diamond contentover90%
	3.Laser cutting/ wire EDM cutting

Features compared with tungsten carbide tools:

1, The hardness of PCD is 80 to 120 times that of tungsten carbide.
2. The thermal conductivity of PCD is 1.5 to 9 times that of tungsten carbide.Its thermal conductivity is  700W/mk. The PCD blank can conduct heat fast
3,  PCD toolings life can exceed carbide cutting tool life 50 to 100 times.



Features compared with natural diamond tools:
1, PCD is more resistant over natural diamond because of its random orientation structure of the diamond particles, and is backed by a carbide substrate.
2, PCD is more constant in wear due to complete production system for quality consistant control, Natural diamond is a single crystal in nature and has soft and hard grains both,when making into toolings, it will not be well using with soft grains.
3, PCD is cheaper and with various shapes and sizes to choose from for toolings, natural diamond is the limit on these point.



Application:

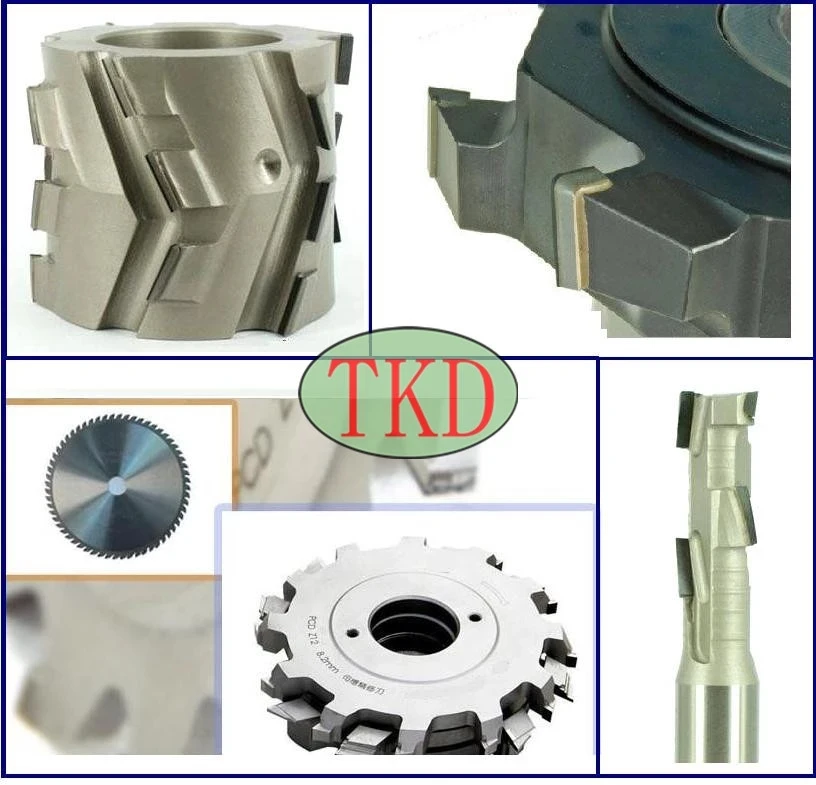

The PCD blank is used in many different fields including aviation, the car industry, electronics,and the wood and stone industry. It applies to varous materials such as nonferrous metal, tungsten carbide, ceramic, nonmetal and composite material.



Materials recommended for cutting with PCD:
 Epoxy resins
 Gold and silver
 Ceramics, unfired
 Plastics and rubber
 Carbon and graphite
 Graphite composites
 Fiberglass composites
 Chipboard and fibreboard
 Zinc and magnesium alloys
 Aluminum and aluminum alloys
 Copper, brass and bronze alloys
 Tungsten carbide, presintered and sintered

PCD Laser Cutting Technology

 Cut pieces

Ultrasonic scanning technology give us clear image of the exact profile of the pcd layer, so that we can select out the standard pcd blanks as per clients specific requirement.
