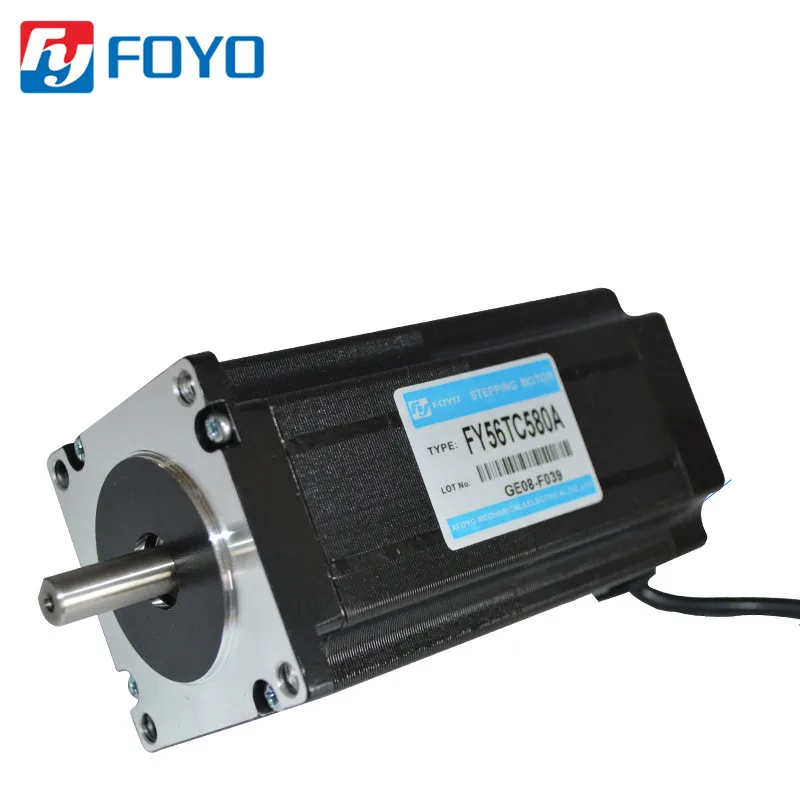

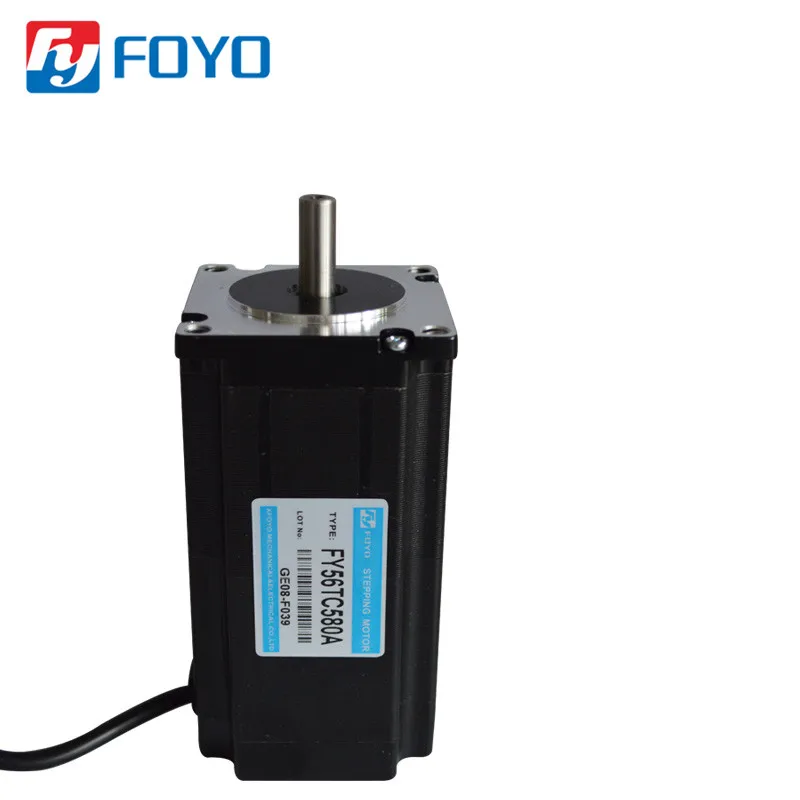

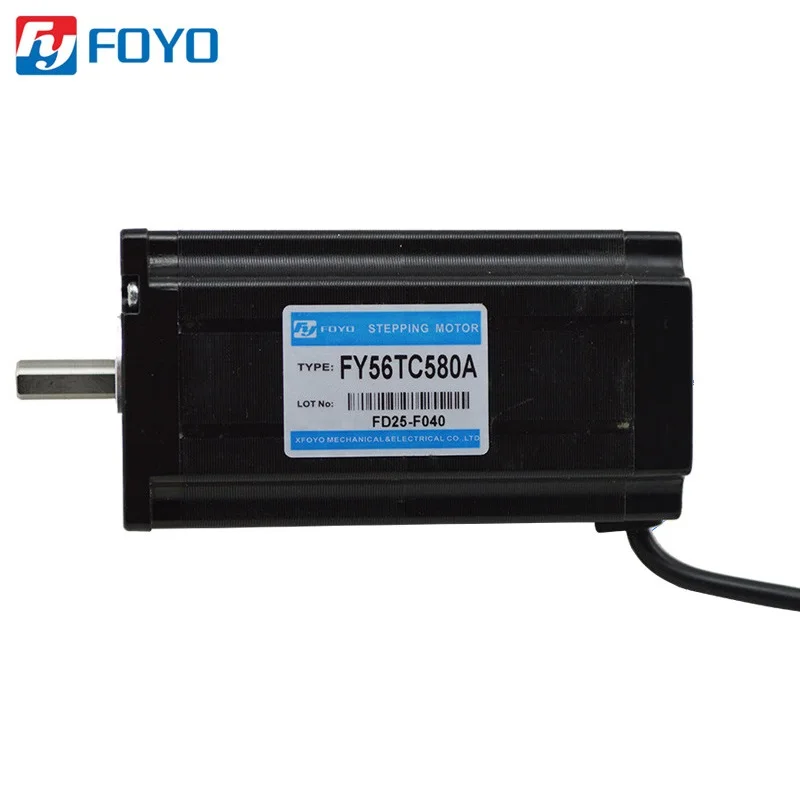

Xfoyo NEMA23 2.5Nm 355oz in 3 Phase CNC Stepper Motor Drive Kit 106mm DC24 50V for Lathe Milling Machine (62079835705)

Share on:


Price:$60.00 - $67.00
Price in USD:Details

Quantity:


Product Overview

Description


Xfoyo NEMA23 2.5Nm 355oz-in 3 Phase CNC Stepper Motor Drive Kit FY56TC580A+FYTM508T 106mm DC24-50V for Lathe Milling Machine



Product Description


Motor Details:

























































































Model NameFY56TC580A
Step Angle1.2deg
Step Angle  Accuracy±5%(Full step,no load)
Resistance Accuracy±10%(20°C)
Inductance Accuracy±20%(1KHZ)
Temperature Rise80°C Max(Rated current,2 phase on )
Ambient Temperature-20°C~+50°C
Insulation Resistance100MΩ Min., 500VDC
Dielectric Strength500VAC for one minute
Shaft Radial Play0.02Max (450g-load)
Shaft Axial Play0.08Max (450g-load)
Radial Maximum Load75N
Axial Maximum Load15N

Length



106mm



Holding Torque


2.5N⋅m or 357.14oz/in

Current / Phase


5.8A

Resistance / Phase


0.57ohms
Inductance / Phase1.2mH
Rotor Inertia720g⋅cm²
Weight1.8Kg

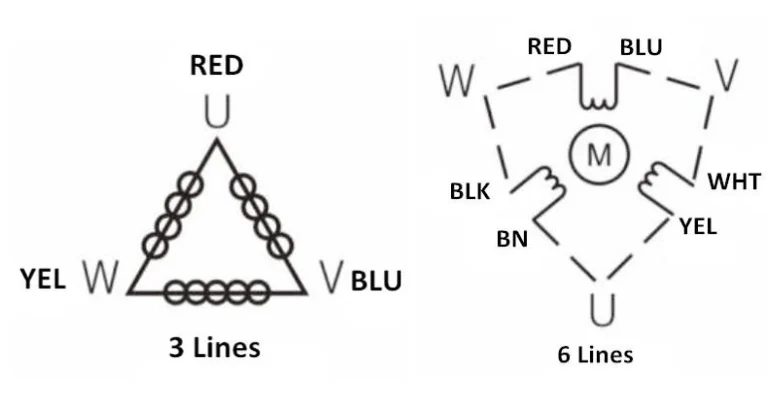

Wires3

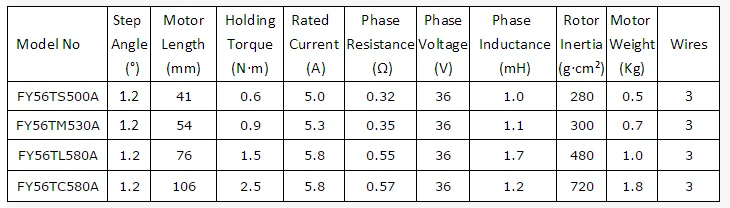

Nema 23 Series Conventional Stepper Motor:







Picture show

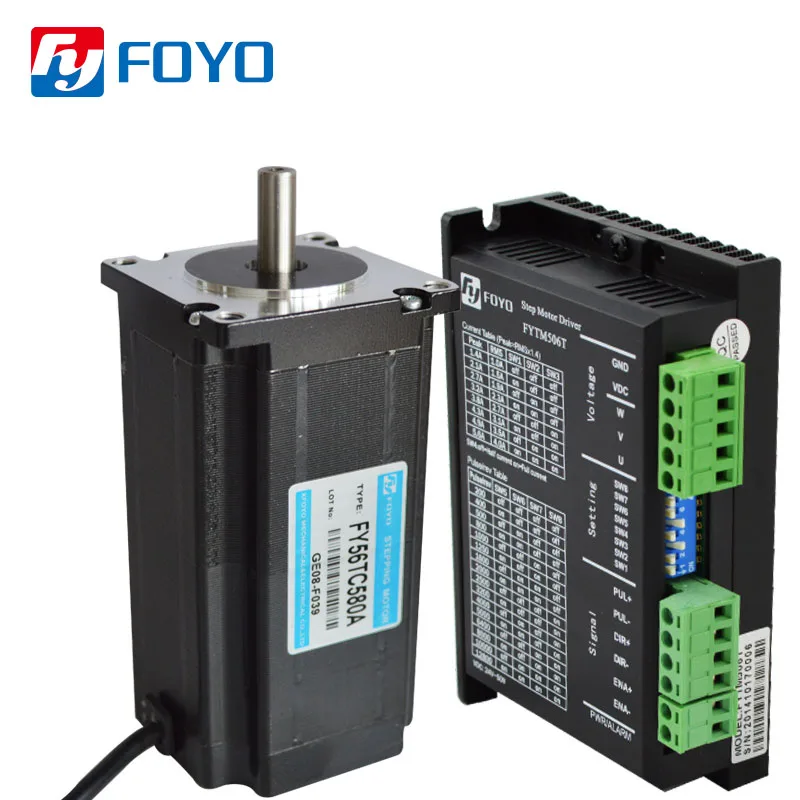

FY56TC580A T.jpg

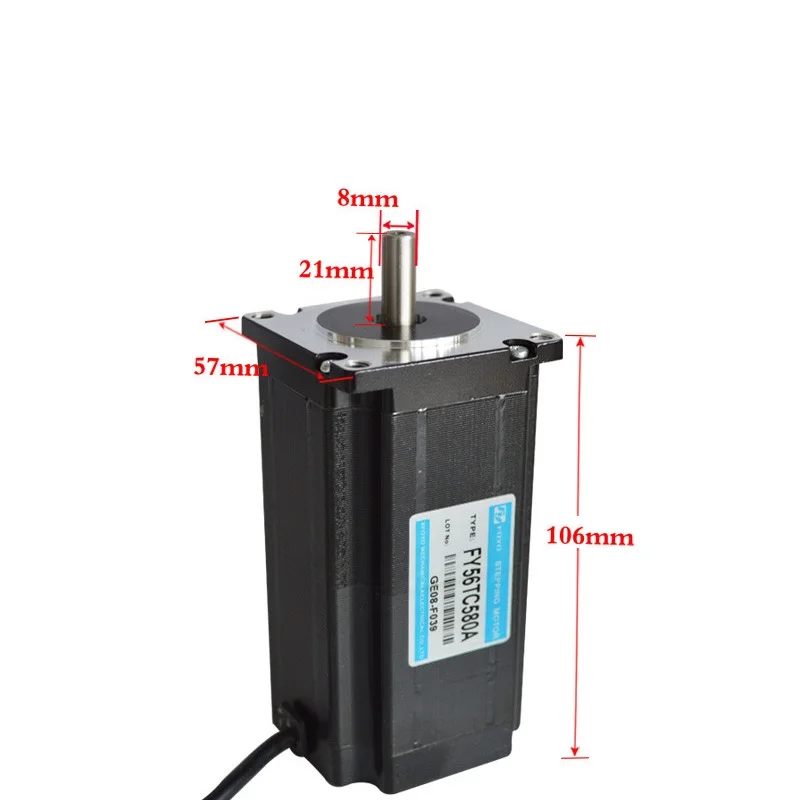

FY56TC580A 1



Application:


Application
