Professional supplier HUAYIN continous pyrolysis plant machine system

Pyrolysis is the thermal decomposition of materials in the absence of oxygen. In the case of the pyrolysis of rubber tyres, the rubber degrades under high temperatures and long-chain hydrocarbons in rubber are broken down into compounds with shorter carbon chains in the reactor, yielding oil, gas and carbon black.


| Item | Contents | |
| Input-Raw Materials | Waste tire/rubber/Medical waste/MSW | |
| By-products | Fuel oil, carbon black, steel wire, syngas | |
| Model | Reactor size | Capacity |
| HY2200*5500 | 5 Ton/Batch | |
| HY2200*7500 | 7 Ton/Batch | |
| HY2600*6600 | 8 Ton/Batch | |
| HY2800*6000 | 9 Ton/Batch | |
| HY2800*6600 | 10 Ton/Batch | |
| Reactor material | Q345R/Q245R/310S+Boiler plate/Stainless steel | |
| Thickness | 14mm/16mm/18mm | |
| Weight | 15T-35T | |
| Power | Average 15KW/h | |
| Space needed | 300-400 square meters (Width:10m, Length:30m-40m) | |
| Labor needed | 3-4 workers | |
| Density of oil | 0.89g/cm3 | |
| Combustion value | 44.30KJ/KG | |
| Note: | We supply customized mini plant: 10kg plant, 1ton plant for customer trial operation. | |
Professional supplier HUAYIN continous pyrolysis plant machine system

Features
♥ Reactor: Adopt automatic welding machine, X rays detection and heating treatment which will not only guarantee the quality of welding but also greatly improve working efficiency.
♥ Vacuum pump : can remove the harmful gas and free water in the waste oil to make sure it can be reused.
♥ Waste Gas Treatment: The extra gas will be recycled to the furnace for second burning thus saving your heating fuel , and protect the environment.

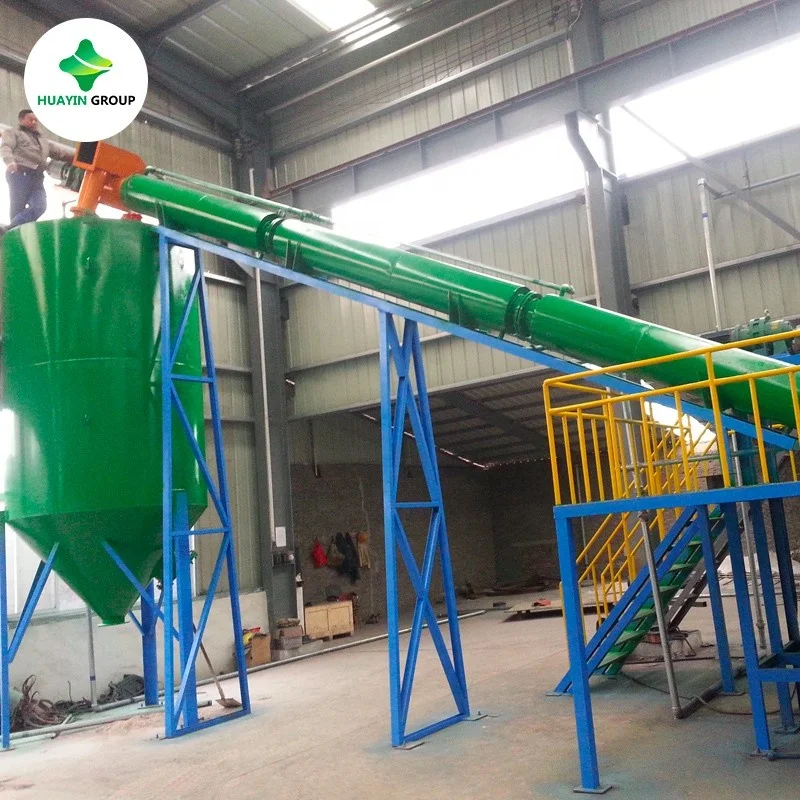

♥ Fully automatic Feeding System: The automatic feeding system can decrease the labor intensity, feeding time
♥ Energy conservation: recycling of waste gas to heat reactor again can save energy and thereby reducing costs.
♥ Security: our equipments have anti-blocking device and have pressure gauges, alarms and safety valves.

Output product and application

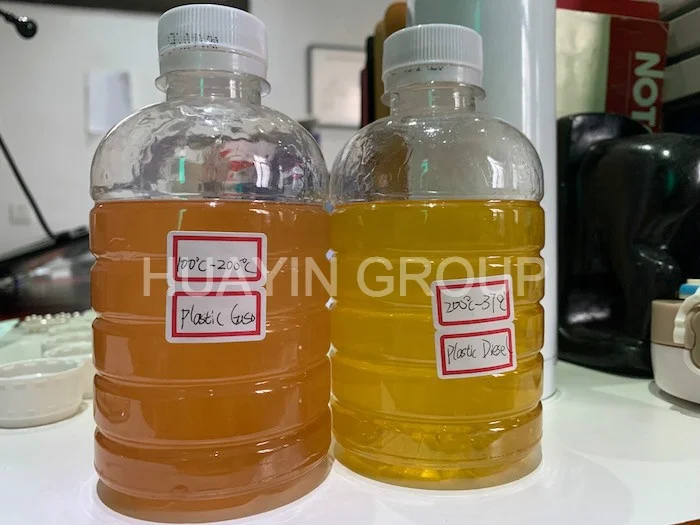

♥ a. The tyre plastic pyrolysis oil can be sold directly or use the distillation machine refining again. After refining, the end product is gasoline and diesel; we also can supply the distillation machine.
♥ b. The carbon black can be sold directly or use the carbon black refining machine to refine again. After refining, the carbon black can be 300-1000mesh or 1000-2500mesh. We also can supply the carbon black refining machine.


1. Who has run the waste tire/plastic to oil recycling pyrolysis machines?
A: Safety. It's the most important thing in this high-profit oil gas business. Environment friendly Energy-saving Installation&worker training Technical support&update Service
