2 phase nema24 brake closed loop stepper motor 4A with 3N.m holding torque (62081114884)

Share on:


Price:$92.50 - $95.00
Price in USD:Details

Quantity:


Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct Categories \t\t\t\t\t\t\t




Product Description


2 phase nema24 brake closed -loop stepper motor 4A with 3N.m holding torque

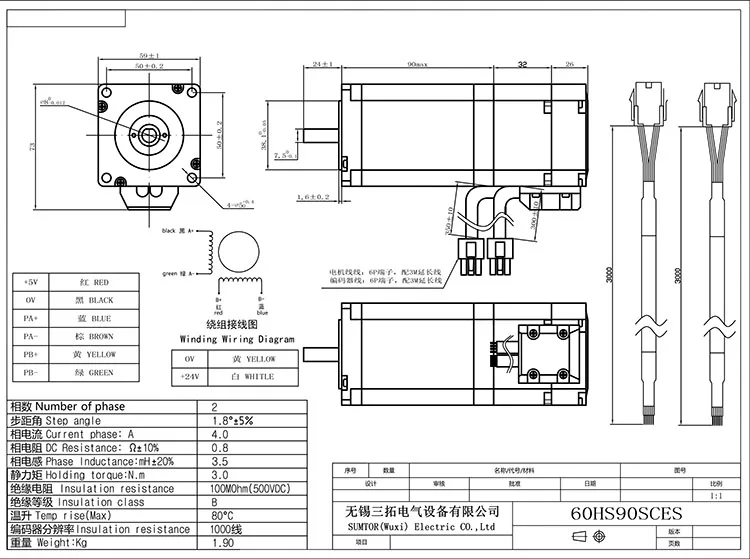

Number of phase:
2
DC Resistance:
Ω±10%
0.8Ω
Step angle
1.8°±5%
Phase Inductance:
mH±20%
3.5
Curret phase:A
4.0A
Holding torque

3.0N.m
Insulation resistance
1000M0hm(500VDC)
Insulation class

B
Temp rise
80°C
Insulation resistance

1000 wires


Details Images

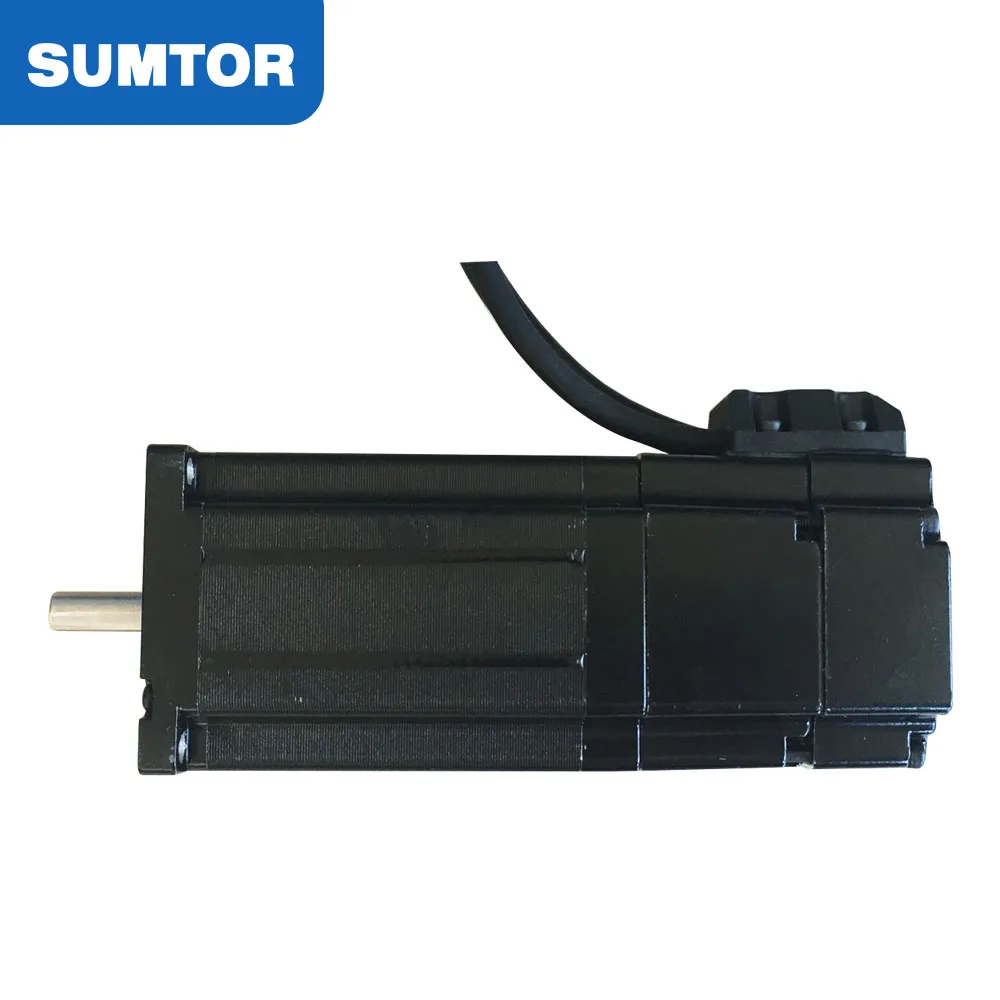

The nema24 closed loop stepper motor is 3N.m with 4.0A
About the nema24 closed loop stepper motor,we also have 60HS76ESCES with 2.2N.m and 4.0A








Our Company




Exhibition pictures




Our certification




Application areas








Wide range of applications
Covering everything from high-end robots to household cutting machines for a wide range of automation equipment


Packing & Delivery




Tips:
1.We have ready stepper motor in stock.We are support delivery in 3 days.
2.Choose shipping methods to reduce the shipping cost.
3.If you are not familiar with customs clearance,we can arrange door to door delivery for you.
