fish transfer pump

Product Overview

Description

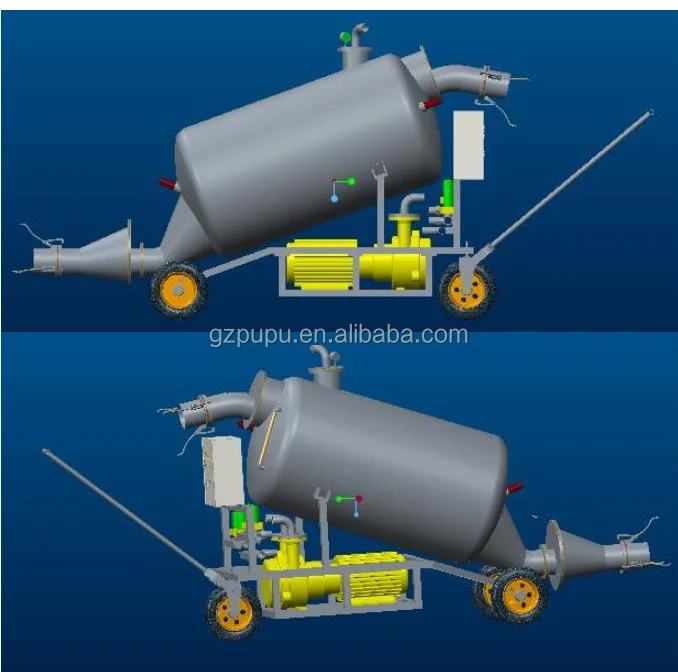

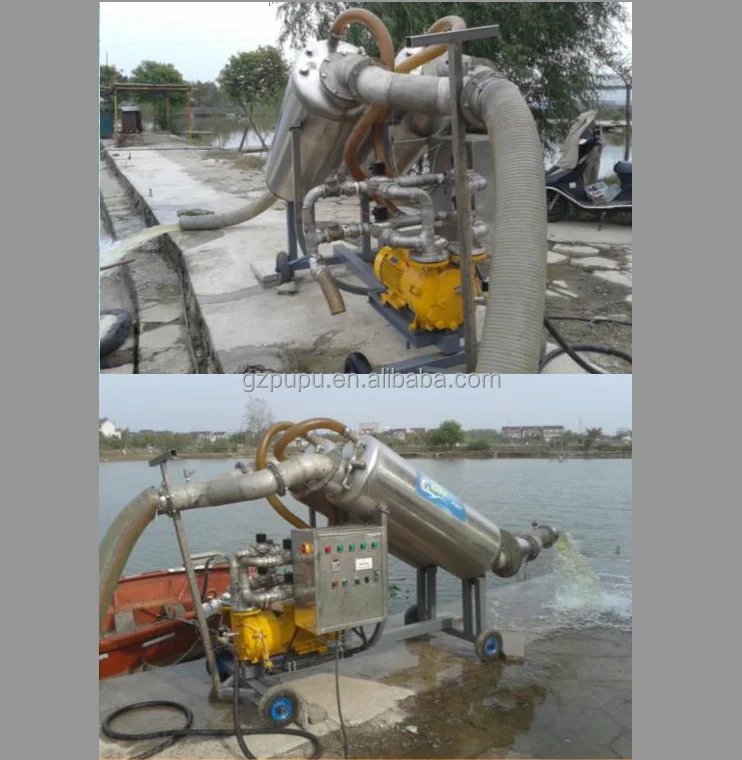

The VACUUM PUMPS is especially suitable for fish harvesting or for the lifting of fishes to grading machines or the loading of transport tanks etc. Compared with impeller pumps, the vacuum pump can suck and sort and transfer fish without hurting. The functional principle is relative easy but effective, which helps to reduce unnecessary breaks and expensive repairs. The fishes (up to 5 kg in body weight and up to 16 t/h) are sucked up to 2 m in height, via an inlet funnel over a suction hose by  two vacuum tanks which work in exchange. By a 0.6 m2 large separator with 8 mm grid distance, the fishes are separated from water and glide so, in the optionally connectable scale or directly into the grading machine etc.



Model	Operate Mode	Vaccum Tank	Tank Volume	Inlet/Outlet	Suction/Lift	Flow Rate	Power
S150-160	batch	Ø0.8m*1.2m	0.6m3	DN150	4m/2m	40~60m3/h	11kW
D150-160	continuous	Ø0.8m*1.2m*2	0.6m3	DN150	4m/2m	40~60m3/h	15kW
S250-300	batch	Ø1.0m*1.5m	1.2m3	DN250	4m/2m	100~120m3/h	18.5kW
D250-300	continuous	Ø1.0m*1.5m*2	1.2m3	DN250	4m/2m	100~120m3/h	36kW
