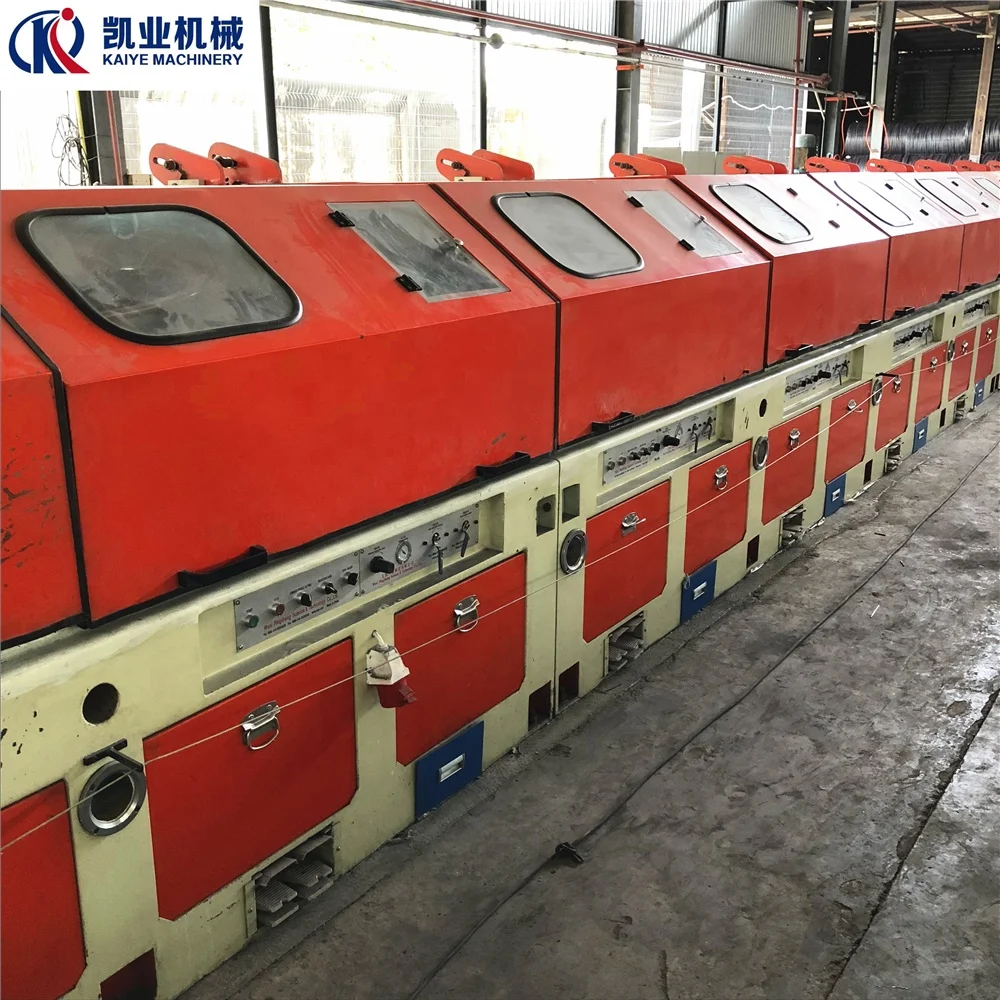

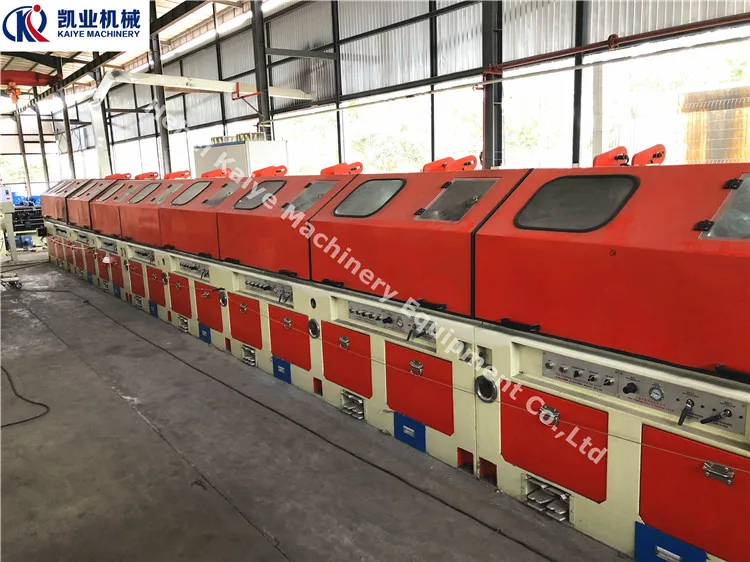

Straight Line Iron Steel Wire Drawing Machine Price
Mechanical description
1.Product Introduction
Straight Line Wire Drawing Machine are suitable for the high & low carbon steel wire below size of 14mm,with Siemens PLC & inverter control system to assure high speed & stable operation.
Low Carbon steel wire product used in mesh net, steel fiber, nail & staple making, construction, agriculture & furniture field, etc. And other steel wire product used in prestressing wire, PC wire, spring, steel rope wire, steel cord & Bead wire for tyre, etc.
2.Working flows and automation

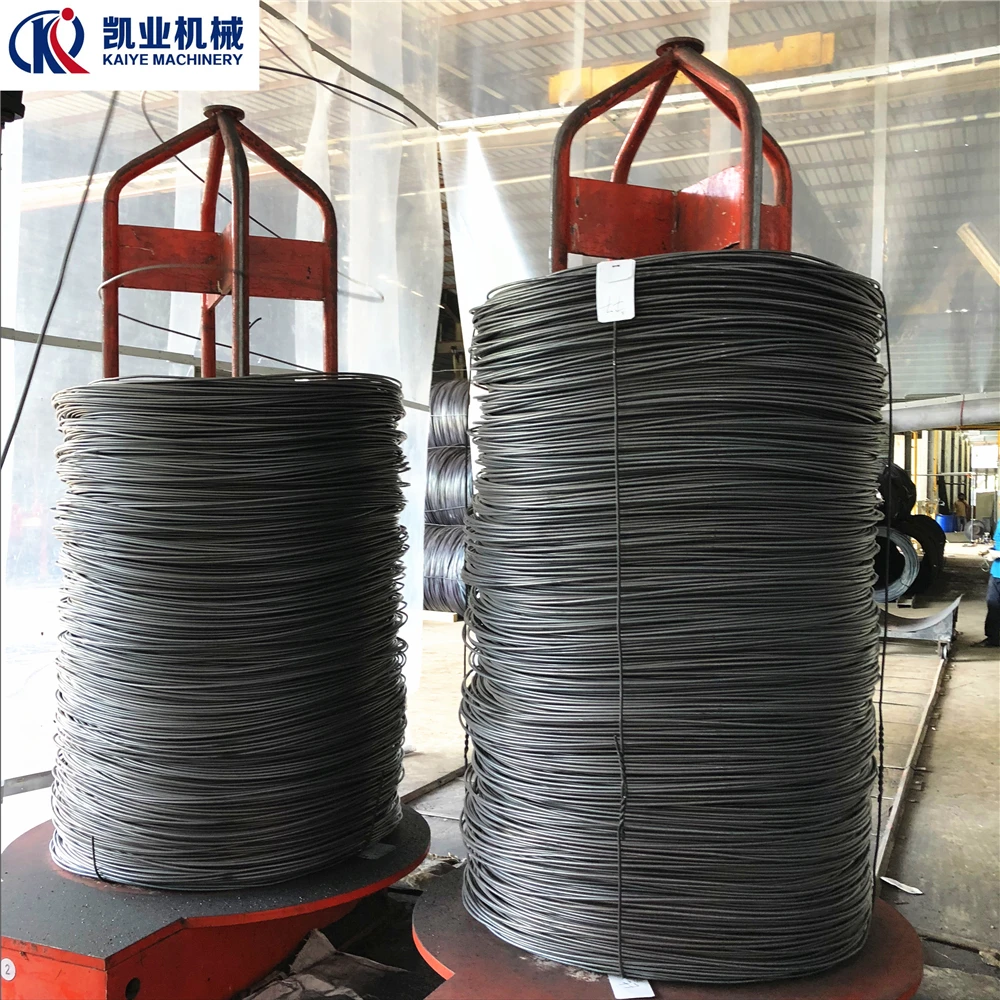

Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire Drawing Machine→Automatic take-up
Main Features
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution
4)As the use of the frequency technology, changes in the larger context of parts of the compression ratio to meet the wide range of technology and high speed drawing.
5)Good cooling system, final wire quality is very good.
Mechanical Parameters
LZ11/550 Straight line Wire drawing machine | |
| Capstan diameter | 550mm |
| Capstan number | 11 |
| Inlet wire diameter | Φ8.0mm |
| Outlet wire diameter | Φ2.0mm-Φ6.0mm |
| Tensile strength | ≤600mpa |
| Total compressibility | 90.53% |
| Average compressibility | 25.52% |
| Max. Speed | 12 m/s |

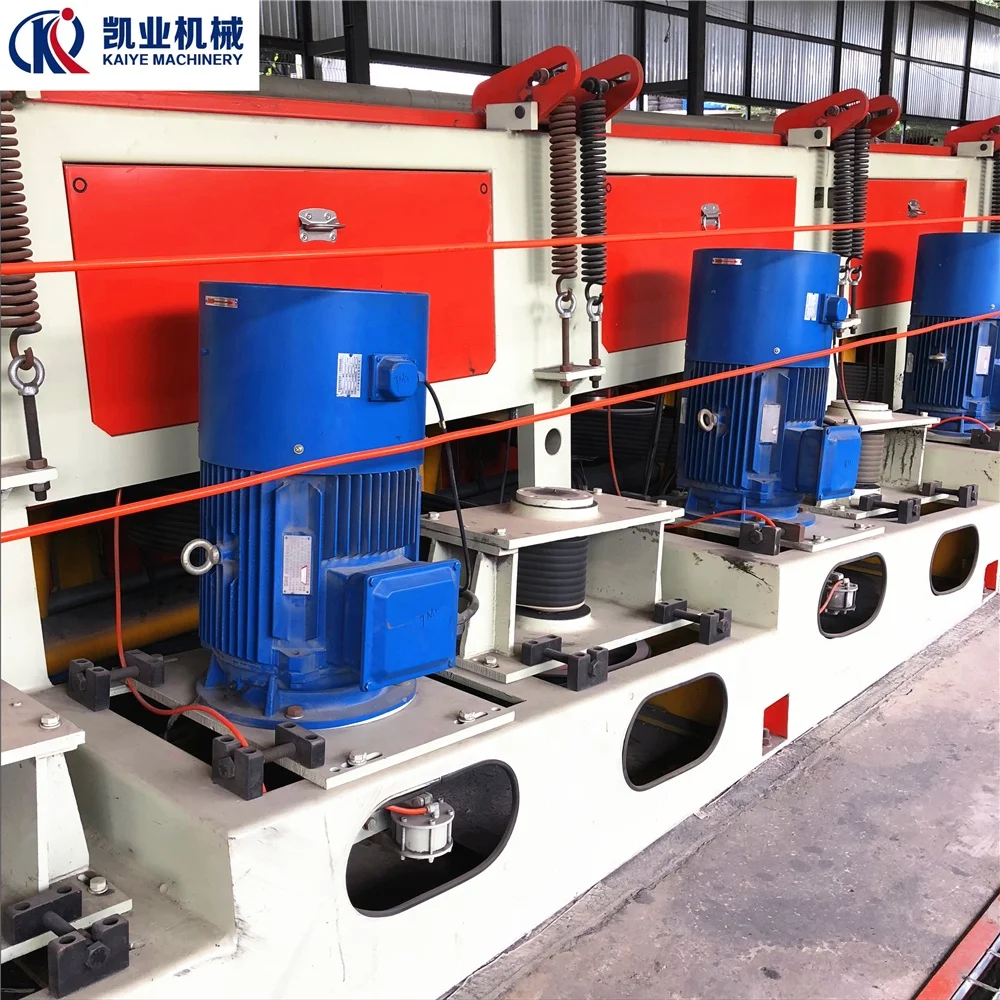

| Power | 22 KW*11 (Frequency conversion motor )+22KW*11(inverter) |
| Mold size | Φ40mm×25 |
| Block type | Vertical ,tilted |

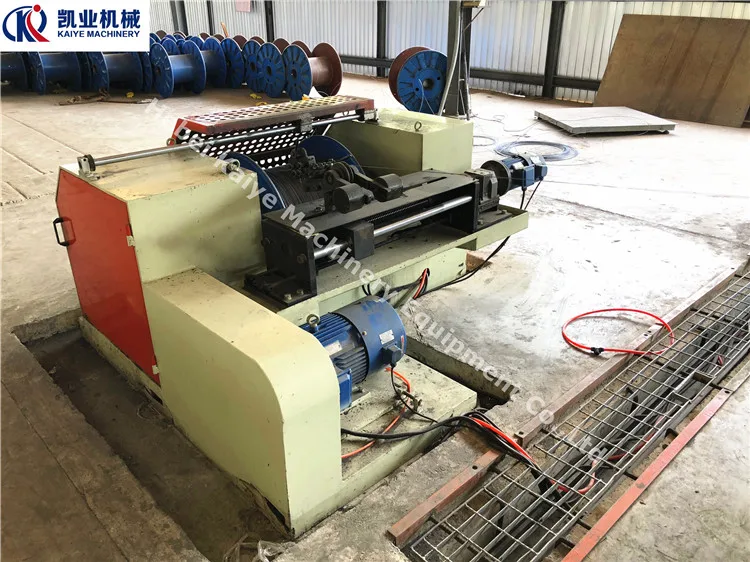

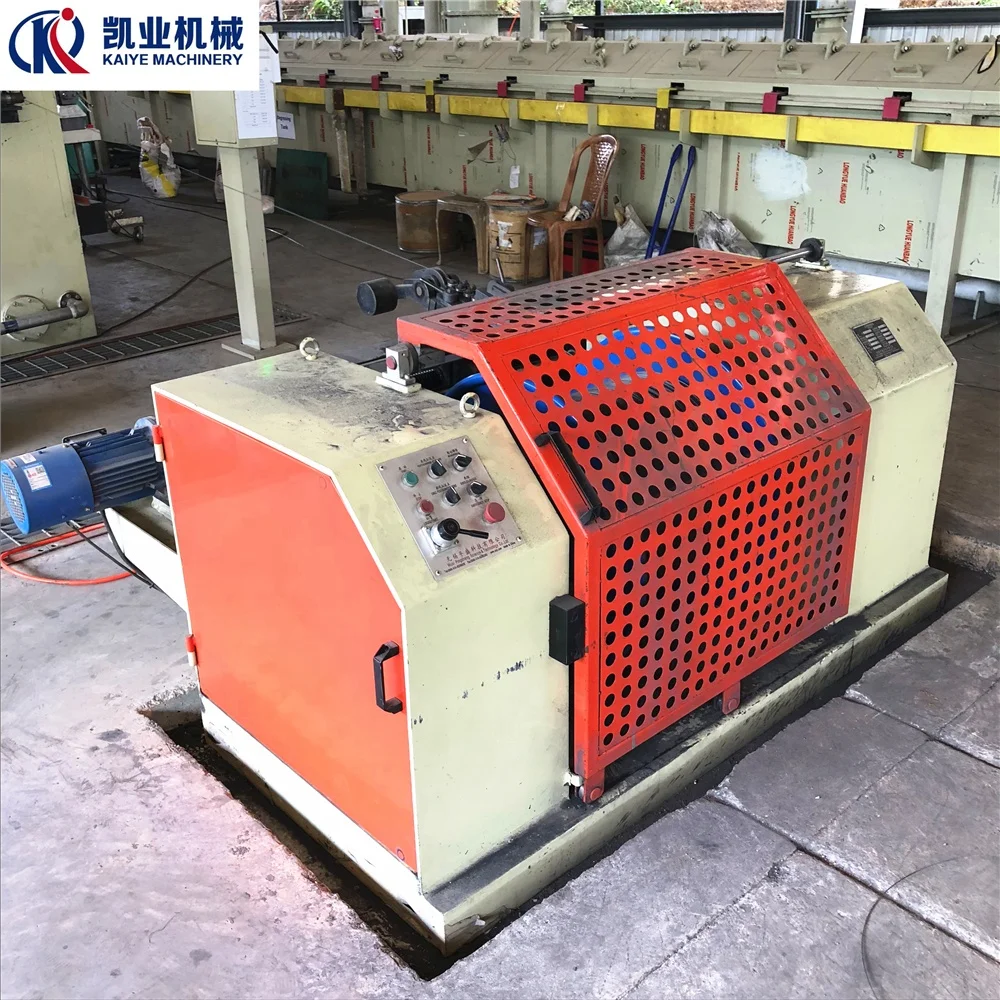

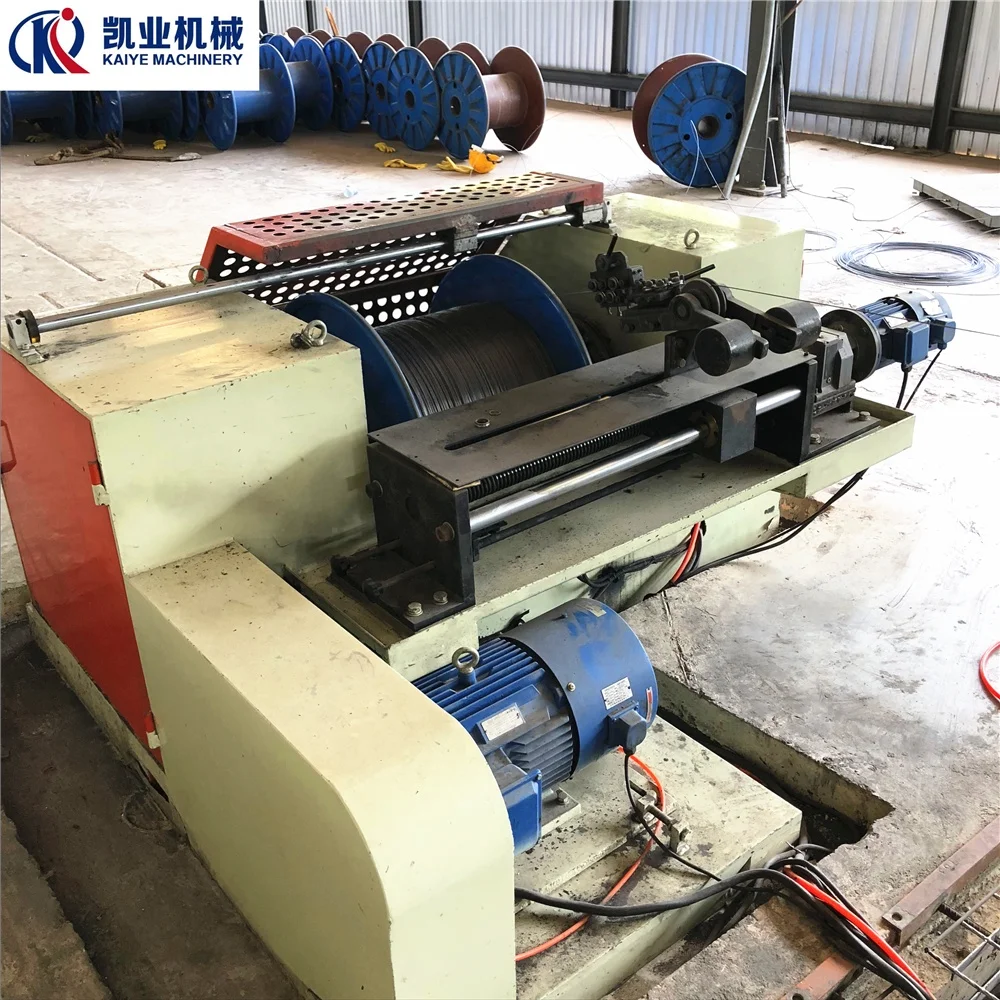

| Take-up wire | Elephant trunk type take-up system |

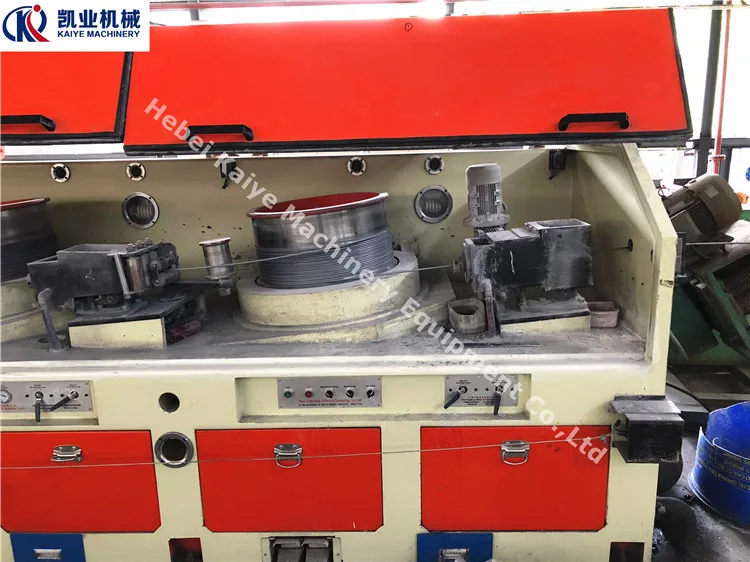

| Die box | The mould box is composed of mixer and water cooling(4 set) |
| Drawing drum | Cast steel ZG45, surface surfacing and spraying tungsten carbide, HRC60. Surface roughness less than 0.8mm. |
| Mold box cooling | The drawing die is cooled by direct water inlet and water outlet, and the cooling effect is very good. |
| Tension frame | Internal tension frame. |
| Main frame | Welding of steel plate and square pipe. |
| Stop brake | Pneumatic brake |
| Vacuuming design | Reserve suction hole |
| Lighting | Each stand with separate lighting. |
| PLC | Siemens |
| Touch screen | Siemens |
| Low voltage electrical appliances | Delixi |
Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date
2. Within guarantee time, if any components are broken under normal condition, we can change for free.
3. We can send our best technician to buyer's factory for installation, debugging and training.
4. Complete installation instructions, circuit diagram, manual operations and machine layout.
5. Technical support by e-mail.
If you have any interest in wire drawing machine or other wire mesh machine products,please feel free to contact with us.
