Online support ,Field installation, commissioning and training,
Video technical support
Equipment working area
32000 mm *10000 mm *4500 mm
Product Details Description

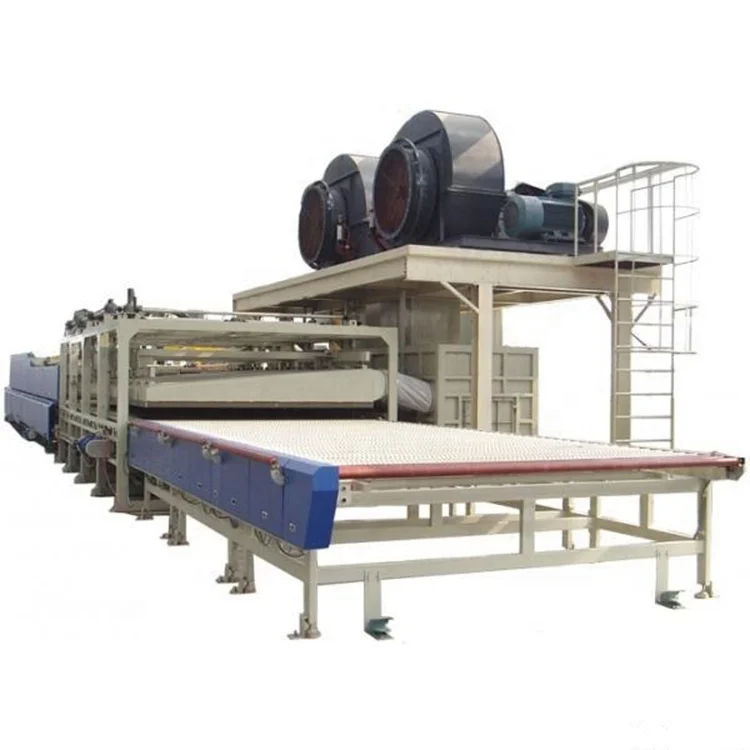

JLG-2540 horizontal steel furnace unit of the main technical indicators Flat tempered: Maximum specification: 2500mm 4000mm; Minimum specification 700mm 400mm Glass thickness: 4mm--19mm Production capacity is 200 Square meter per hour (5 mm) Power consumption per square meter less than 3 degrees (5mm) The comprehensive yield is more than 98% The heating power is 403KW Fan power 200KW cooling 90KW The installed power is 800KW The quality conforms to gb9963-2005 standard The arch deformation is less than 2.0/1000mm; Waveform deformation
is less than 1.5/1000mm Single piece of wind spot is not visible (observation distance: 1000mm,
natural light, Angle between the wind spot and the glass surface is greater
than 15 degrees, naked eye visual measurement) Air compressor (supplied by users) flow rate 1M3 / min, maximum pressure
0.8mpa, power 35KW The air storage tank (supplied by the user) has a pressure value
of 1Mpa, a working pressure of 0.8mpa and a volume of 1M3 Floor area for installation: 32 meters long and 10 meters wide Weight: 13-20 tons
