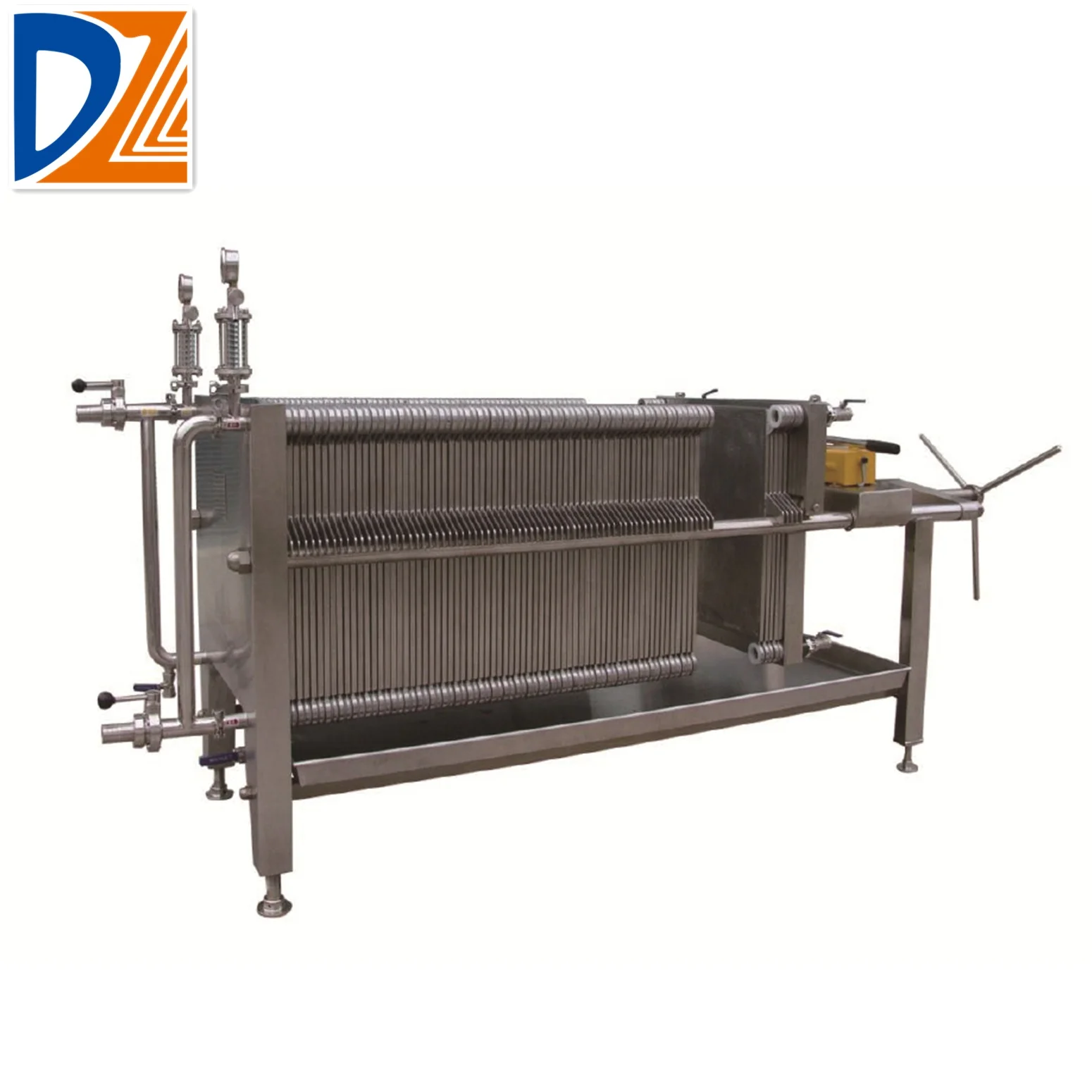

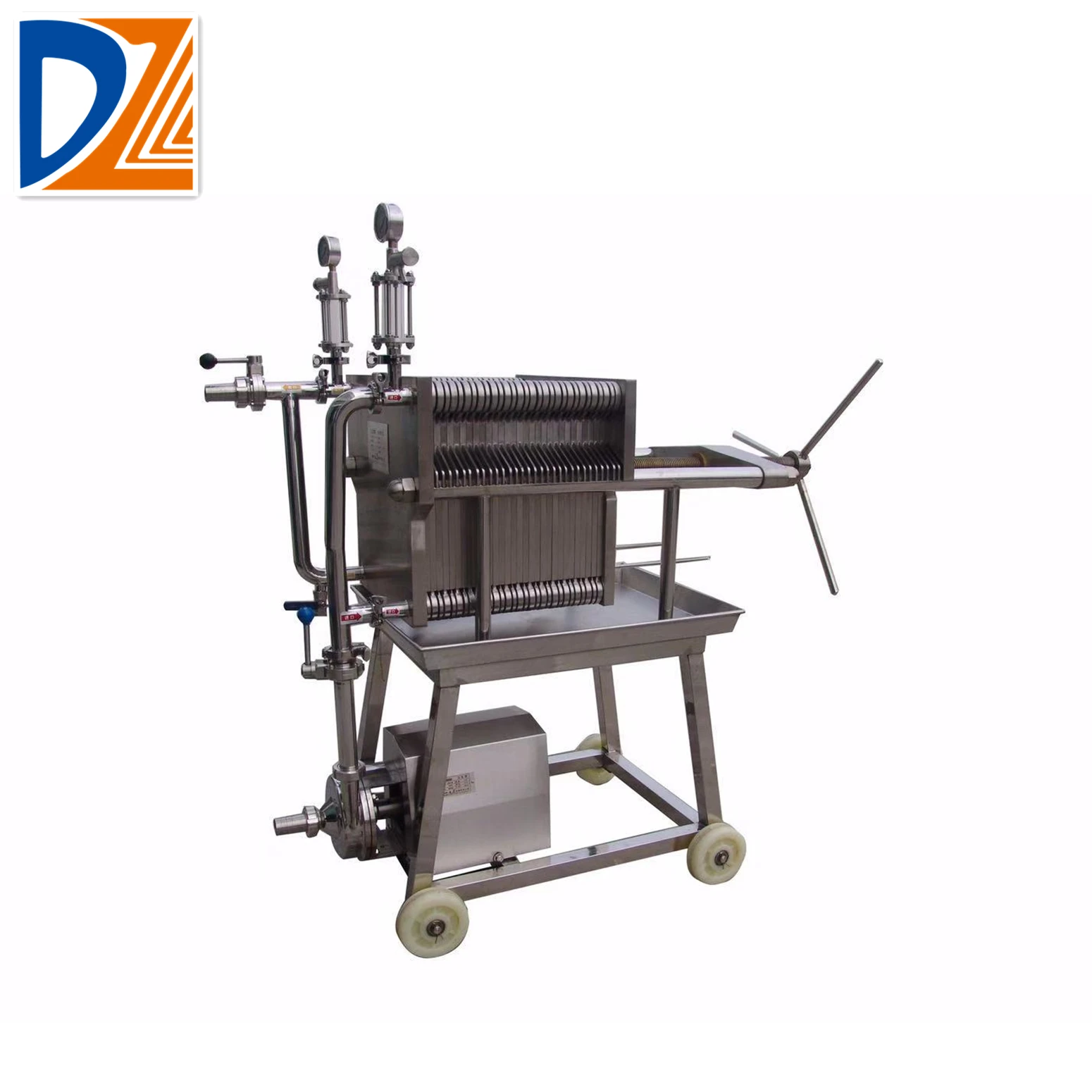

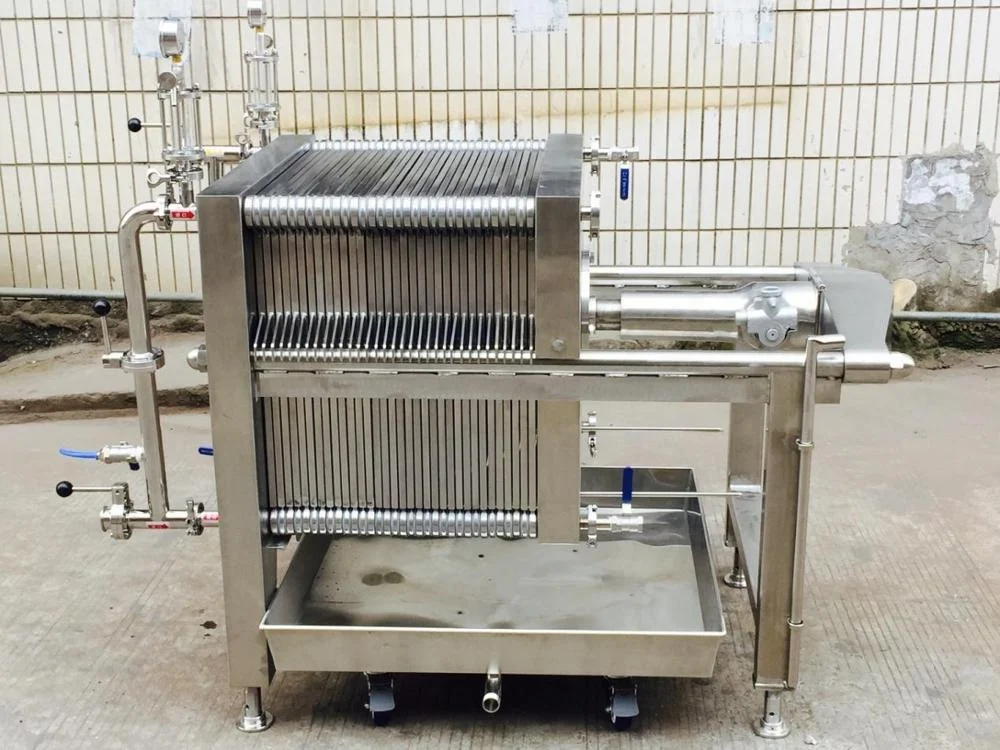

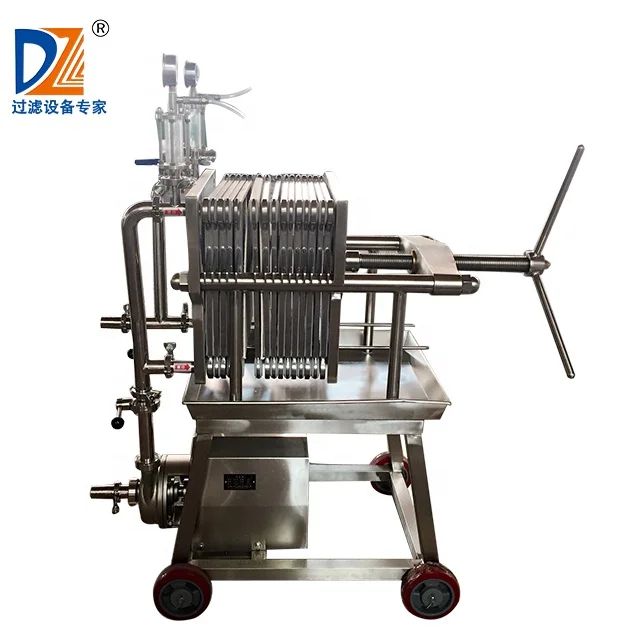

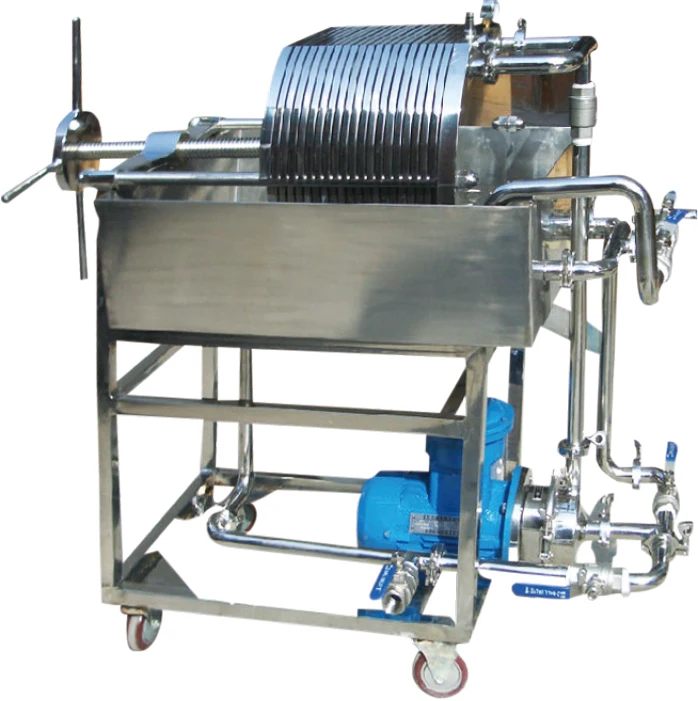

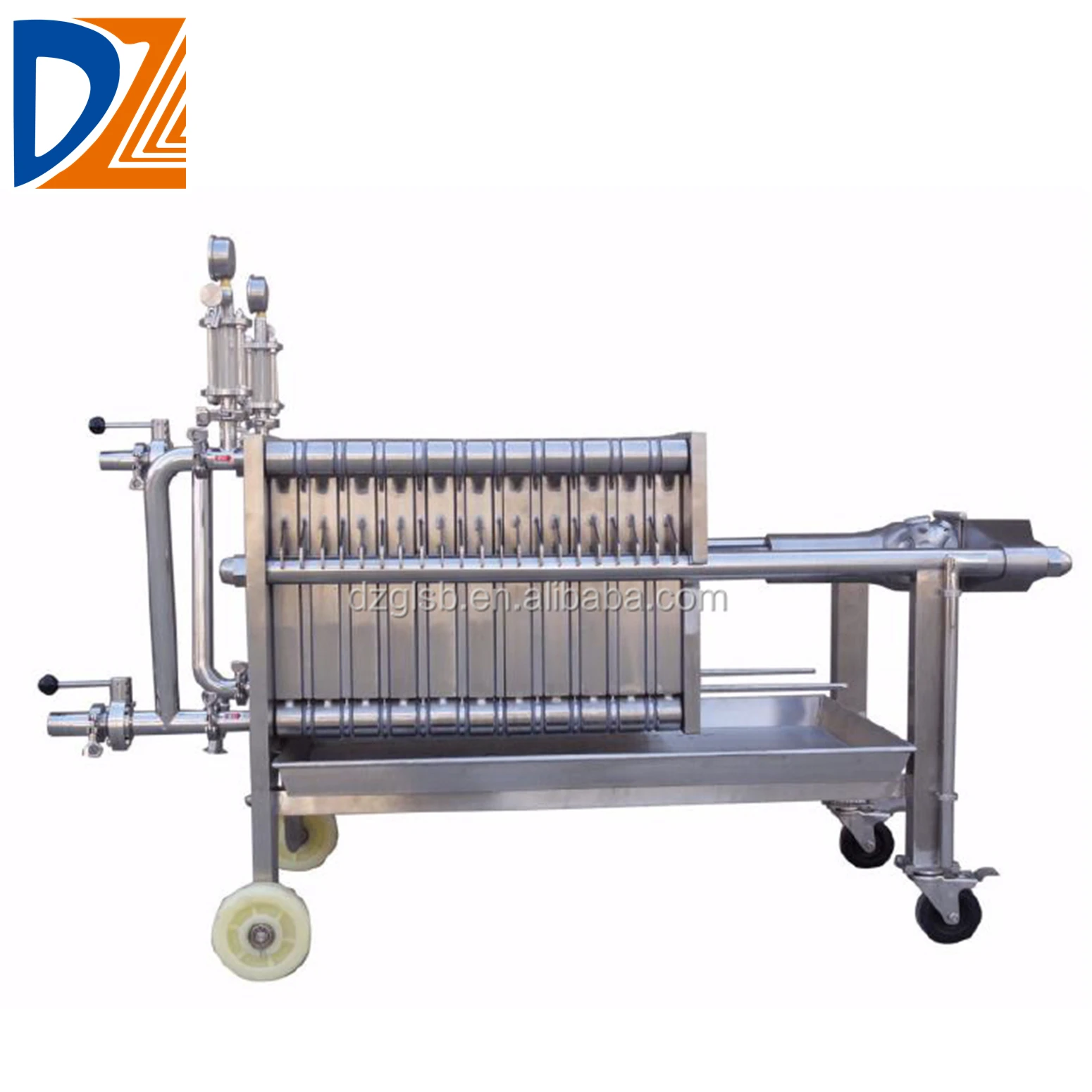

High quality Stainless Steel 304 Hydraulic Fine Filter Press for Sludge Oil Fruit Food Juice Filter Machine
- Category: Filtration Equipment >>>
- Supplier: Shanghai Dazhang Environmental Protection Equipment Co. Ltd.
Share on (62087434283):
Product Overview
Description
BASJL 400 BASJL 600
STAINLESS STEEL FINE FILTRATION
This Type of Filter Press is Suitable for Various Sector Such as:Liquid Medicine,Plasma,Liquor(Beer,Wine,Spirit,Yellow Wine,Fruit Wine),Beverage,Juice,Syrup,Vinegar,Oil(for Food or Industry Usage),Fine Chemical,Electroplating Water Industries.
Material:Frame:S.S-304;Plate:S.S-304(316 L or PP Could be Optional)
Sealing Ring Material:White Silastic .Working Pressure:＜0.4MPa;Working Temperature:＜120℃
Major Dimensions:Plate Thickness : 13 mm;Individual Chamber Volume:4.8 L
Squeezing Method:Screw/Manual Hydraulic(Others:Manual Jack/Automatic Hydraulic etc.
Filter Material:Paper Board,Paper,Membrane,Cloth etc.
Precision:Cloth from 200 to 300 Mesh for Rough Filtration,and Paper or Membrane from 0.22 to 0.45μ m for Refined Filtration
Model | Filter Area(㎡) | Plate Qty | Flow(T/h) | Plate Size(mm) | Dimension(mm) |
BASJL400-2 | 2 | 15 | 1-2 | 400*400 | 1250*660*1300 |
BASJL400-3 | 3 | 21 | 1-3 | 400*400 | 1350*660*1300 |
BASJL400-4 | 4 | 31 | 3-4 | 400*400 | 1550*660*1300 |
BASJL400-6 | 6 | 45 | 4-6 | 400*400 | 1750*660*1300 |
BASJL400-8.5 | 8.5 | 61 | 6-8 | 400*400 | 2100*660*1300 |
BASJL400-9.5 | 9.5 | 71 | 8-10 | 400*400 | 2300*660*1300 |
BASJL600-14 | 14 | 41 | 10-13 | 600*600 | 1750*870*1350 |
BASJL600-21 | 21 | 61 | 15-20 | 600*600 | 2100*870*1350 |
BASJL600-24 | 24 | 71 | 20-25 | 600*600 | 2250*870*1350 |
BASJL600-35 | 35 | 101 | 25-30 | 600*600 | 2800*870*1350 |
