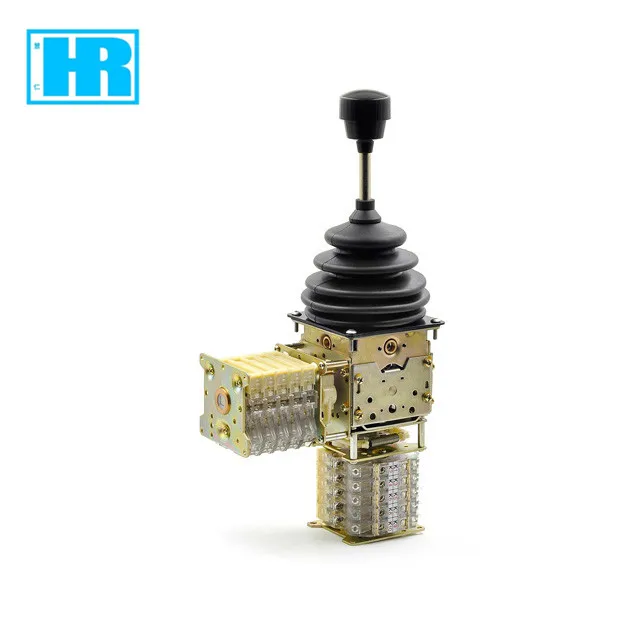

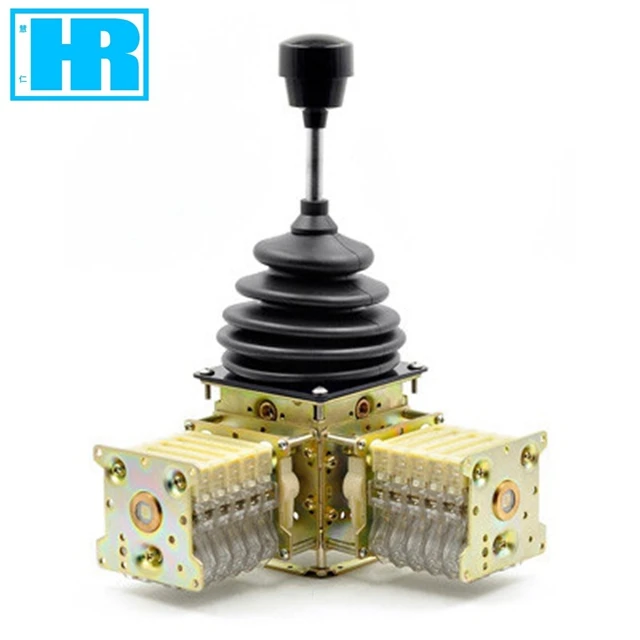

multi axis industrial joystick control for tower crane joystick

Product Overview

Description

hand control lever



1. Building block design

2. Single biaxial friction positioning, the median self-locking

3. Sterling silver contact, ensure the service life of the product

4. The electric current can reach 380V10A, reliable perormance

5. Mechanical life is more than 5 million times



Technical Specifications

Environment Specifications
Storage temperature	normal temperature
Operating temperature	—25℃~+80℃
Installation of flange protection grade	IP56
Mechanical Specifications
Mechanical rotation	±45°
Operating torque	5N(50Nmax)
Mechanical life	5,000,000 cycle
Mechanical tolerance	±0.5°
Electrical Parameters
Power supply voltage	220V,380V
The power consumption of current	0
Rated operating current	10A
