Diamond Grinding Wheel for Marble Edge Sharpening Electroplated Profile Wheel Grinding Stone Diamond Tools

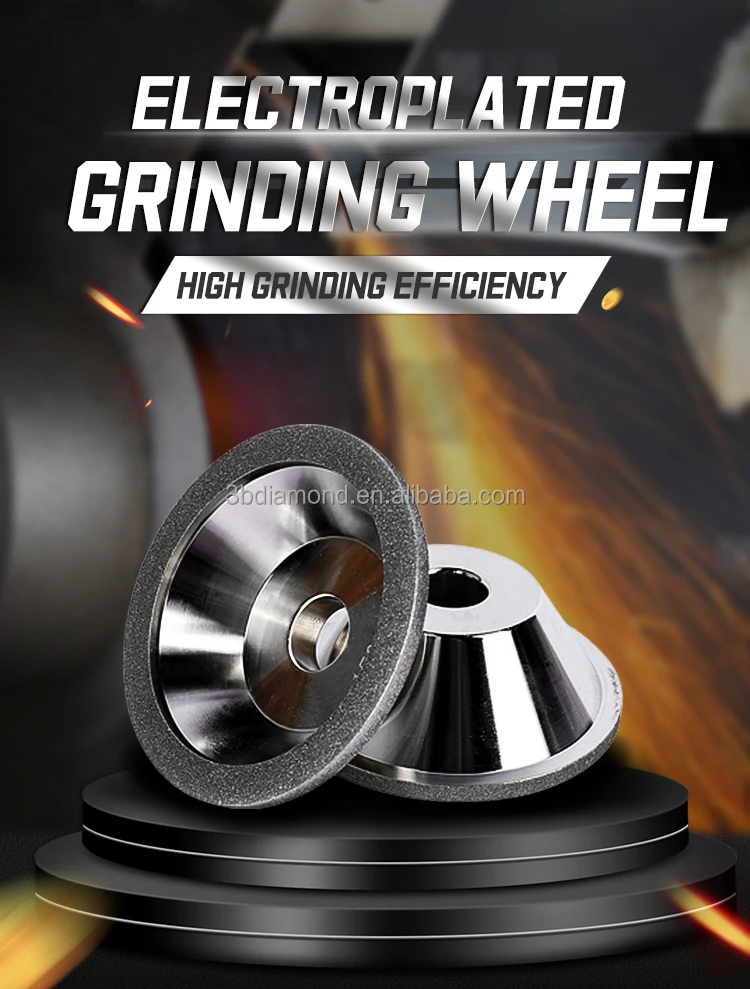

Electroplated Grinding Wheel is a grinding wheel made by electrochemical method. The grinding wheel working layer contains diamond grinding particles, and the diamond abrasive is bonded to the substrate by a metal bond.Somebetter offers various Diamond /CBN Grinding Wheels, including Resin Bond , Metal Bond and Vitrified Diamond wheels.

Working layer:Diamond/CBN layer.consing of abrasives.binders and filers, it is the working part of the ginding  wheel.
Base body:aluminum or steel,the role of supporting the working layer.

Transition layer:consisting of a binding agent, metal powder and fller, the connection of the working layer and the base body.

Advantages of electroplated diamond and CBN grinding wheel

1)electroplated process is simple, less investment, convenient manufacture;
2)No need to trim, easy to use;
3)monolayer structure determines the it can achieve very high working speed, currently , has been as high as 250 ~ 300m / S;
4)although only a monolayer diamond, but there is still enough life time;
5)for the high precision request rolling wheel, electroplated is the only manufacture method.

Comparison of CBN and Diamond Uses

Due to the different physical and chemical properties of diamond and cubic boron nitride, it is necessary to make appropriate choices based on the workpiece material processed.

Comparison of CBN and Diamond Uses
Diamond	application
			Cemented carbide, titanium,alloy,ceramics,cermet,PCD\\PCBN,Glass,crystal, silicon,Diamonds,quartz,Concrete,asphalt	tungsten cast iron aluminium alloy magnetic material
CBN			carbon steel, high speed steel,chisel tool steel,chilled steel,Die steel,Bearing steel,stainless steel,copper alloy,heat-resisting alloy,Superalloy

Body Type and introduction of diamond & CBN grinding wheel
Body Type	Introduction
	Steel		1. Steel body has the best rigidity. 2. Steel has a higher melting point than aluminum and is used for dry grinding. 3. The weight is the heaviest of the three.
	Aluminum		1. The weigh lighter than steel body. 2. Aluminum has a low melting point, so need to be grinding with water 3. Aluminum suitable for polishing.
	Plastic		1. The weight is the lightest of the three. And the freight is relatively low. 2.The rotational speed should be faster than the steel body when use. 3. Plastic body has the advantages of light weight and low price.

Application of electroplated diamond & CBN grinding wheel

1. Electroplated diamond products: Mainly used for machining nonmetals with high rigidity like ceramics ,glass ,tungsten carbide ,ferrite and so on .
2. Electroplated CBN products :Mainly used for machining metallic material such as chilled cast iron ,founded alloy steel ,titanium alloy and so on .

 1),The types of grinding wheel.

Diamond grinding wheel Or CBN Grinding wheel?

2),Which bond do you want?and the blank?

Metal,resin,electroplated or vitrified bond ?

Alumium or steel blank or others?

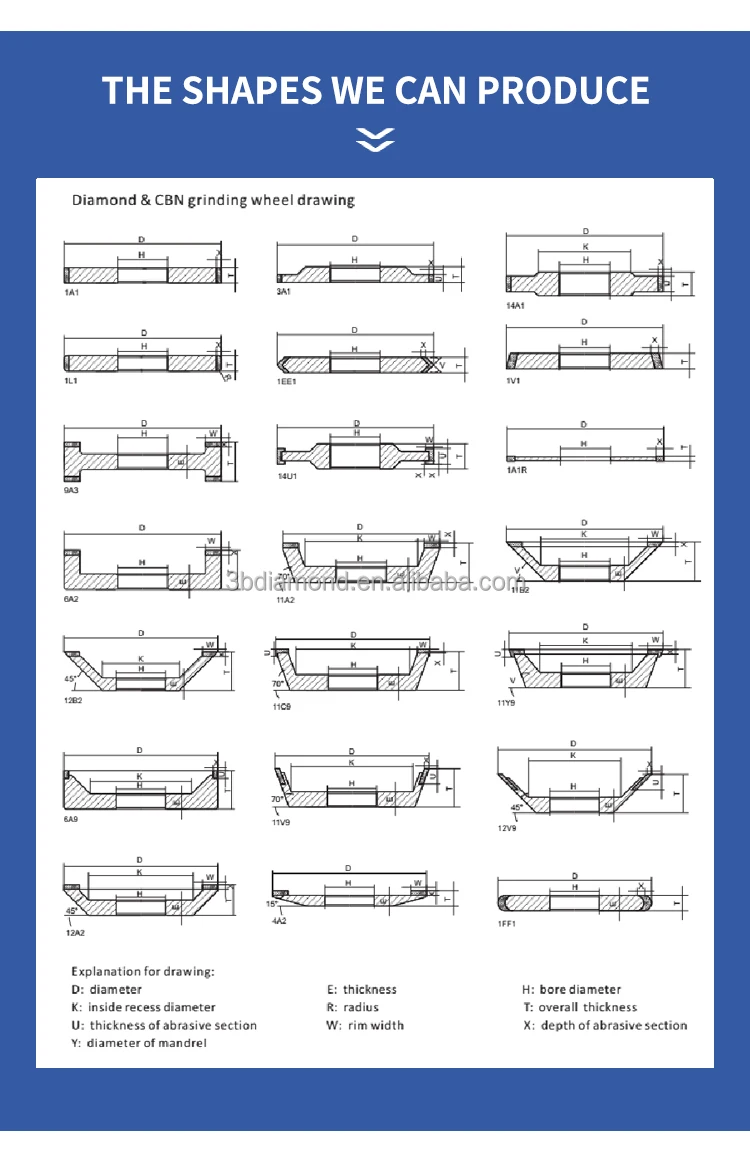

3),The shape ?

Flat  Shape  -1A1 is frequently used ? Or Bowl shape-11V9 is highly recommanded ?

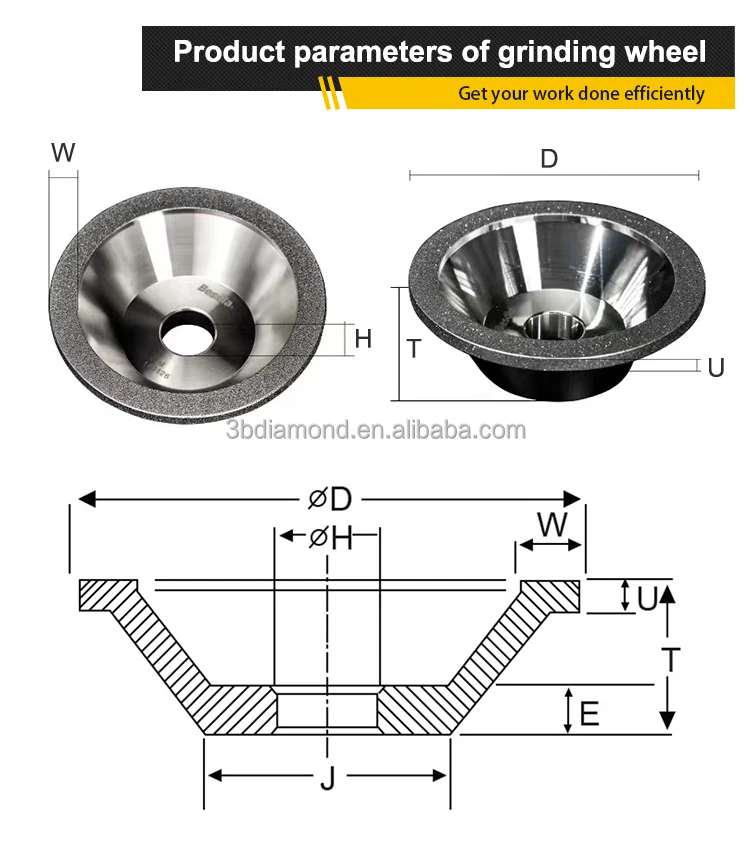

4),The specification(mm)

Outer Diameter?Whole Thickness?Hole size?X(Ring Width)?U(thickness of abrasive section)?

   For more details please contact us freely  ^______^
