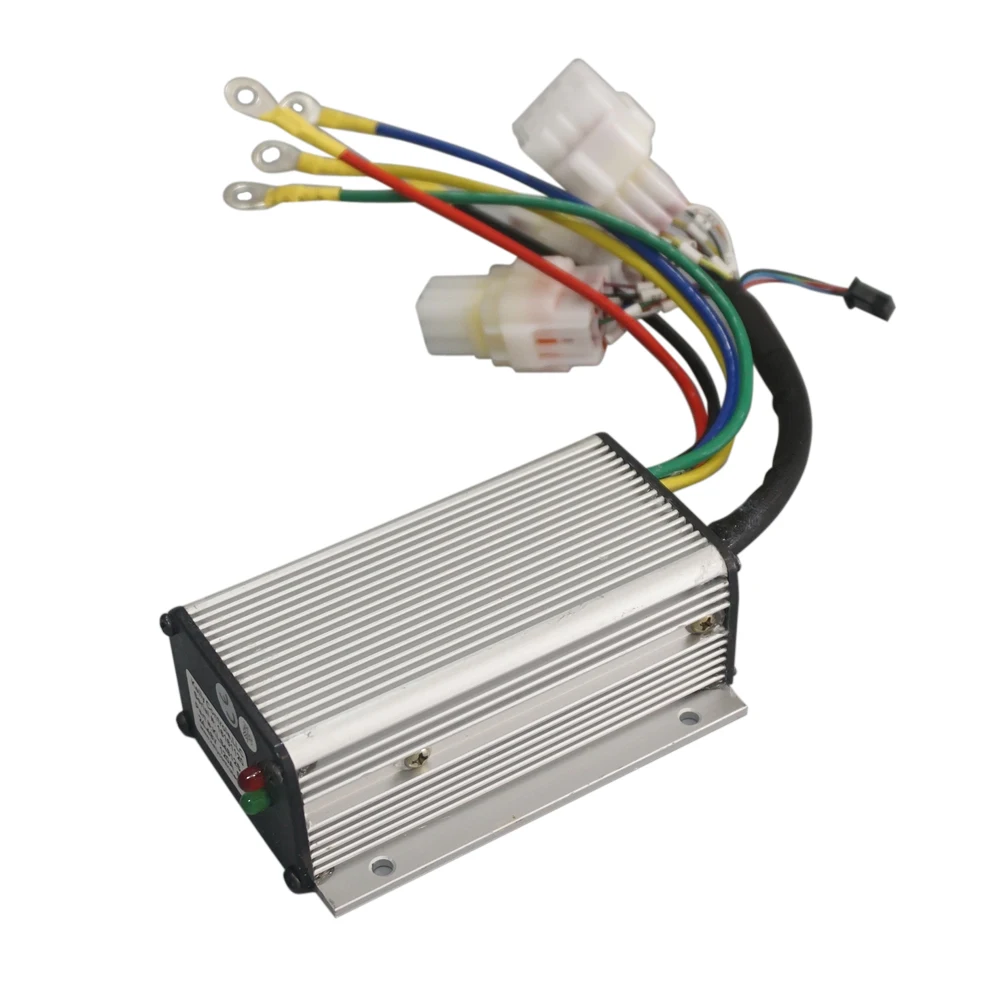

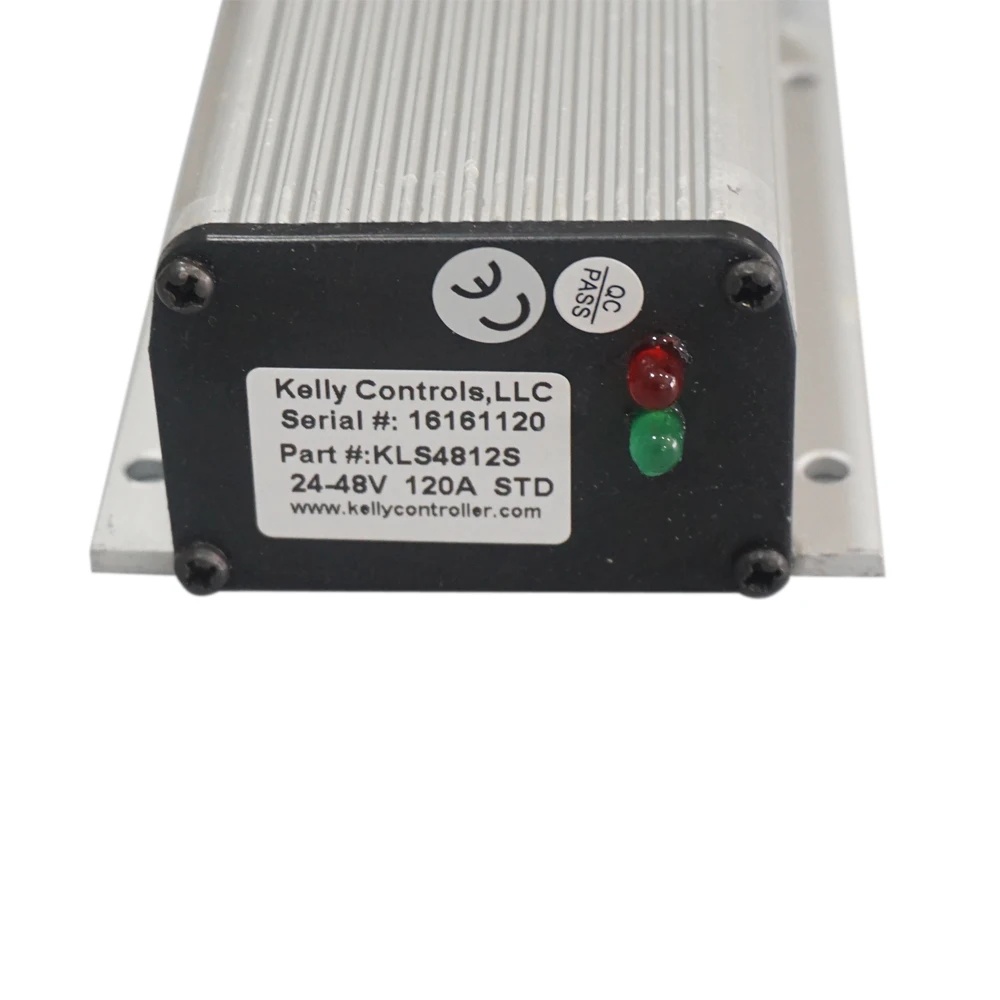

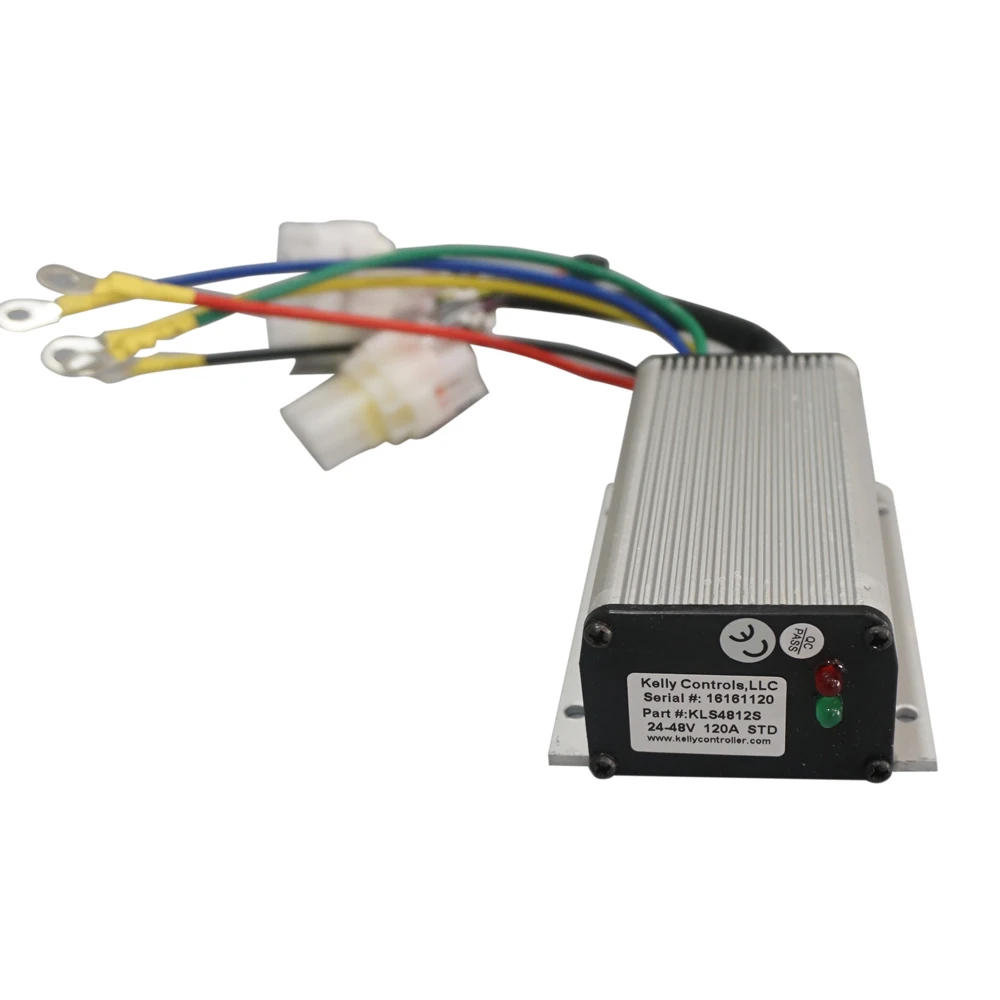

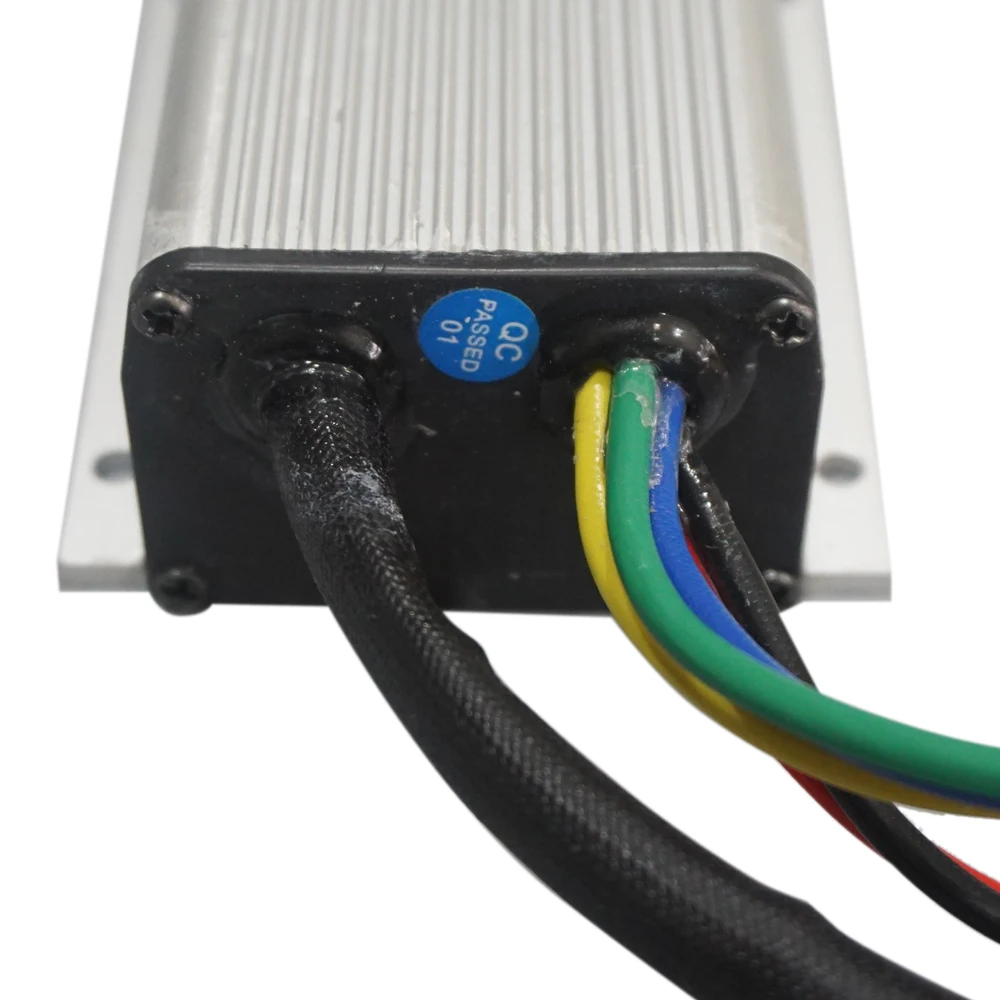

Kelly e bike 48-72v motor bldc controller QSKLS7212S
It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1000-1200W.
Product Description
Key Features
1). Very Easy connect
2). Can match with almost brushless DC motor
3). Quality Guarantee(generally no after-sale issue)
4). Programmable with USB and bluetooth(No bluetooth as default)
1. Generally SPEC
1. sine wave controller, programmable, with regen function
2. Motor Current Limit, 20 seconds: 120A
3. Motor Current Limit, continuous: 50A
4. Thermic Probe: KTY83-122
5. Including one controller + USB convertor cable + matched plug
6. controller size: 108mm*78mm*41mm
7. net weight: 0.77kg
8. waterproof IP54
9. default not including bluetooth, waterproof(those function are optional); CAN BUS not support
2. Kelly Controller Software Interface

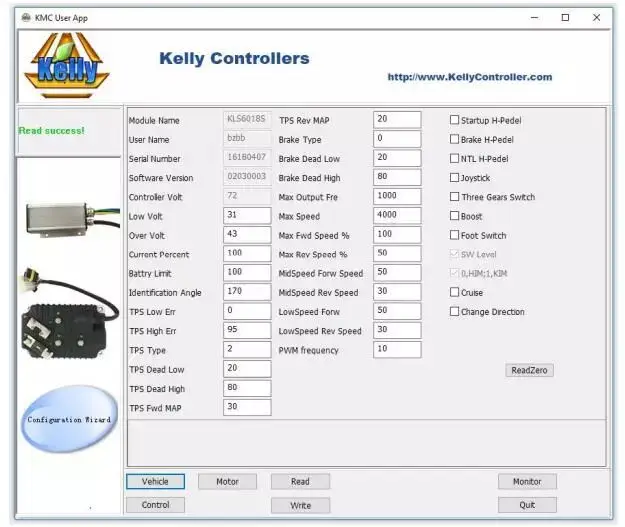

Here are the clear and easy adjustment software interface.

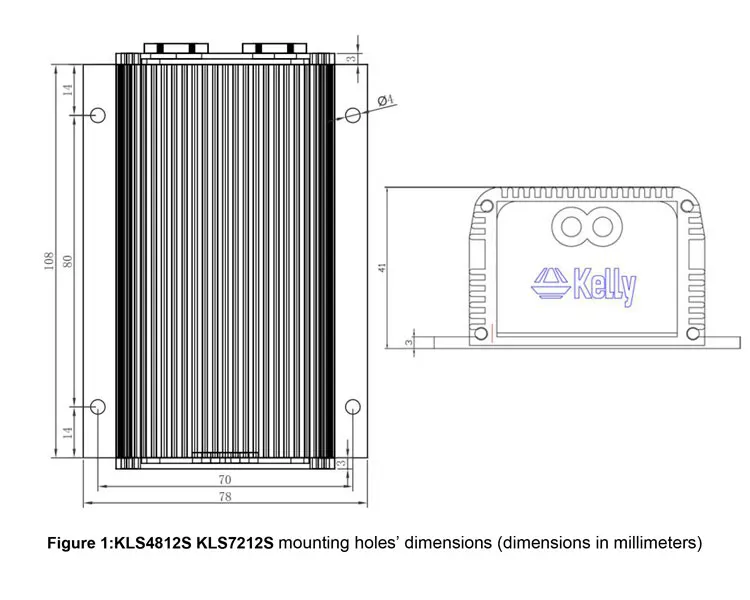

3. QSKLS7212S controller drawing
4. Pin Definition
DJ7091Y-2.3-11 Pin Definition
(14) REV_SW: Reverse switch input. Orange
(6) RTN: Signal return or power supply return. Black
(12) FWD: Forward switch White
(11) 12V:12V Source Red
(9) Relay: Main contactor driver. Blue
(7) PWR: Controller power supply (input). Pink
(25) 12V brake switch. Yellowish
DJ7091Y-2.3-21 Pin Definition
(15) Micro_SW: Throttle switch input. Gray
(3) Throttle: Throttle analog input, 0-5V. Green
(1) Temp: Motor temperature sensor input. Raddle.
(20) RTN: Signal return. Black
(8) Meter: Copy signal of hall sensors. Dark Gray
(4) 5V: 5V supply output, <40mA. Purple
(2) Brake_AN:Brake variable regen or Boost function. Brown
DJ7061Y-2.3-21 Pin Definition
(21) RTN:Signal return. Black
(5) 5V: 5V supply output,<40mA.Purple
(18) Hall A: Hall phase A. Yellow
(17) Hall B: Hall phase B. Dark Green
(16) Hall C: Hall phase C. Dark Blue
Notes:
1. All RTN pins are internally connected.
2. Meter function is to copy either of hall sensors.
3. Switch to 12V is active. Open switch is inactive.
Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.
5. Questions before order
1). If you want to buy the controller separately, please advise us the parameters of your matching motor?
Such as Motor Voltage, Wattage, Speed...
2). If you need any other special functions for this controller, please feel free to contact to us. Thank you!
6. Other Motor Kits and more controller models

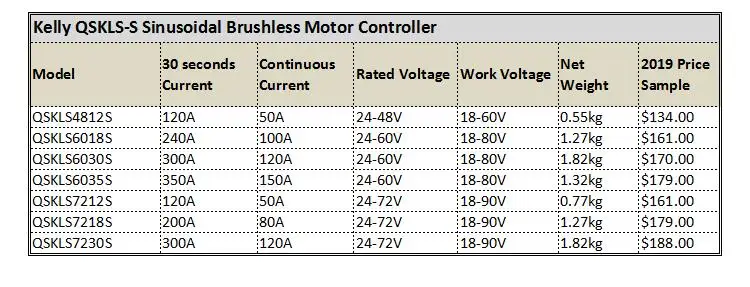

If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.
PS. 1. Dimension
KLS4812S KLS7212S 108mm*78mm*41mm
KLS6018S 148mm*94mm*76.5mm
KLS7218S 148mm*94mm*50mm
KLS6030S KLS6035S KLS7230S 140mm*123mm*58.5mm
KLS7240S 158mm*123mm*58.5mm (Not avaiable now)
2. Optional Waterproof, $ 13.0 (from IP44 to IP66)
3. Bluetooth: $16.0
In order to recommend the suitable controller for you and send you the quotation accordingly, could you kindly inform me below points?
1. What's your application, e-bike, e-scooter, e-car?
2. Sine Wave or Square Wave?
3. The Voltage of controller, Peak Phase Current(10 seconds), Continuous Phase Current Limit?
Or which motor would you use (Wattage, RPM/Speed)?
Thank you for your understanding in advance.
