BCM1325D European quality 1325 atc cnc router machine price for cabinets
- Category: Wood Router >>>
- Supplier: Jinan Bcamcnc Machinery Co. Ltd.
Share on (62089966205):
Product Overview
Description
Product Overview

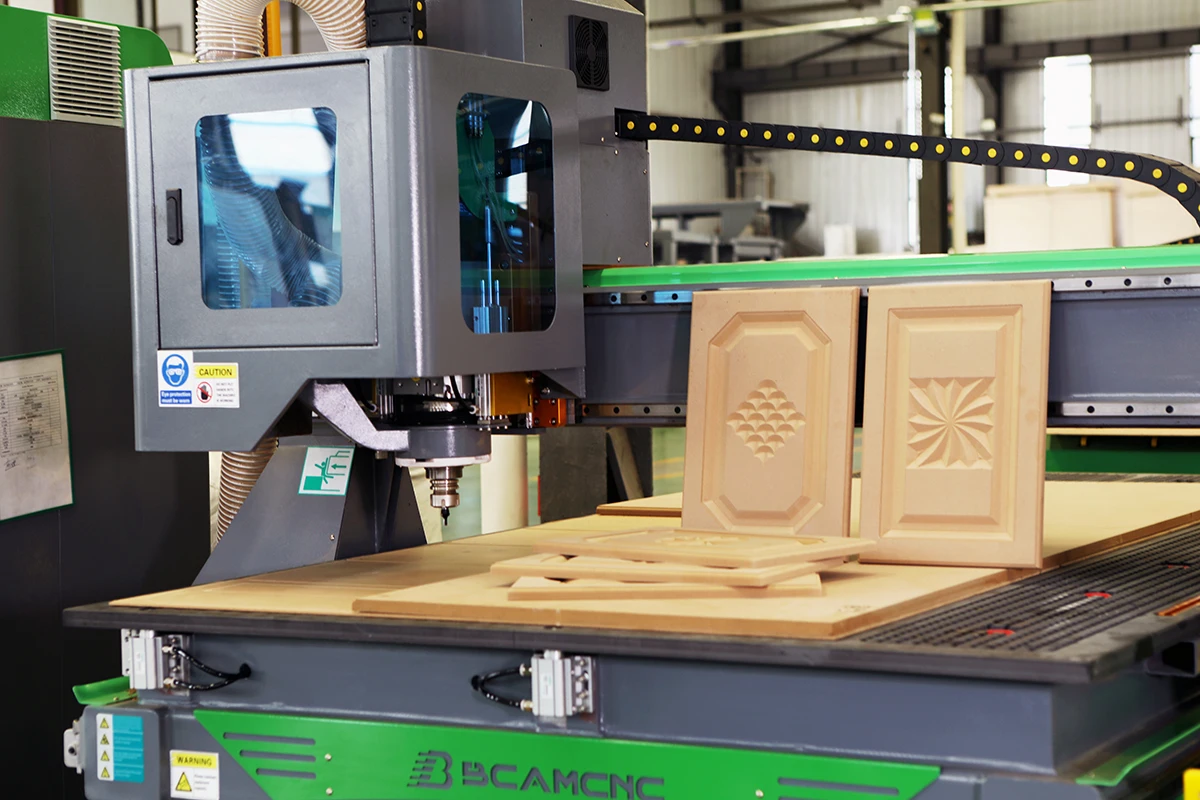

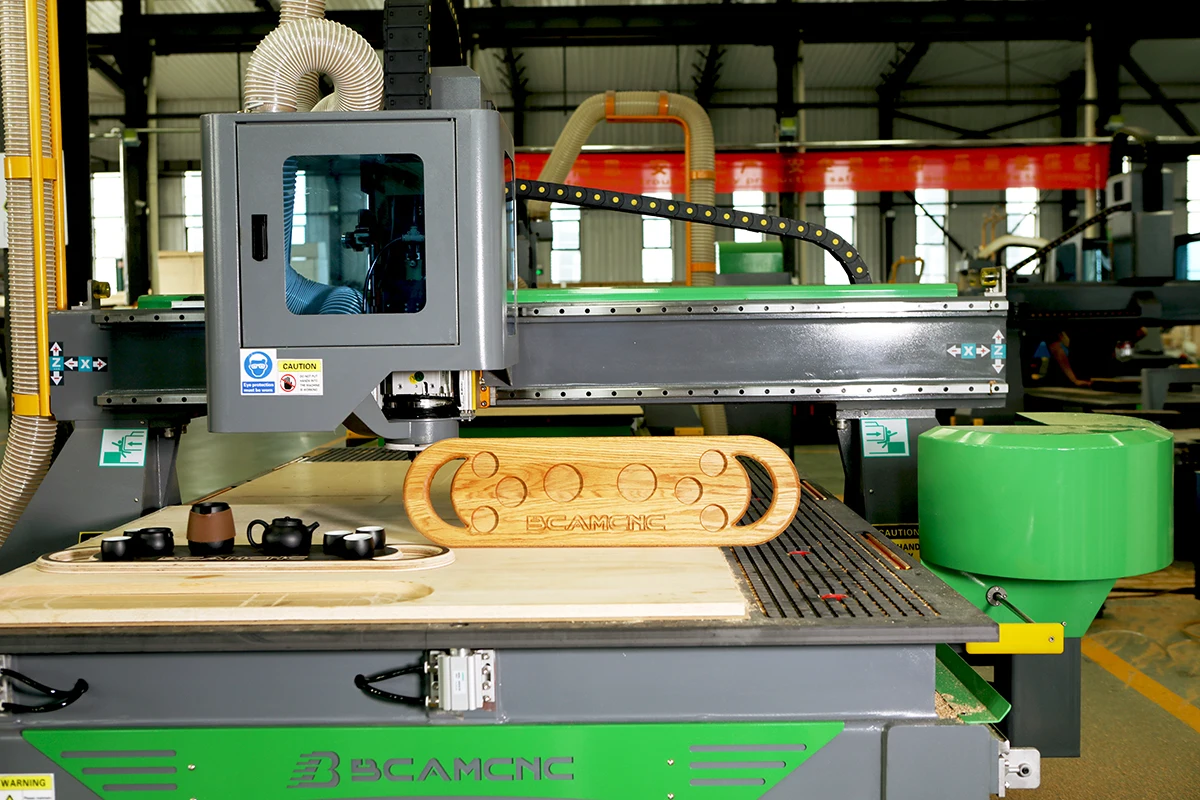

European quality 1325 atc wood cnc router machine price for cabinets
This best in class BCM1325D CNC Router has been fully designed by BCAMCNC, complete with our own design “Typhoon”cyclone dust-free vacuum system and active safety system – giving you unrivalled control over your CNC.
With one of our BCM1325D cnc router price you will easily be able to produce wood working projects such as kitchen cabinets, furniture, and even produce custom staircases.Many of our customers are benefitting from bringing their CNC production process in-house, saving them huge amounts of precious time and money.
With one of our BCM1325D cnc router price you will easily be able to produce wood working projects such as kitchen cabinets, furniture, and even produce custom staircases.Many of our customers are benefitting from bringing their CNC production process in-house, saving them huge amounts of precious time and money.
Product Parameter
Parameters | Standard Specifications BCM1325D |
X,Y,Z Working Area | 1300*2500*200mm|4*8ft |
Optional Working Area | 1300*1300*200mm|4*4ft |
1500*3000*200mm|5*10ft | |
2000*3000*200mm|6*10ft | |
2000*4000*200mm|6*13ft | |
2000*6000*200mm|6*20ft | |
Spindle Power | 9kw Italy HSD air cooling spindle |
X,Y,Z Traveling Positioning Accuracy | 0.01/2000mm |
Table Surface | Vacuum table+T-slot table |
X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
Max. Rapid Travel Rate | 70m/min |
Max. Working Speed | 50m/min |
Cutting thickness | According materials |
Spindle Speed | 6000-24000RPM |
Drive Motors | Japanese Yaskawa Servo motor and drivers |
Working Voltage | AC380v/50HZ/3 phase |
Command Language | G Code |
Operating System | Taiwan Syntec 6MB control system |
Interface | USB |
Software Compatibility | Option:Type3/Ucancam/Alphacam/Solidworks,etc. |
Running Environment | Temperature: 0℃~45℃ Relative Humidity: 30%~75% |
Advantage
The quality of every BCAM Carousel ATC CNC router cnc router priceis excellent. Every BCAM D series CNC router carries a full year warranty andour great technical team support! You will find out many advantages after you have used our CNC router.
Our goal is offer you more and cost you less! High-performance all-round machinery with extraordinary value, but at a very economical price. With disc tool changer, constructed with world-class components, consistent high performance.
When the D series CNC Router is working, the tool change system will move along with it, which saves the tool change time and is suitable for more processing.The ATC allows the BCAMCNC cnc router price to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A machine equipped with an ATC can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop
Details Images

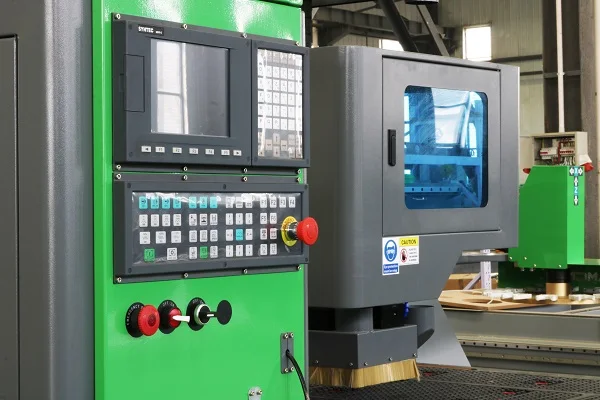

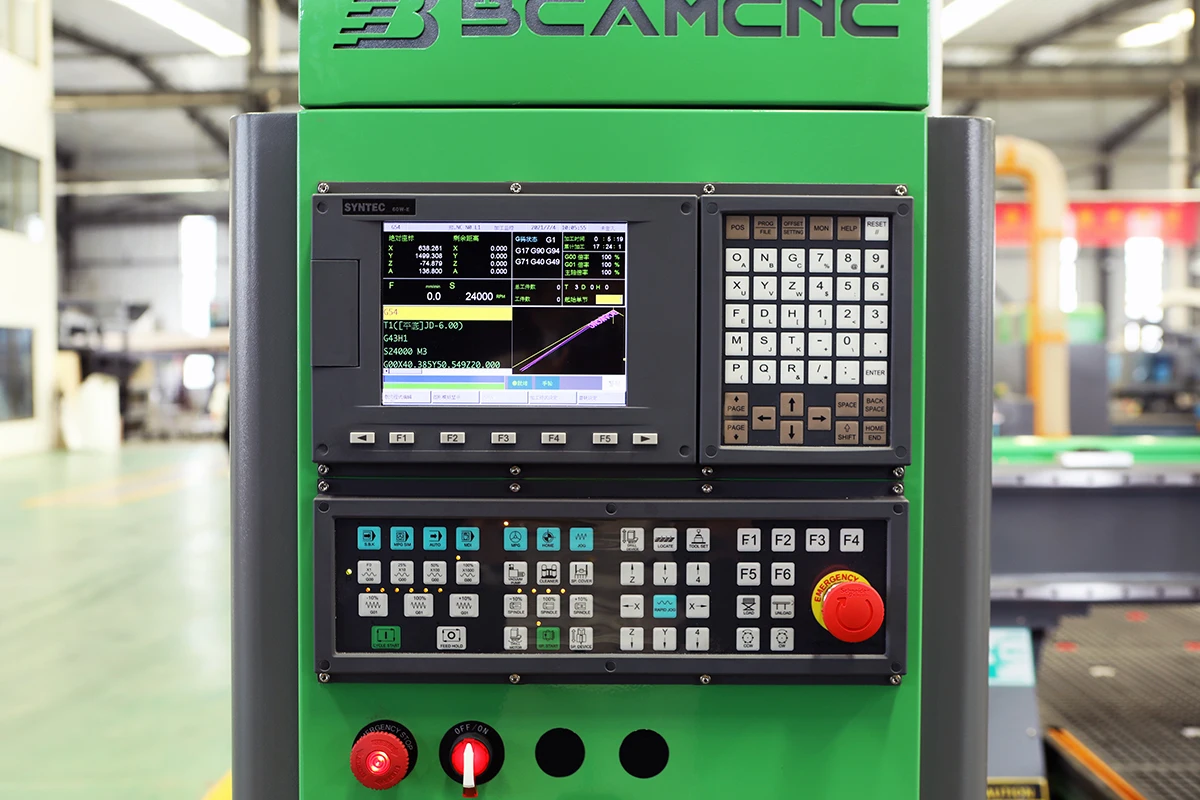

Control system
The control system of BCM1325D CNC router adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.

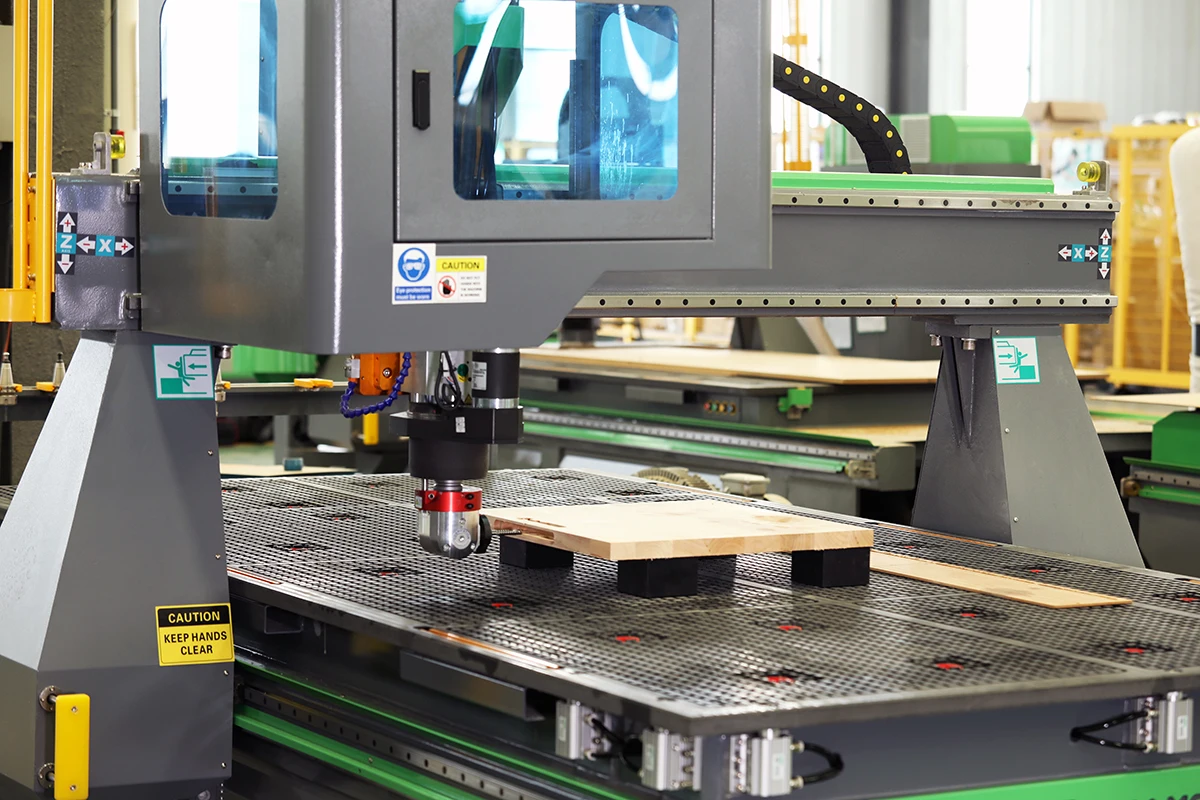

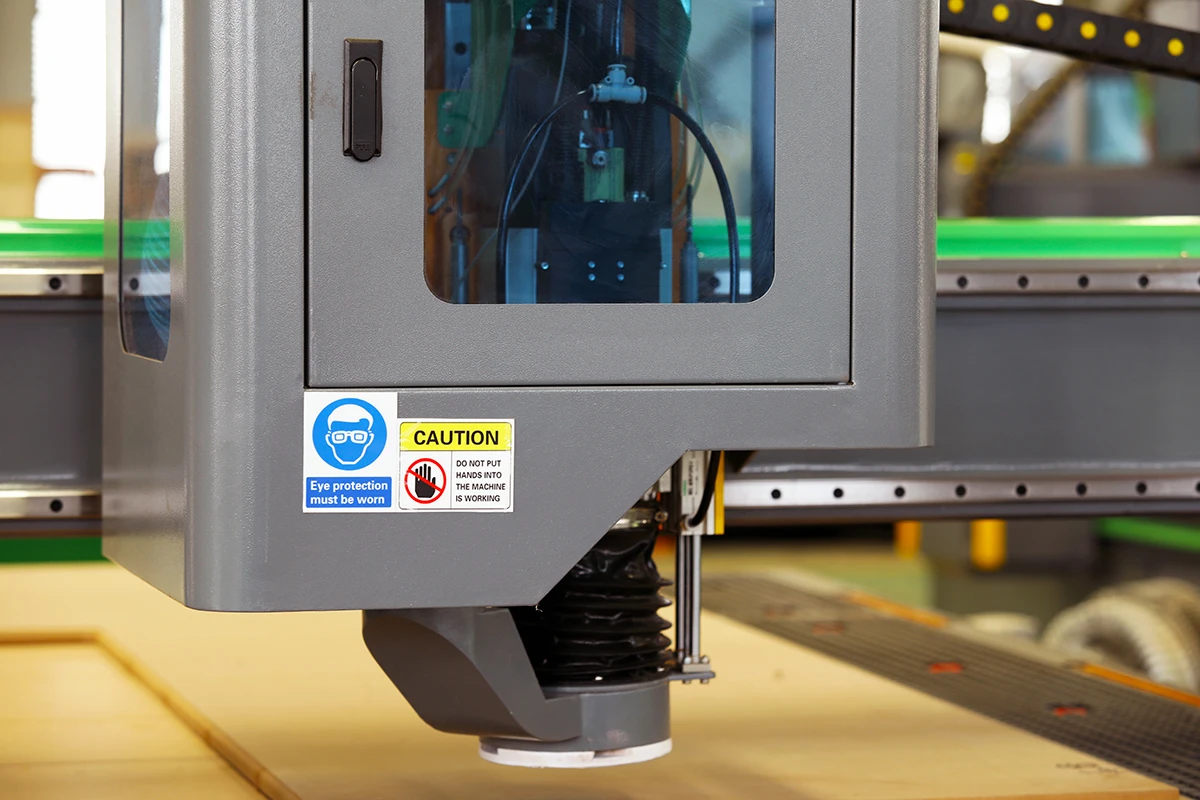

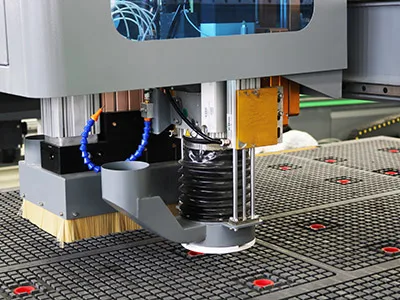

CNC Head .
BCM1325D CNC router selects Italian HSD air-cooled spindle, power: 9.5KW. Choose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.

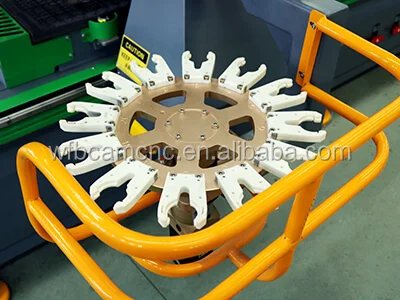

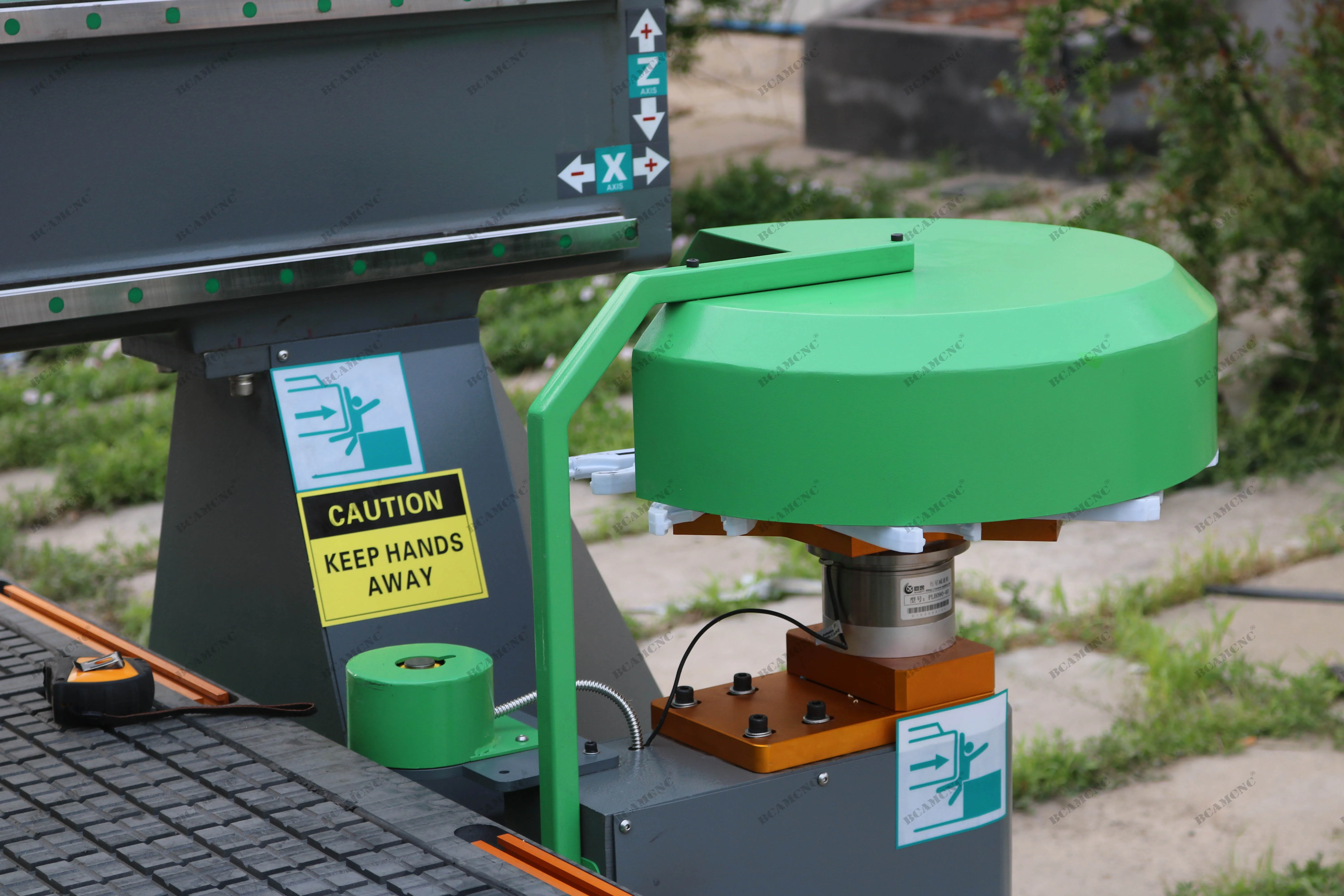

Auto Tool Changer
BCM1325D series is a cnc router designed by BCAM for automatic disc changer. This series is more automatic than BCM1325S manual tool change series. It is faster than BCM1325C series tool change, eliminating manual The cumbersome tool change shortens the tool change time and makes the cnc router more precise.

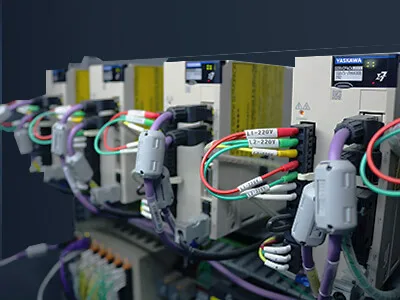

Driving system
World-class servo motor and driving system ensures machine to run with fast speed and low noise

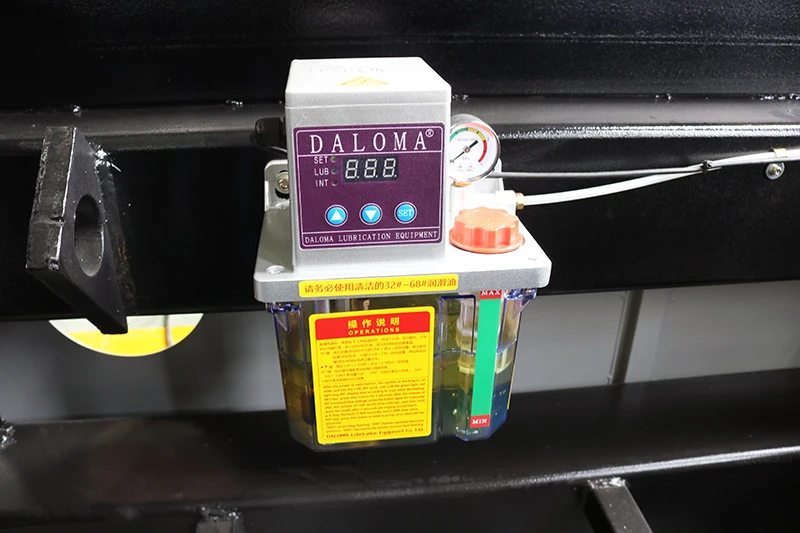

Lubricating system
Auto lubricating system, one touch can finish periodic maintenance easily.

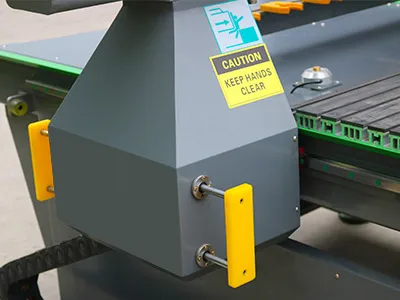

Safety System
BCAM series cnc router price has the unique safety protection system of BCAM products, and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.

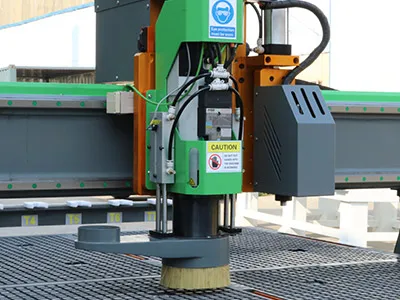

Dust collector system.
The country's first dust-free vacuum system is inspired by the “Typhoon” cyclone.
The beautiful design and excellent performance have won praise from many customers. More and more customers have seen the revolutionary vacuum design in the industry, and some of them traveled from far to purchase BCAM engraving machines.
The beautiful design and excellent performance have won praise from many customers. More and more customers have seen the revolutionary vacuum design in the industry, and some of them traveled from far to purchase BCAM engraving machines.
Optional Parts

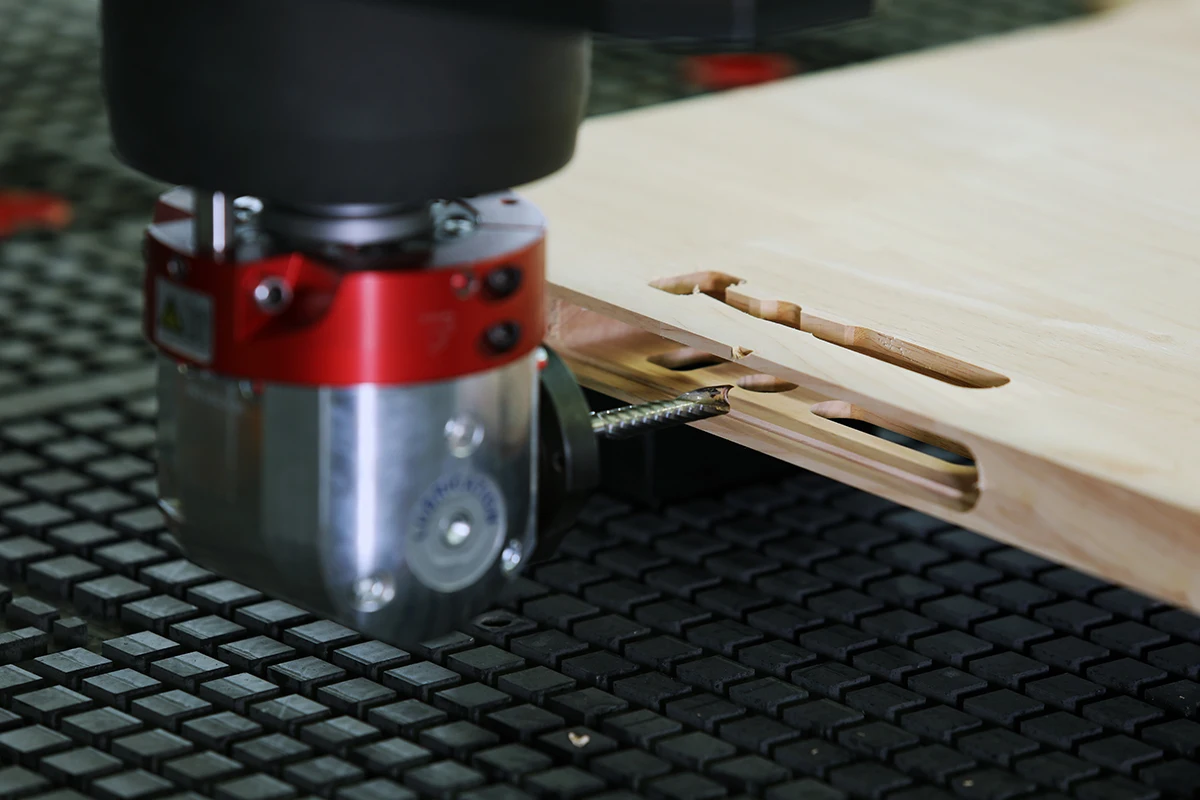

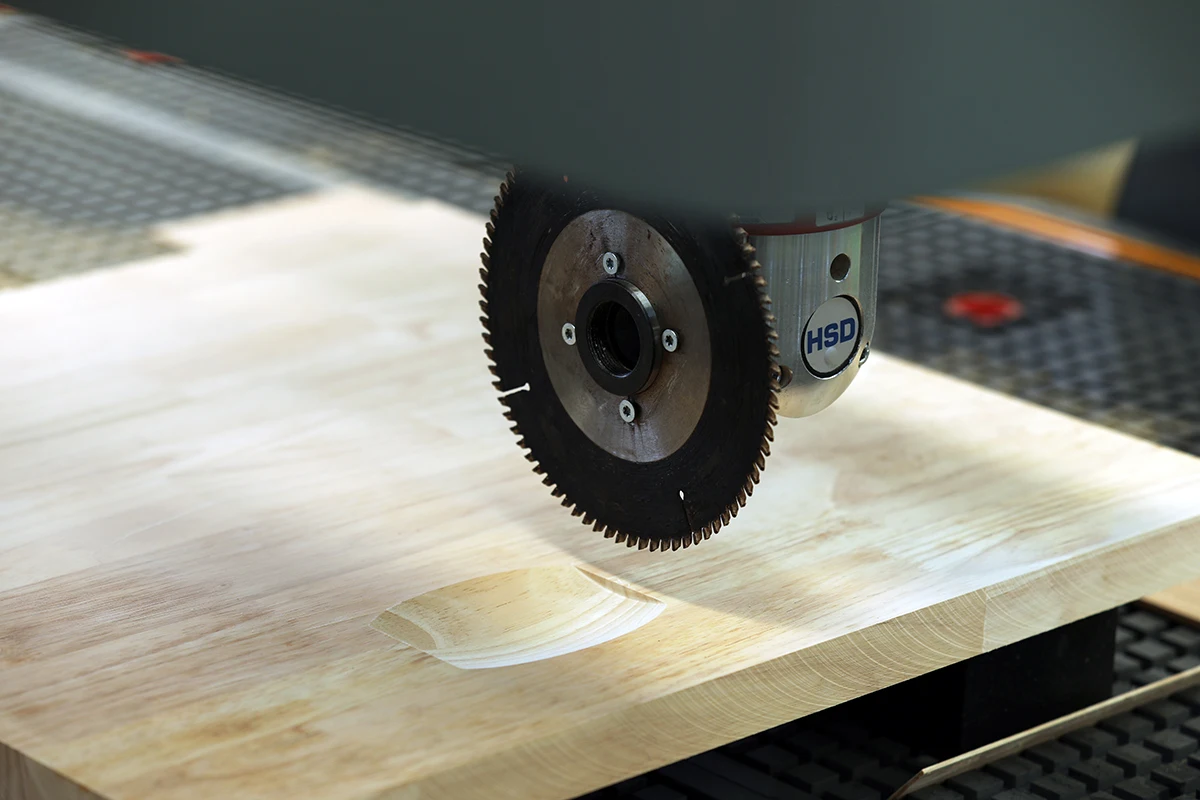

c axis with Angle head:
C axis + Angle Head ( Drilling,Milling and Saw ) , 0-90 Degree .Aggregate heads for the machining of wood, plastics and aluminum.Competence in consulting, production and service.Install C axis and an aggregate on your CNC Router Machine price can increase the performance, versatility and productivity of your 3 4 or 5 axis CNC Wood Router Machine for a modest investment. An aggregate or
angle head is a device that is attached to the wood router cnc cutter spindle that allows the user to route, drill,slot and saw at different angles other than where the spindle is orientated. The use of aggregates on the CNC Router Machine greatly increases the
versatility, capability and the overall value of an already very expensive machine. In almost all cases CNC Router spindles are always mounted at a right angle to the wood router cnc cutter table so there are two distinct reasons to install aggregates to your CNC Router machine – to change the direction of the spindle (meaning the way the tool is orientated to the workpiece) and to add a new operation to the machine-like mortising, tenoning, sawing or cutting soft materials with a reciprocating knife.

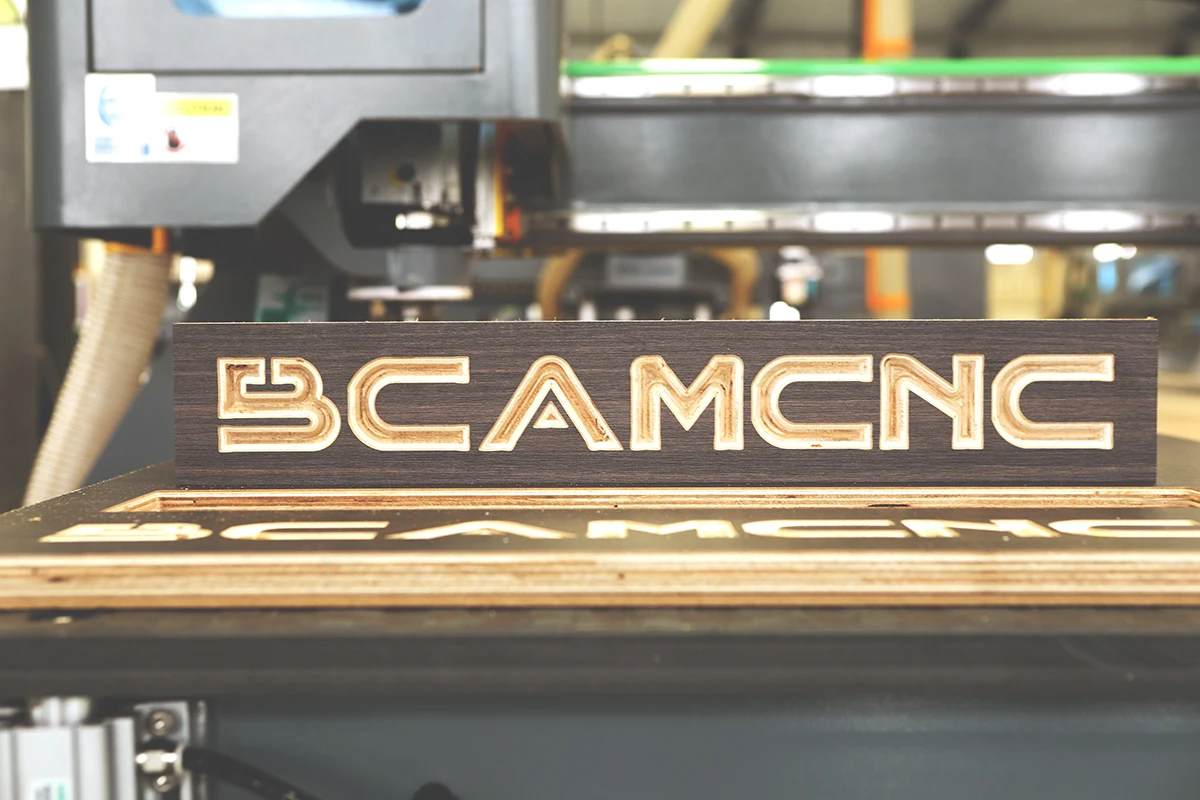

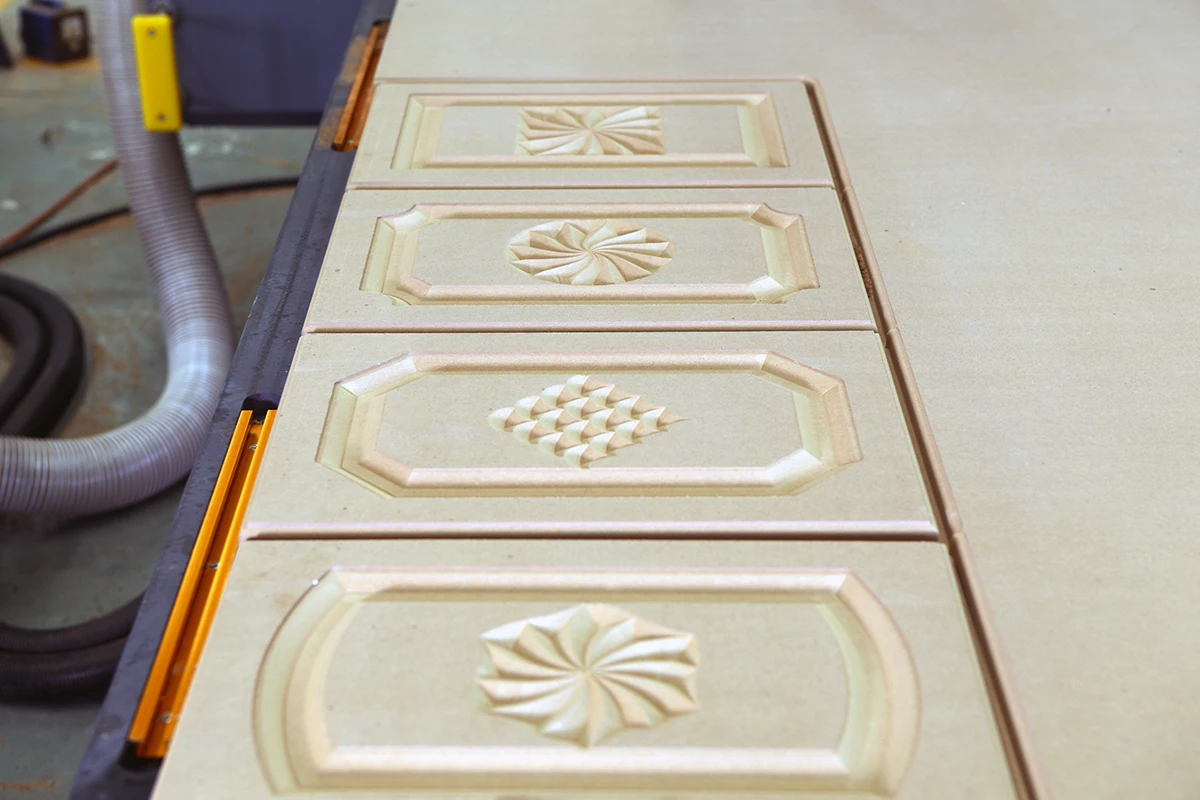

Sample display
CNC Routers such as the BCM1325D ATC CNC Router can be used in many different applications such as:
* Furniture making * Shopfitting
* Staircase manufacturing * Ply-lining kits
* Campervan conversions * Engineering
* Kitchen cabinet making * Plastic fabrication
* Signmaking * Personalised products
* Prototyping * Cladding production
* Custom product design and manufacture * Boatbuilding components
* So much more…
* So much more…

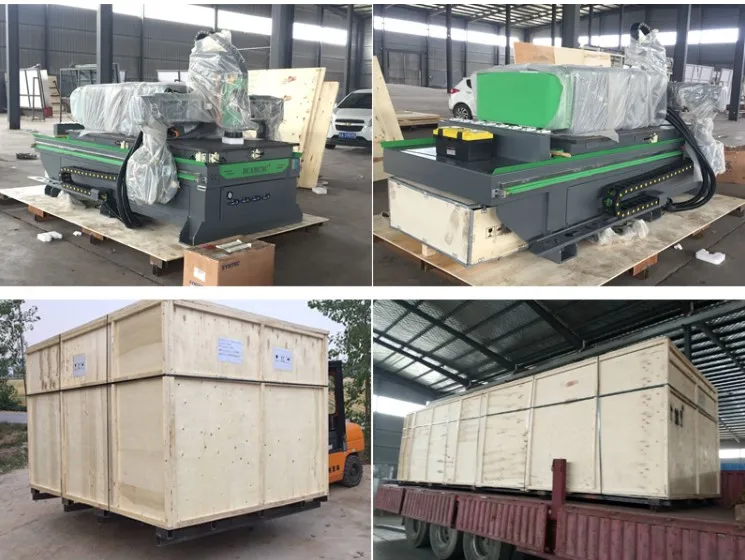

Product packaging
Package .
1.Whole film packaging machine
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port
2.Anti-collision package edge
3.Fumigation-free plywood wooden box with iron binding belt
4.According to customer's requirements for loading the whole container or LCL at Qingdao port

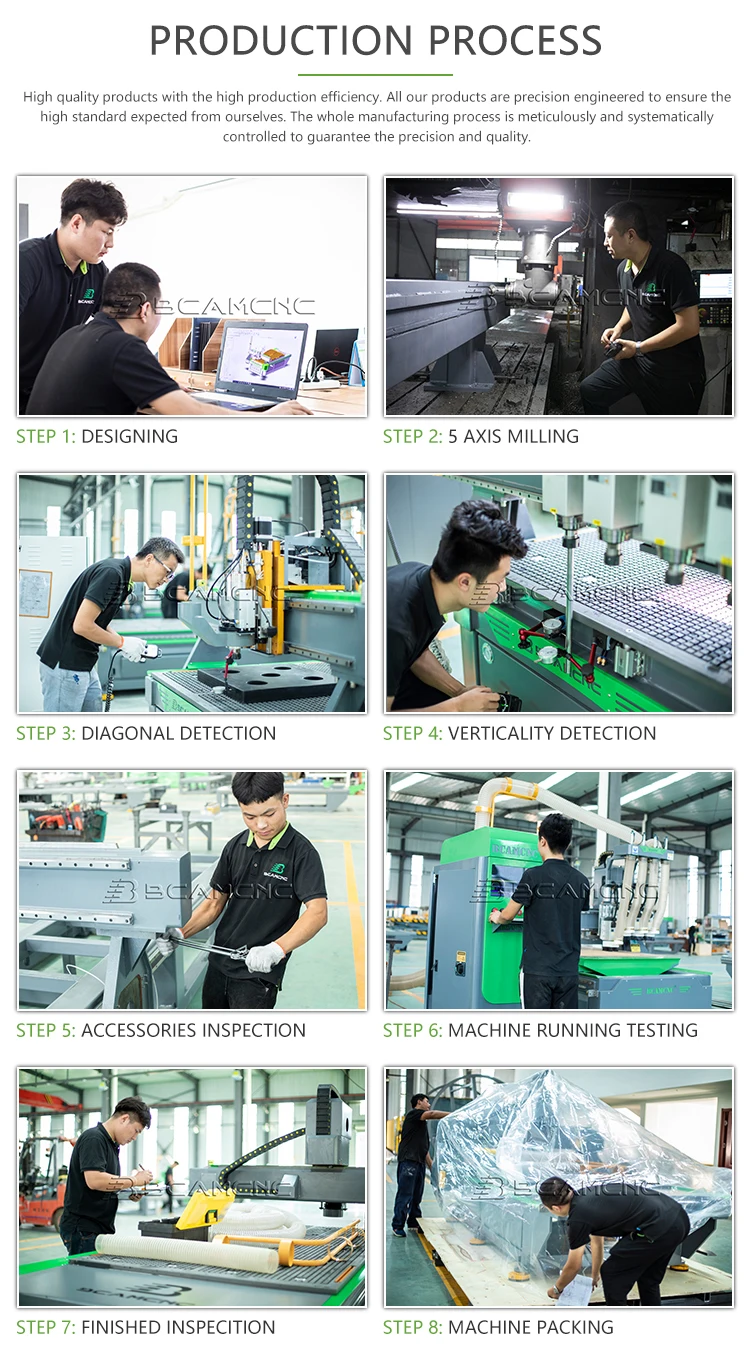

Manufacturing Technique

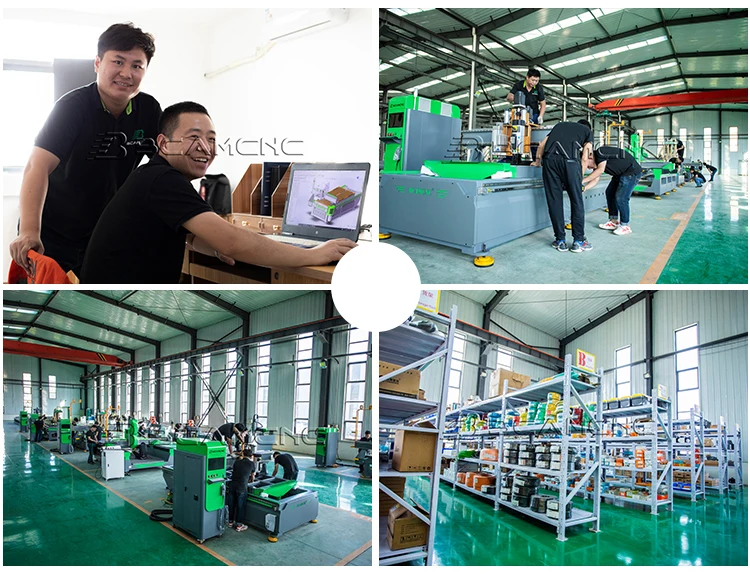

Company Profile
BCAMCNC , a professional machinery manufacturing company, with 6000 square meters factory，a highly specialized workforce and more than 10 Patent Technologies has gained a global reputation as one of the most reliable and trusted CNC machinery solution providers.
BCAMCNC comprehensive in the production, design, manufacturing, trade and service of CNC machine like CNC Router, Laser cutting machine, Digital cutting table, Fiber laser cutting machine and Edge banding machine etc., Our wide variety products used in the field of Woodworking, Sign Making, Panel Furniture Production, Jewelry pieces, Packaging etc.,High quality products with the high production efficiency. All our products are precision engineered to ensure the high standard expected from ourselves. The whole manufacturing process is meticulously and systematically controlled to guarantee the precision and quality
Service .
1. 36 months guarantee of the whole cnc router price, we will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your factory if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
2. Our engineer could support you technology to your factory if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Buying a CNC Router is a big step for any business and you wAant to know you’re purchasing the right machine that matches your
business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call or send inquiry.
business needs. This is where our Technical Sales team will help you make the right choice.
Why not give us a call or send inquiry.
