Надежный отражение прозрачный тип стеклянных тарелок датчик уровня
- Category: Levels >>>
- Supplier: Vacorda Instruments Manufacturing Co. Ltd.
Share on (62091713467):
Product Overview
Description

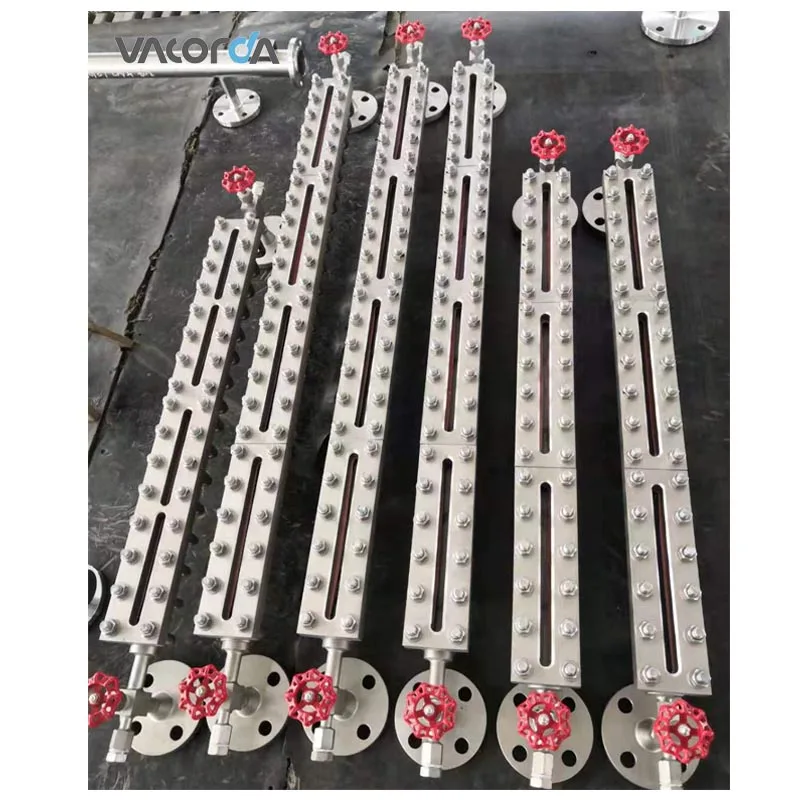

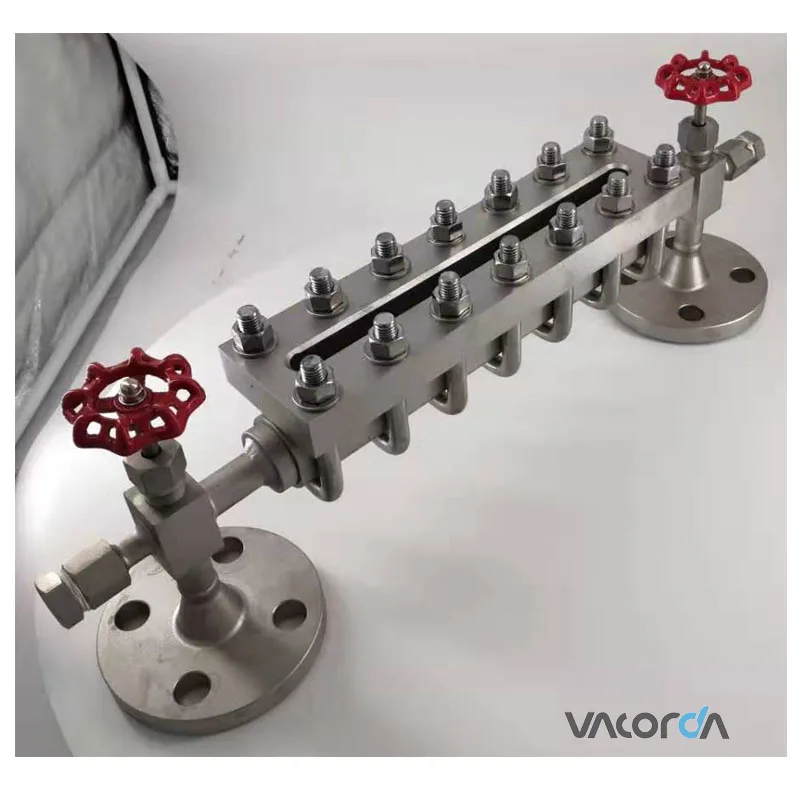

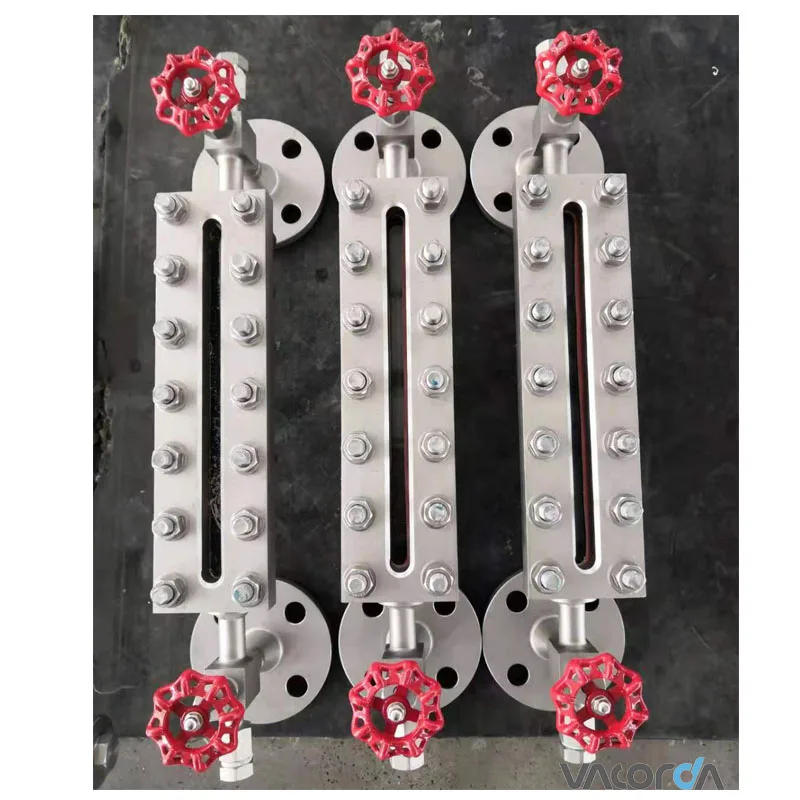

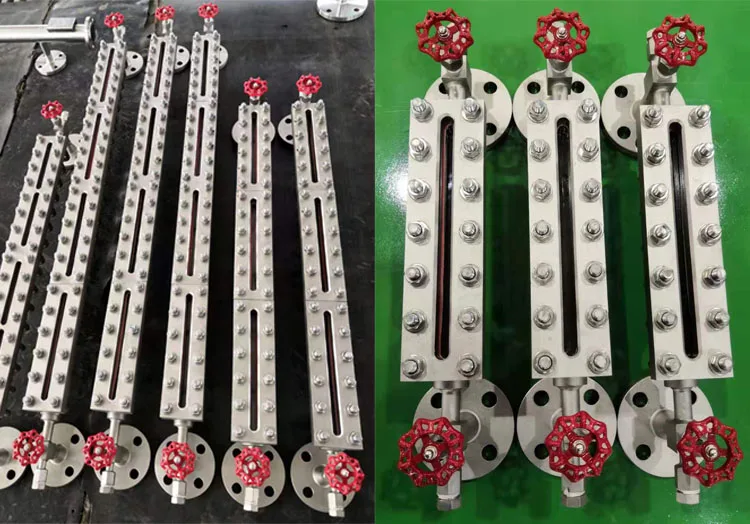

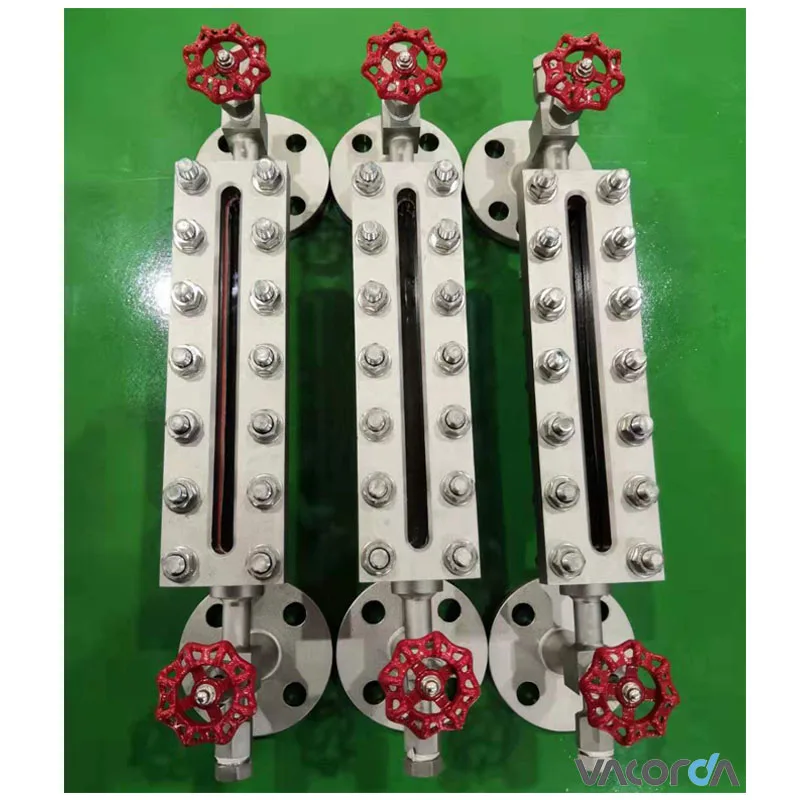

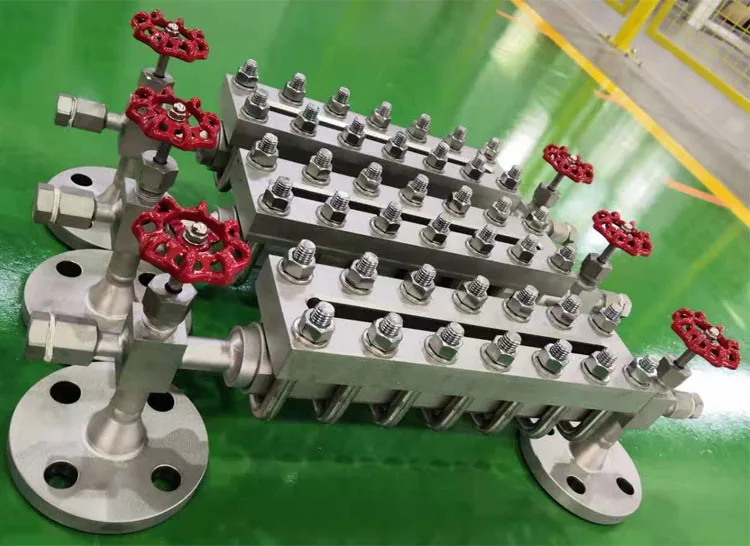

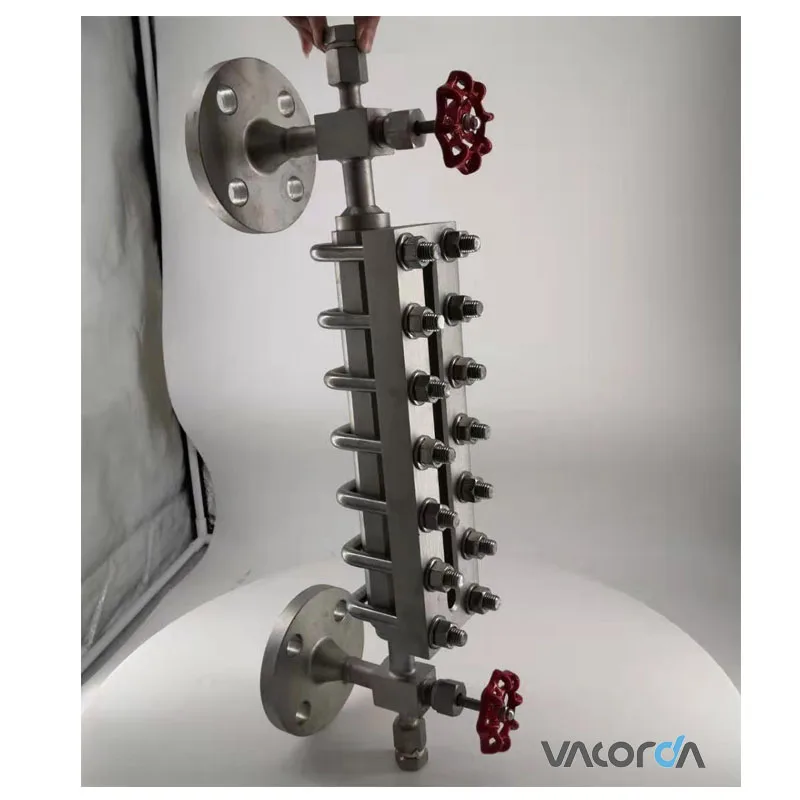

Reliable Reflection Transparent Type Glass Plate Level Gauge
Why choose us:

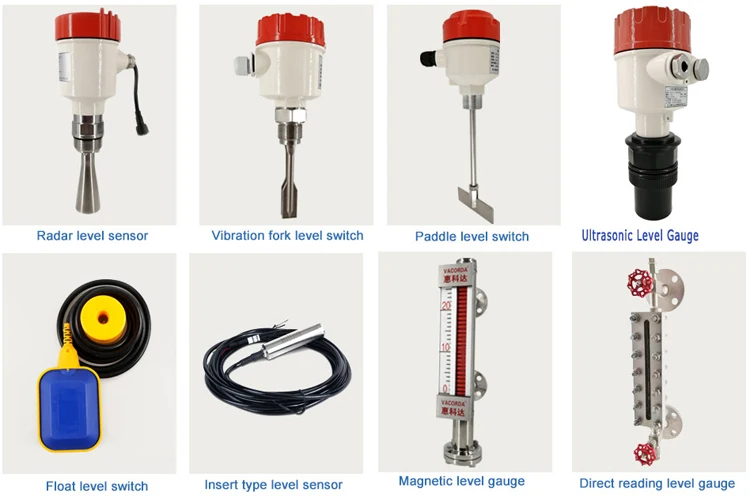

Our products (wide range of level instruments)
Magnetic level gauge, Reflex gauge, transparent gauge, Radar sensor, ultrasonic level sensor, Level transmitter, float level gauge, level switch, flow meter
Advantages
- 24 years professional manufacturer in China, 30% Senior professional engineers, sales market nearly 30 countries
- Our factory nearly 20,000 m2, hundreds of CNC equipments and inspection devices
- Certification: 20 Technology Patents, ISO9001:2015, European CE and ATEX explosion-proof certificate
- The structure of level gauge is designed according to the world leading brands - US Emerson & Germany WIKA & Switzerland E+H
- Flange manufactured to meet ASME/ANSI, JIS, DIN, HG/T20592-2009 standard
- One - year quality warranty
- Great measurement accuracy and reliability, Longest using life up to 10 years
- OEM accept
Product Description
Glass plate level gauge is divided into three kinds: Transparent type, reflection type and sight glass type. The level gauge is mainly composed by level gauge's body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.
Features:
1. Clear and direct reading, good sealability.
2. High working temperature: ≤+450°C
3. High working pressure: ≤PN100
4. Long lifetime, simple structure, easy installation and maintenance
Technical parameters:
Recommended center-center distance: | 300, 500, 800, 1100, 1400,1700,2000mm(custom made)
|
Indicate mode: | single color, bicolor(red as vapor phases, green as liquid) |
Material: | carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining |
Nominal pressure: | PN6-PN100(×0.1MPa) |
304 +PTFE≤PN40 | |
PP≤100°C | |
Working temperature: | carbon steel ≤350°C |
Stainless steel ≤450°C | |
304+PTFE ≤200°C | |
PP≤100°C | |
Drain valve: | drain needle valve (or customize) |
Vent valve: | vent needle valve (or customize) |
Process flange: | DN20/RF HG/T 20592-09 |
The heat steam interface: | ZG1/2"male screw thread |
The heat steam pressure: | ≤1.0Mpa |
Eclectic heating: | self-limiting temperature heating (unnecessary for anticorrosive type) |
Steel ball self-closing pressure: | ≥0.3Mpa |
Power supply: | 24V DC, 36V AC |
Environment temperature: | -50~+80°C |
Related Products
Company Information
Sichuan VACORDA Instruments Manufacturing Co., Ltd.is a professional production-manufacturing enterprise specialized in designing, producing and marketing of instruments and apparatuses. Our company has been established for 23 years since 1997 to grow up to be a team of high-quality, united, hard-working and truth-seeking characters. Solid foundation has been established.
Our company has got the ISO9001: 2000 international quality system certification in 2005, Import and export trading right in 2012, total 12 patents till 2016, the title of “national high-tech enterprise” and CE certificate for three categories product in 2014. Our company has owned trade marks as “vacorda”. At the same time, our company is preparing for more certificates for foreign market, such as IECEX, API, UL and so on, to lay a foundation for further international market.
Our main products as follow
1. Magnetic level gauge, magnetic level switches, magnetic level controllers, bicolor quartz tube level gauge, boiler water level gauge and glass plate liquid level gauge, capacitance level gauge, ultrasonic level transmitter, radar level transmitter and liquid (material) level switch series;
2. Wedge-shaped flow meter, metal rota-meter, V Cone flow meter, throttling device, electromagnetic flow meter, vortex flowmeter, turbine flowmeter, ultrasonic flowmeter;
3. Pressure transmitter, differential pressure transmitter series;
4.Temperature transmitter, bimetallic thermometer, thermocouple, rtd series.
Packaging & Shipping
FAQ
Q: The new magnetic flap liquid level gauge can't show liquid level?
A: 1.check whether there is block in by pass pipe 2.check the the density of medium 3.check whether the float ball is stucked by float ball.
Q: The longest length of magnetic flap liquide level gauge?
A: the length is customized,but in order to be convenient for transport,if the length is over 6m,we recommend
Q: If the float ball is installed at the wrong opposite direction,what's the influence?
A: reading level will be higher than true level,usually higher by length of floatball-70mm
Q: What's installation details of magnetic flap liquid level gauge ?
A: 1.before installation,check specification with label plate. 2.There shouldn't magnetic field within 400m
Q: There is problem in output signal 4--20mA?
A: 1.Check working power supply 2.check wiring 3,check load resistance 4.verify measuring range,zero point
Q: what's specification we need to know before purchasing magnetic flap liquid level gauge?
A: medium density,working temperature,working pressure,material,flange center to center distance,flange standard,whether need 4--20mA output signal;wether need level alarm
