March Expo Premium OEM Factories Autofeeding TJ1530 single axis and two blades automatic wood lathe machine
Autofeeding TJ1530 single axis and two blades turning-broaching cnc wood lathe
Product Description
1.Applications for wood turning lathe
Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;
chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats and so on.

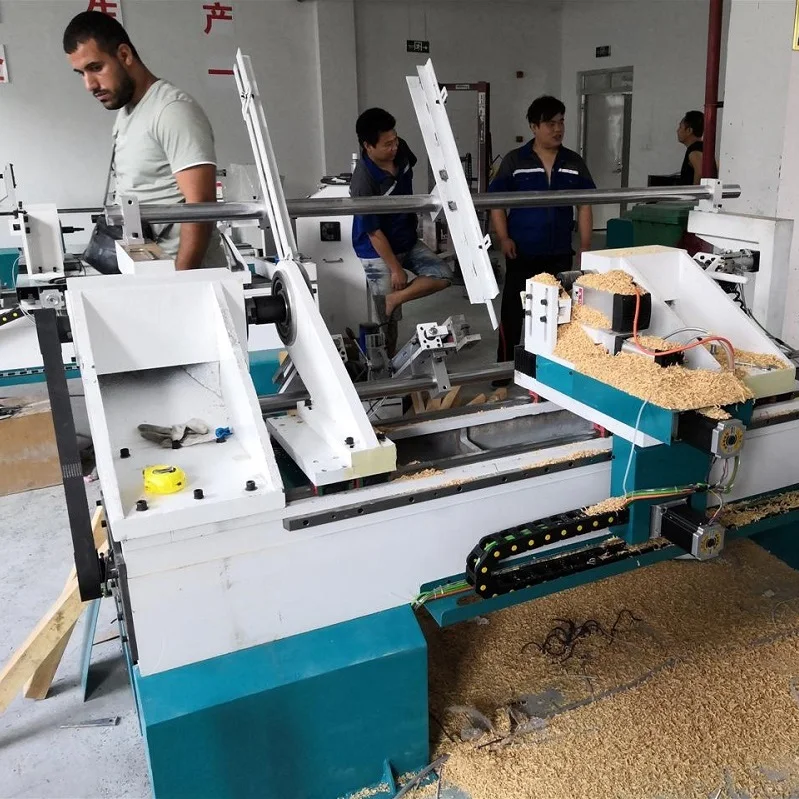

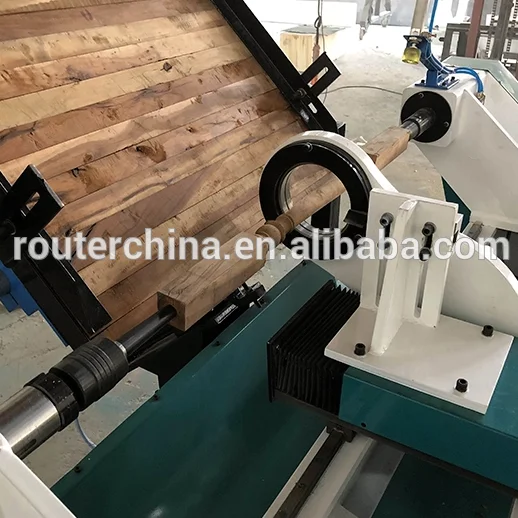

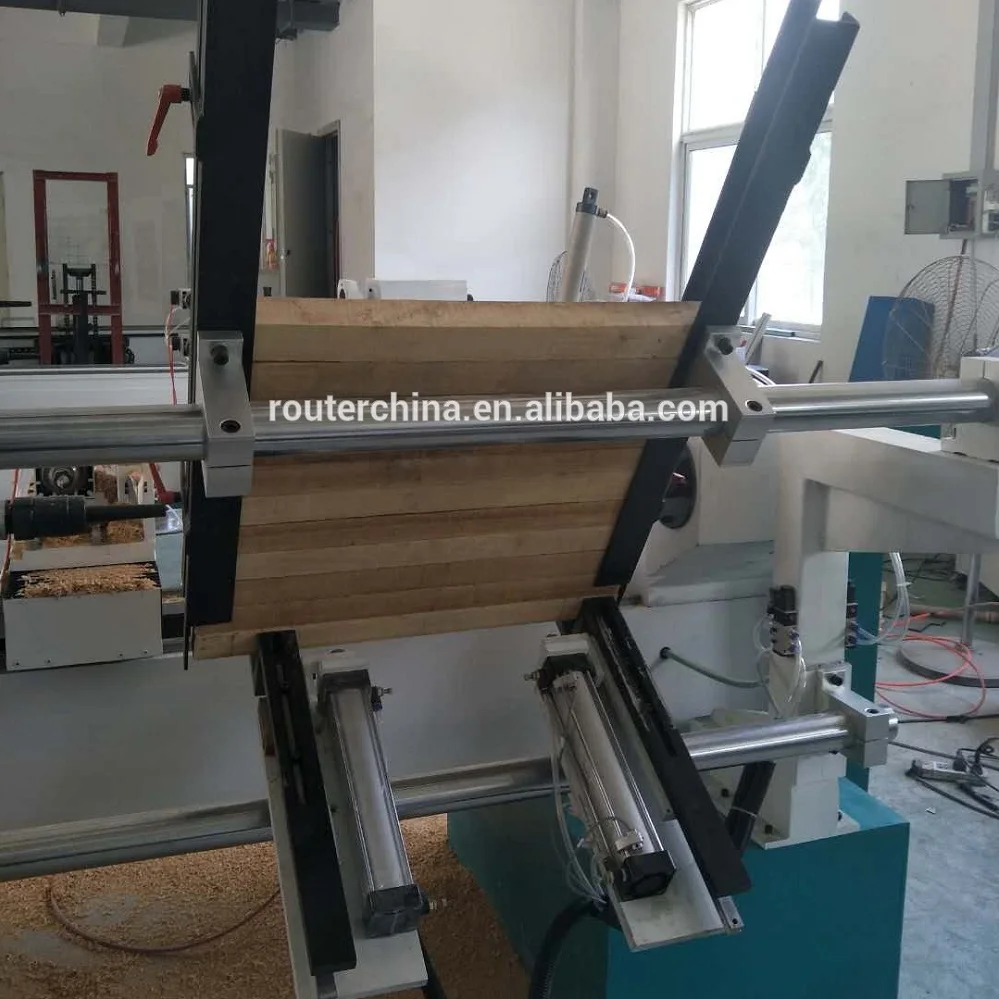

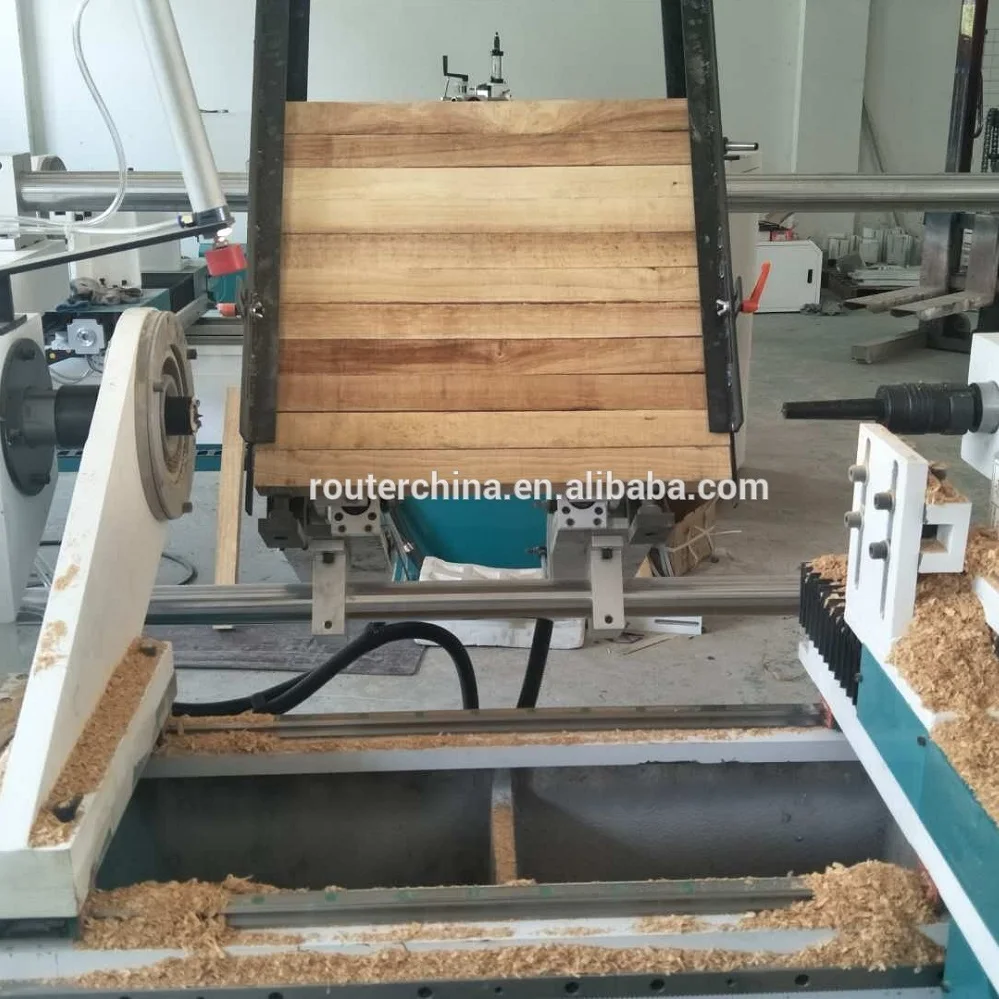

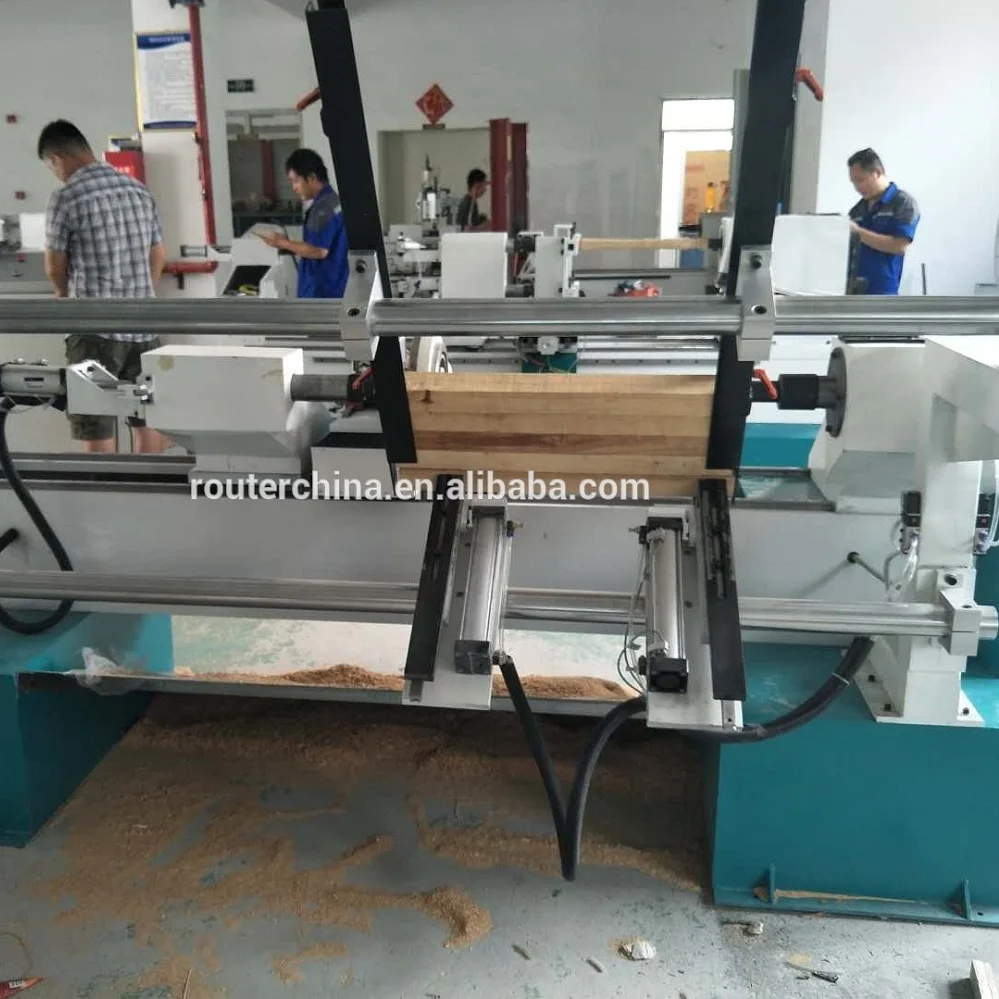

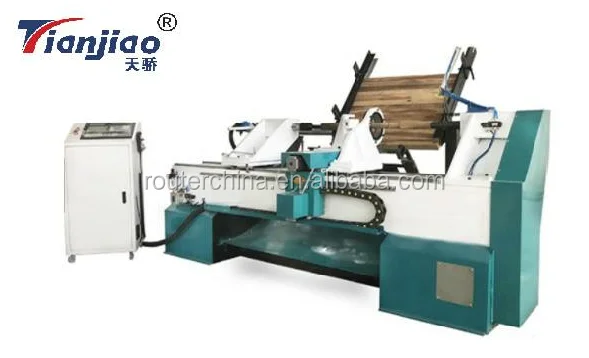

2.Machine photo for Autofeeding TJ1530 wood turning lathe
3.Features for wood turning lathe
Wood lathe is a device that can create items such as stairway posts,designs on wood,and more. A CNC wood
lathe is operated by a computer which is controlled by the user. The use of computers on a lathe machine
offers a wide range of benefits and features,while improving functionality.
Lathe machine is designed for cylindrical or conoid workpieces,for example pillar,banister,chair legs,etc. All
lathes work the same way.
4.Parameters
Model | TJ1530 |
Max turning length | 1500mm |
Max turning diameter | 160mm |
Number of axis and blades | 2 axises,2 blades |
Maximum feed rate | 200cm/min |
Minimum setting unit | 0.01cm |
Spindle motor power | 4kw |
Power supply | AC380v/50hZ |
Overall dimensions | 300*150*160cm |
Weight | 1700kgs |

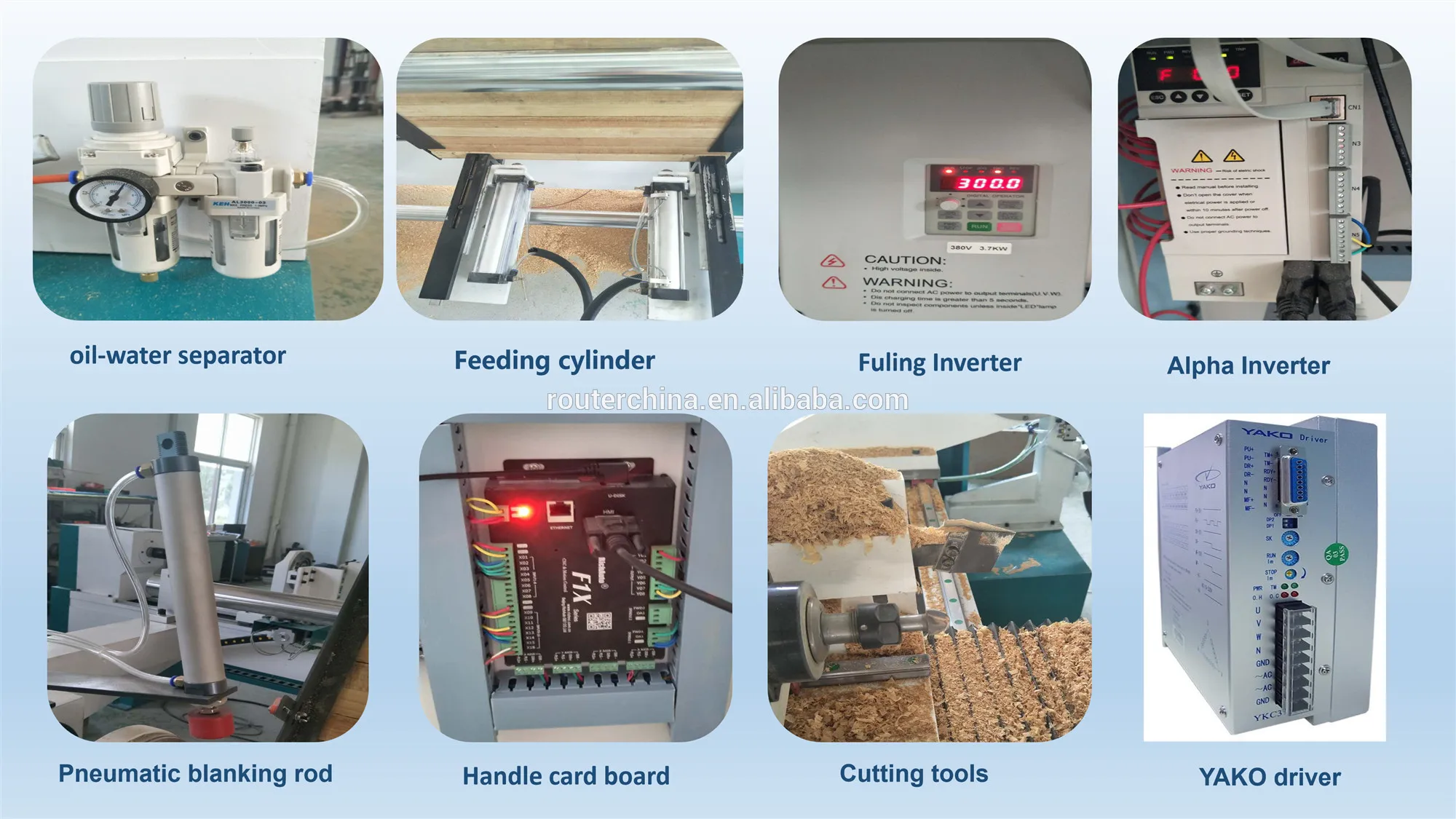

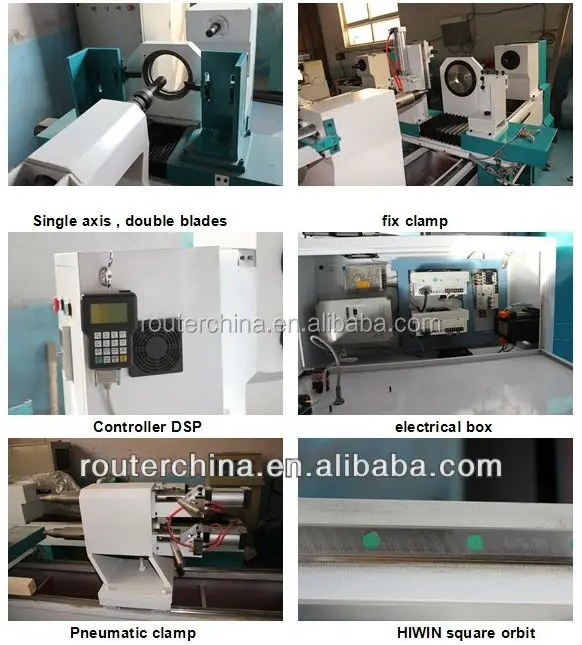

5.Machine main Parts
6.Samples Show
7.Configurations
1.HIWIN square linear guide rail
2.Taiwan Flange slider
3.stepper motor
4.Yako driver
5.with 3.5kw air cooling spindle
6. Easy operation control software
7. The basic pattern file.
8. V shap rapid steel lathe blade
