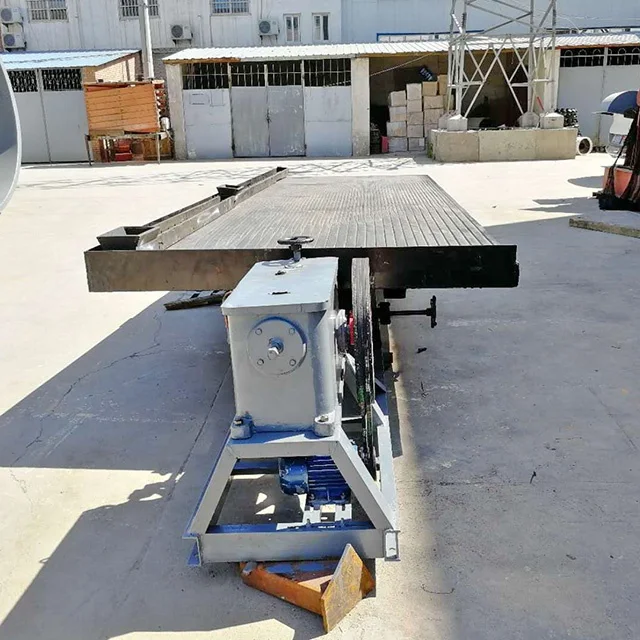

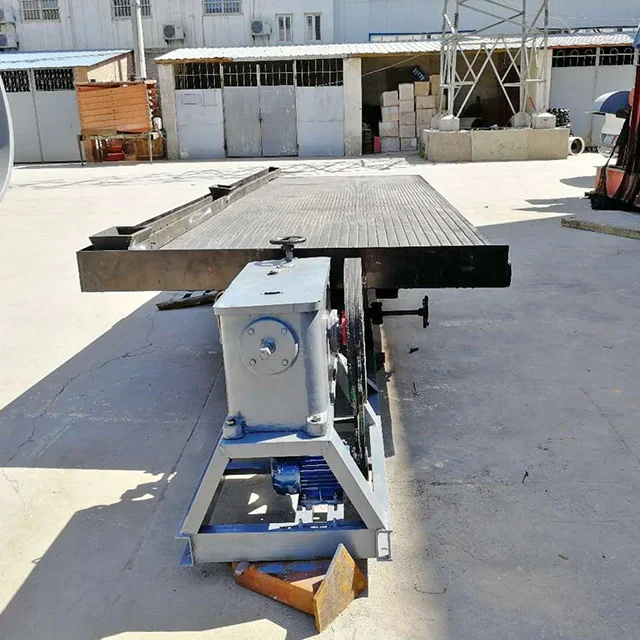

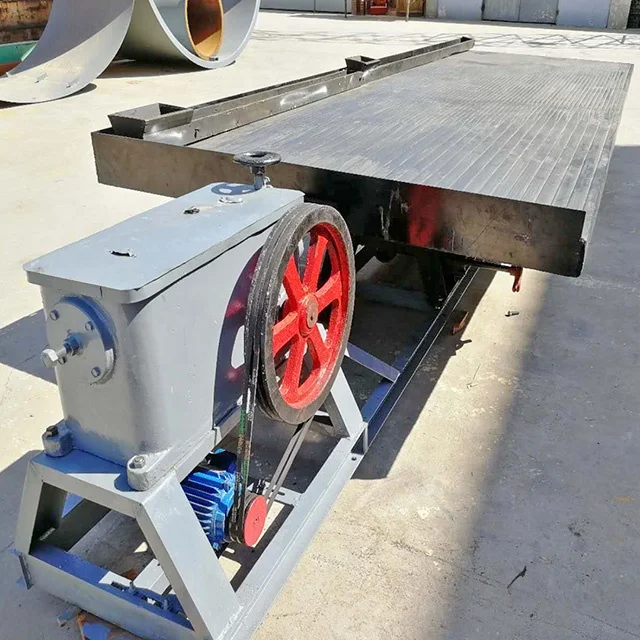

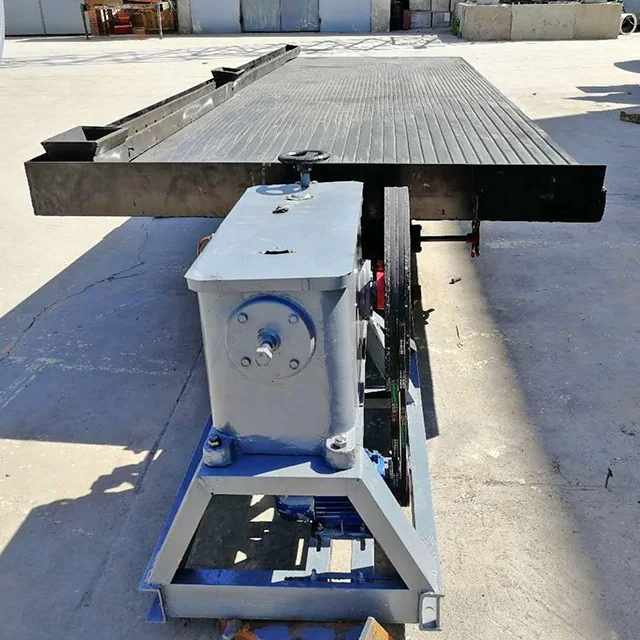

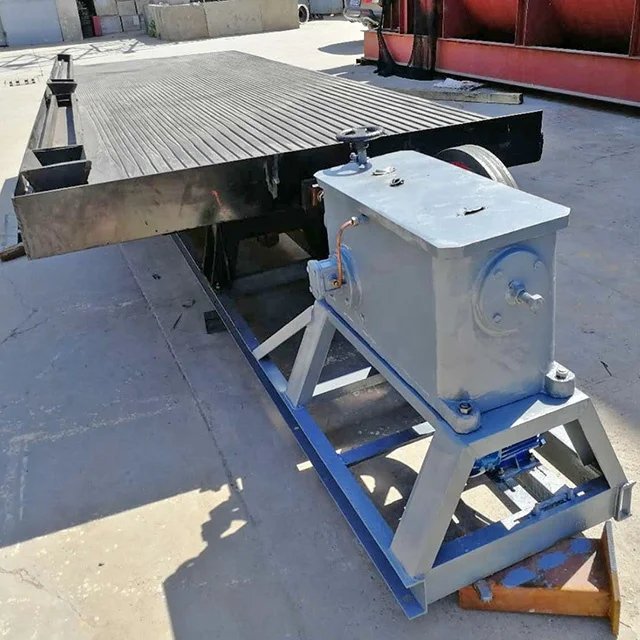

High Recovery 6s Shaking Table Best Price Gold Ore Vibrating Table for Sale from China
- Category: Mineral Separator >>>
- Supplier: Henan Xingyang Mining Machinery Manufactory
Share on (62092082811):
Product Overview
Description
Product Description

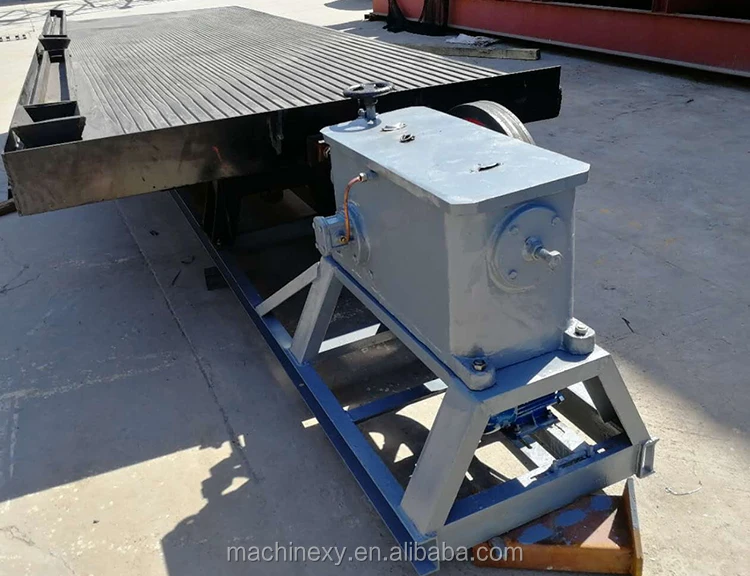

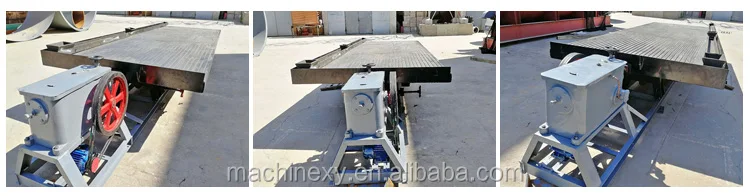

Shaking Table Application
Shaking table is one of the main equipments of gravity concentration. It is not only widely applied on separating tunium and other rare metals and the noble metal ore.
Shaking table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
Shaking table working principle
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
(1) Feed ore port (9)Horizontal support
(2) Stroke adjusting device (10)Horizontal adjustment wheel
(3) Ore feeding trough (11)Table support
(4) Feed water port (12) Knife-type support
(5) Water feeding through (13)Stand
(6) Table surface (14)Shaking table head
(7) Concentrate side (15) Motor support
(8) Tailings side (16)Swing Adjusting device
Performance Paramete
| Model and Specification | ||||||
| Table Size(mm) Length×Feed width×Concentrate width | 4520×1850×1560 | 3000×1620×1100 | 2100×1050×850 | 1100×500×430 | ||
| Selective are(m²) | 7.67 | 4.08 | 2 | 0.51 | ||
| Feed size(mm) | coarse sand | 1-2.5 | 0.6-1.5 | 0.4-0.8 | 0.1-0.2 | |
| fine sand | 0.8-1.2 | 0.3-0.8 | 0.2-0.5 | 0.05-0.1 | ||
| slurry | 0.3-0.6 | 0.2-0.4 | 0.1-0.2 | 0.03-0.05 | ||
| Water consumption(t/h) | 0.5~3.5 | 0.3~1.5 | 0.2~1 | 0.1~0.5 | ||
| Stroke(mm) | 8~36 | 10~30 | 12~28 | 9~17 | ||
| Jig frequency(q/m) | 240~380 | 240~420 | 250~450 | 280~460 | ||
| Cross fall(°) | 0°~5° | 0°~8° | 0°~10° | 0°~10° | ||
| Motor | Model | Y70L-4 | Y100L-4 | Y90L-4 | Y80L-4 | |
| Power(kw) | 1.1 | 1.1 | 1.1 | 0.55 | ||
| Revolving speed(r/min) | 1400 | 1400 | 1400 | 1400 | ||
| V-belt(mm) | A-2000 | A-1033 | B-2007 | A-1245 | ||
| Overall Dimension(Length*Width*Height)mm | 5630×1850×900 | 4075×1320×780 | 3040×1050×1020 | 1530×500×800 | ||
| Weight(kg) | 650 | 550 | 350 | 150 | ||
| Notes: The above technical parameters based on stationary type shaking table, are for your reference only. | ||||||
Packaging & Shipping

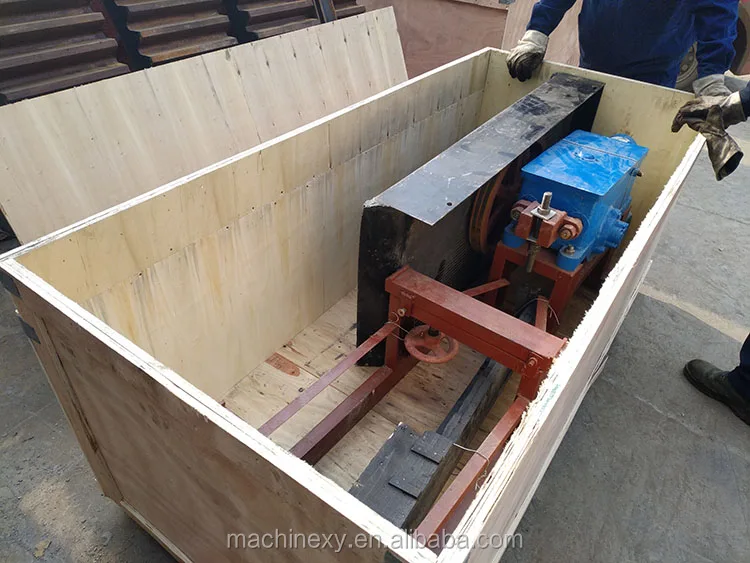

Packing:Small models packed in the wooden boxes, big models nude, wearable parts and motors packed in the wooden boxes.
Company Information
Henan Xingyang Mining Machinery Manufactory have five standard heavy industrial workshops covering 80,000 square meters,more than 160 machines used for gold processing,plug welding and assembling with large and medium sizes, and more than 500 workers including over 50 administrators with intermediate and senior title and engineering technicians.And senior title and engineering technicians.
FAQ
1. what is the payment terms ?
A. Total payment lower than 3000USD : 100% payment by T/T before delivery
B. Total payment higher than 3000USD: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery.
C. Alibaba trade assurance L/C is also acceptable in special conditions.
2. what's the delivery time ?
A. If you only need one single machine, within 20-30 working days
B. If you need a complete line, within 25-60 working days.
3. How long will the shipment takes ? (roughly )
Africa : 30-45 days
Asia : 5-25 days
America : 15-40 days
Europe : 30-40 days
4. Which airport and train station is near to the factory ?
Zhengzhou xinzheng international airport and Zhengzhoudong Railway Station
