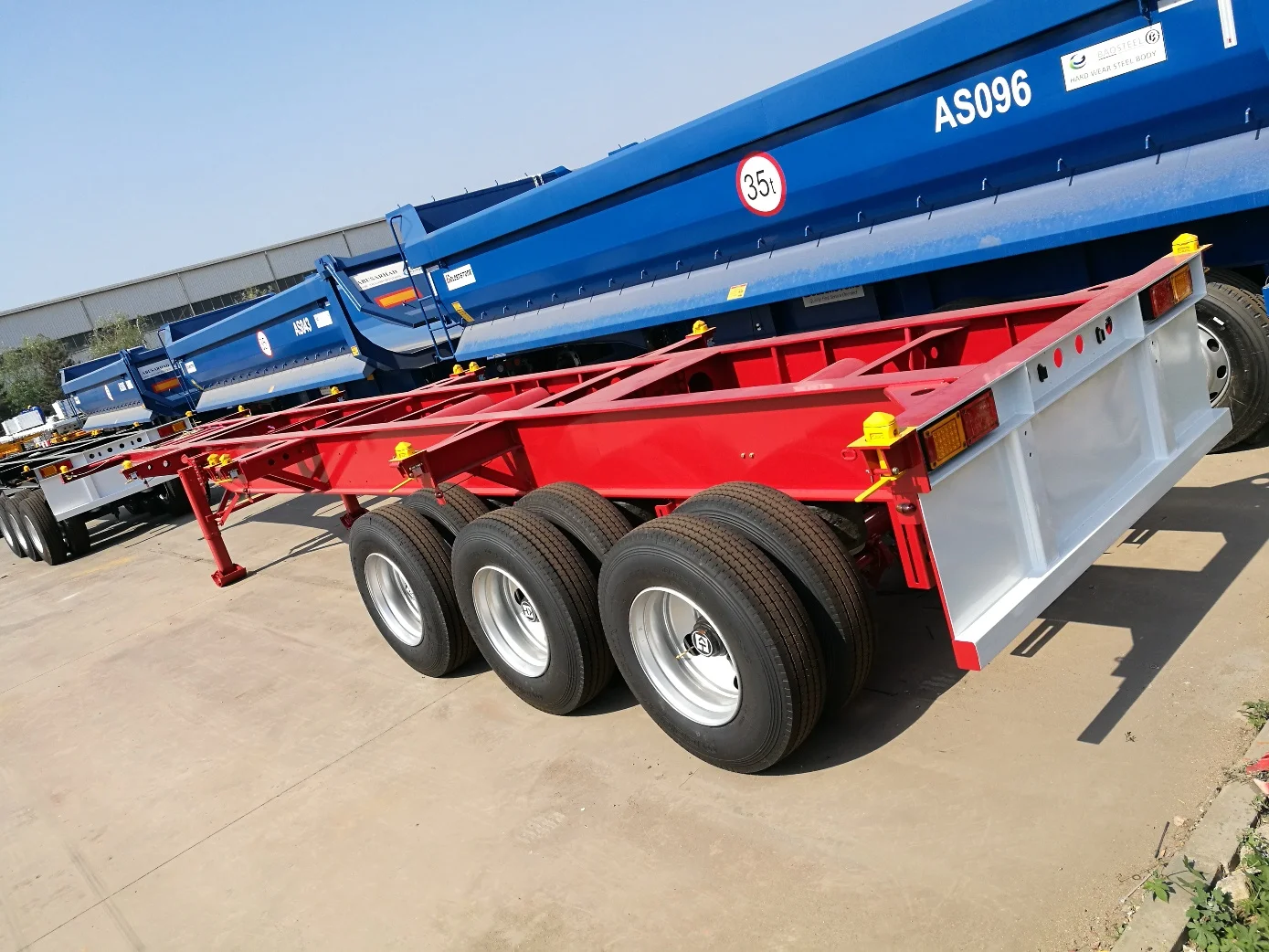

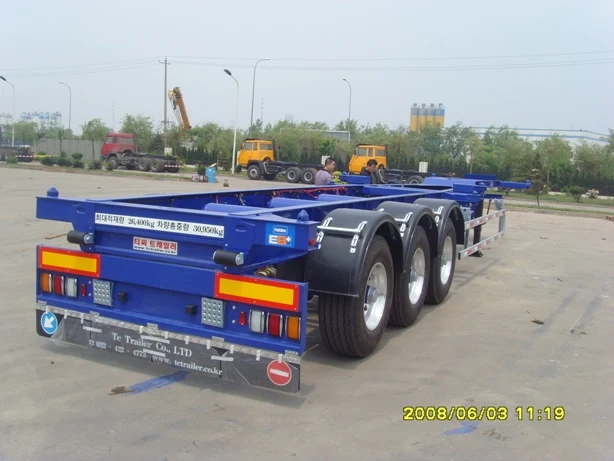

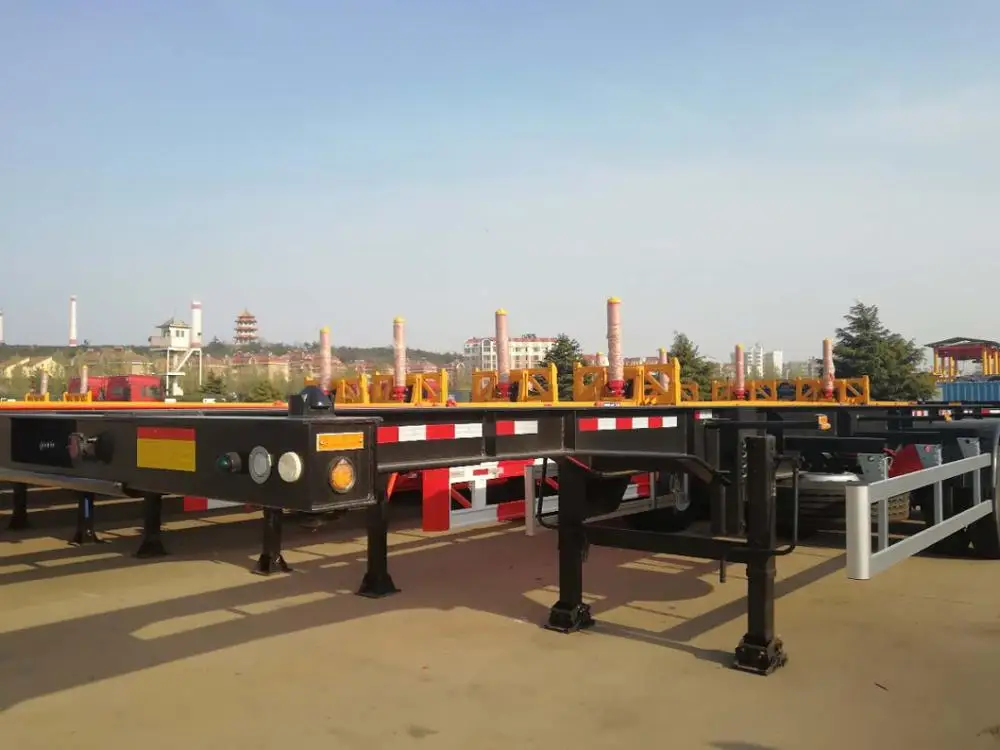

USA , New zealand DOT, ADR STANDARD 45ft container flatdeck trailer

The trailer is designed for stevedoring and transporting 1x40’ ,1x 20’ or 2x20’ ISO Cargo
Containers.
Dimension:
Length: Approx 12,240 mm
Width: Approx 2,470 mm(including mud guard)
Height: Approx 1,569mm @ unload or more lower
King Pin Location: Approx 1,000 mm from the front face of the front bolster
Axle spacer: Approx 7,500 mm+1,310mm+1,310mm
Landing Gear location: Approx 2,520mm behind the king pin location.
Fifth wheel (King Pin) Height: Approx 1,300mm with the chassis level
Weight:
 Tare Weight(Tolerance 0~-4%): Approx5,800 kg
Max. Payload: Approx 40,000 kg
Gross Vehicle Weight: 45,800 kg
Steel Structure:
Material: High strength low alloy steel with T700(700MPa) yield strength is used for welded
I-beam and Q345(350MPa) &Q235(235MPa) yield strength steel is used for the fabricated
parts.
The main beam: 480mm deep x 146mm wide x 6mm web welded I-section main beams.
OEM Parts Configuration:
King Pin: 2” bolting king pin. Brand: JOST.
Twist Locks: Twelve(12) units retractable ISO type twist locks.
Landing Gear: 2 speed road side winding with sand shoe, Lifting capacity 30T. Type:
CIMC, Made in China.
Suspension: 36ton loading capacity air ride suspension within three axles,, Made in China.
Axles: 150*150 square axle with 13 tons capacity. Brake: S420x180, Wheel fitting
10XM22X1.5 ISO/ PCD285/220. . Made in China.


Rims: 22.75-22.5, 10 Holes ISO, silver steel,6 pieces
Tires: 385/65R22.5 , 6pieces, Chinese famous brand
Brake System: Dual air brake system, none ABS system.
Brake chamber: Type 30/30 on the all the axles,
Electrical System: 12 or 24 volt lighting system with modular wiring harness,7 way ISO
receptacle in front of the front bolster, norms NO.1185. Chinese standard .
Others:
Spare Tire Carrier: Equipped one set per chassis without spare tire
Side Guard: Standard Tool Box: Equipped one set

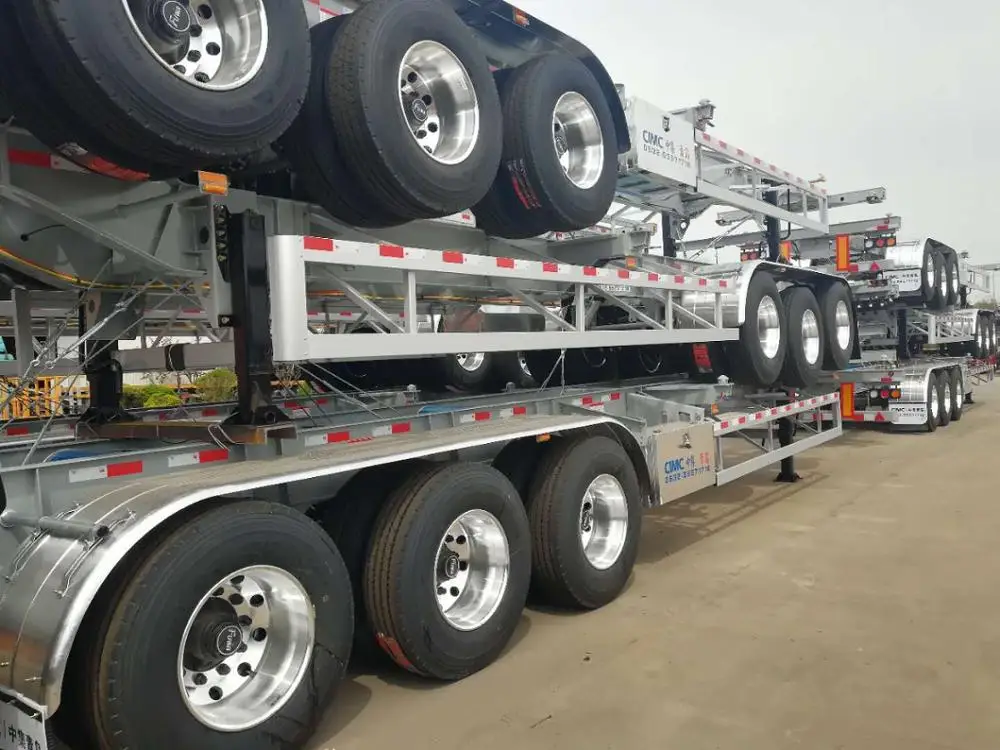

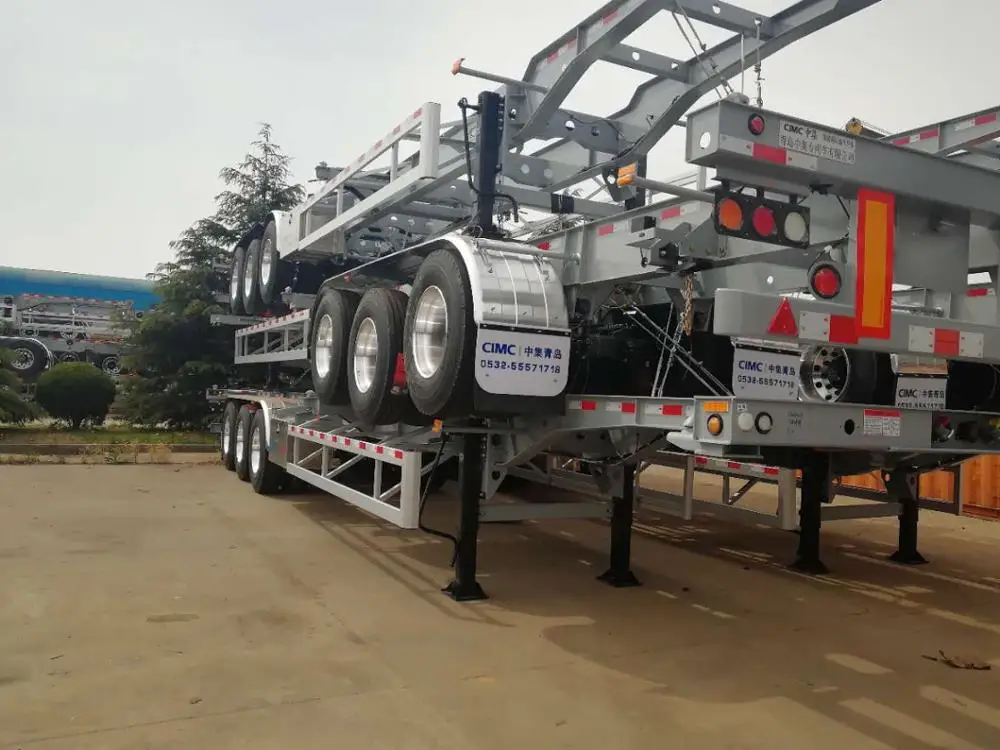

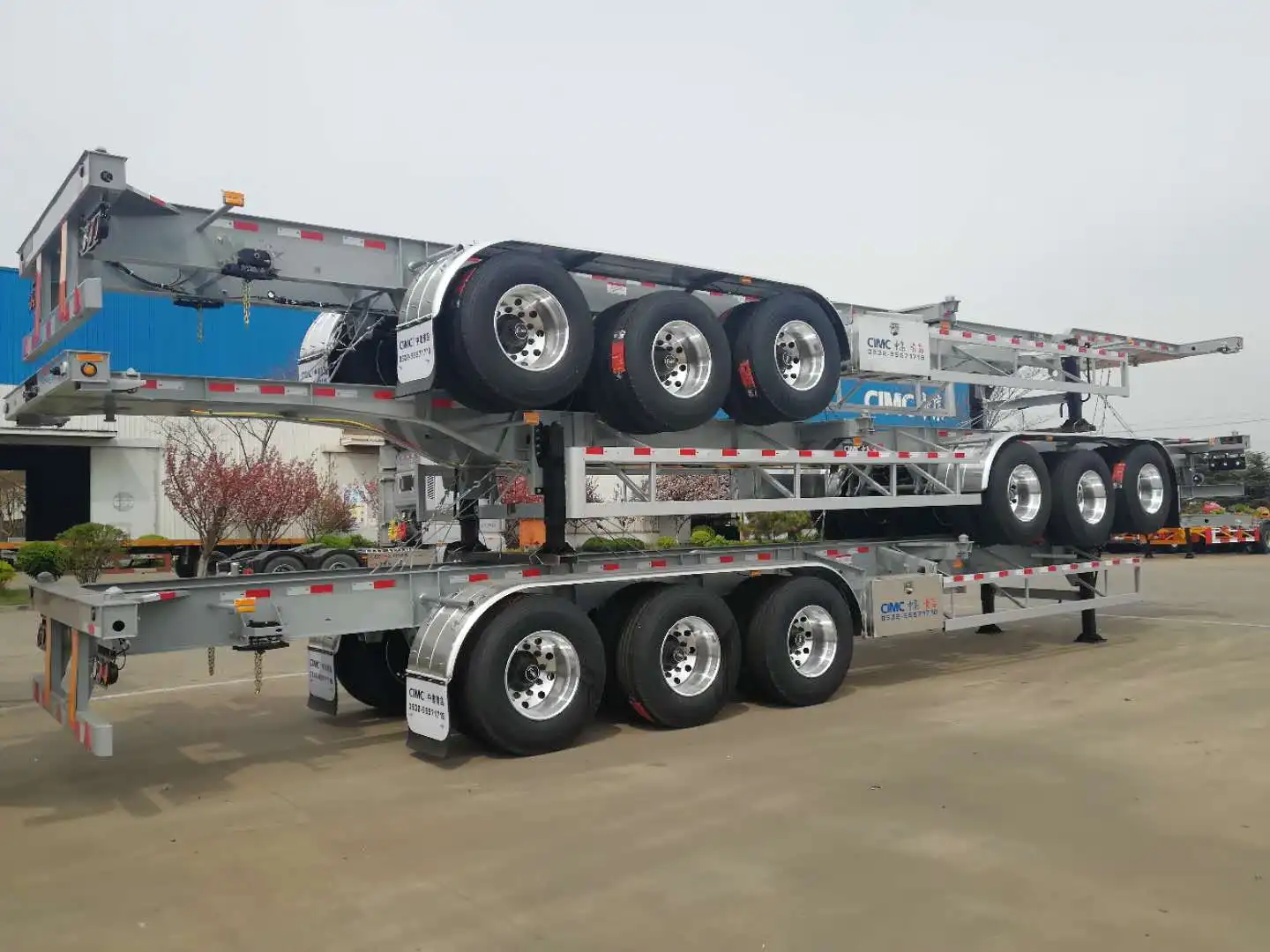

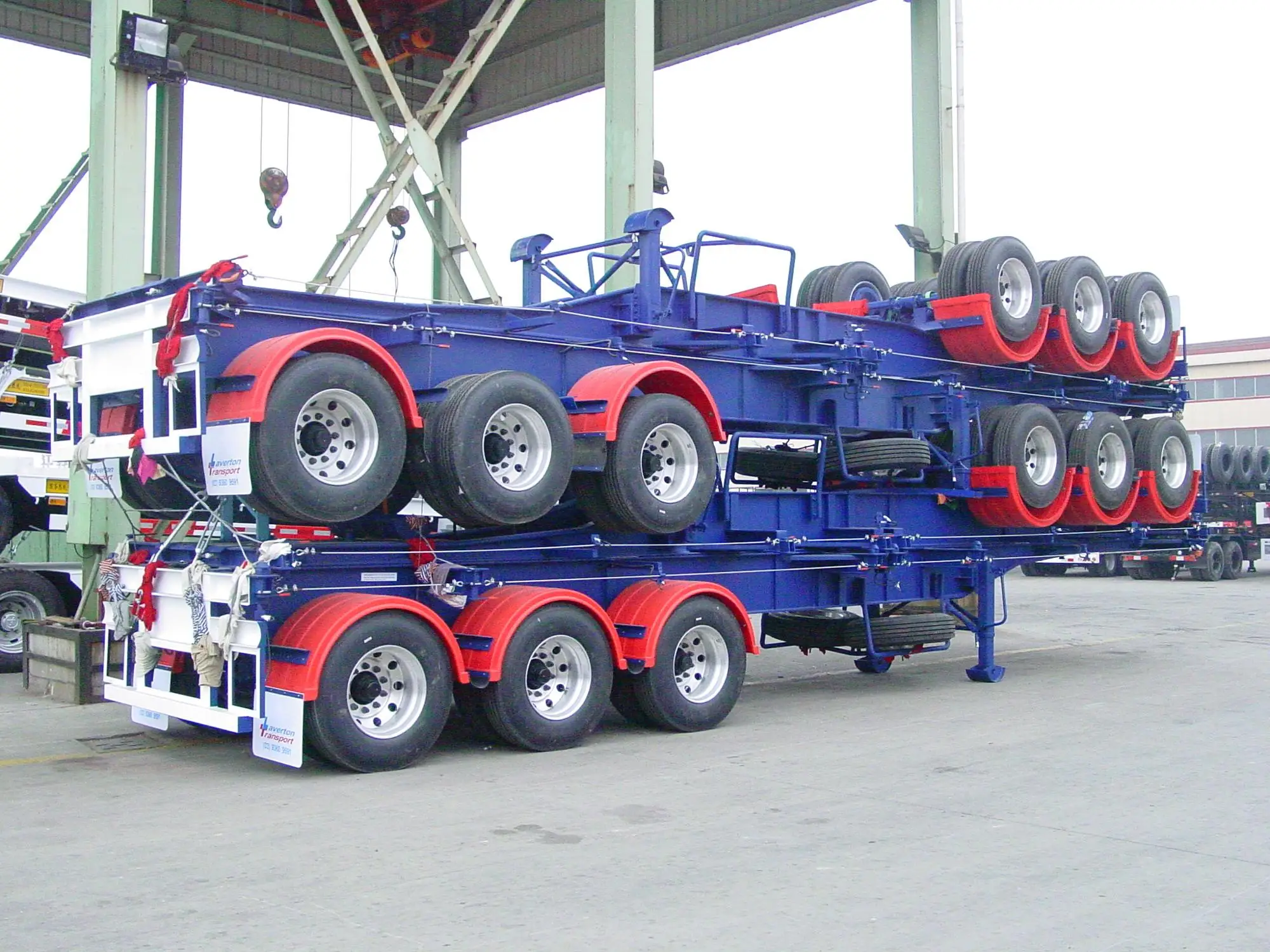

             2 units trailer  in 1 X40HC'  container ( container ship )

             3 units trailer in one package ( Naked , RORO ship)

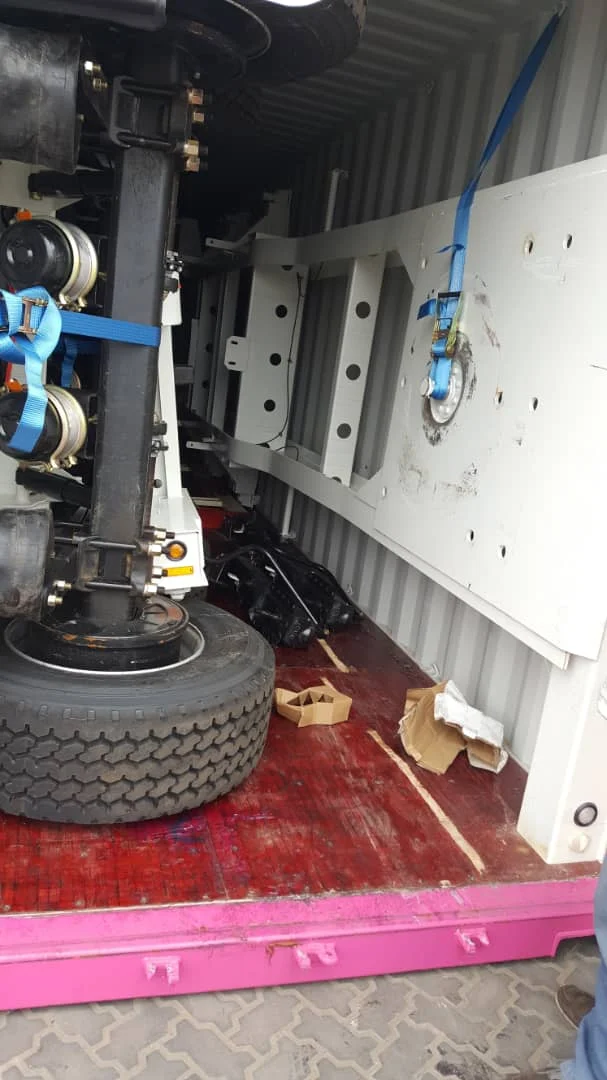

             CKD FORM , 4 units trailer in 1 X40HC' container ( container ship)

1. Payment:  Deposit , 1 year balance credit after the B/L date.

2. Assemble :  We assble the trailer on your company.

3. Working time :  Our team working in 24 hours, we copy with all of your questions and after service.

CIMIC Container and trailer has longest history. Businesses covering the manufacture of dry cargo container, refrigerated container and special container as well as the semi trailer. Its annual production capacity of containers and trailers exceeds 2.4 million

1.  Design code and certificates

ASME,GB,ISO,CE,ADR,BV,DNV

2.  Productivity

100units per day

3.  Logo

Design and painting as your request

4.Payment

50% deposit , 50% before shipment

5. Guarantee

Five (5) years and be based on standard “RE 3” of the “European degree of rusting standards”. Normal wear/tear, or corrosion caused by fish oil, animal and vegetable oils, strong solvents, impact and accident is excluded.The warranty shall be applied faults or failures affecting more than 10% of the painted surface.

Decal guarantee   Seven (7) years.
