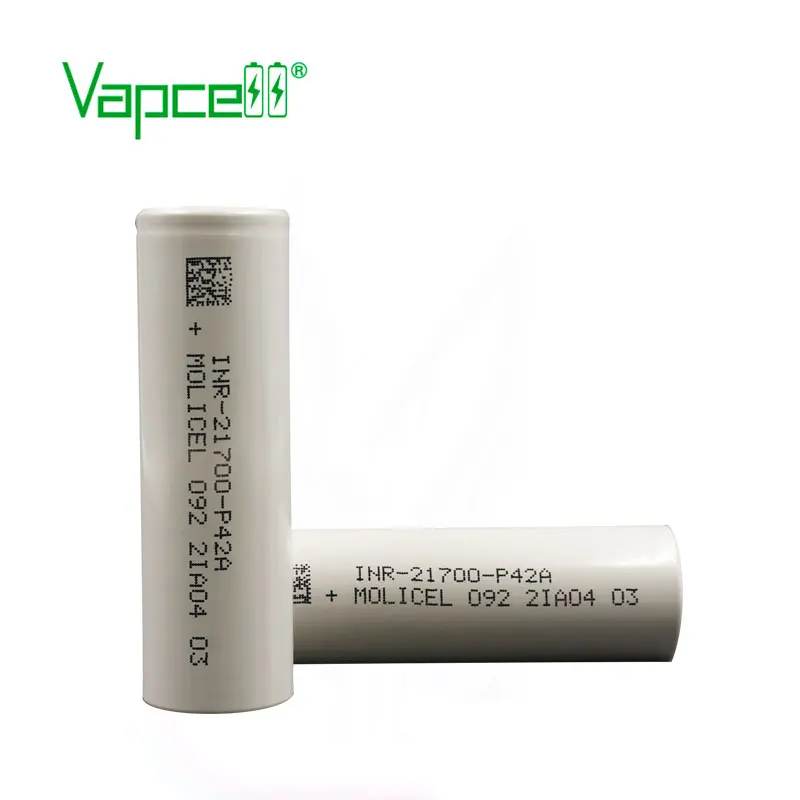

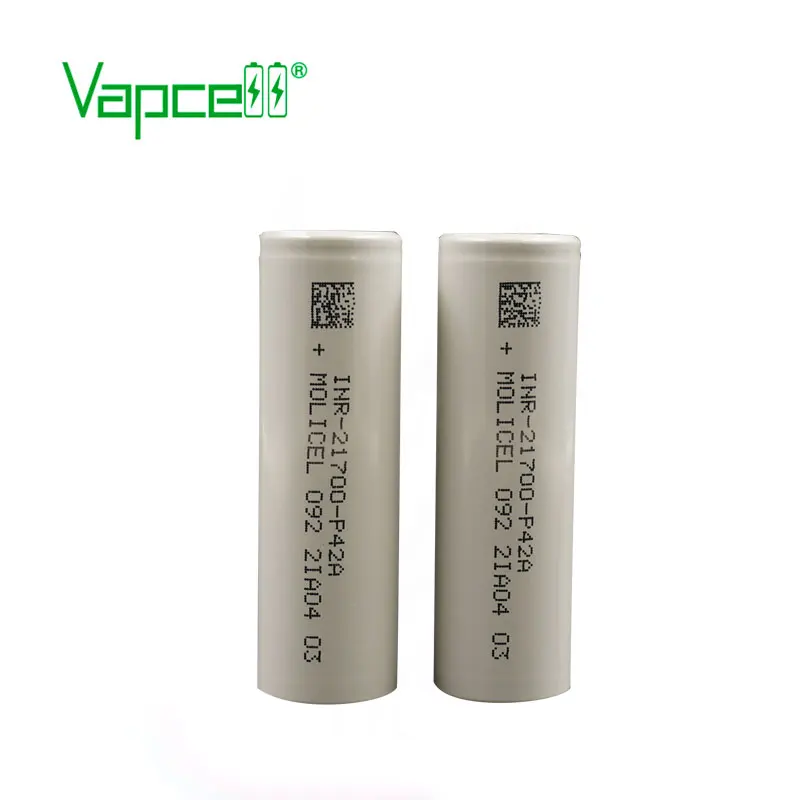

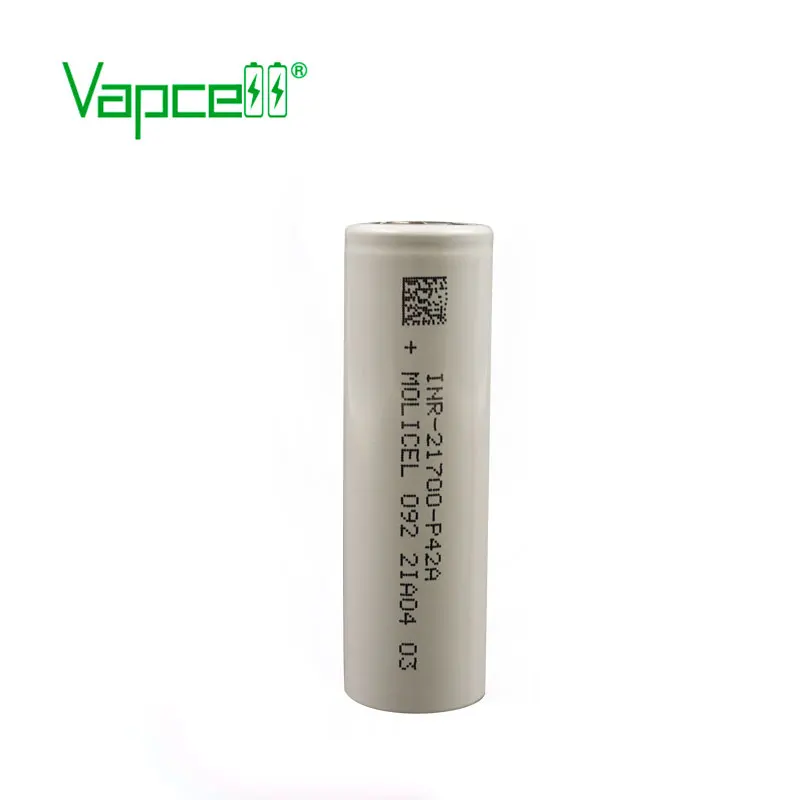

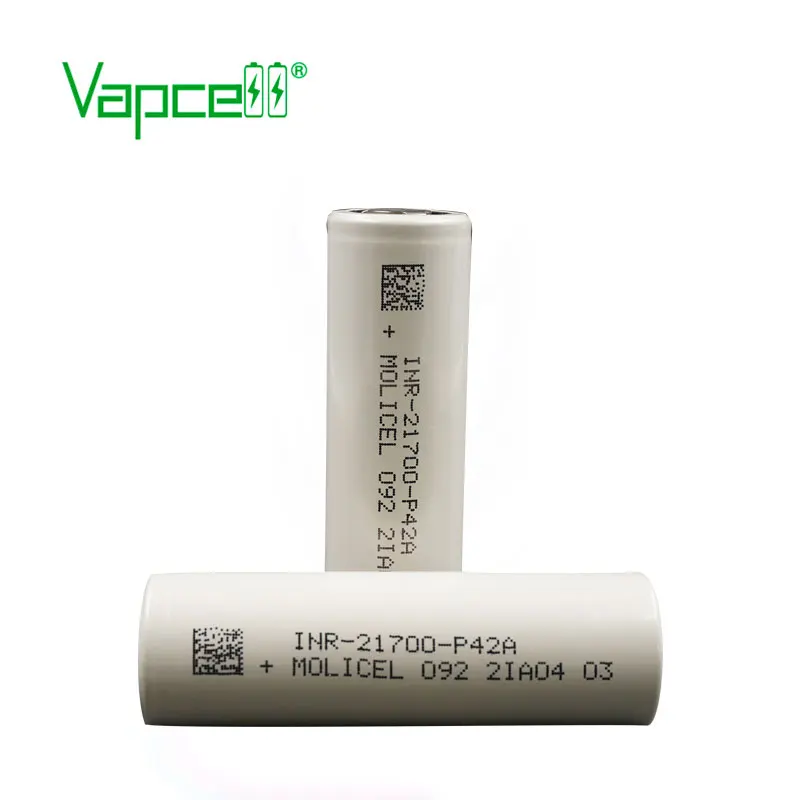

MOLICEL 21700 P42A 4200 мАч 30A MOLICEL 21700 P42A 100% оригинал 21700 P42A 4200 мАч с большой емкостью MOLICEL 21700 P42A

Items

Specifications

Remarks

1

Rated charge

Limiting 4.2A and constant 4.2V charge for 1.5h or 50mA at 23 oC.

2

Rated discharge

Constant 0.84A discharge until 2.5V at 23 oC.

3

Rated capacity

4.0Ah (Minimum)

Rated discharge capacity after rated charge.

4

Nominal voltage

3.6V

Mean voltage during rated discharge after rated charge.

5

Shipping voltage

≥ 3.45V

Nominal approximate state of charge ≤ 30%.

6

Internal resistance

Fresh cell measured by AC impedance at 1kHz

7

End of charge voltage

4.20 ± 0.05V

8

End of discharge voltage

2.5V

Discharge voltage for determination of rated capacity.

9

Charging time

90 min

Rated charge.

10

Maximum charging current

8.4A

See Section 4.14

Maximum discharging current

45A

Cycle life is reduced at high rates.

11

Operating temperature

Charging

-20~60 oC

Discharging

-40~60 oC

12

Storage temperature for shipping cell

< 35 oC

Recommended temperature less than 23 oC for long term storage.

13

Shelf life

1 year

See Section 5.4.
