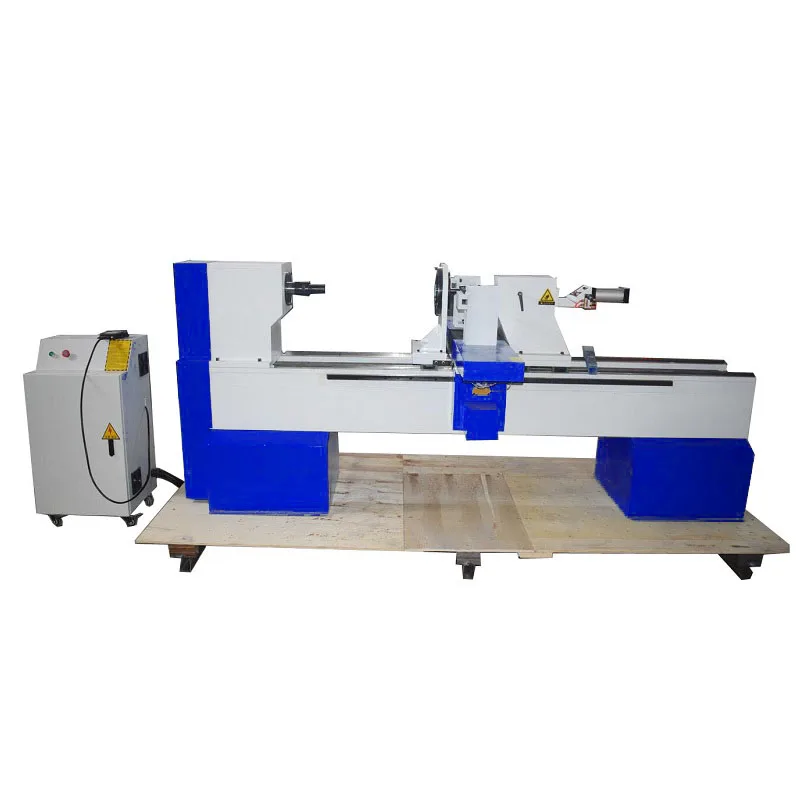

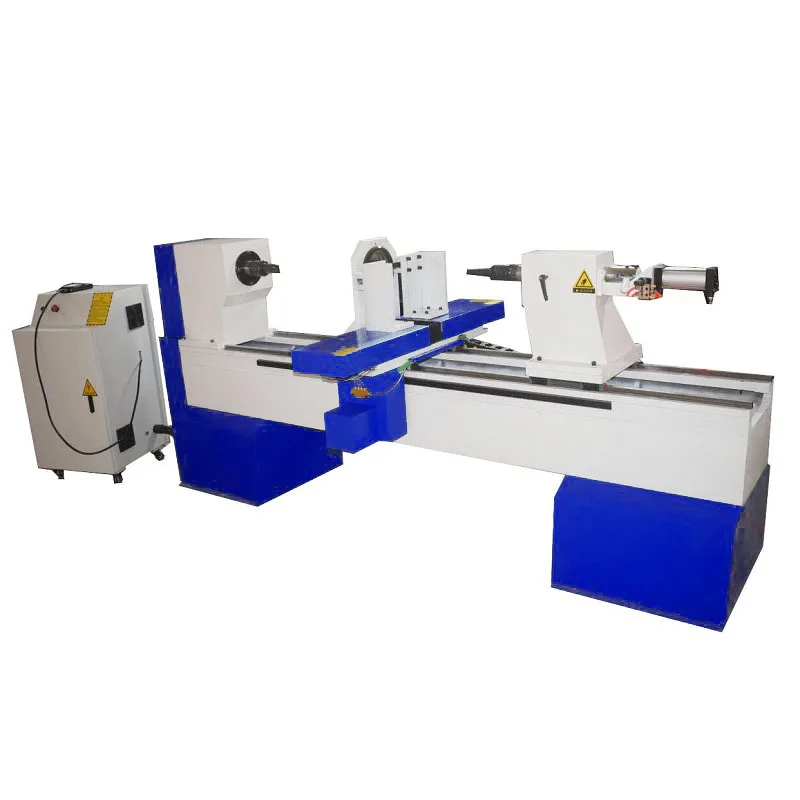

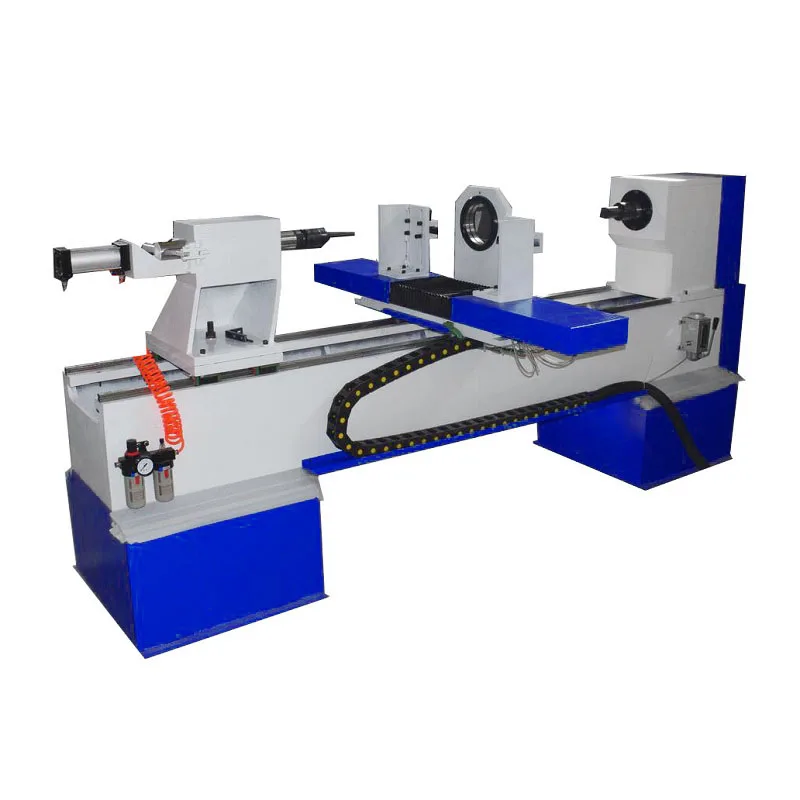

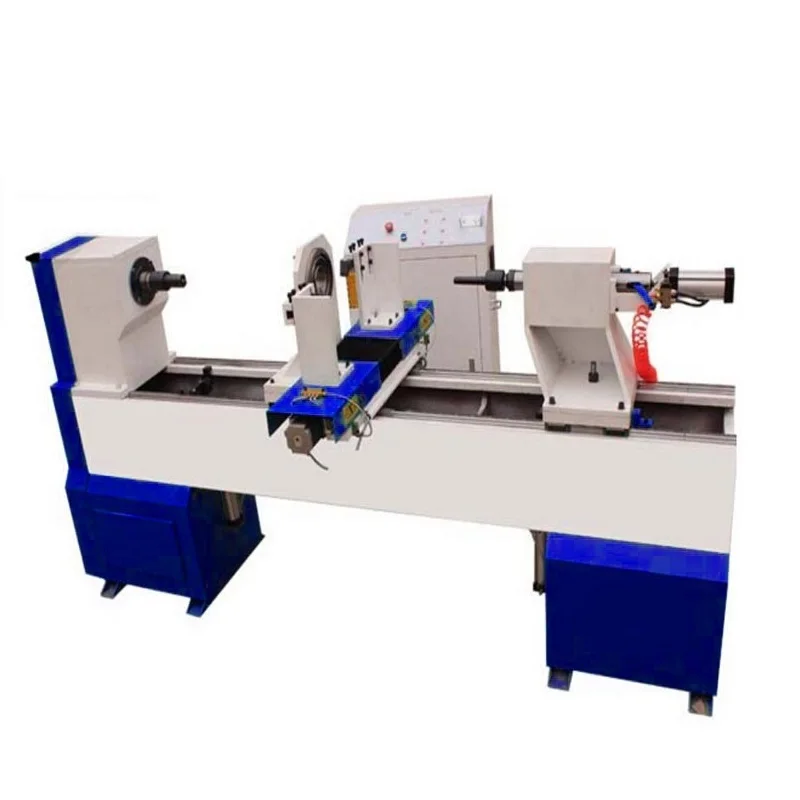

Automatic wood lathe copying attachment for stairway post newel

Product Overview

Description

stairway posts wood copying lathe with 2 blades







1. This machine with one spindle, one chuck and one backlash. This model support upgrade to two chucks and two backlash. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.



2. Most Advanced Material Loading Skill: When you load workpiece to cnc wood lathe, you do not have to fix workpiece on the chuck, then get the other edge of workpiece to find the center. And we loade the workpiece to machine, machine 4 points could help to find the center. And it only takes 3 seconds for whole material loading material, with higher precision then auto loading. When you process larger diameter vase, you could use auto cutter and adjustable air-cylinder, this improve the workpiece surface finish and last the cutter life time. The center supporter fix workpiece center when it is under the condition of self weight. This workpiece center fixing way is with higher precision.



3. Easy Programming. Usually, programing is the important step before working, and this is also a time-spending work. GoodCut  cnc wood lathe program assit you to reduce this time and improve working efficiency for more benefit. GoodCut programing could be processed with photo. When photo is taken then scan, then could get into programming automatically. And you can measure and change size in the PC directly.

1. Advantages of wood lathe

This machine with one spindle, one chuck and one backlash. This model support upgrade to two chucks and two backlash. You can mount on material to two chucks and compelete the work piece simultaneously. One operator could run 2-3 pcs of cnc wood lathe at the same time for saving salary cost.









Easy Programming. Usually, programing is the important step before working, and this is also a time-spending work. wood lathe program assit you to reduce this time and improve working efficiency for more benefit. GoodCut programing could be processed with photo. When photo is taken then scan, then could get into programming automatically. And you can measure and change size in the PC directly.



• Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.
• Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our lathe can completely work offine and do not take any computer resources.
• Operating system has friendly simple operation interface,english suggestion and simple setting method.
• Our cnc wood lathe adopting domestic famous brand stepper motor,to ensure the precision.
• Transmission System: Hiwin square rail and ball screw to control the linear error effectively .
• Spindle System:Divided into the single axial and biaxial.
• Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.
• One time tool setting to finish the whole work piece.
• If you have any special requirements, we can custom make according to your request.



2. Applications of wood lathe

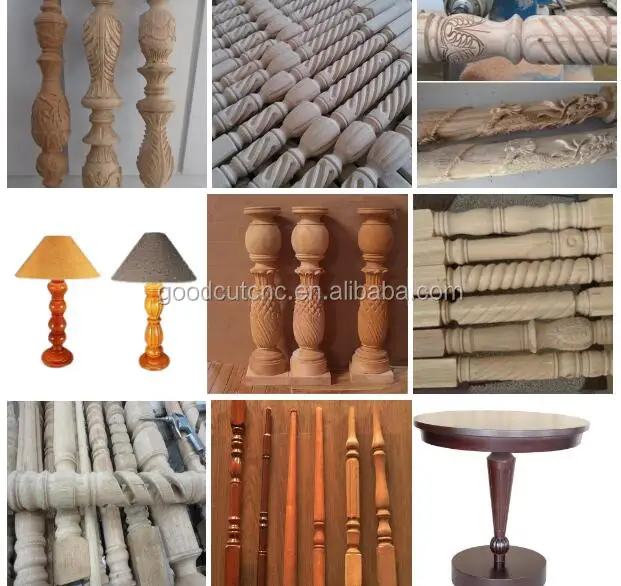

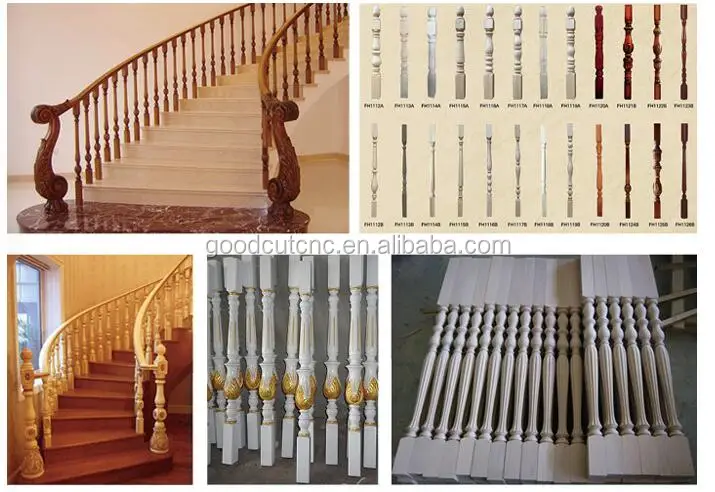

Various cylindrical workpiece, bowl sharp, tubular sharp and vehicle wood crafts, various staircase column, stairway balusters, stairway newel posts, dining table legs, end table legs, sofa table legs, bar stool legs,cRoman column, general column, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts;baseball bats and so on.etc.



Staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;bed rails;lamp posts;baseball bats and so on.





3. Technical Parameters of wood lathe

Model	GC1530-L
Max processing length	1500mm(can custom 2000/2500/3000mm)
Max turning diameter	300mm
Air pressure	0.6-0.8Mpa
Powersupply	AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate	2000mm/min
min setting unit	0.01cm
Transimission type	ballscrew for X Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min
Motor power	4kw
Cutter material	Super hard alloy
Control System	DSP control system
Motor	Stepper motor
Driver	Yako driver
Inverter	Best inverter
Drawing Software	AutoCAD
Interface	Internet cable
Hand controller recognise file	*.dxf











Guarantee:
The machine is guarantee for 12 months.Within 12 months under normal using and maintenance.If the machine has something problem,you will get spare part for free.More than 12 months,you will get the cost price for accessories.You will also get technical support and service all the time.

Technical Support:
-Technical support by Phone,Email,Wechat,Whatsapp and Skype 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

Afer sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you free training until you can use machine freely.And if there is still have any question,please contact us by Email,Skype,Phone and Trademanager online service at any time.
