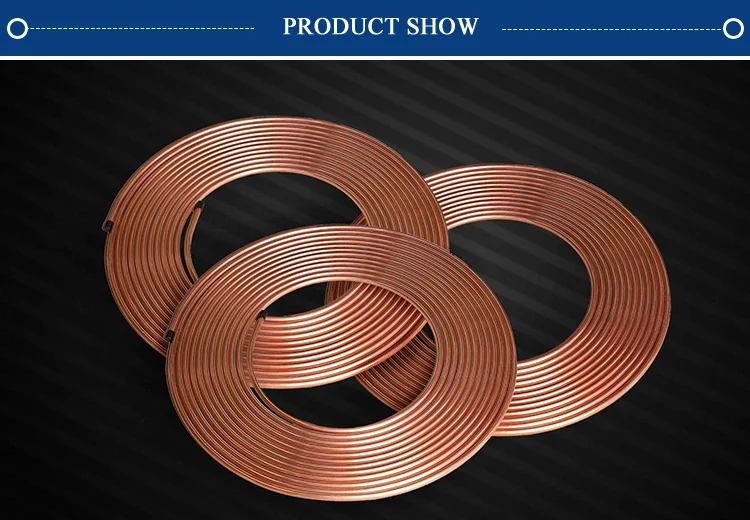

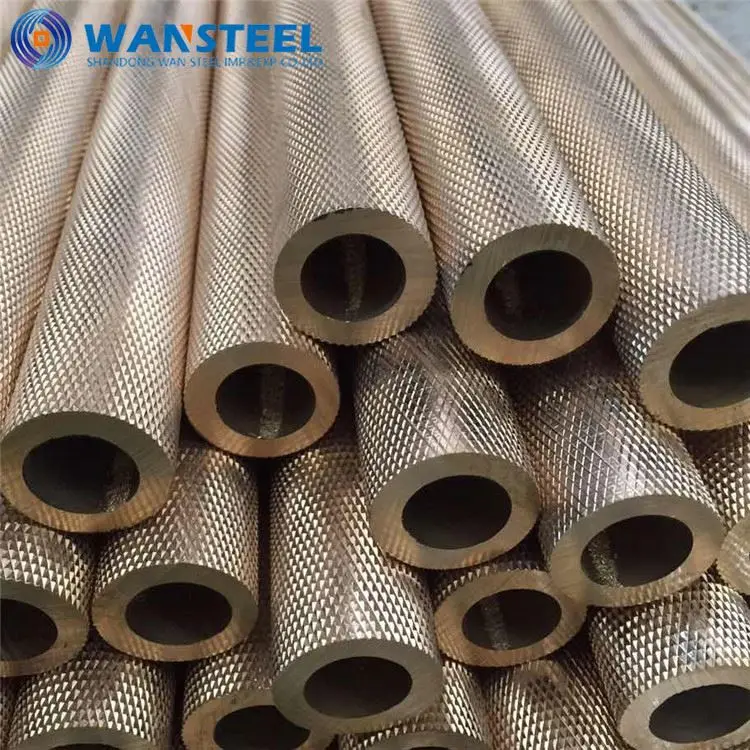

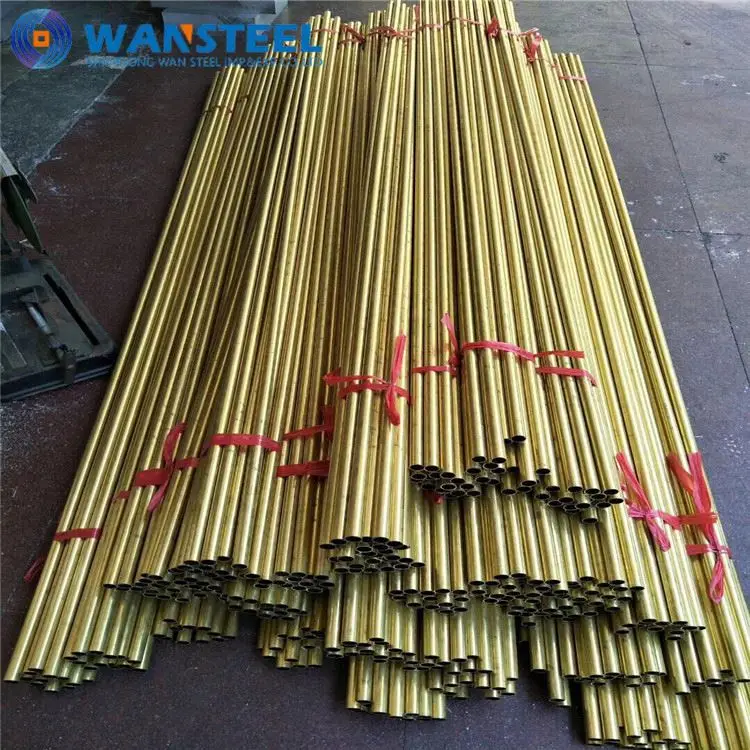

3.5mm to 14.8mm Diameter Copper Capillary Tube in Air Conditioning

Product Overview

Description

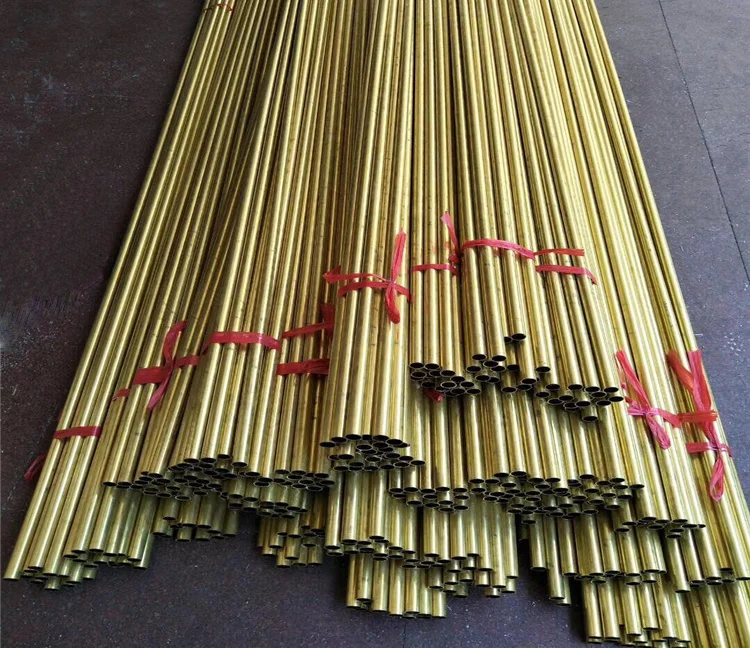

Capillary copper tube

Product Specification:

Standard	ASTM, JIS, ASME, AISI, EN, BS
Material	C1020, C1100, C1221, C10200, C11000, C103, C101, T1, T2, TP2, T3, OF-Cu,   SE- Cu
Size	OD: 0.5mm~24mm
	WT: 0.05mm~6mm
	Length: 1m, 2m, 3m, 6m, or as required.
Surface	Mill, Polished, Bright, Oiled, Hairline, Brush, Mirror, Sand Blast, or as required
Hardness	1/16 hard, 1/8 hard, 3/8 hard, 1/4 hard, 1/2hard, full hard, soft
Shape	Round, Square, Rectangular, Oval, Half-round
Quality control	Mill Test Certification is supplied with shipment, Third Part Inspection is acceptable.
Technology	Cold drawn, Cold rolled

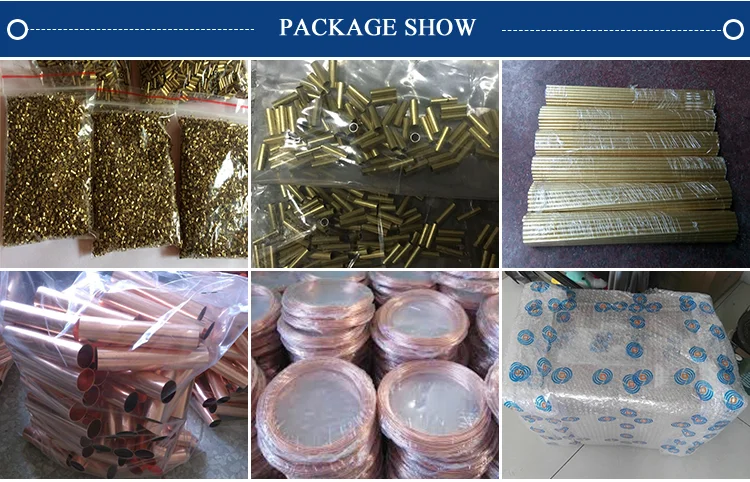

Package	Standard export seaworthy package or as required
Delivery time	1. The products in stock will delivery immediately received the payment.
	2. According to the order quantity, prompt delivery.
Application	1) Air Conditioning and Refrigeration Field Service  2) Heat Exchange use  3) Connecting tube  4) Distribution  5) Fire Protection, Solar, Fuel/ Fuel Oil











Features of capillary copper tube:

1) Good electricity

2) Heat conduction

3) Good elongation

4) Being extruded and processed well

5) Good corrosion- resistance

6) Climate- hardiness

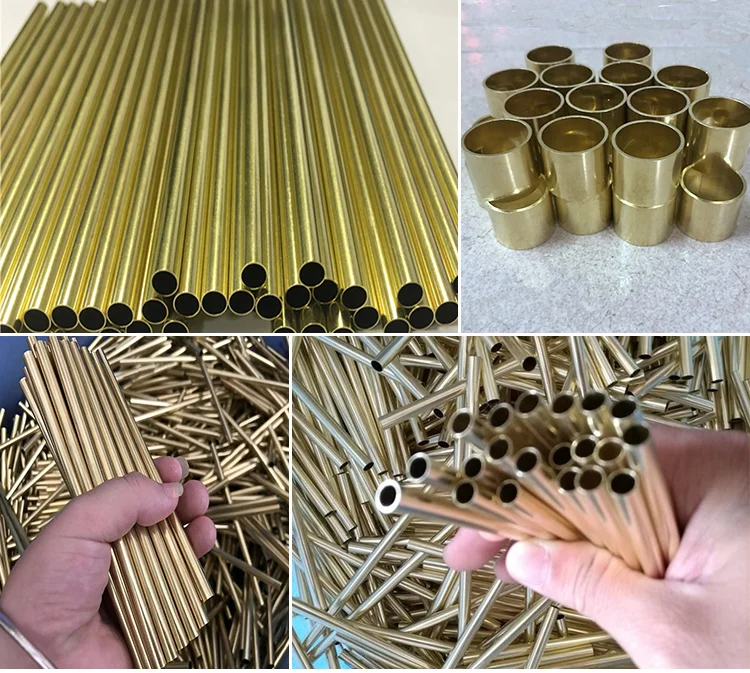

Material: Brass H65

OD x W(mm)	OD x W(mm)	OD x W(mm)	OD x W(mm)	OD x W(mm)	OD x W(mm)
0.8x0.15	3.5x0.2	7x0.2	10x0.3	16x2	25x1
1.0x0.2	3.5x0.25	7x0.25	10x0.5	17x0.5	25x1.5
1.0x0.25	3.5x0.3	7x0.3	10x1	17x1	25x2
1.0x0.3	3.5x0.5	7x0.5	10x1.5	17x1.5	26x1
1.2x0.2	3.5x1	7x1	10x2	17x2	26x1.5
1.2x0.25	4x0.2	7x1.5	11x0.2	18x0.5	26x2
1.2x0.3	4x0.25	8x0.2	11x0.5	18x0.95	27x1
1.5x0.2	4x0.3	8x0.25	11x1	18x1	27x1.5
1.5x0.25	4x0.5	8x0.3	11x1.5	18x1.5	27x2
1.5x0.3	4x1	8x0.5	11x2	18x2	28x1
1.6x0.2	4.5x0.2	8x1	12x0.5	19x0.5	28x1.5
1.6x0.25	4.5x0.25	8x1.5	12x1	19x1	28x2
1.6x0.3	4.5x0.3	8.5x0.2	12x1.5	19x1.5	29x1
1.8x0.2	4.5x0.5	8.5x0.25	12x2	19x2	29x1.5
1.8x0.25	4.5x1	8.5x0.3	12.8x0.3	20x0.2	29x2
1.8x0.3	5x0.2	8.5x0.5	13x0.5	20x0.75	30x1
2x0.15	5x0.25	8.5x1	13x1	20x1	30x1.5
2x0.2	5x0.3	9x0.2	13x1.5	20x1.5	30x2
2x0.25	5x0.5	9x0.25	13x2	20x2	32x1
2x0.3	5x1	9x0.3	14x0.45	21x1	32x1.5
2x0.5	5x1.5	9x0.5	14x0.5	21x1.5	32x2
2.5x0.2	5.5x0.2	9x1	14x1	21x2	35x1.5
2.5x0.25	5.5x0.25	9x1.5	14x1.5	22x1	45x1.5



Above sizes are normal size, we also can customize size as your requests.
We can supply welded and seamless pipe, polished pipe, coil pipe, precision pipe, medical pipe, square pipe, length can be cut as your requests.

About the deep processing of capillary copper pipe:

Our company can do deep processing, like seal flat end,seal round end, seal sharp end,bend the pipe, flaring, necking down, sharpen and customers can supply your drawing to us.

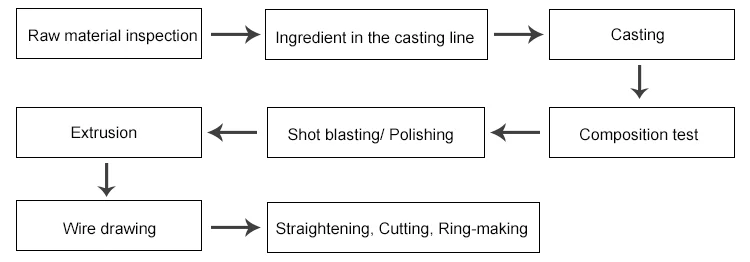

Product Processing:

Applications of capillary copper tube:

1) Air Conditioning and Refrigeration Field Service

2) Heat Exchange use

3) Connecting tube

4) Distribution

5) Fire Protection, Solar, Fuel/  Fuel Oil

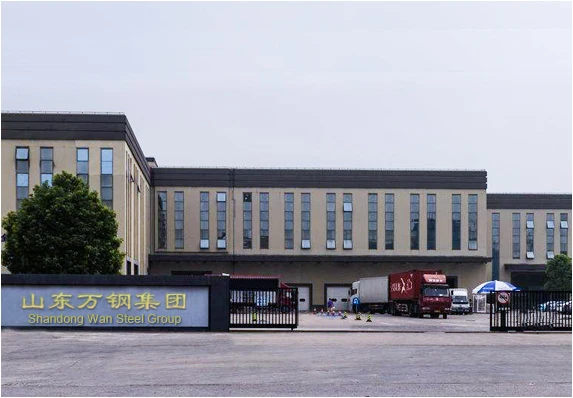

SHANDONG WAN STEEL Import and Export Co., Ltd., belong to WAN STEEL Group, located at Taishan steel Industry park, Tai’an City, Shandong province. We are professional steel pipe supplier with more than 30 years experience. We cooperate closely with many large companies at home and abroad, and have set production base in Shandong, Jiangsu, Tianjin, Foshan, etc. Our main products are seamless steel pipe, spiral steel pipe, welded steel pipe, hot dipped galvanized steel pipe, precision alloy

seamless steel pipe and stainless steel seamless pipe. We have various kinds of pipe in large stock at any time, can meet your individual requirements in terms of quantity and quality. Our products get the ISO9001 quality certificate; French BV, SGS, China CCS. API; Britain CE certificate, the approval of ISO14000 environmental management system and OSHMS occupational health and safety management system. WAN STEEL customers spread all over the world. We always adhering to the "soul creates brand" as the belief. Warmly welcome to WAN STEEL Group for business negotiation. Let’s hand in hand, create brilliant together.
