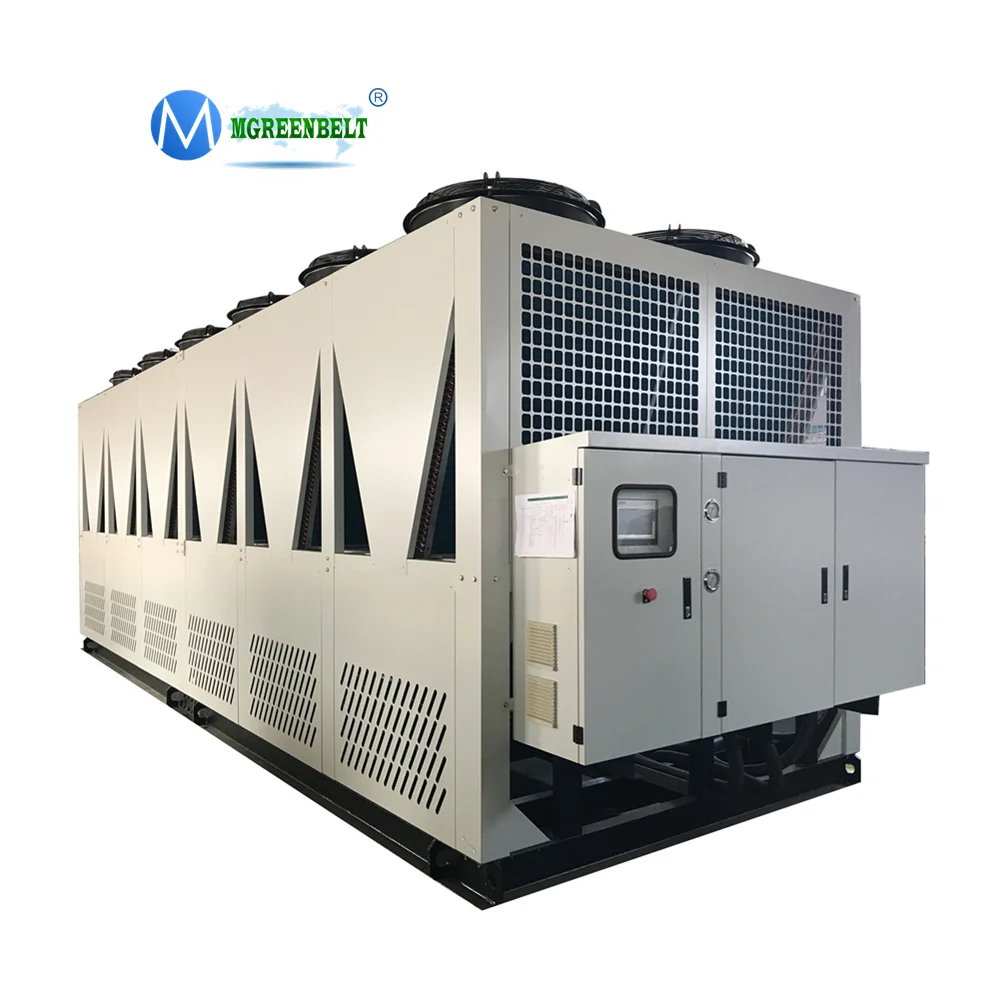

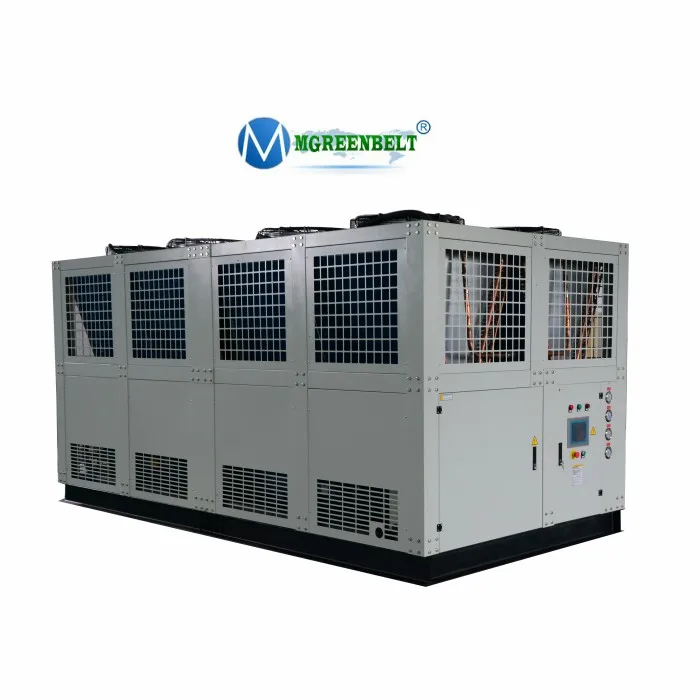

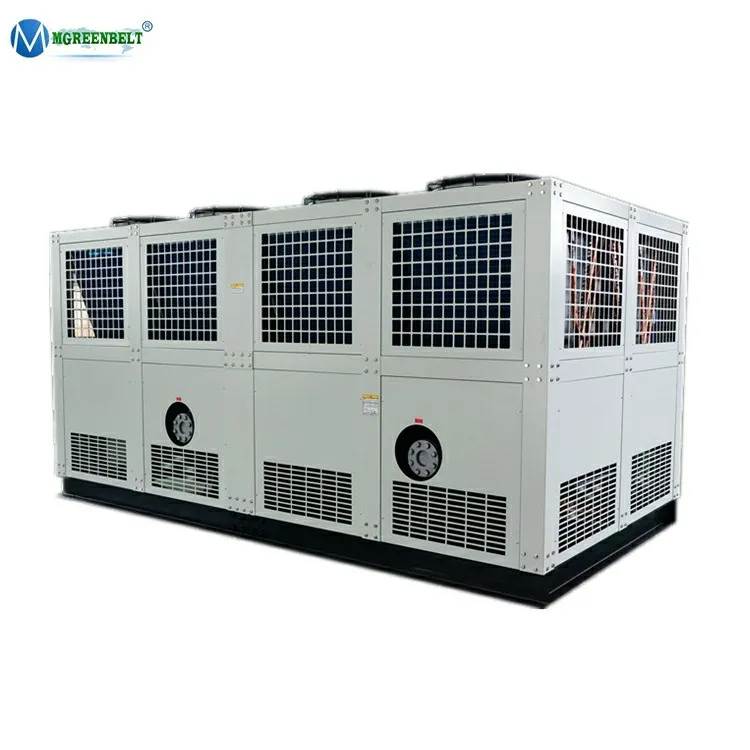

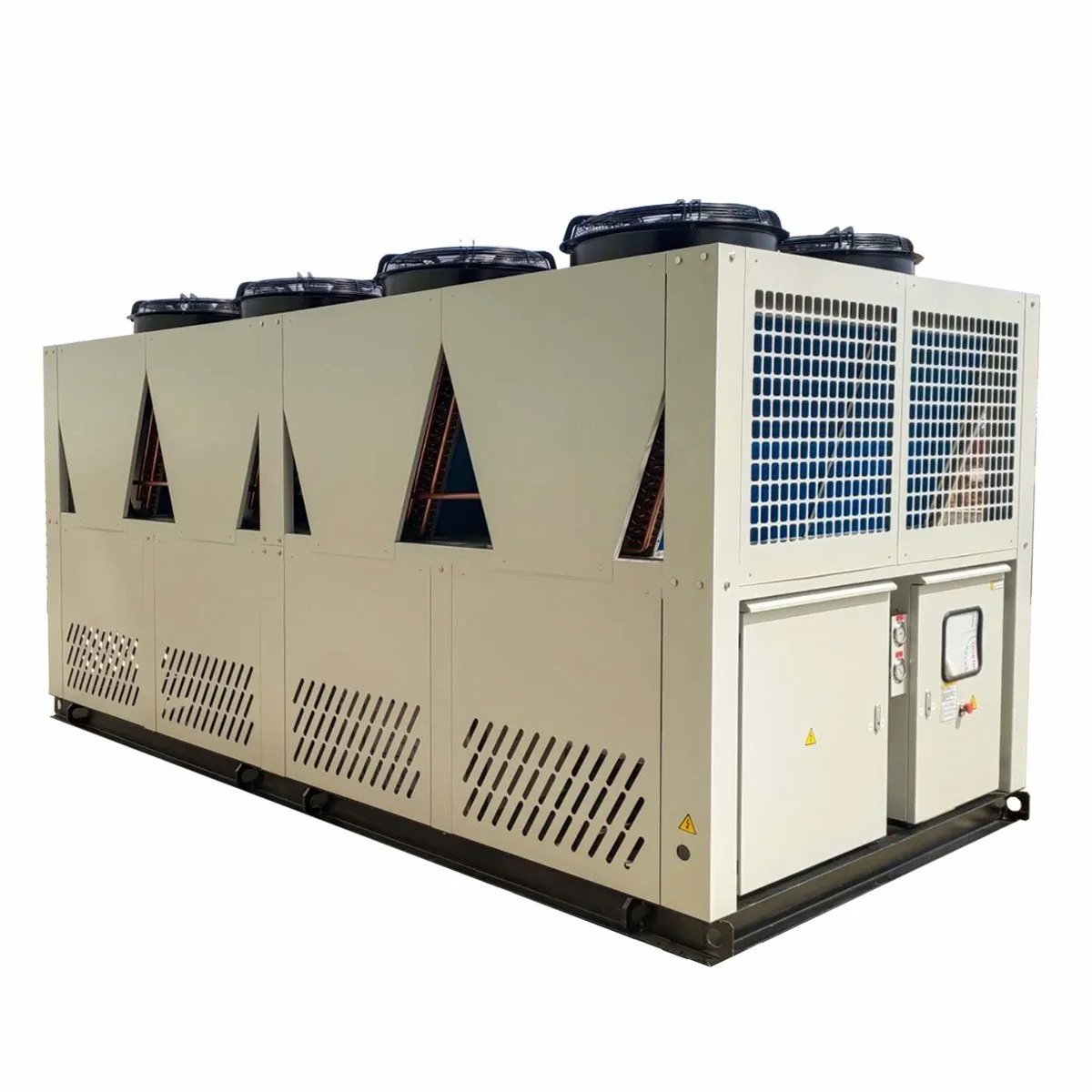

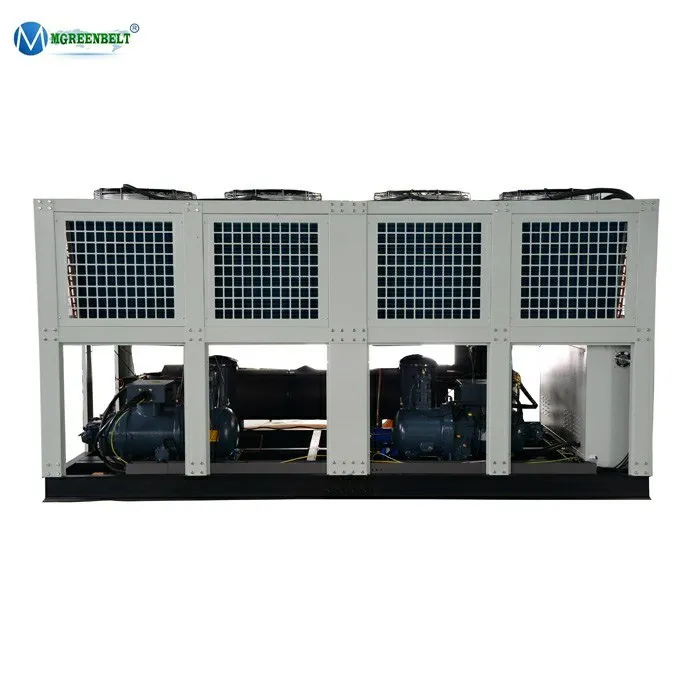

200Kw 300Kw 400kW Water Cooling system chilling Equipment Air Cooled Screw Water Chiller
- Category: Industrial Chiller >>>
- Supplier: Shandong Mgreenbelt Machinery Co. ltd.
Share on (62093589928):
Product Overview
Description
Features

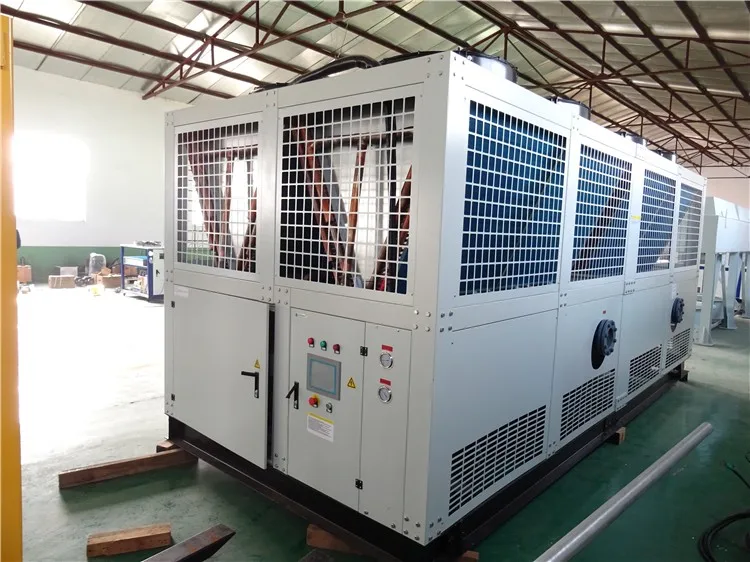

200Kw 300Kw 400kW Water Cooling system chilling Equipment Air Cooled Screw Water Chiller
As a leading air cooled screw chiller supplier,MGREENBELT provides a complete range of air-cooled screw chiller, with cooling capacity from 20Ton to 150Ton/80KW to 530KW and the chiller temperature control range is +30ºC to -30ºC.
Besides the standard air-cooled screw chiller control temperature of 7ºC to 25ºC, MGREENBELT also has air-cooled glycol screw chiller control temperature below zero from 0ºC to -30ºC.
1) Air cooled condenser make this chiller easy installation
2) Four core part: compressor, evaporator, condenser and expansion valve
3) Chiller filled in refrigerant in our factory and tested well, customer get it and can use directly
4) Design can use both outdoor and indoor
Protection devices
1)Phase sequence protection,
2)Phase lack protection,
3)Overload & overheat protection,
4)Exhuast air temp. protection,
5)Low & High pressure protection,
6)Ultra Low temp. protection,
7)Water flow protection

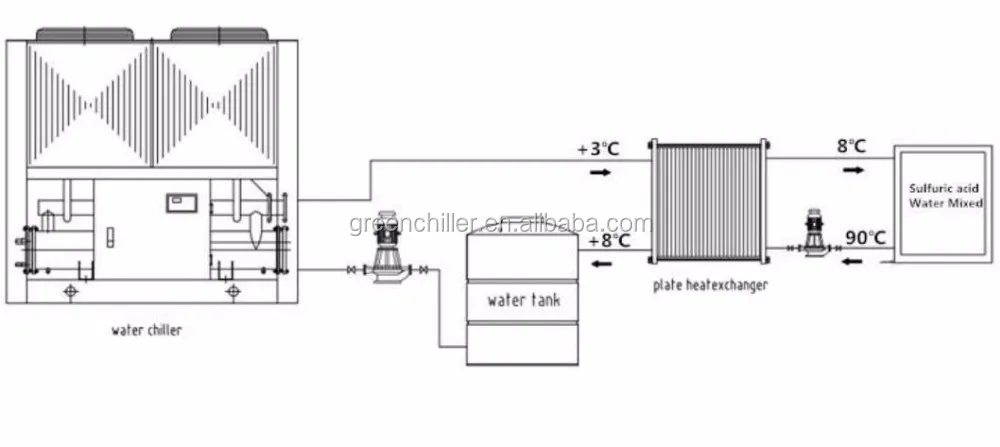

MGREENBELT Chiller Working System
1). Air cooled glycol/water chiller- to cooling water inside the system

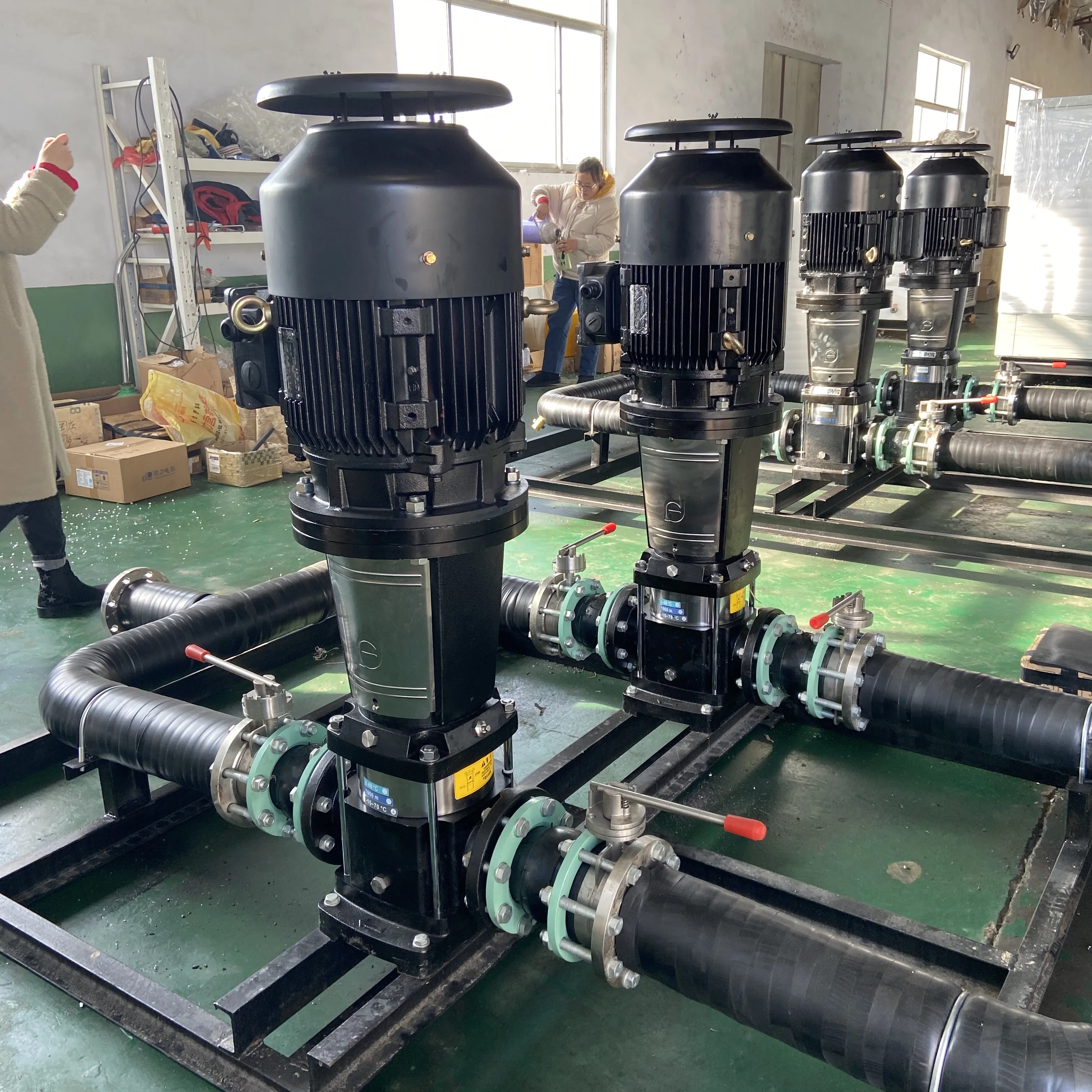

2). Chilled pump for chiller and tank circulation
3). Water tank S/S with insulations to storage cold water for the whole system
4). Cold water pump for process
2). Chilled pump for chiller and tank circulation
3). Water tank S/S with insulations to storage cold water for the whole system
4). Cold water pump for process
Our engineer will suggest different proposal solutions for your system, to discuss with you and choose the best one workable for your process cooling.
Industrial Water Cooling Screw Type 70TR 100HP Air Cooled Chiller Unit Refrigeration Equipment
Compressor features:
New screw type compressor with 20%-30% higher in efficiency.
Cooling capacity control available at four steps (100%-75%-50%-25%), three steps (100%-66%-33%) or no steps control system.
High efficiency, low noise and vibration, easy to install.
Environmental protection refrigerant R134a, R407c, R404a available.
Two sets screw compressor for one air cooled screw chiller, each can work independently , to save energy and safety production.
Adopt oil separator , to ensure compressor oil has good lubrication on the low outlet temperature -10C.
Control operation system:
SIEMENS PLC program control system, human-computer interface with big LED touch panel, running state displaying in multi-language, and self-diagnosis for easy operation and supervision.
Extended industrial interface, convenient for being computer monitor via network.
Completely safety protection function:
Multi-safety protection by high and low pressure, compressor overheating, overloading, over temperature, flow switch, phase sequence, phase-missing, exhaust overheating and anti-freezing.

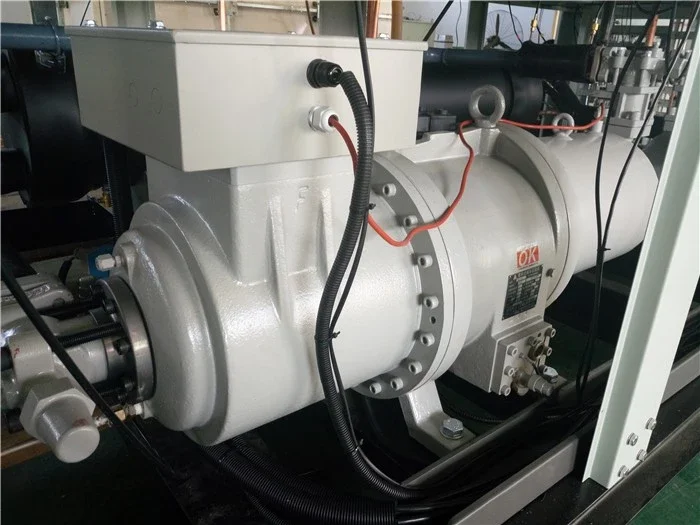

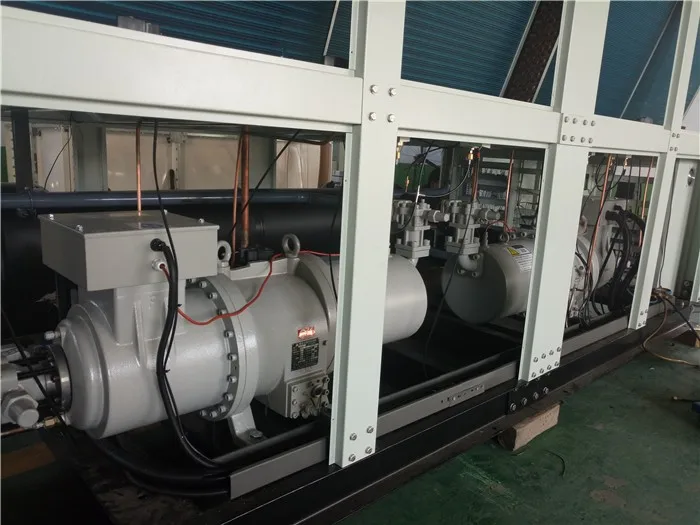

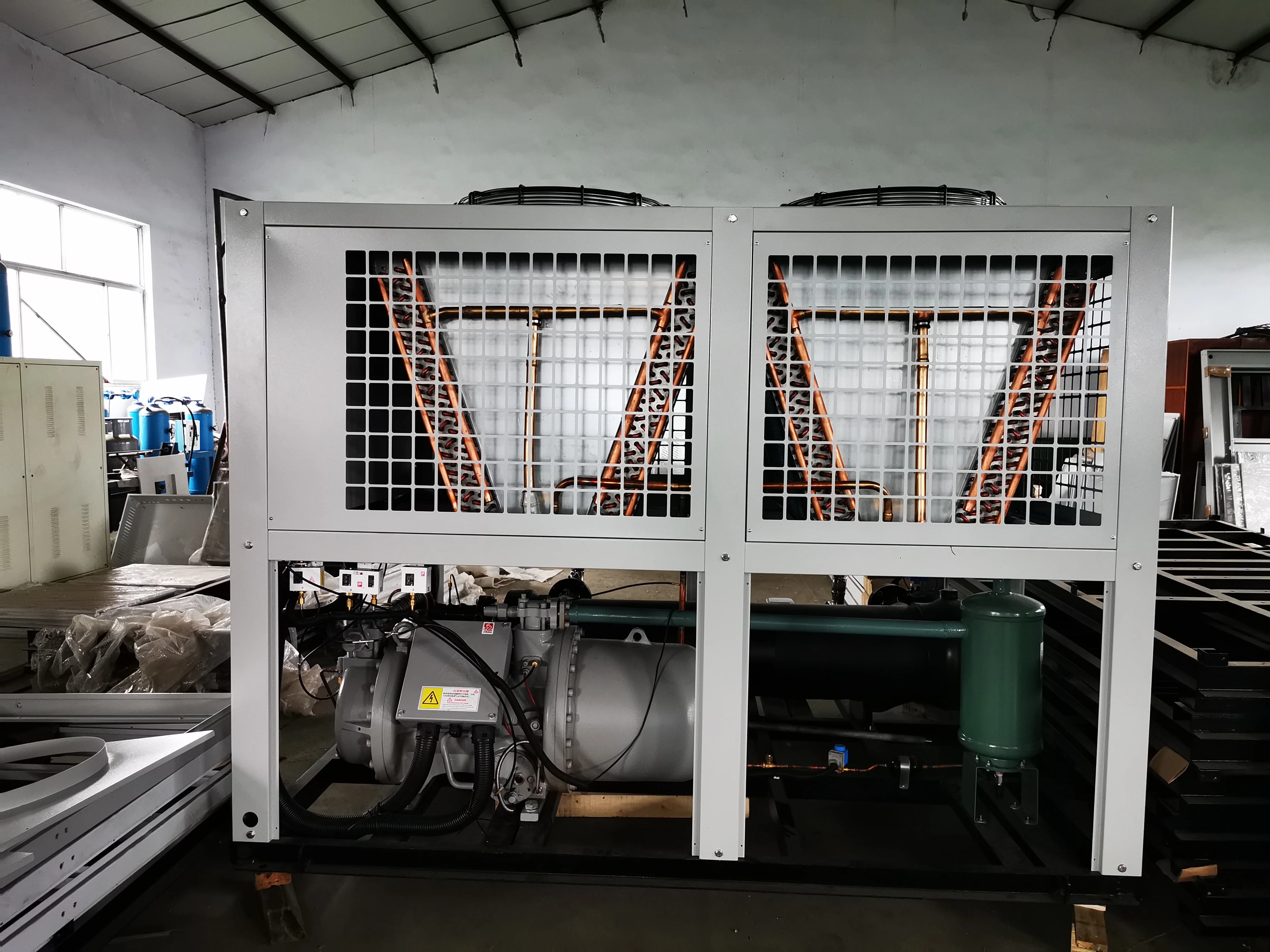

Compressor
Semi-hermetic screw type compressor, famous brand Bitzer,/Fusheng/Hanbell available
Fan
Large volume air fans, internal rotor 6 stages
Compressor
(1). Air cooled screw chiller can make with one compressor system, also can make to two compressor system; more energy saving, and conveneint for mainteance.
(2). 25%~50%~75%`100% energy control, when temperature to the temperature set point, it will unloading, when water become warmer, compressor start loading automatic.
(3). Bitzer, Hanbell, Refcom, etc brand optional, Quality first, Service first.
(2). 25%~50%~75%`100% energy control, when temperature to the temperature set point, it will unloading, when water become warmer, compressor start loading automatic.
(3). Bitzer, Hanbell, Refcom, etc brand optional, Quality first, Service first.

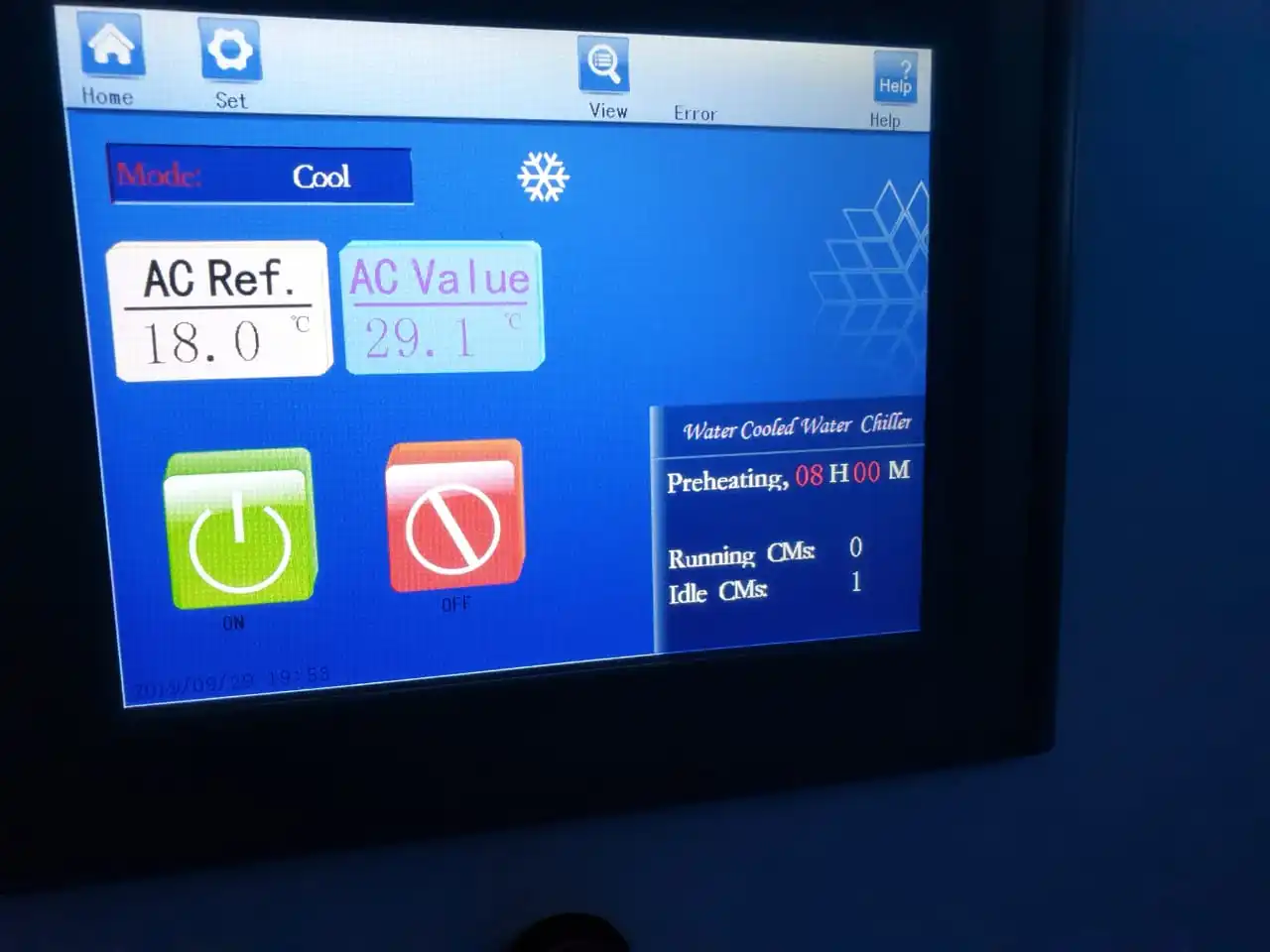

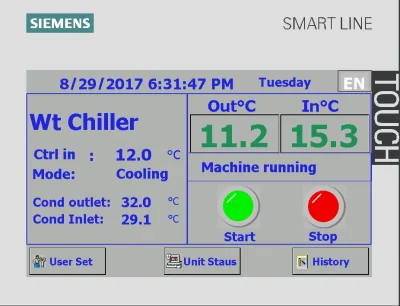

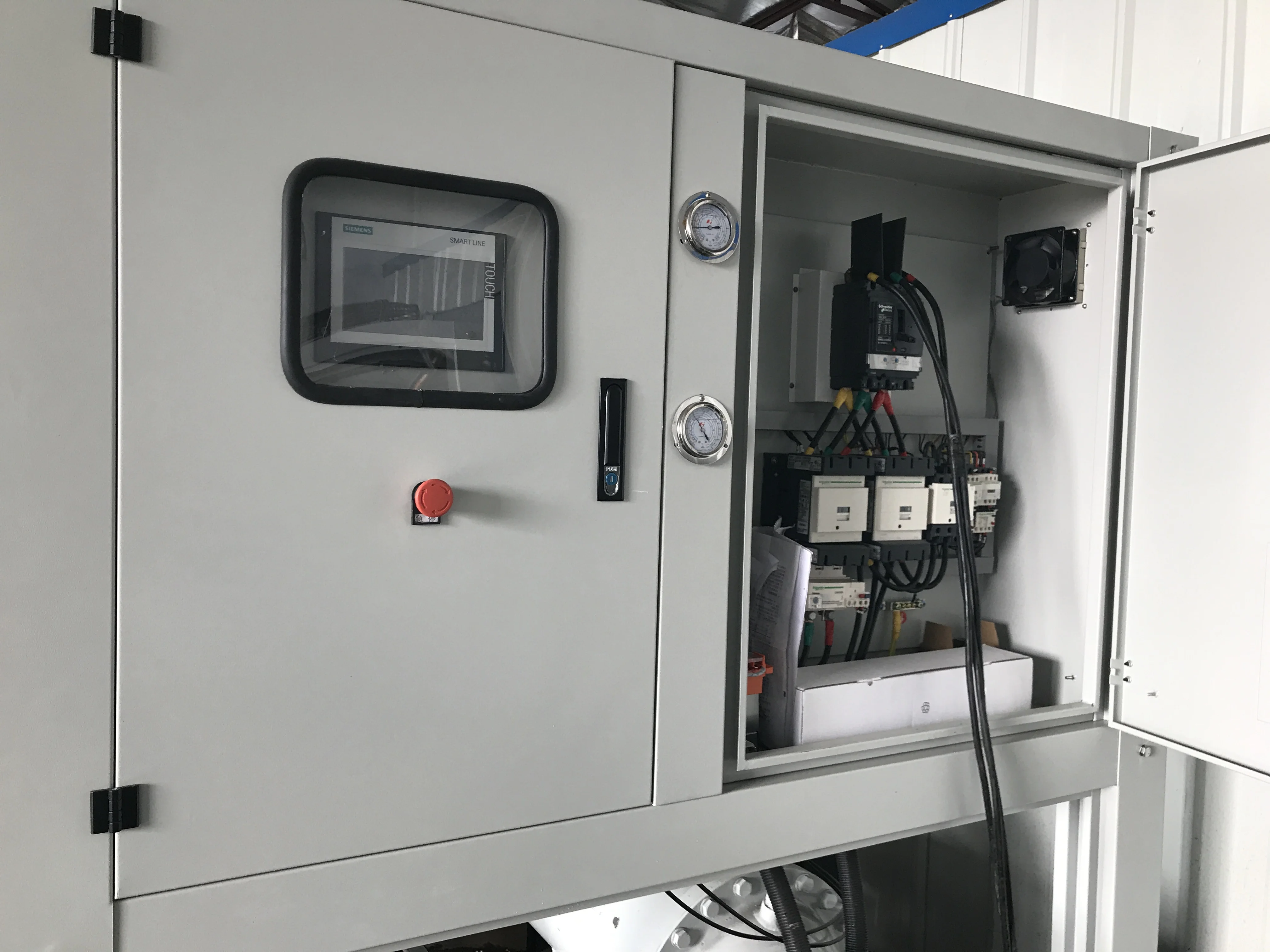

Controller
(1). SIMENS PLC control system, R485 OR Ethernet Connection support.
(2). Simple Punpu micro-computer control system, more stable, easy to operate.
(3). Schneider electrical components, UL certificate can option.
(4). Workable for outdoor design with a alone cabinet, waterproof.
(5). Alarm display, protect for equipment well.
(2). Simple Punpu micro-computer control system, more stable, easy to operate.
(3). Schneider electrical components, UL certificate can option.
(4). Workable for outdoor design with a alone cabinet, waterproof.
(5). Alarm display, protect for equipment well.

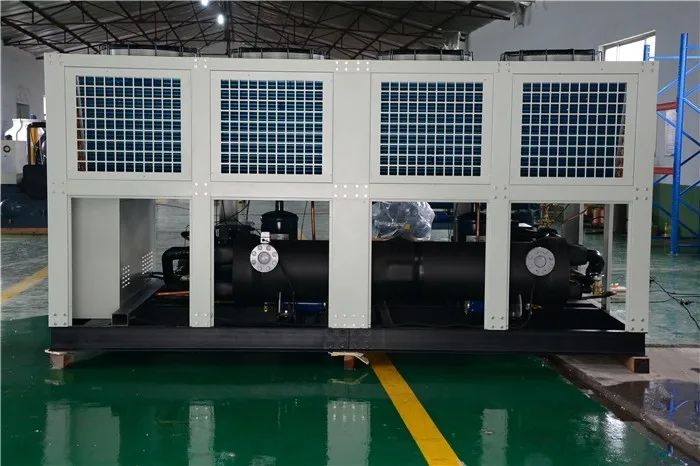

Heat Exchanger ( Evaporator)
(1). Shell and tube type; copper pipe working with refrigerant, and the shell is working with cold water which is supply to user.
(2). Different material like stainless steel, PPR, titanium is optional for variety request.
(3).Connection with Flange, ASME standard optional.
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor. .
(2). Different material like stainless steel, PPR, titanium is optional for variety request.
(3).Connection with Flange, ASME standard optional.
(4). 2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency.
(5).Flow rate meter and temperature sensor. .

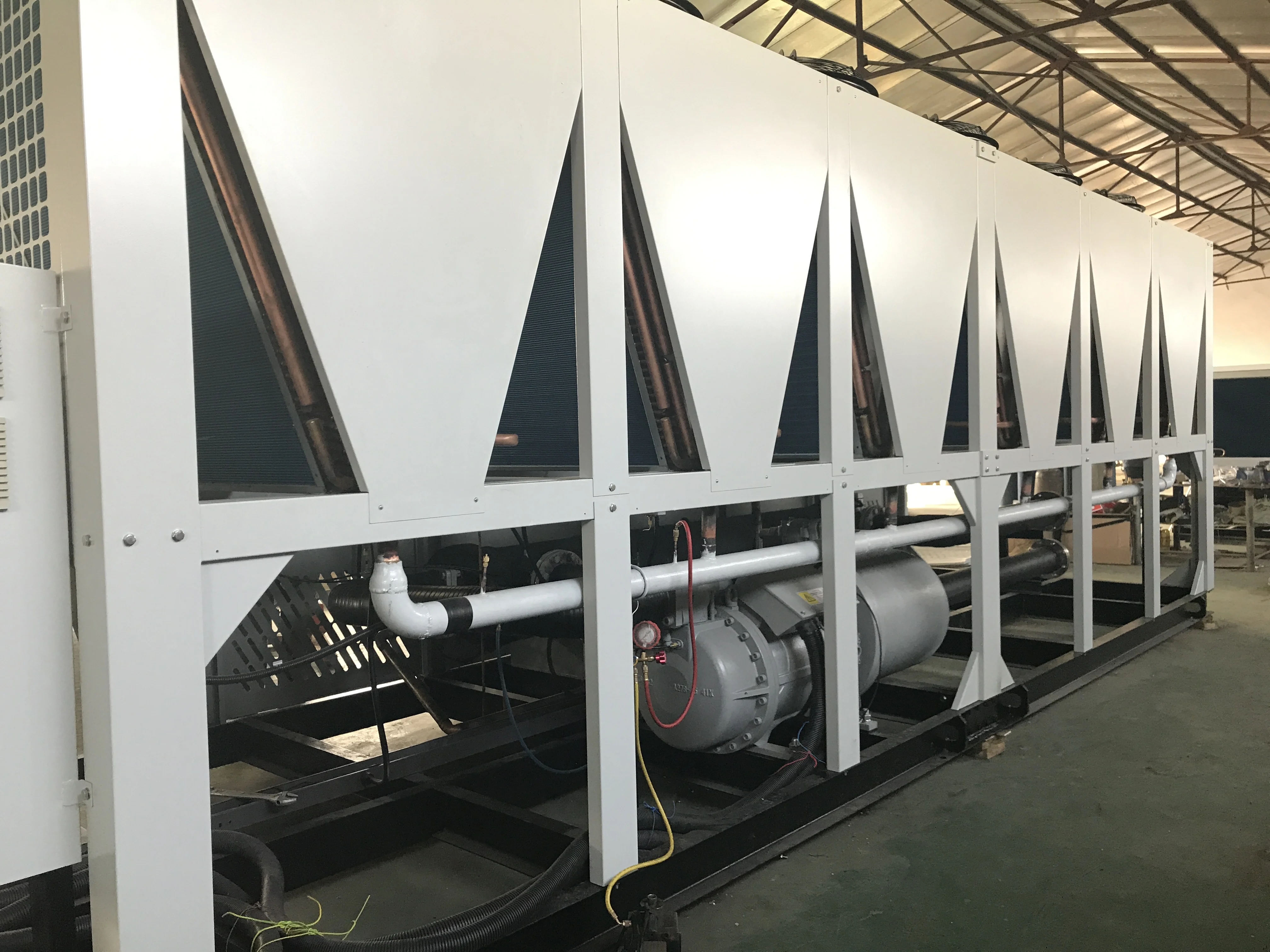

Air cooled Condenser
The condenser is used to lower the temperature of the refrigerant below the saturated condensing temperature, which enhances the refrigeration effect and improves system capacity eventually.
MGREENBELT Chiller using the last generation of microchannel condensing coils:
* Long service life aluminum alloy
* Reduced refrigerant charge
* Several coating options available
MGREENBELT Chiller using the last generation of microchannel condensing coils:
* Long service life aluminum alloy
* Reduced refrigerant charge
* Several coating options available

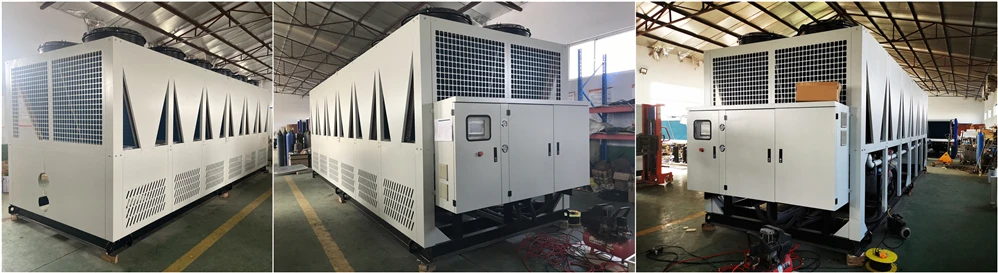

More different size air cooled water chiller from 20 tr to 200tons
1. Different brand screew type compressor available , Hanbell, Bitzer, Daikin, Fusheng, RefComp;
2. Air cooled condenser make this chiller more easy and convenient installation, no need cooling tower;
3. PLC or Microcomputer control;
4. Single compressor or Doule compressor available, each circuit is independent;
5. Multiple protections;
6. High efficiency, environmental friendly with low running noise
Model | MG-60CS | MG-80CS | MG-100CS | MG-120CS | MG-160CS | MG-200CS | |||||||||
Cooling Capacity | +7℃ | RT/tons | 44.4 | 62 | 81 | 86.7 | 116.3 | 144.7 | |||||||
Kcal/h | 134160 | 187480 | 245100 | 262300 | 351740 | 437740 | |||||||||
KW | 156 | 218 | 285 | 305 | 409 | 509 | |||||||||
Power supply | 3PH-220V/380V/415V/460V-50Hz/60Hz | ||||||||||||||
Refrigerant | Type | R22/r134a/r407c | |||||||||||||
Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Semi-hermetic | |||||||||||||
Power(kw) | 56 | 75 | 94 | 103 | 135 | 166 | |||||||||
Start | Y-△ | ||||||||||||||
Capacity control | 25%-50%-75%-100% | ||||||||||||||
Evaporator | Type | Shell and tube | |||||||||||||
Water flow(m³/h) | 27 | 37 | 49 | 52 | 70 | 87 | |||||||||
Dia.of inlet/outlet | DN80 | DN80 | DN100 | DN100 | DN100 | DN125 | |||||||||
Condenser | Type | Inner screw red copper tube covered in aluminum fins | |||||||||||||
Air cooling flow(m³/h) | 60000 | 80000 | 100000 | 120000 | 160000 | 200000 | |||||||||
Protection System | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection,flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | L | 3300 | 3300 | 4400 | 5200 | 6600 | 8800 | ||||||||
W | 2300 | 2300 | 2300 | 2300 | 2300 | 2300 | |||||||||
H | 2400 | 2400 | 2400 | 2500 | 2500 | 2500 | |||||||||
Weight(kg) | 2480 | 3200 | 3800 | 5250 | 6200 | 7800 | |||||||||
Product Description
Industrial Water chiller for Plastic Industry
MGreenbelt water chillers are apply widely in the Plastic industry, Electrons, Plating, Chemical Industry,Food and beverage, Pharmaceutical Industry , Printing and other industrial production. It can precisely control the exactly temperature , which requested by the modernized machinery production, and greatly improved the production efficiency and product quality. MGREENBELT Industrial chiller is a good partner for the modernized industry , which operate with reasonable design, high quality and complete range of specifications.

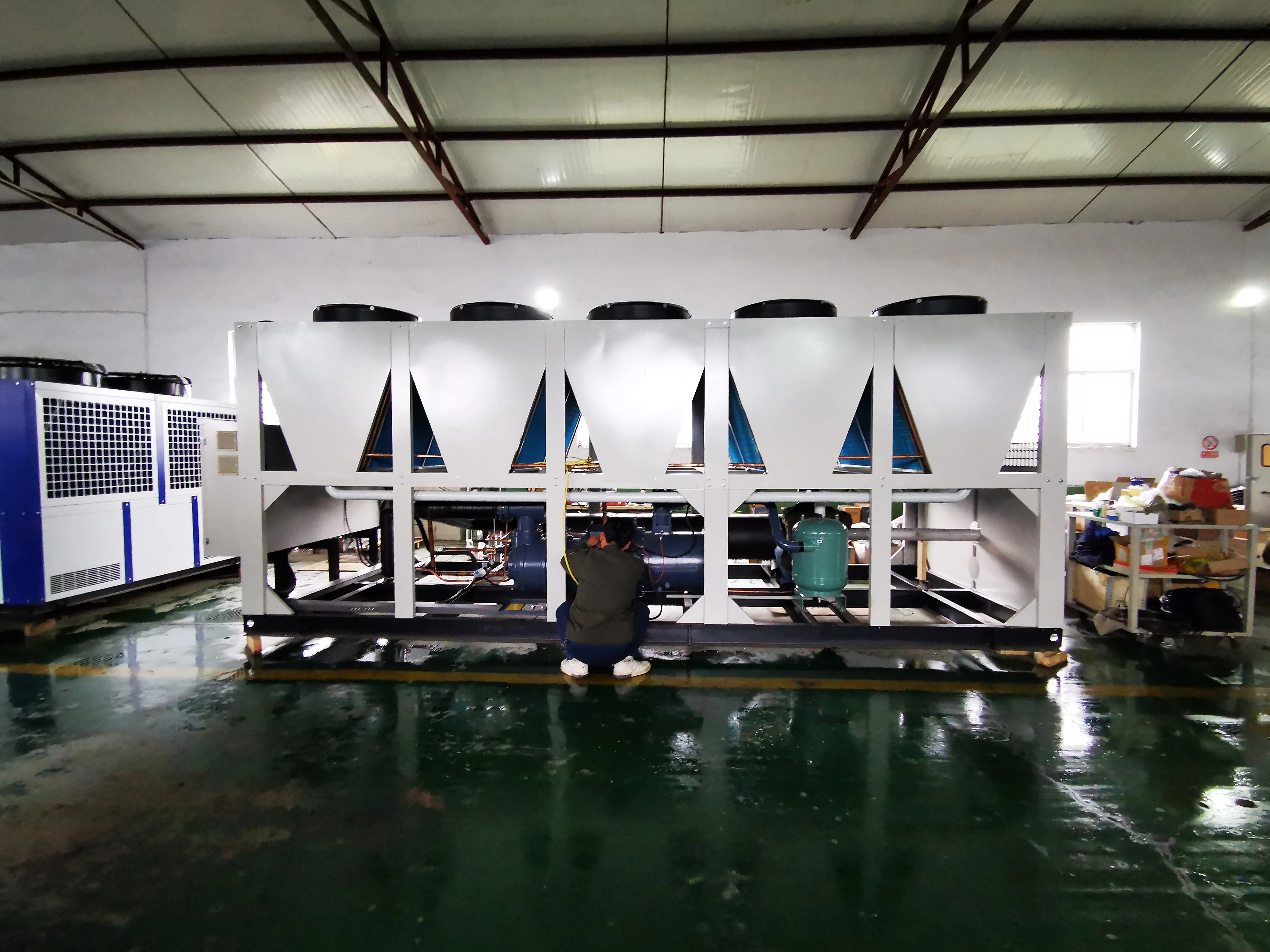

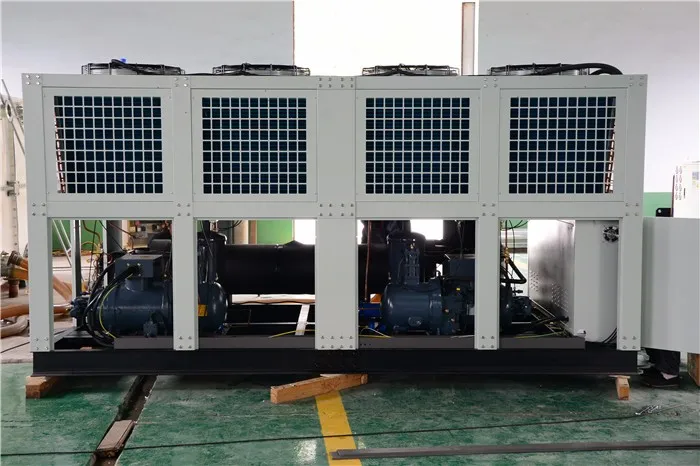

Chiller with Two Compressors
One chiller with 2 unit compressors, which price is more than with 1 compressor.
But it is much reliable and save for production, each compressor circuit is independent, they can work together or separate.
Semi- hermetic screw type compressor is repairable, and with 100000 hours serving life. Many customers like it for large production factory.
Our Company

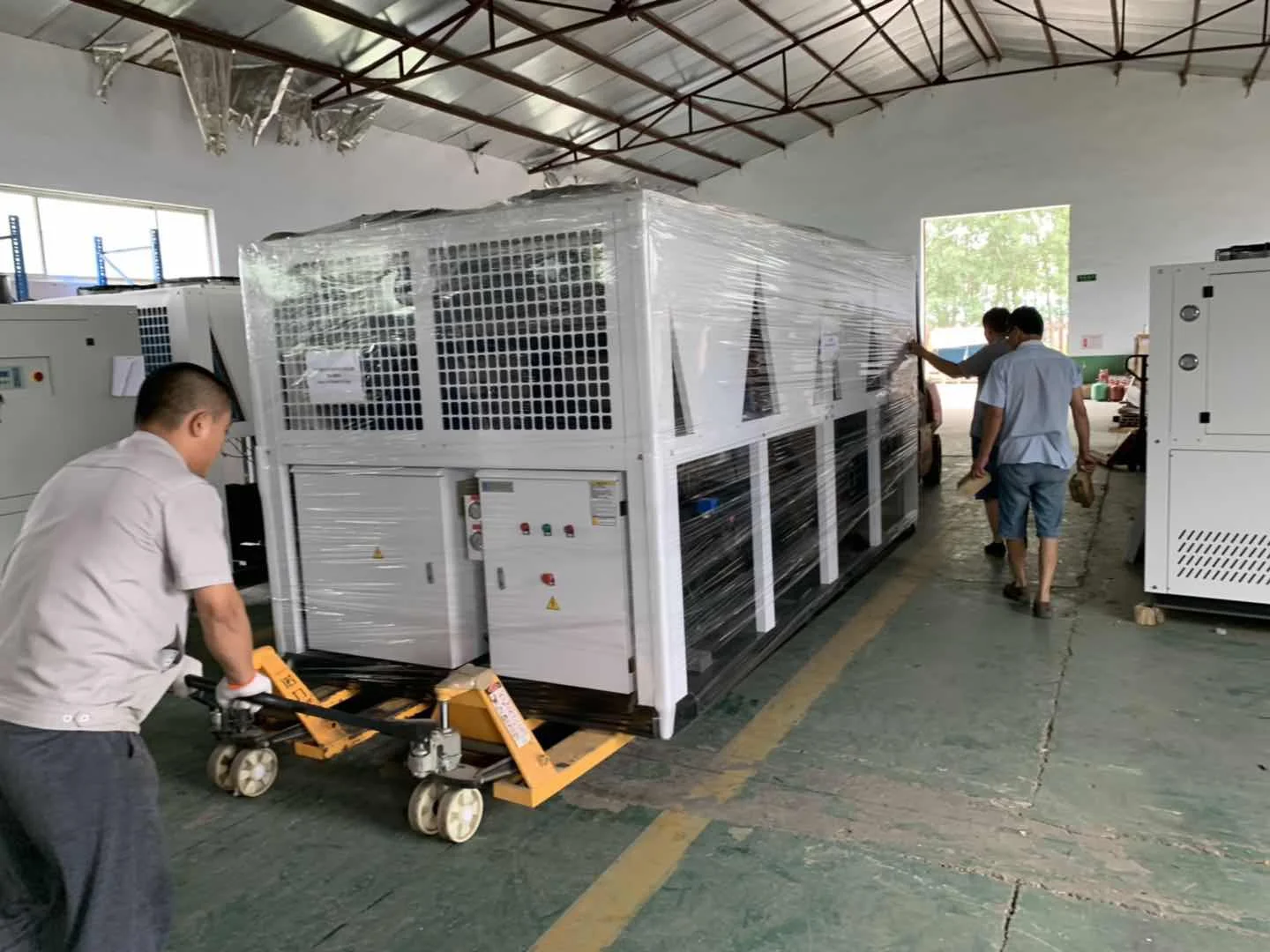

Packing & Delivery

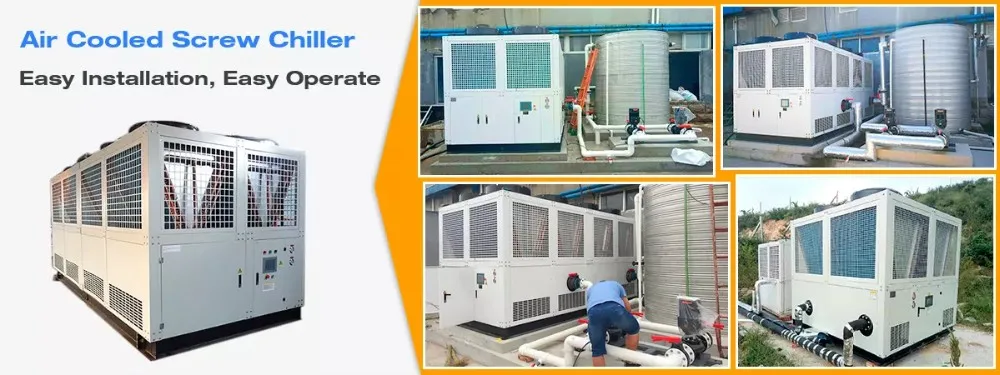

Application&User Case
Chiller working site 5C- 30C
Plastics - injection moulding, PET, blow moulding, woven sack extrusion, sheet and profile extrusion, thermoforming, presses, etc;
Automobile and Mechanical Engineering - machine tool, induction hardening and heating, welding machines, rolling mills, presses,
cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component
cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
Automobile and Mechanical Engineering - machine tool, induction hardening and heating, welding machines, rolling mills, presses,
cutting, profiling, polishing, electric discharge machine, hydraulic oil cooling, heat treatment, component washing, component
cooling, environmental test chambers, drive cooling, plasma spray, vacuum systems, etc
Air cooled glycol/water chiller -25C~ 0C
working for the Pharma and chemical - Jacketed vessels cooling, condenser cooling, PUF mixers, Laboratories applications, x ray
spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc; Food and Beverages -
Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc
spectrometers, paint cooling, packing machine, anodizing, plating, liquid nitrogen plant, etc; Food and Beverages -
Microbreweries, confectionary, bakeries, distilleries, wineries, bottling, corbonation, vegetable, meat and fish processing, etc
FAQ
Q1: What information do you need to provide in order to get a quotation?
A1: For industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.
-Air cooled or water cooled?
-Cooling Capacity,___Tons,___KW,___Kcal___BTU
-Power Supply_V_Phase_hz
-Refrigerant,R22 or friendly R410a,R407C
-Chilled water outlet temperature.
-Evaporator need pipe coil type or shell and tube type.
-With water pump and water tank or not.
-Order Quantity etc.
Q2:How does a chiller system work?
A2:Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
Q3.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
Q4:Cooling capacity unit conversion?
1 USRT = 3.517 kW,
1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,
1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,
1 kcal/h = 1.163W,
1 Btu/h = 0.2931W,
Q5:The chiller Warranty.
A5: 12 months warranty, if there are problems with the machine parts. We provide free accessories
and delivery to customers.
A1: For industrial water chiller we need to know the following information in order to suggest the suitable water chiller models and for providing the quotation.
-Air cooled or water cooled?
-Cooling Capacity,___Tons,___KW,___Kcal___BTU
-Power Supply_V_Phase_hz
-Refrigerant,R22 or friendly R410a,R407C
-Chilled water outlet temperature.
-Evaporator need pipe coil type or shell and tube type.
-With water pump and water tank or not.
-Order Quantity etc.
Q2:How does a chiller system work?
A2:Chiller has two circulation,one is process water circulation,the other is refrigerant gas circulation.Heat picked up from the process.Heat transfers to refrigerant circulation.Heat is remove to air or water.
Q3.How to calculate cooling capacity for chillers
Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-t2)/0.86
Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)
Q4:Cooling capacity unit conversion?
1 USRT = 3.517 kW,
1 kW = 0.28434 USRT;
1 kcal/h = 3.968 Btu/h,
1 Btu/h = 0.252 kcal/h;
1 USRT = 3024 kcal/h,
1 kcal/h = 1.163W,
1 Btu/h = 0.2931W,
Q5:The chiller Warranty.
A5: 12 months warranty, if there are problems with the machine parts. We provide free accessories
and delivery to customers.
