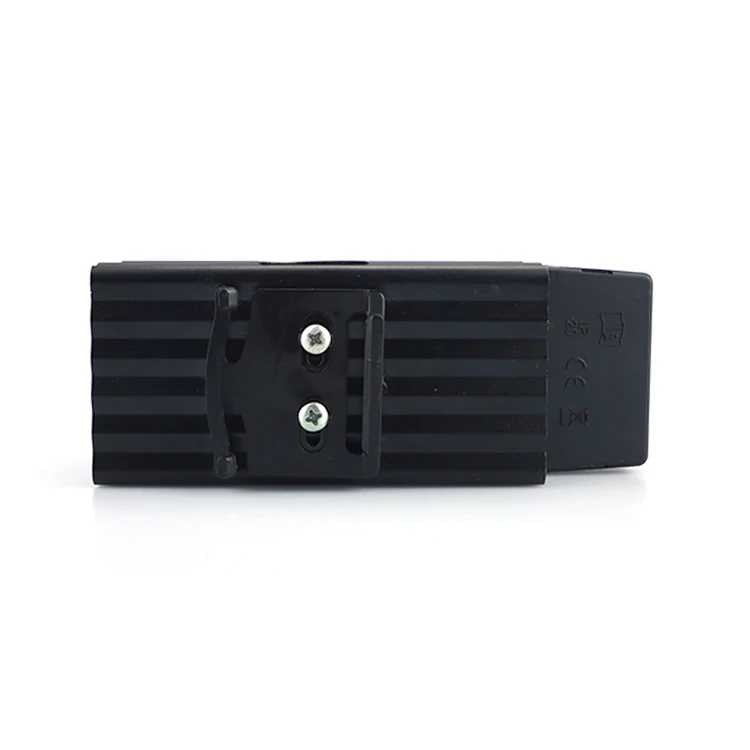

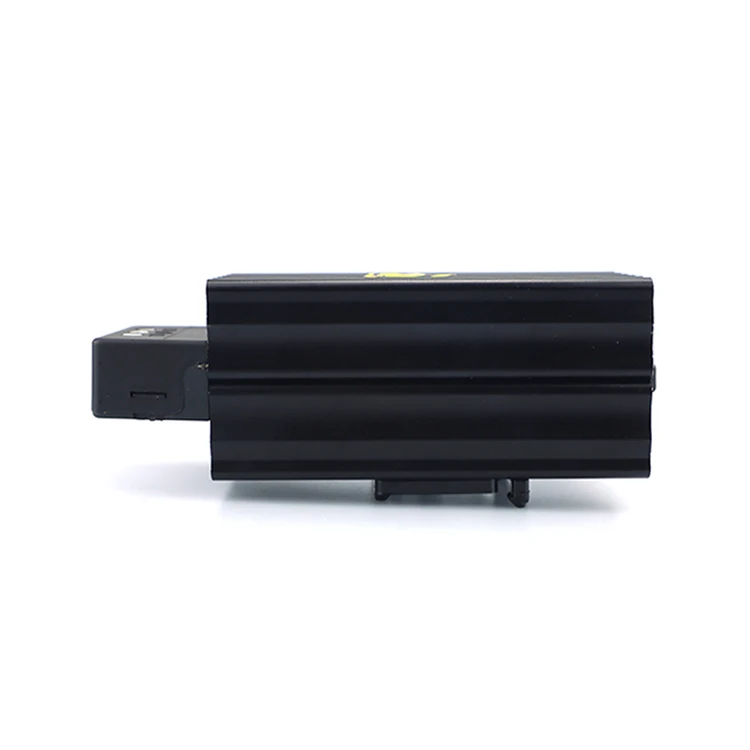

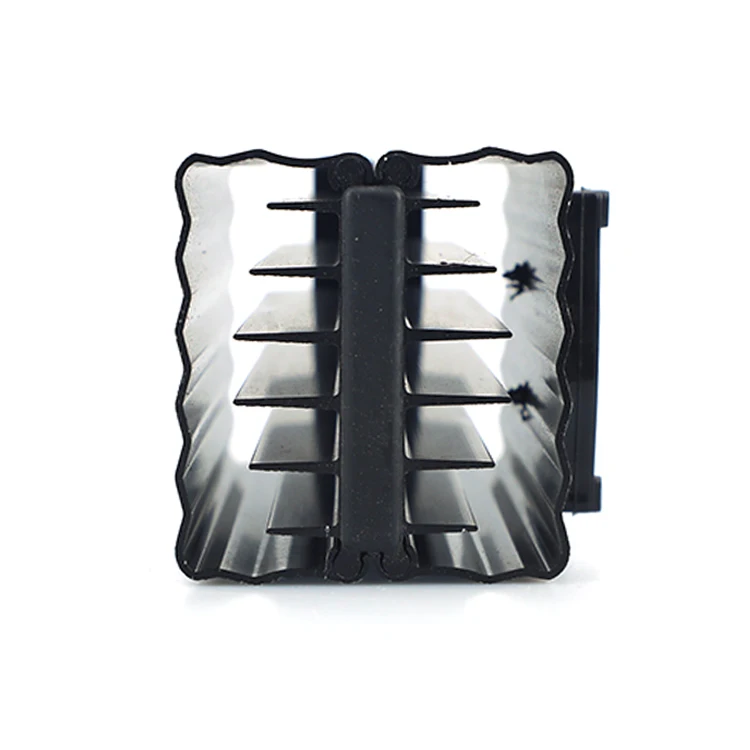

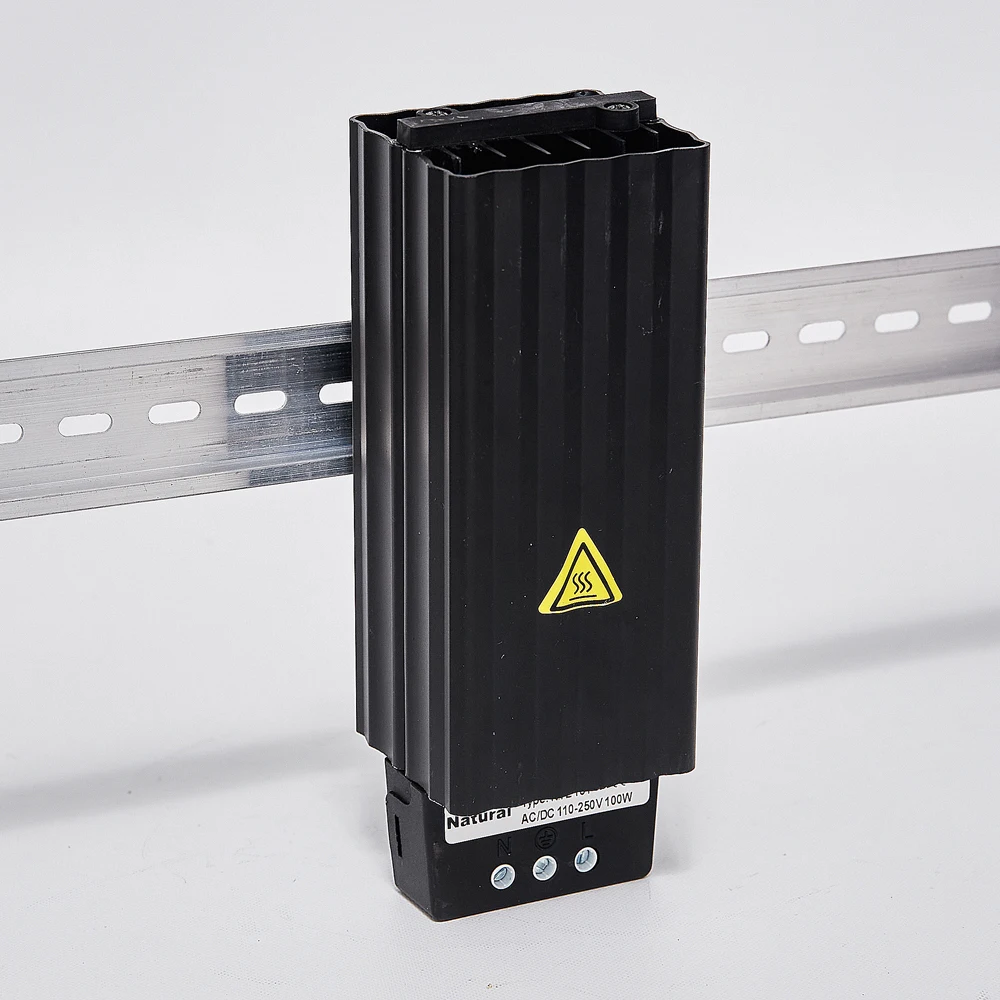

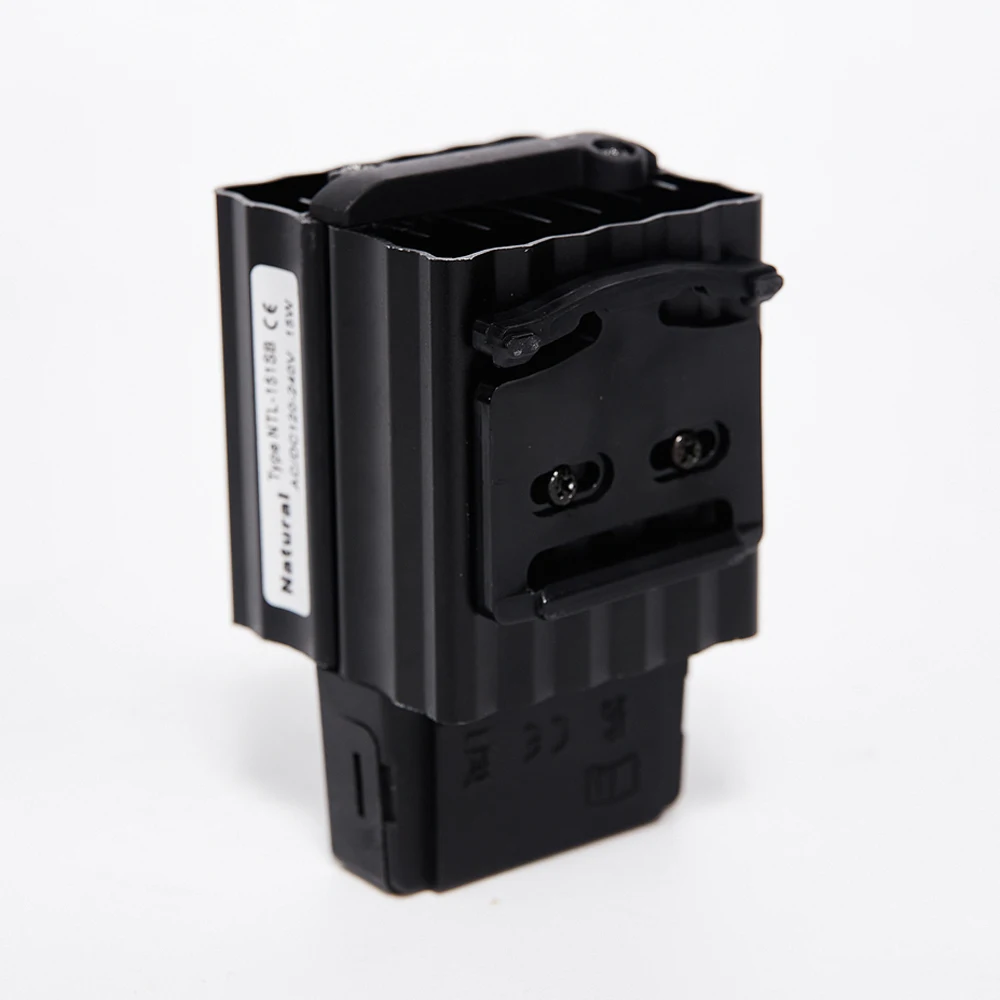

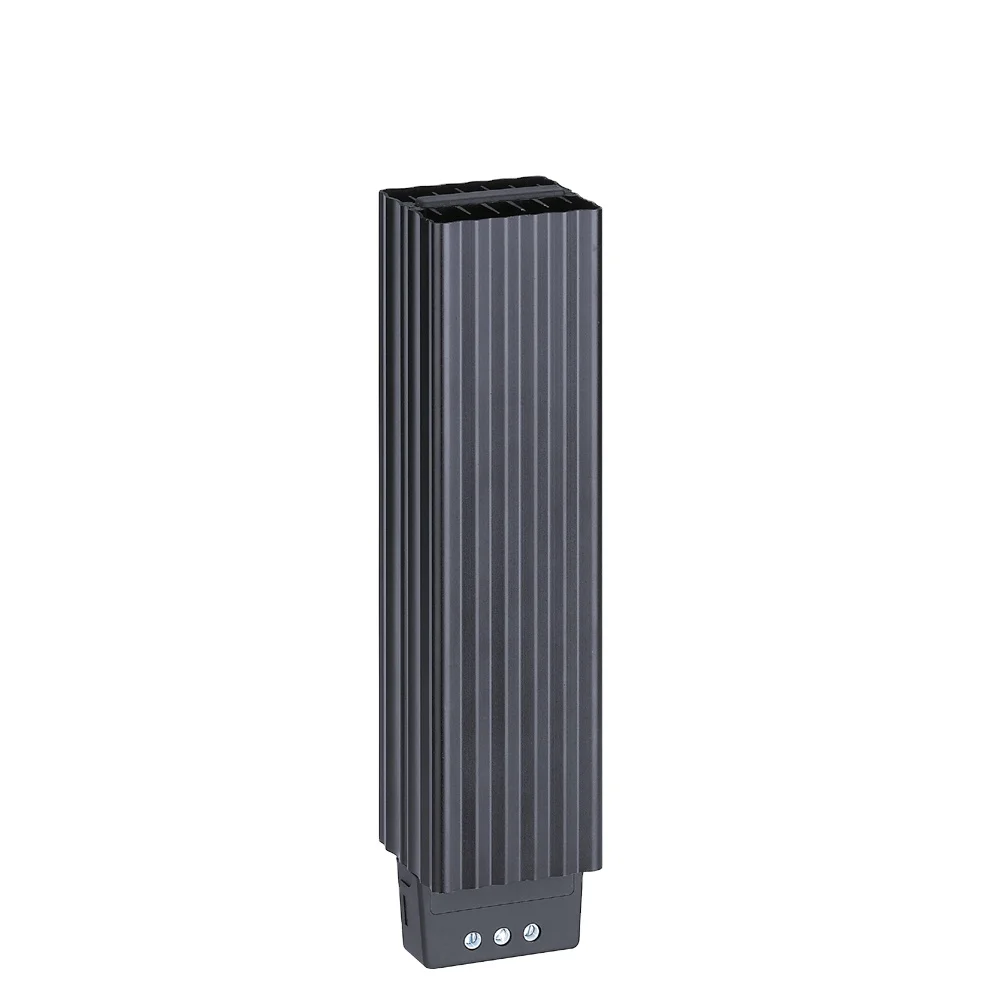

Натуральный наружный нагреватель шкафа для наружного использования, полупроводниковый нагреватель резистора PTC NTL 151
- Category: Heating Equipment >>>
- Supplier: Wenzhou Natural Automation Equipment Co. Ltd.
Share on (62094580931):
Product Overview
Description
Products Description
NTL 151 | ||
Operating voltage | 120-260V AC/DC or 12V DC or 24V DC or 48V DC¹(min. 110V, max. 265V) | |
Heating element | PTC resistor - temperature limiting | |
Heater body | extruded aluminium profile, anodised | |
Connection | 3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm² | |
Connection casing | plastic according to UL94 V-0, black | |
Mounting | clip for 35mm DIN rail, EN 60715 | |
Fitting position | vertical airflow (air outlet up, connection on bottom) | |
Operating/Storage temperature | -45 to +70°C (-49 to +158°F) | |
Operating/Storage humidity | max. 90% RH (non-condensing) | |
Protection type/Protection class | IP20 / I (earthed) | |
Accessoires | Cabinet/Enclosure/Panel Parts | |
Note | other voltages on request | |
• Pressure clamp connectors
• Dynamic heating up
• Wide voltage range
• Energy saving
• Clip fixing, Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature
may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes
the heat evenly
. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify
installation.
• Dynamic heating up
• Wide voltage range
• Energy saving
• Clip fixing, Quick installation
These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature
may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes
the heat evenly
. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify
installation.

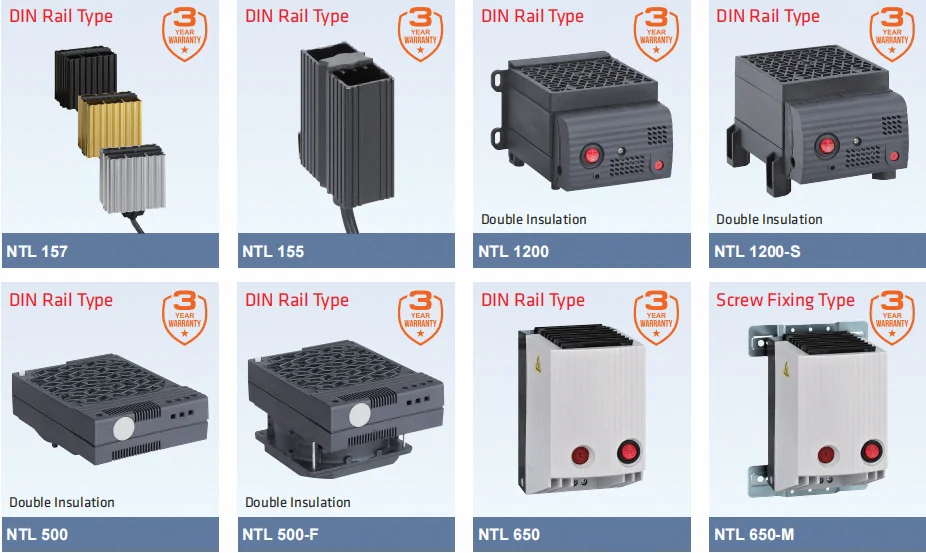

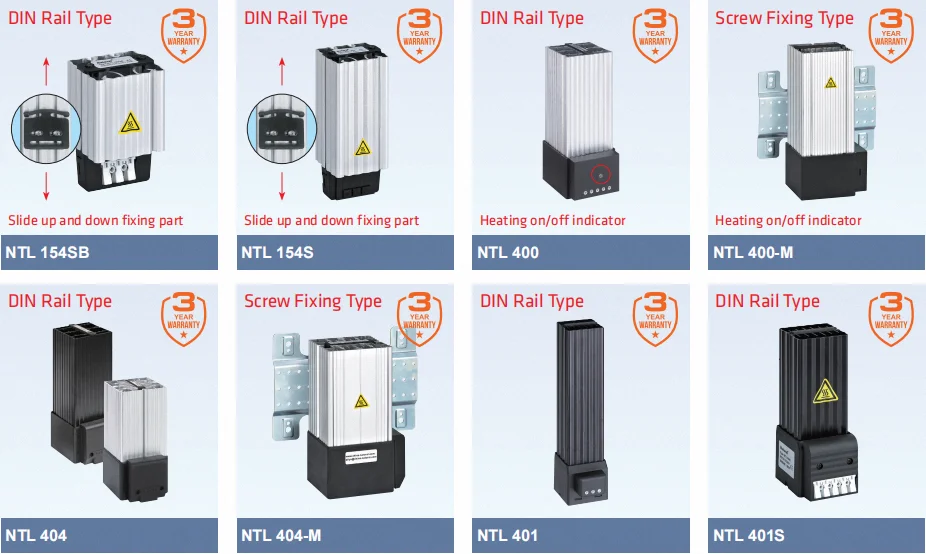

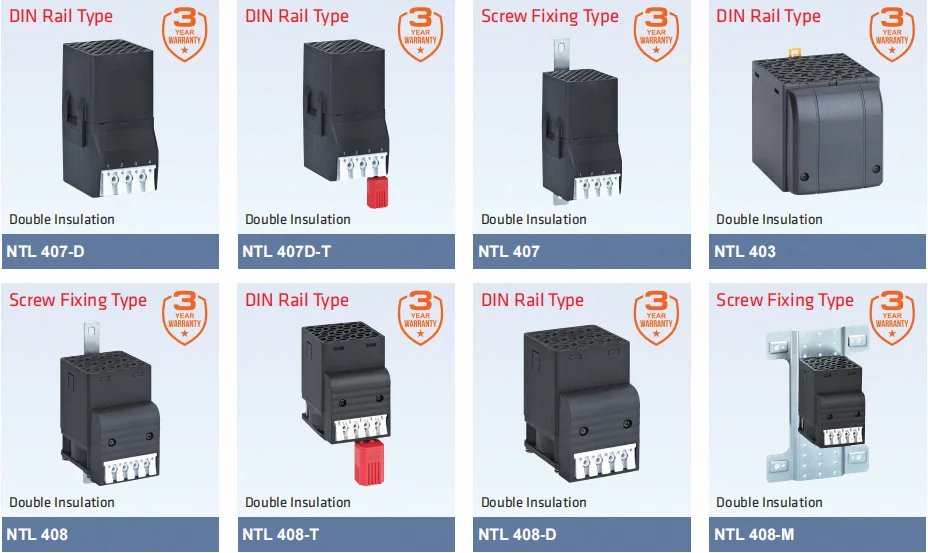

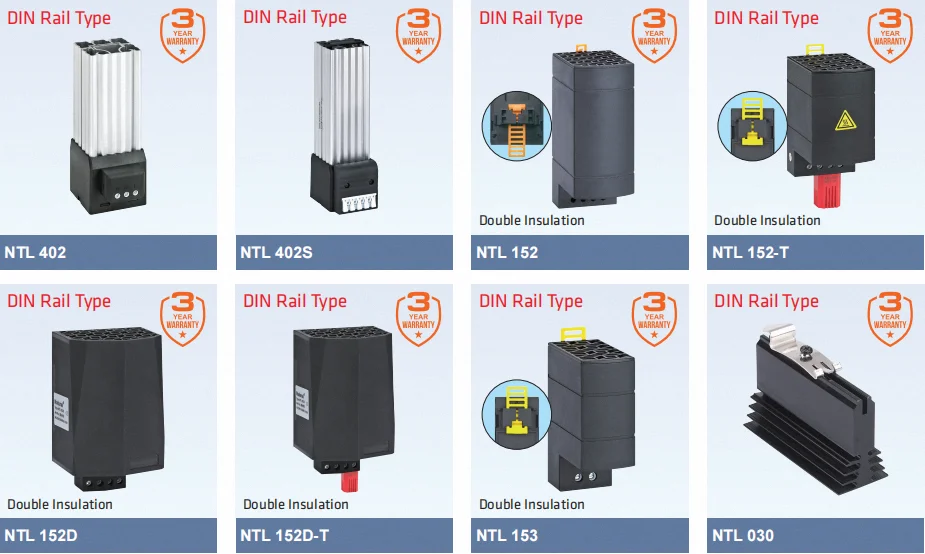

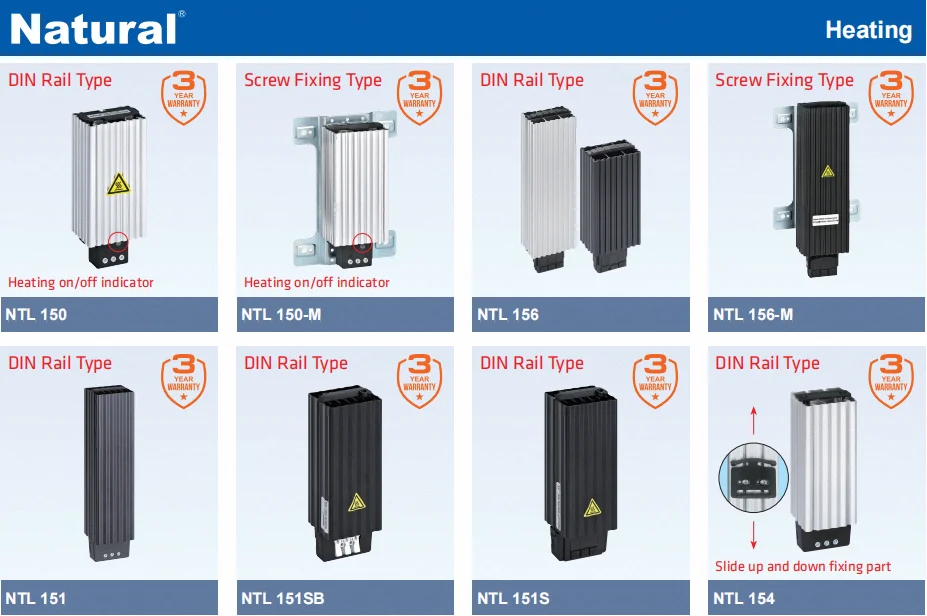

Main Categories
Click on the following categories, then you can get what you want
Warranty:
Thermostat: 3 Years
PTC Heater: 3 Years
Filter without Fan: 3 Years
Filter with Fan: 2 Years
Cabinet LED Lamp: 3 Years
Compensation Devices: 3 Years
Voltage Protector: 5 Years
PTC Heater: 3 Years
Filter without Fan: 3 Years
Filter with Fan: 2 Years
Cabinet LED Lamp: 3 Years
Compensation Devices: 3 Years
Voltage Protector: 5 Years
Company Profile

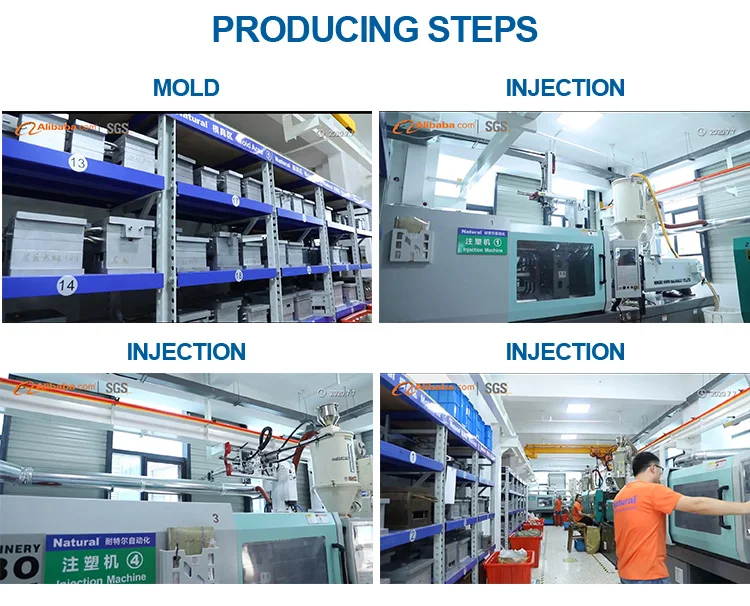

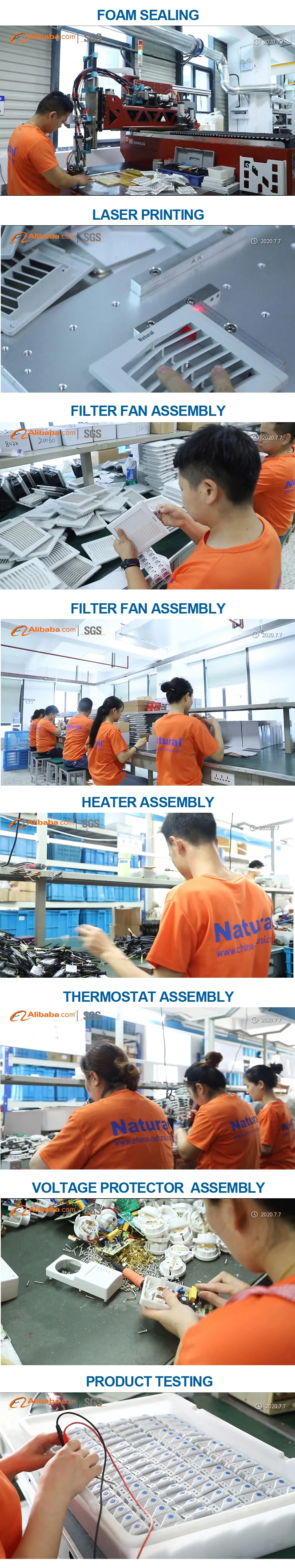

Product Steps
