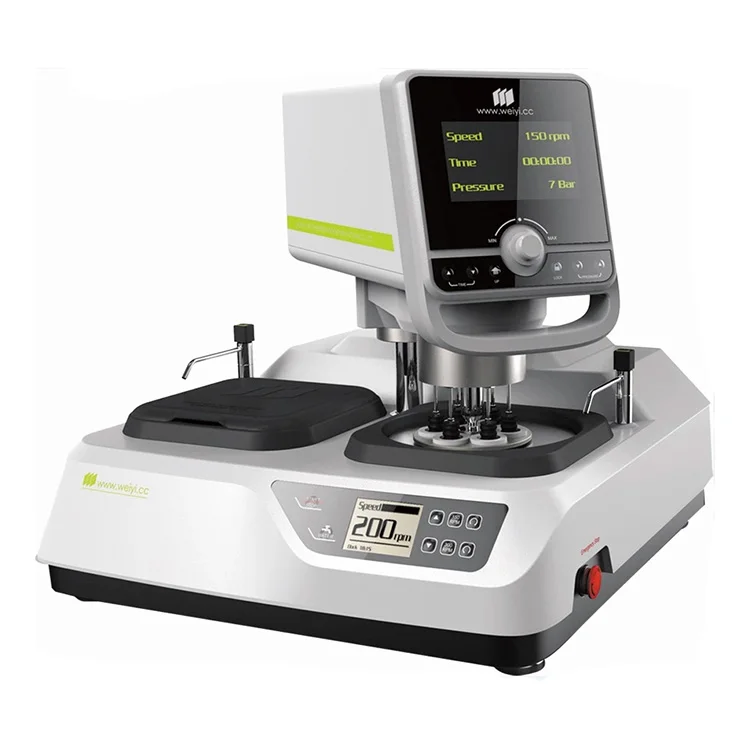

Fully automatic Metallographic grinding polishing machine Mopao 4S

Product Overview

Description

Product Description

MoPao4S automatic polishing machine using advanced sample preparation capabilities,so sample preparation results is with consistency and reproducibility.



This machine adopts the advanced microprocessor control system,which control sample preparation process.Grinding disc support bidirectional rotation,speed within a predetermined range can be adjusted.Pneumatic single point loading,it can support up to grinding and polishing 6 pces specimen simultaneously,also suitable for the sigle specimen.sample preparation pressure,time setting is intuitive and convenient.



MoPao 4S is applicable to rough grinding,fine grinding,coarse polishing and polishing process as well as it is an ideal equipment for enterprises,scientific reserch institutions and colleges laboratory.



Technical Parameters

Model	MoPao 4s
Wheel diameter	φ250mm(or φ203mm)
Wheel quantity	50-1000r/min or 150r/min and 300r/min
Power head peed	50-150r/min
Loading range	5-60N
Sample preparation time	5-995S
Sample diameter	φ30mm(φ22mm or φ45mm)
Input power	1.1KW
Input Voltage	AC220V 50HZ
Dimension	758mm x785mm x680mm
Net weight	98kg
Gross weight	122kg



Optional accessories



FY-5 model dripping device

supporting the vertical fixture with special dimension

Diamond disc (alternative  200#-1000#)

Silent pump
