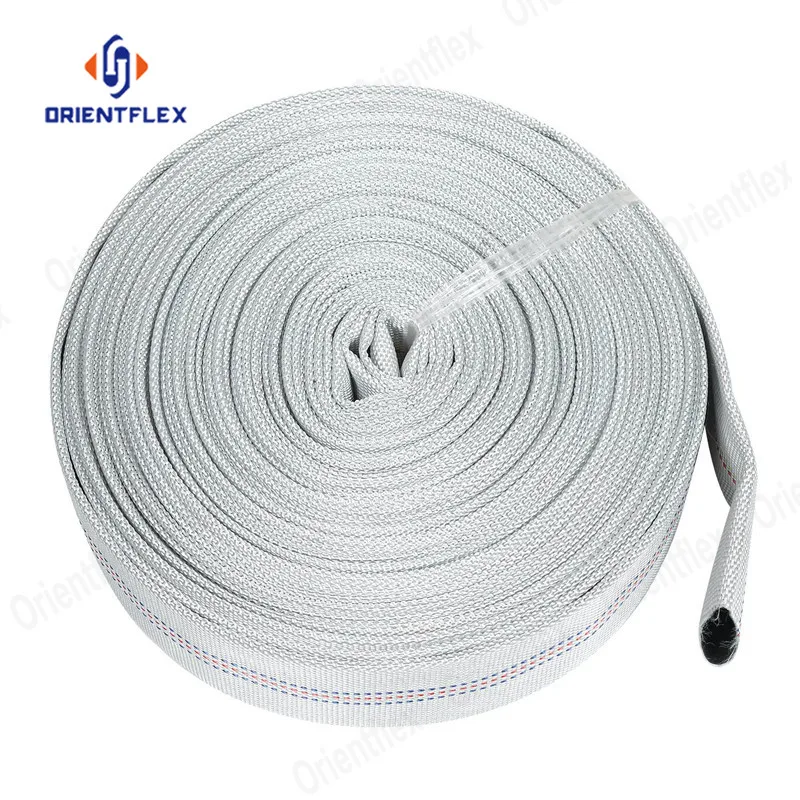

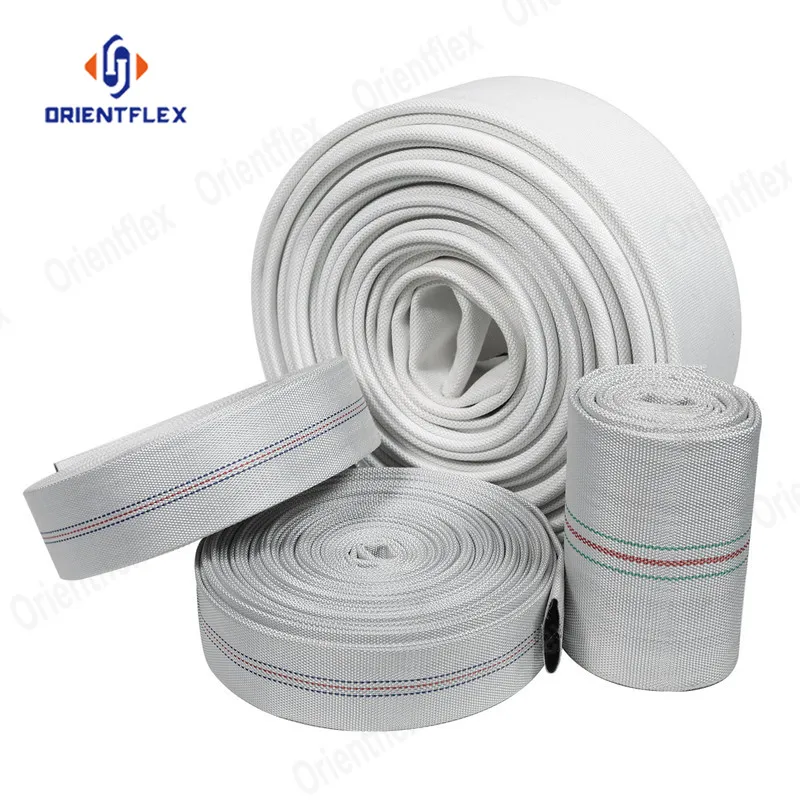

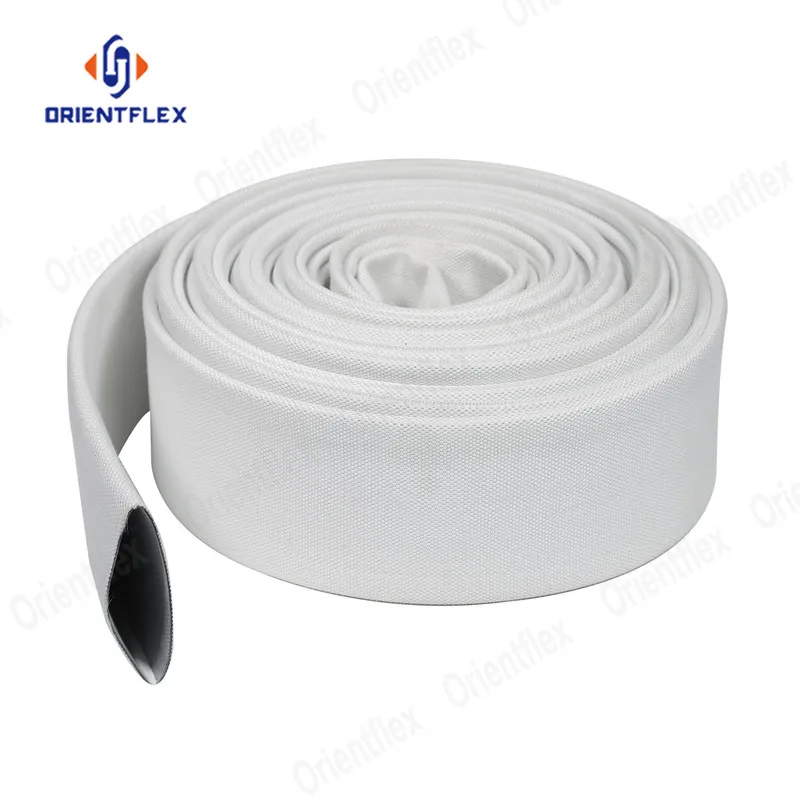

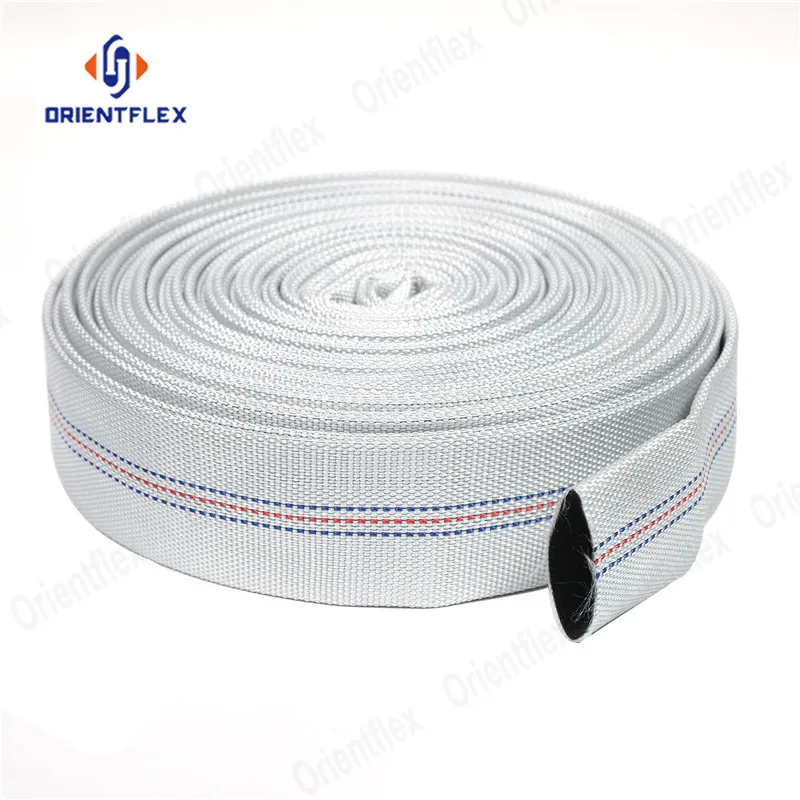

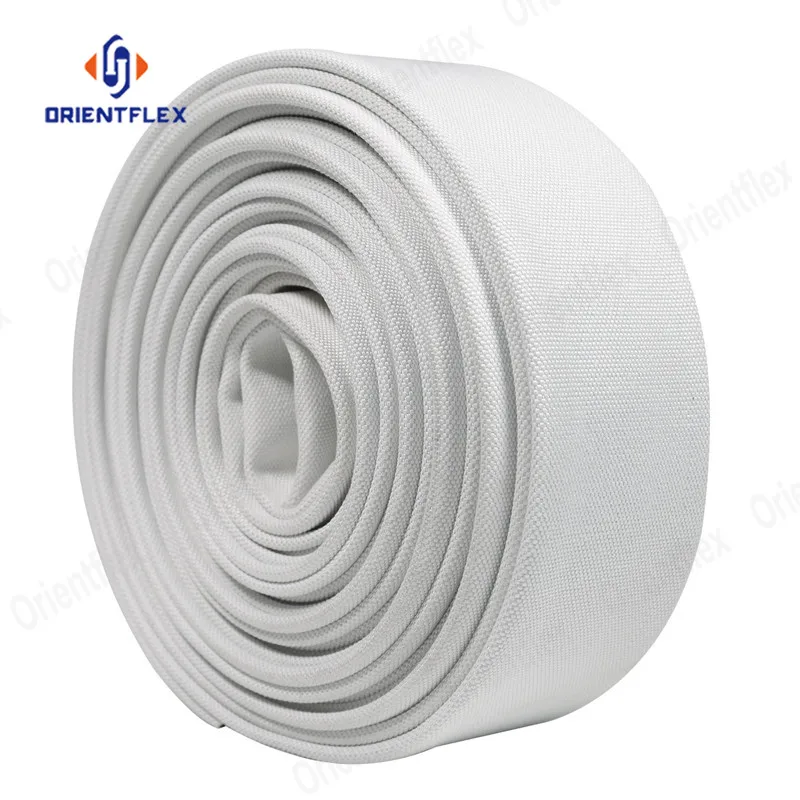

3 inch pump 6 inch collapsible fire fighting firefighter hose rolls firefighter fire hydrant and coupling

Product Overview

Description

Designed for Fire-fighting,Shipping, petroleum,Chemical industry, Agricultu re, Mining.It is ideal choice for fire fighting hose.

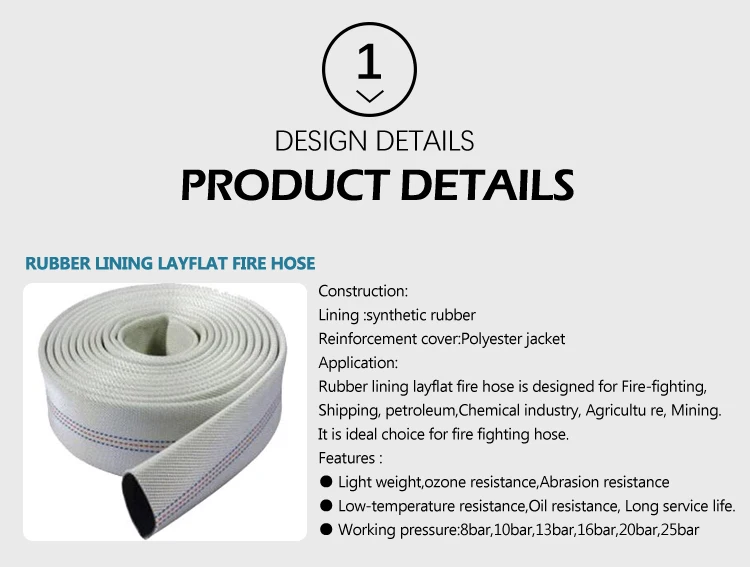

1.RUBBER LINING LAYFLAT FIRE HOSE

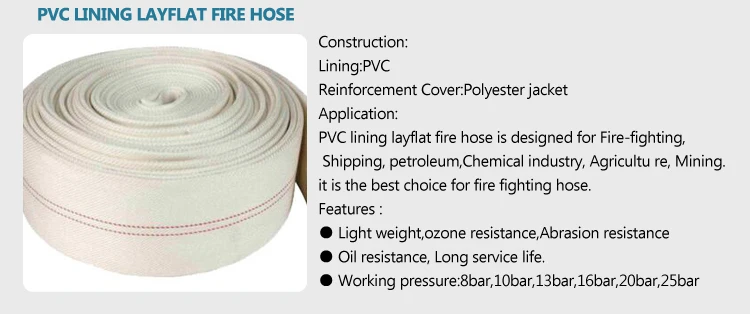

2.PVC LINING LAYFLAT FIRE HOSE

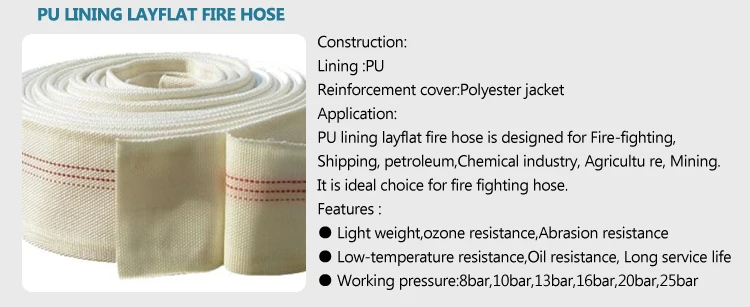

3.PU LINING LAYFLAT FIRE HOSE

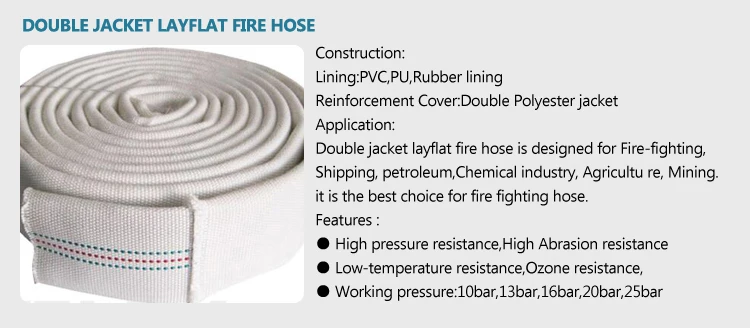

4.DOUBLE JACKET LAYFLAT FIRE HOSE

Item code	I.D.		W.P.		B.P.		Length
	inch	mm	Bar	Mpa	Bar	Mpa	m
RLF025	1"	25	13-25	1.3-2.5	39-75	3.9-7.5	40
RLF032	1-1/4"	32	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF038	1-1/2"	38	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF045	1-3/4"	45	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF051	2"	51	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF064	2-1/2"	64	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF070	2-3/4"	70	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF076	3"	76	8-25	0.8-2.5	24-75	2.4-7.5	40
RLF102	4"	102	8-16	0.8-1.6	24-48	2.4-4.8	40
RLF127	5"	127	8-13	0.8-1.3	24-39	2.4-3.9	40
RLF152	6"	152	8-13	0.8-1.3	24-39	2.4-3.9	40

Item code	I.D.		W.P.		B.P.		Length
	inch	mm	Bar	Mpa	Bar	Mpa	m
PLF025	1"	25	13-25	1.3-2.5	39-75	3.9-7.5	40
PLF032	1-1/4"	32	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF038	1-1/2"	38	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF045	1-3/4"	45	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF051	2"	51	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF064	2-1/2"	64	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF070	2-3/4"	70	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF076	3"	76	8-25	0.8-2.5	24-75	2.4-7.5	40
PLF102	4"	102	8-16	0.8-1.6	24-48	2.4-4.8	40
PLF127	5"	127	8-13	0.8-1.3	24-39	2.4-3.9	40
PLF152	6"	152	8-13	0.8-1.3	24-39	2.4-3.9	40

Item code	I.D.		W.P.		B.P.		Length
	inch	mm	Bar	Mpa	Bar	Mpa	m
PULF025	1"	25	13-25	1.3-2.5	39-75	3.9-7.5	40
PULF032	1-1/4"	32	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF038	1-1/2"	38	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF045	1-3/4"	45	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF051	2"	51	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF064	2-1/2"	64	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF070	2-3/4"	70	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF076	3"	76	8-25	0.8-2.5	24-75	2.4-7.5	40
PULF102	4"	102	8-16	0.8-1.6	24-48	2.4-4.8	40
PULF127	5"	127	8-13	0.8-1.3	24-39	2.4-3.9	40
PULF152	6"	152	8-13	0.8-1.3	24-39	2.4-3.9	40

Item code	I.D.		W.P.		B.P.		Length
	inch	mm	Bar	Mpa	Bar	Mpa	m
DJLF025	1"	25	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF032	1-1/4"	32	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF038	1-1/2"	38	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF045	1-3/4"	45	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF051	2"	51	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF064	2-1/2"	64	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF070	2-3/4"	70	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF076	3"	76	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF102	4"	102	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF127	5"	127	10-25	1.0-2.5	30-75	3.0-7.5	40
DJLF152	6"	152	10-25	1.0-2.5	30-75	3.0-7.5	40
