Периферическая вихревая чистая вода серии SQB, маленький водяной насос 0,5 hp
- Category: Pumps >>>
- Supplier: Tianjin Elecmotor Co. Ltd.
Share on (62095572278):
Product Overview
Description
Product Description
Applications and Installation
The SQB series are peripheral pumps, with peripheral impeller containing numerous radial blades in its edge, suitable for pumping clean water and chemícally non-aggressive liquid. They have relatively simple construction and are very economical, reliable and safe. It is widely used for household and domestic applications such as water supply from wells and pools, pressure boosting, garden sprinkling, washing booths etc.
Pumps should be installed in a covered area, protected against the weather.

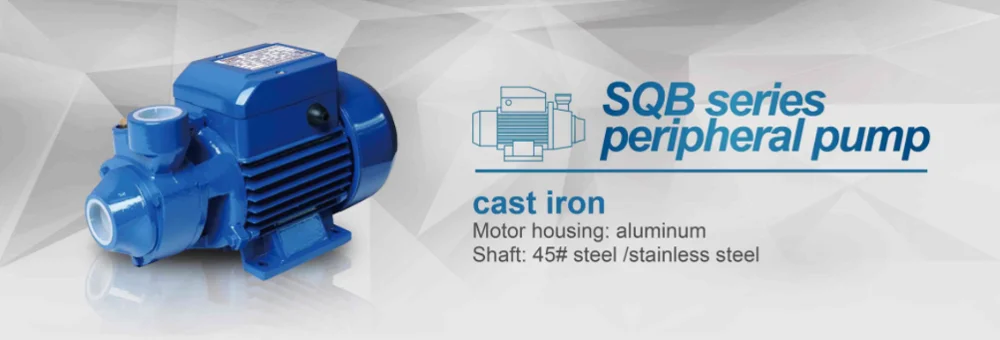

Construction Features
Pump Body: cast iron
Motor Housing: aluminum
Shaft: 45# steel /stainless steel
Impeller: brass
Motor: closed, externally ventilated
Insulation Class: B/F
Protection Class: IP44/IP54
Duty: continuously rated
Mechanical Seal: ceramic steatite/ metalized carbon
Operating Limitations
Max ambient temperature up to 40°C
Max fluid temperature up to 80°C
Max pressure up to 10 bar
More detail information,Click here
Why Choose Us
Hot Products
 |  |  |
 |  |  |
FAQ
1.Q:Are you a factory or trading company?
A:We are a global generic electromechanical product manufacturer&distributor integrating pump technology R&D,innovative design,professional production and sales.
2.Q:How about your service?
A:We have pre-sale,in-sale and after-sale service.What we pursue is long-term cooperation,so our principle is customer first.
3.Q:What information shall I provide you when I need your offer?
A:Normally,please send me your flow,total head,medium temperature,pump
material,voltage,frequency,etc so that we can quote you exactly what you need.
4.Q:How can we get the price and more details?
A:You can send us inquiry in detail or chat with us online,we will get back to you within 24 hours.
5.Q:Can you accept customized products?
A:Yes,of course.We accept your specific order if you could provide us with your requirements or the certification of authorization.
