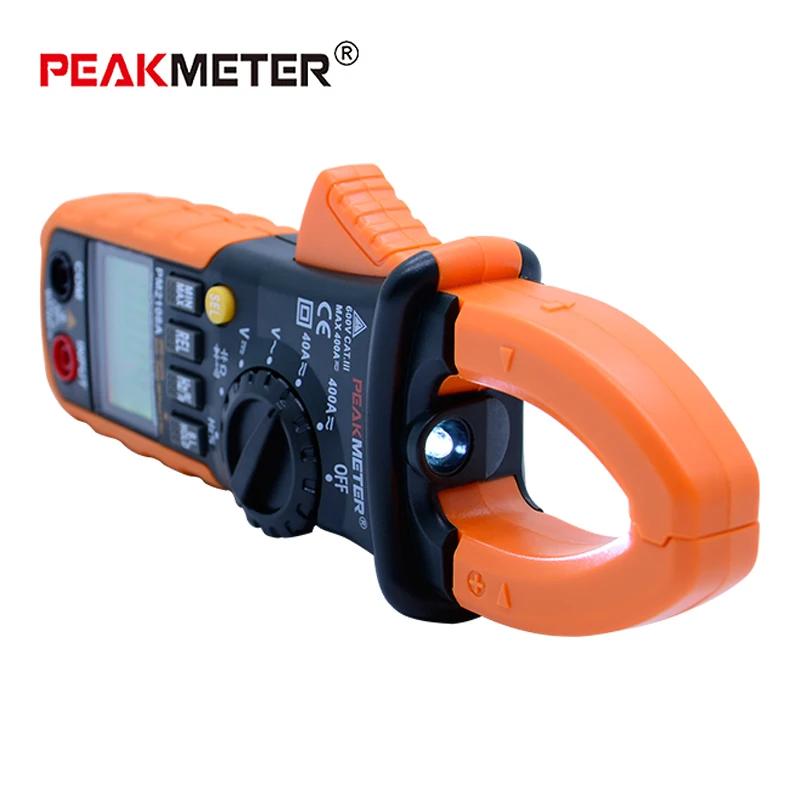

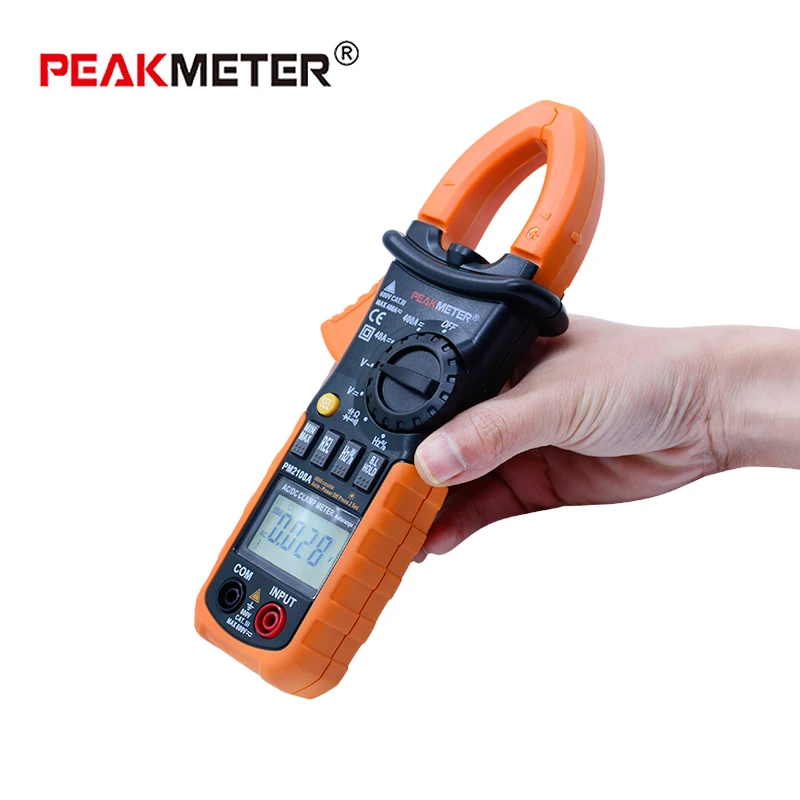

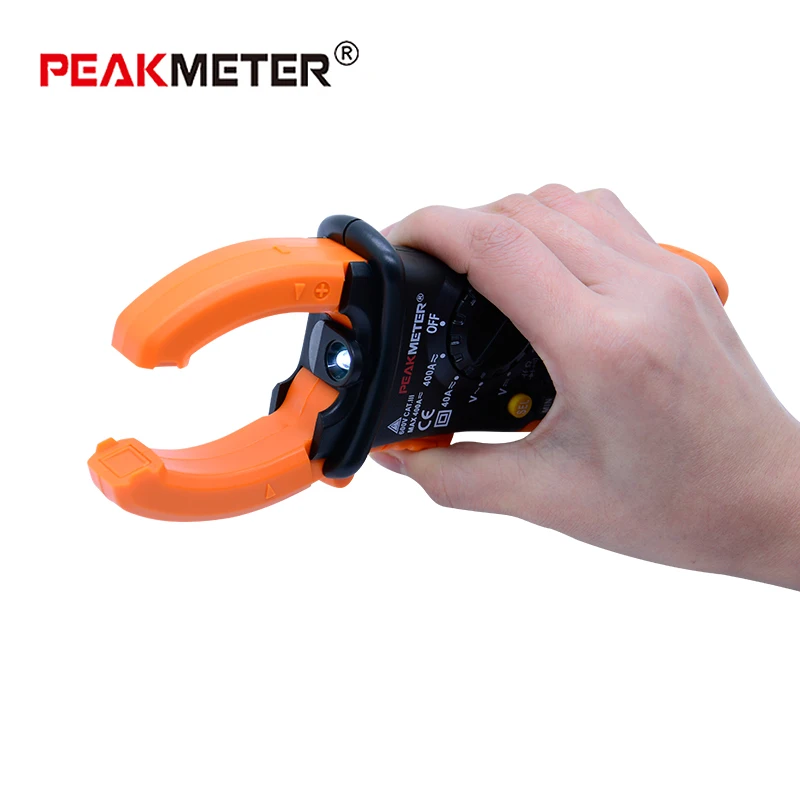

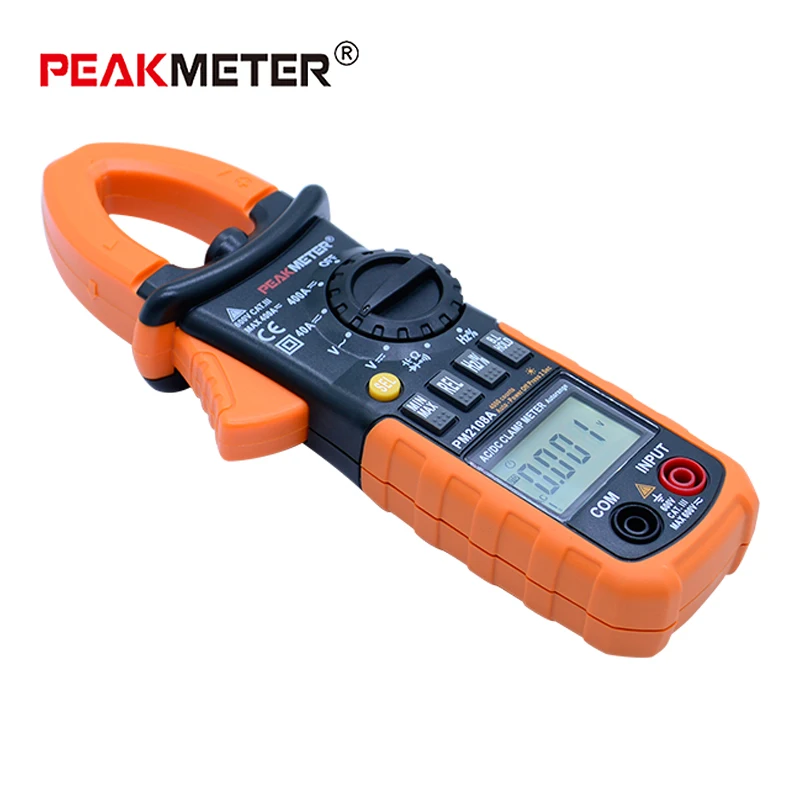

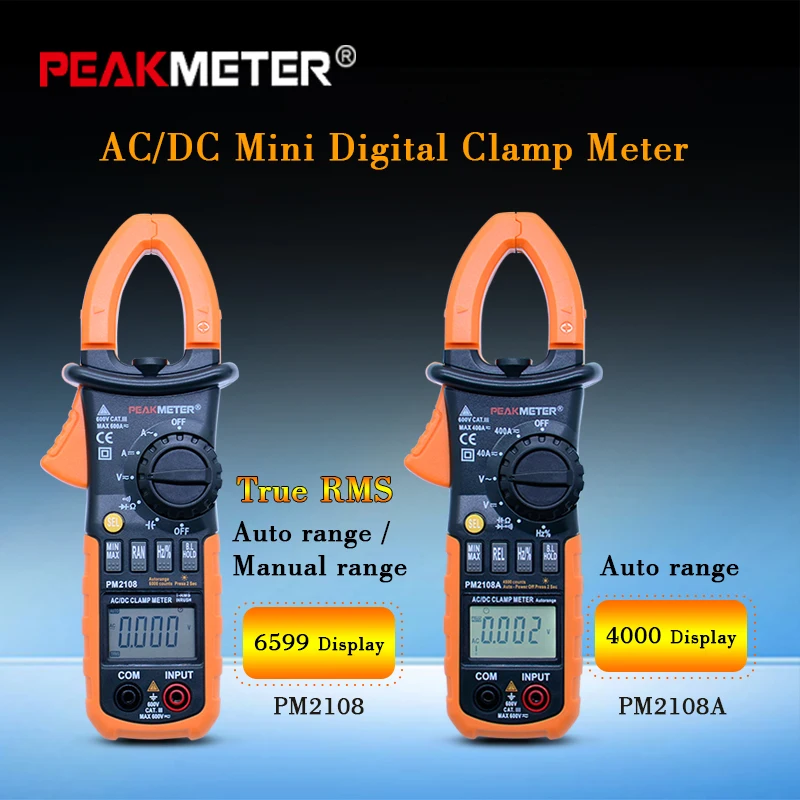

Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter
Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter

Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter

Share on (62095968006):


Price:$32.45 - $35.90

Quantity:


Product Overview

Description


Peakmeter PM2108A 4000 Counts Ac Dc Current bar graph display Clamp Meter , Frequency Measurement Earth Leakage Clamp Meter

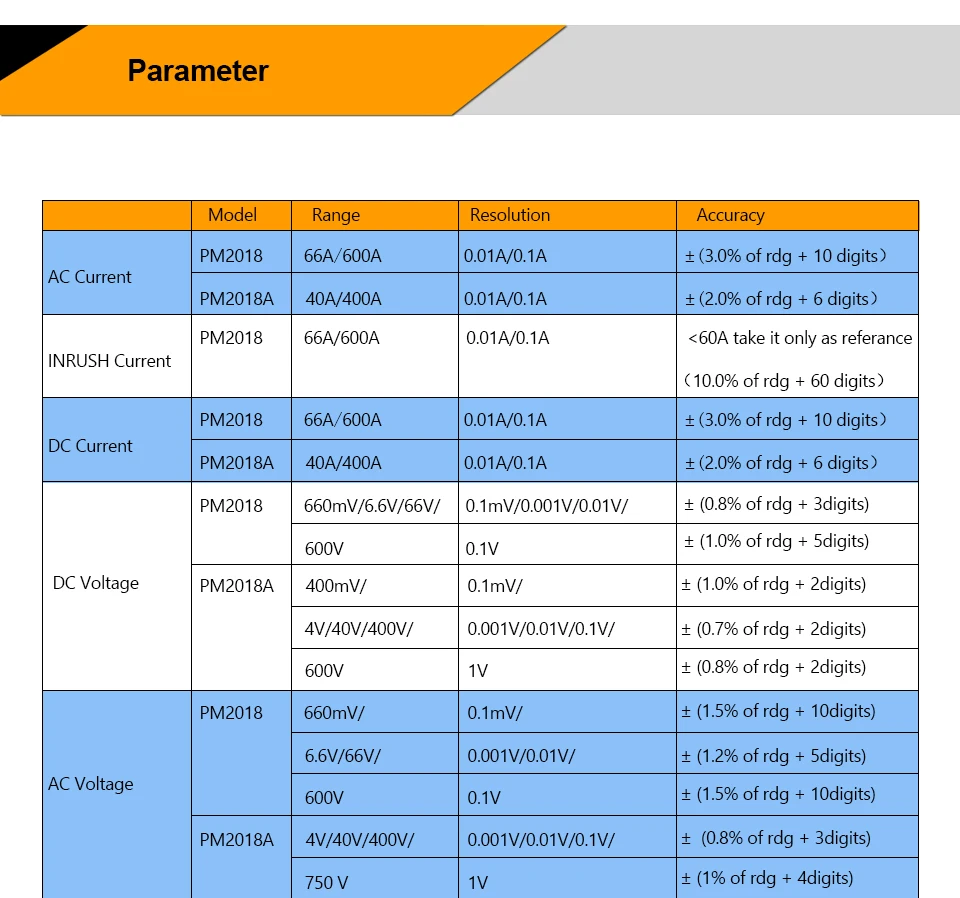

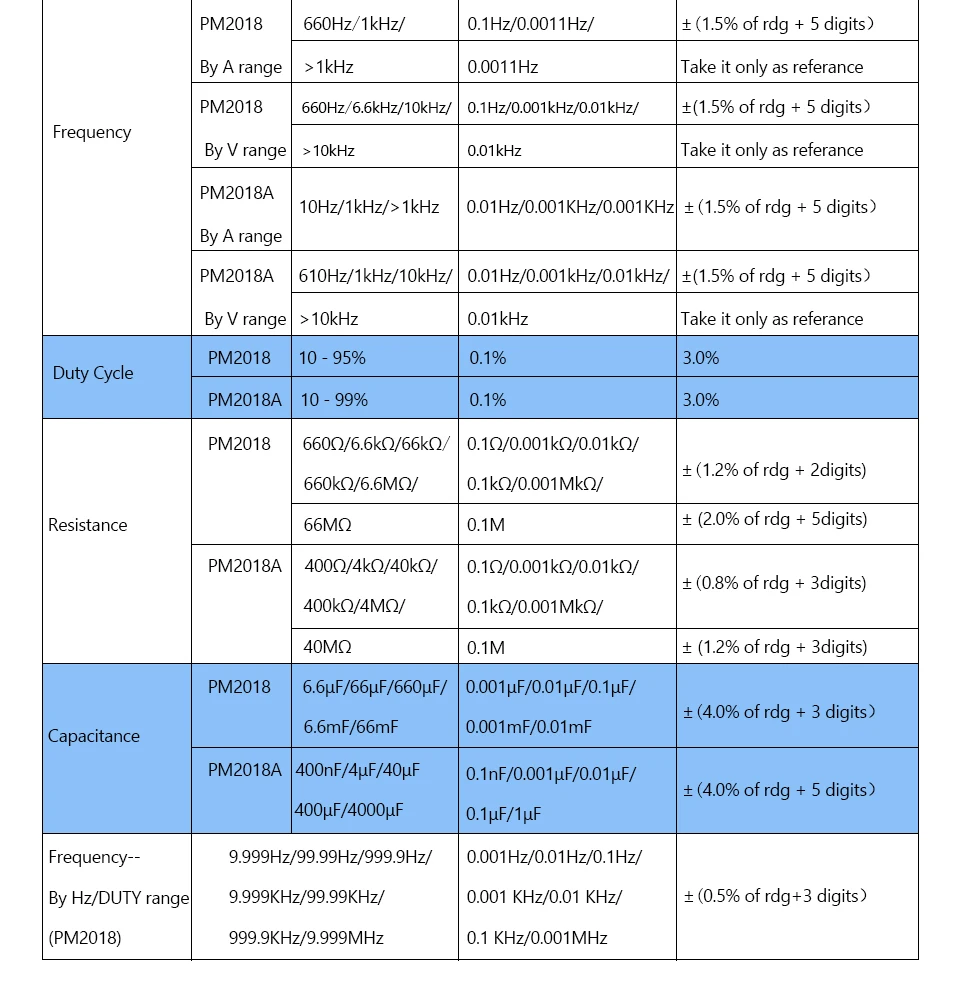

SPECIFICATIONSRANGEACCURACY
DC Voltage400mV/4V/40V/400V±(0.8%+3)
600V±(1.0%+5)
AC Voltage4V/40V/400V/600v±(1.0%+5)
AC Current40A/400A±(3.0%+10)
DC Current40A/400A±(3.0%+10)
Resistance400Ω/4kΩ/40kΩ/400kΩ/4MΩ±(0.8%+3)
40MΩ±(1.2%+3)
Capacitance40nF/400nF/4μF/40μF/400μF/4000μF±(4.0%+5)
Frequency10Hz~10MHz±(0.5%+2)
Duty cylce0.1%~99.9%±3.0%

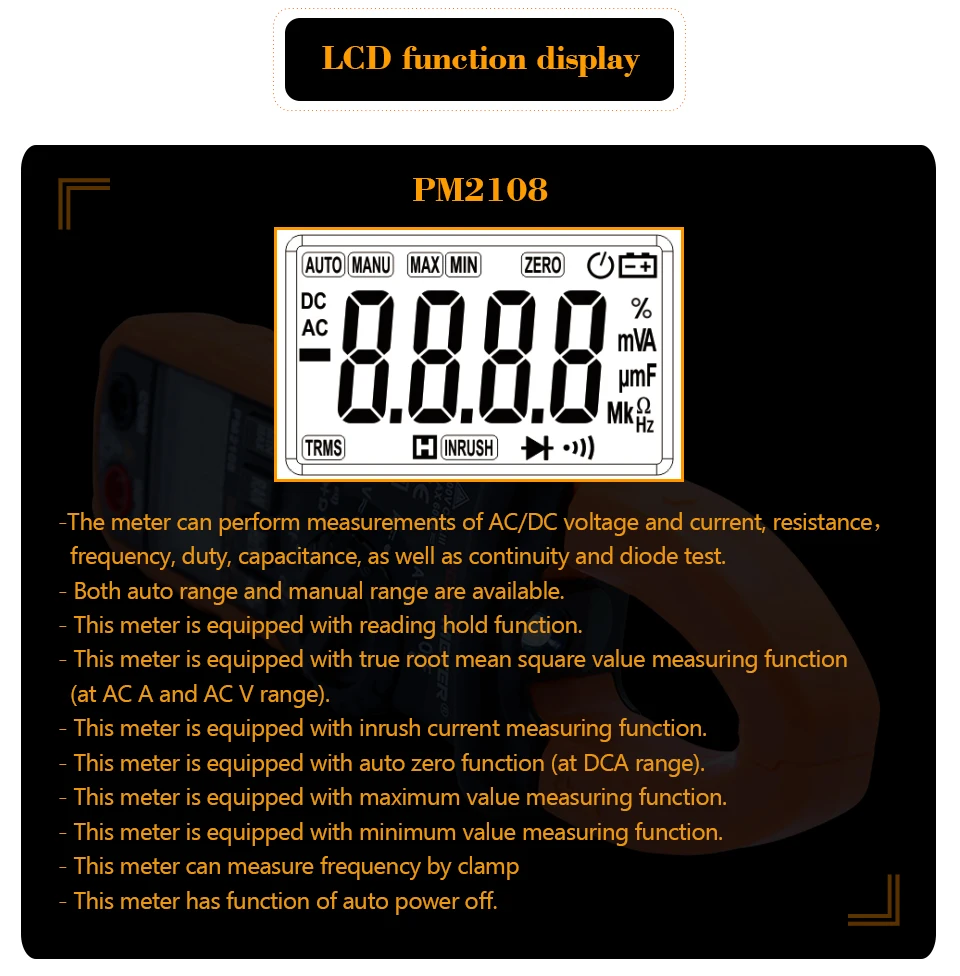

FEATURE
Auto and manual range4000 Counts

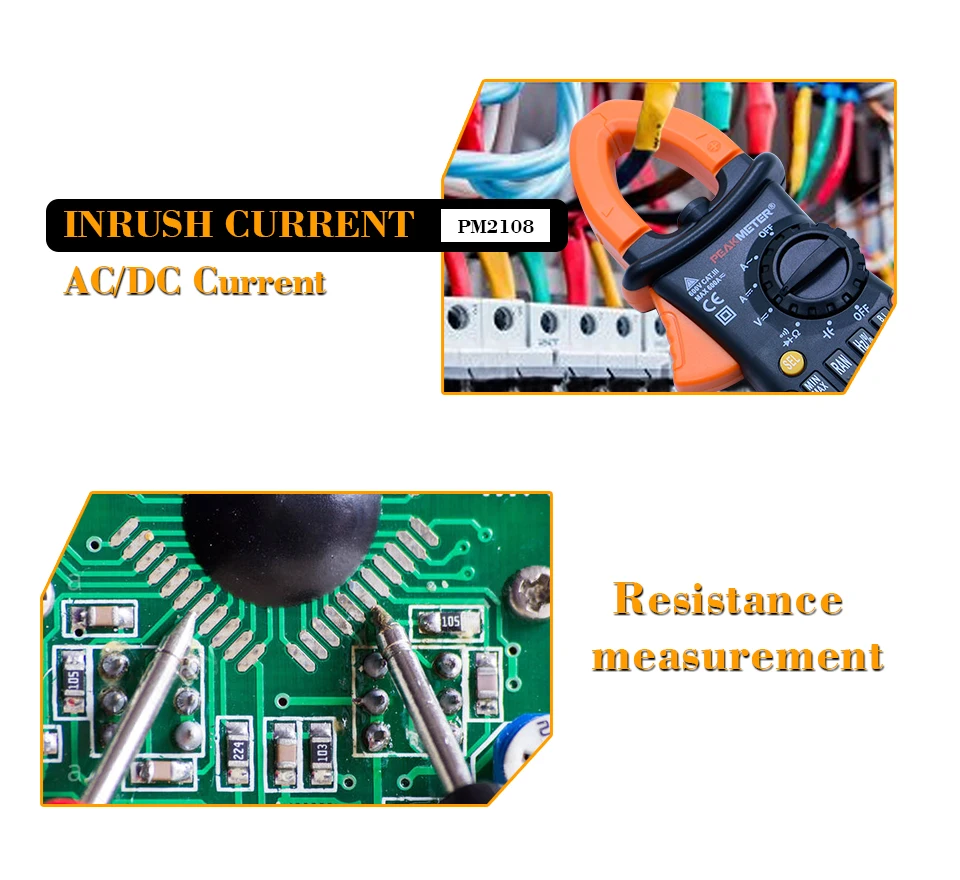

Inrush current√
Data hold√

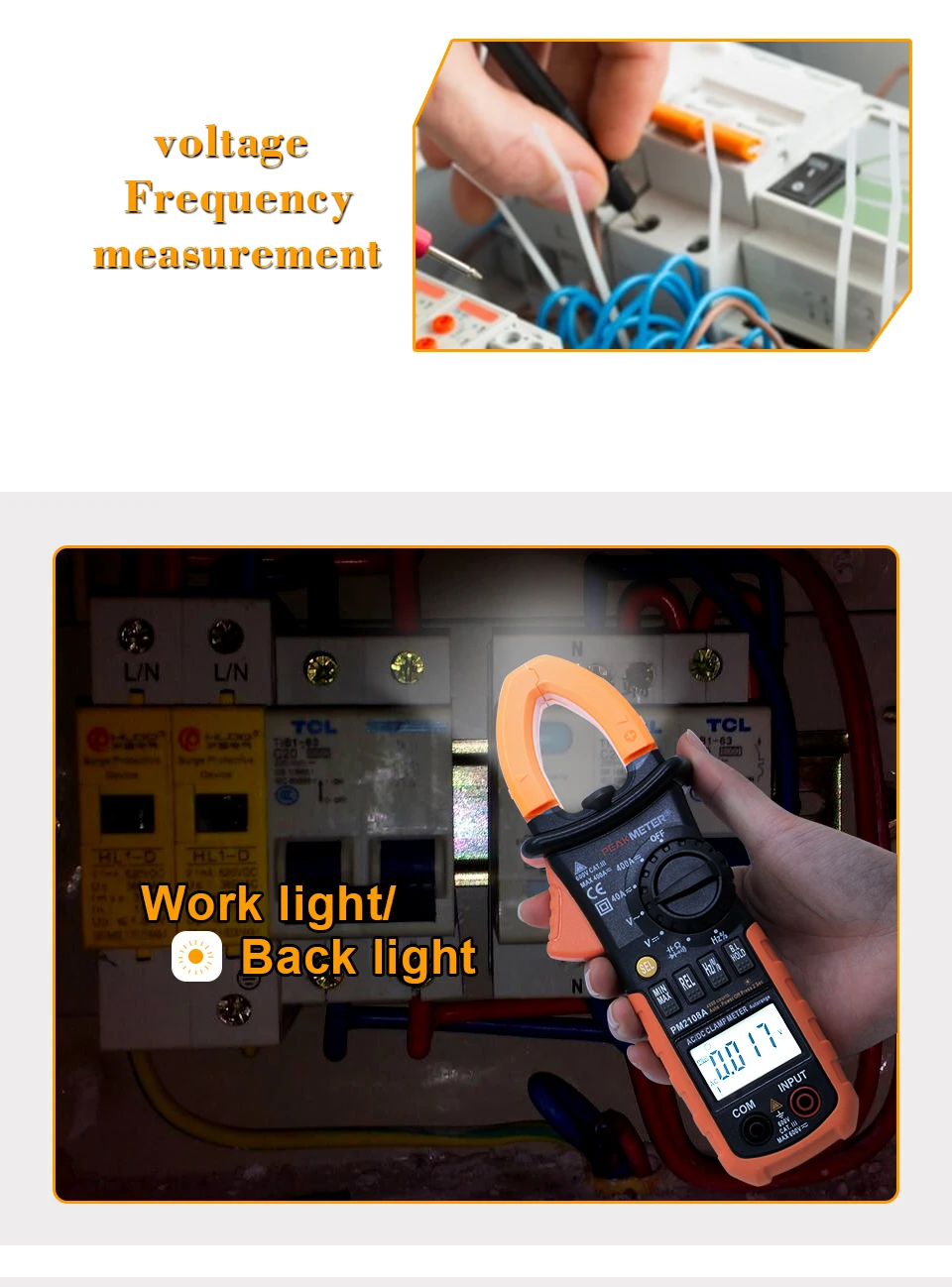

Work light√
Diode test√
Max/Min√
Continuity√
Back light√
GENERAL
Power Supply3×1.5VAAA Battery
WeightApprox.245g
Size280mm×78mm×35mm

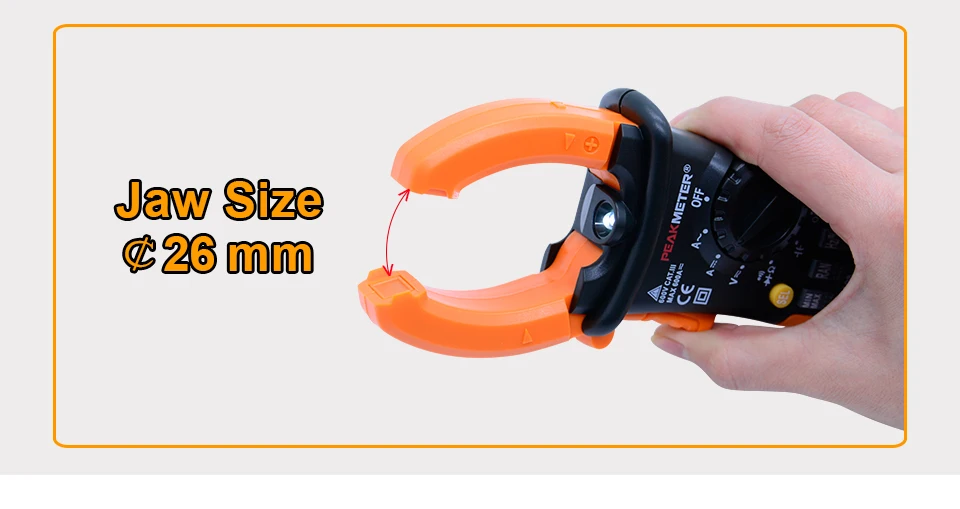

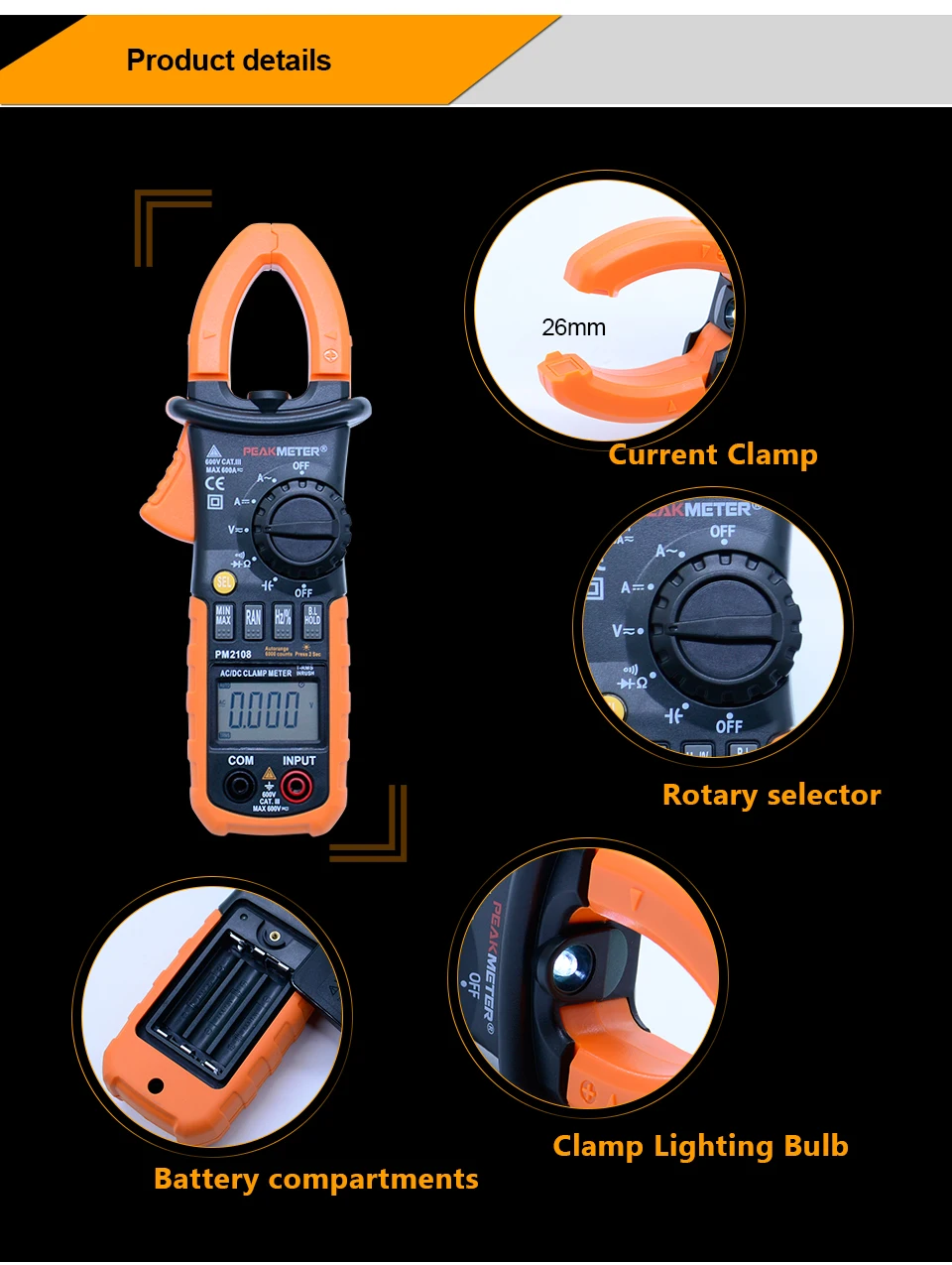

Jaw Sizeφ26mm
Safety RatingEN61010-1,EN61010-2-032,                       EN61326,CAT.Ⅲ 600V



2108~12108~22108~32108~42108~52108~62108~72108~82108~92108~102108~11-11_011_021_031_04
