Скручивания Открытое платье резьбы токарный станок с ЧПУ для фрезерный станок с ЧПУ по дереву с автоматической заменой инструмента

Product Overview

Description

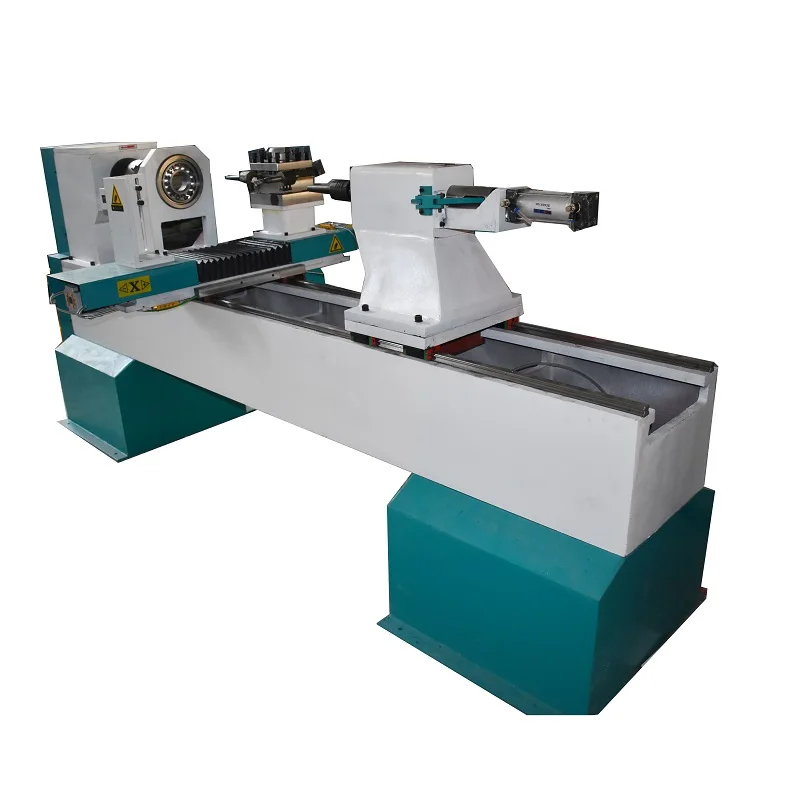

ATC automatic wood lathe for bowl vase handle



Function: automatic tool change, lathe inner hole bore, outside circle, external turning

turning fluting grooving cylinder engraving function



optional function: flat engraving



We're equipped with a chuck and a thimble.

When use the Chuck to fix the wood, the MAX. diameter of the wood will be 160mm.

If use thimble to fix the wood, the MAX. diameter of the wood will be 300mm.

This Auto knife change table can be equipped with 4 different knifes, so it can meet your different wood working.



Technical Parameters of automatic wood lathe

Model	GC1530-L
Max processing length	100-300mm or option
Max turning diameter	300mm/160mm
Air pressure	0.6-0.8Mpa
Powersupply	AC 380V 3 phase 50HZ/60HZ (can custom 220V)
Max feed rate	2000mm/min
min setting unit	0.01cm
Transimission type	ballscrew for X Z axis,gear for Y axis
Guider	Taiwan Hiwin orbit
Main shaft rotating speed	0-3000r/min
Motor power	4kw
Cutter material	Super hard alloy
Control System	DSP control system
Motor	Stepper motor
Driver	Yako driver
Inverter	Best inverter
Drawing Software	AutoCAD
Interface	Internet cable
Hand controller recognise file	*.dxf



Optional



• More rotary axis
• Spindle
• Different power requirement
• Servo motor
• Bigger working diameter and length, etc.



Main Features:



Automatic tool changer, it can be intall 4 pieces different tools.

It can lathe bowl of innner hole, outside circle etc.

one time tool setting to finish the whole work piece.



• Whole machine is welded with seamless steel structure,which is high temperature annealing and vibrating stress relief,so the lathe body is stabilized and will not be deformed forever.



• Adopting advanced DSP system with USB connection,operated with the handle,convenient operation.Our lathe can completely work offine and do not take any computer resources.

• Operating system has friendly simple operation interface,english suggestion and simple setting method.

• Our cnc wood lathe adopting domestic famous brand stepper motor,to ensure the precision.



• Transmission System: Hiwin square rail and ball screw to control the linear error effectively .

• Spindle System:Divided into the single axial and biaxial.



• Compatible with several CAD/CAM design software, e.g. type3, artcam, etc.



• If you have any special requirements, we can custom make according to your request.











automatic wood lathe can be used for making:

Wooden vase, wooden bowl, wooden handles; baseball bats; staircases,stairway balusters, stairway newel posts; dining table legs; end table legs; sofa table legs; bar stool legs; chair legs; chair arm posts; chair stretchers; sofa and bun feet; bed rails; lamp posts and so on.







Wooden handles;baseball bats;staircases,stairway balusters,stairway newel posts;dining table legs;end table legs;sofa table legs;bar stool legs;chair legs;chair arm posts;chair stretchers;sofa and bun feet;bed rails;lamp posts and so on.



Guarantee:
The machine is guarantee for 12 months.Within 12 months under normal using and maintenance.If the machine has something problem,you will get spare part for free.More than 12 months,you will get the cost price for accessories.You will also get technical support and service all the time.

Technical Support:
-Technical support by Phone,Email,Wechat,Whatsapp and Skype 24 hours online
-We provide English version manual.
-Engineer available to service machinery overseas.

Afer sales service:
Our machine is installed and tested well before delivery.You can operation the machine immediately after received machine.If you don't know how to use the machine,we will offer you free training until you can use machine freely.And if there is still have any question,please contact us by Email,Skype,Phone and Trademanager online service at any time.
