ASME Standard 20ft Bitumen Asphalt ISO Tank Container
US $17500-$20000
Контейнер для транспортировки резервуара T75 СПГ ISO, контейнер для резервуара 20 футов
- Category: Tank Containers >>>
- Supplier: Shenzhen Standard Automobile Co. Ltd.
Share on (62096851472):
Product Overview
Description

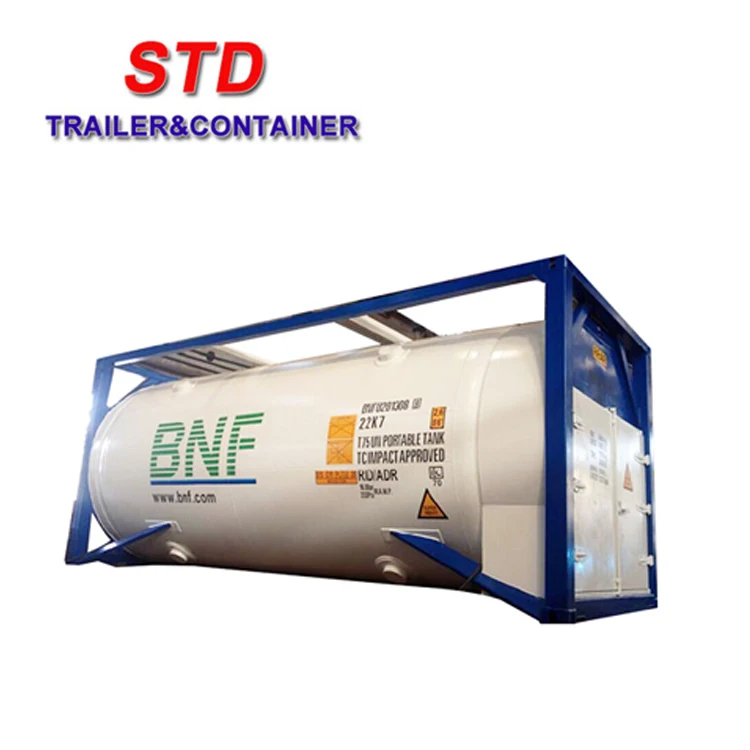

T75 LNG ISO tank shipping container 20 feet LNG tank container
Product Description
| LNG Tank Container Product Description |
| Specification | |
| 1. Design standard | IMDG-CODE, GB150-98 |
| 2. Recognized register | CCS |
| 3. Tank shape | Column shape, horizontal |
| 4. Size | 20/40 feet, tank type |
| 5. Dimension | 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm |
| 6. Capacity | 19800/46500 liters |
| 7. Loading medium | LNG |
| 8. Tare weight | 11050/14000 kg |
| 9. Payload | 22950/20000 kg |
| 10. Gross weight | 34000 kg |
| Standard Configuration | |
| 1. Design pressure | 2.21 Mpa |
| 2. Working pressure | 20 feet, 1.6 Mpa; 40 feet, 0.6 Mpa |
3. Test pressure | 20 feet, 1.6 Mpa; 40 feet, 1.0 Mpa, hydraulic pressure test |
| 4. Gastight test pressure | 1.44 Mpa |
| 5. Vacuum test pressure | 0.1 Mpa |
| 6. Design temperature | -196 to 55 celsius |
| 7. Working temperature | -162 to 50 celsius |
| 8. Corrosion degree | 0 |
| 9. Welding joint efficiency | 1.0 |
| 10. Radiographic inspection | 100% X-RAY |
| 11. Tank material | SA-240 304, SA-516 70, double layer, 20 feet, 16/6 mm; 40 feet, 7 mm |
| 12. End enclosure | 20 feet, 18/8 mm; 40 feet, 8 mm |
| 13. Compound manhole | DN500 |
| 14. Safety valve | DN25 |
| 15. Gas phase valve | 20 feet, DN40; 40 feet, DN50 |
| 16. Liquid valve | 20 feet, DN40; 40 feet, DN50 |
| 17. Pressure gage | Y100, 1 pc |
| 18. Thermometer | WSS412, 1 pc |
| 19. Static evaporation rate | 20 feet, less than 0.18%/d; 40 feet, less than 0.225%/d |
| 20. Adiabatic form | Vacuum multilayer winding adiabatic |
| 21. Allowable stacking weight | 192000 kg |
| Optional Configurations | |
| 1. Recognized register | BV or LR |
Detailed Images

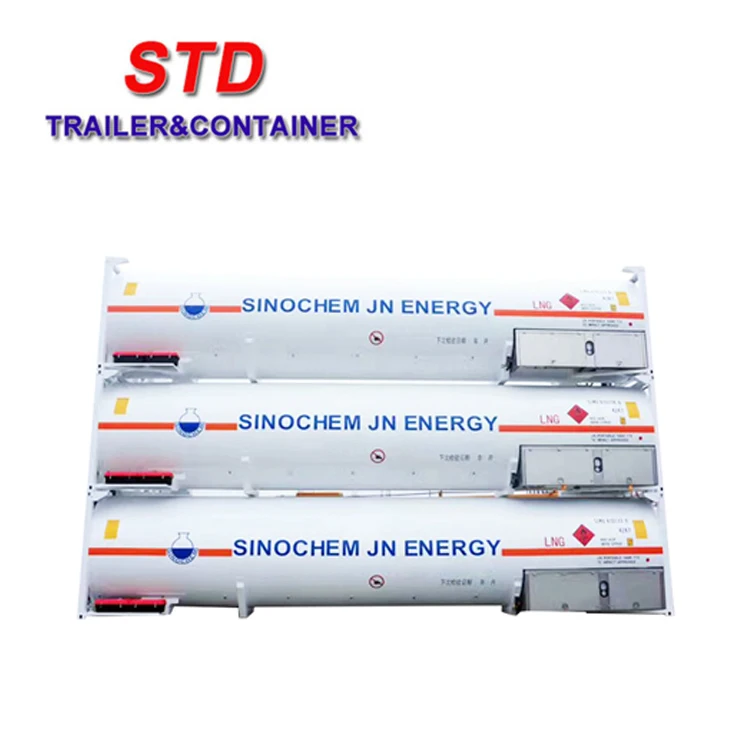

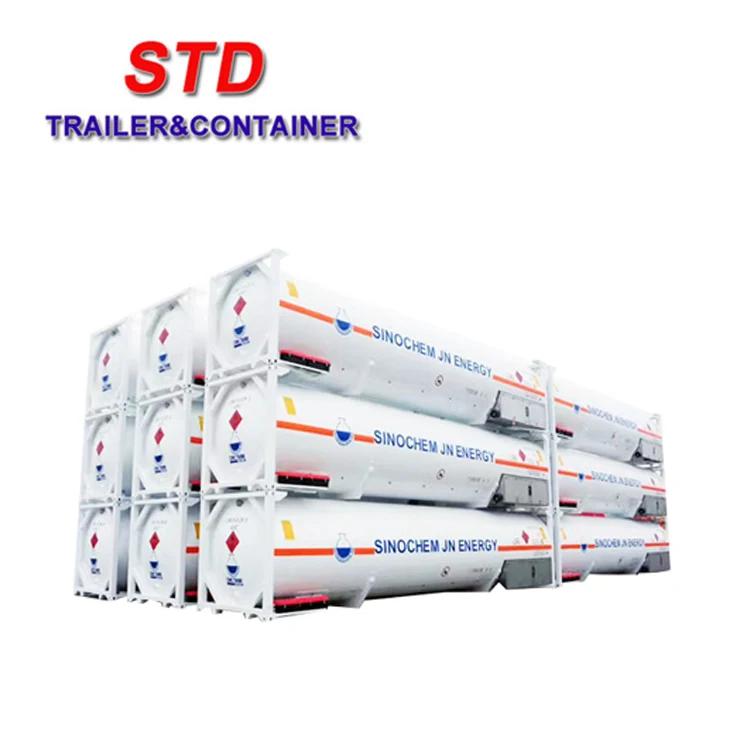

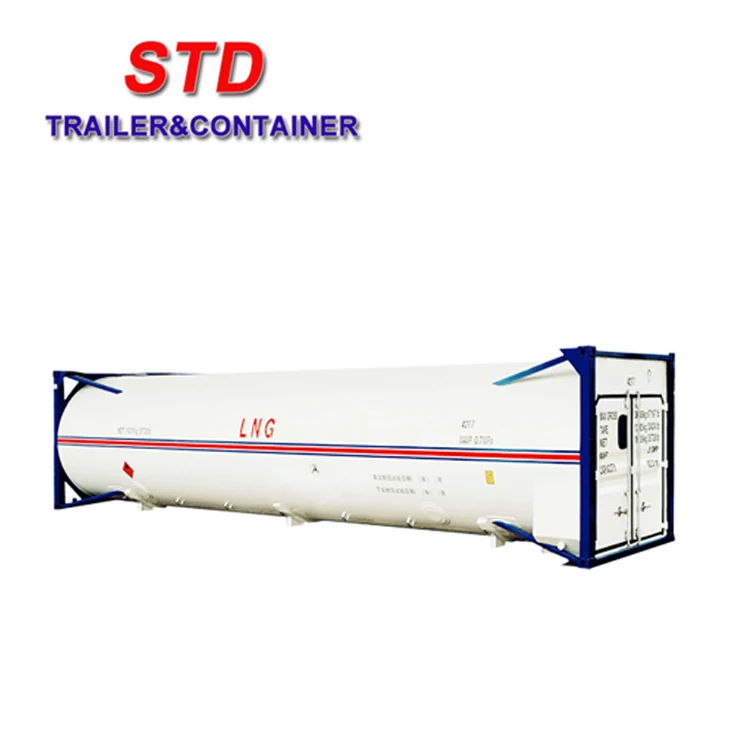

| LNG Tank Container Detailed Images |
Related Products
| Related Products |
 |  |  |
Company Information
| Company Information |
About Us: Shenzhen Standard Automobile Co., Ltd (STD)
Shenzhen Standard Automobile Co., Ltd (STD) is established in 2012. An enterprise who perfectly combined design, manufacture and business trading. We focus on design and research of semi trailer
and shipping container, also supply with customized service.
Company is located in Shenzhen where is one of China's reform and opening-up city. We own a technical team who has engaged in semi trailer, shipping container and related fields for long time and best market team. we are mainly in charge with design, certificate, market and after-sales service. Our manufacturing base is located in Foshan, Guangdong province, covers area of 15,000 square meters which including 6000 square meters production department, dedicated to produce many kinds of semi trailer and special shipping container.
STD have much cooperation with the management department of China special vehicle industry, research institutes and large factories. We can offer full life-cycle solution from design, production, delivery to after-sales service. And also supply technical support for big customer.
Our main product including Container Trailer, Flatbed Trailer, Lowbed Trailer, Customized Trailer, Shipping Container, Reefer Container, Tank Container and Special Container totally eight series. STD's markets mainly including North America, West Europe, Southeast Asia, Middle East and Africa.
Packaging & Shipping
| Packaging & Shipping |
Production Flow
| Production Flow |
Certifications
| Certifications |
FAQ
| Frequently Asked Question |
1. What is your terms of packing ?
We usually transport tank container by regular container ship.
2. What is your terms of payment ?
T/T 40% down payment before production and T/T 60% balance before delivery.
3. What kind of tank container can you provide ?
We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
4. What certificate can you provide us ?
We can provide clients CSC certificate of ISO tank shipping container.
T75 LNG ISO tank shipping container
T75 LNG ISO tank shipping container
T75 LNG ISO tank shipping container
