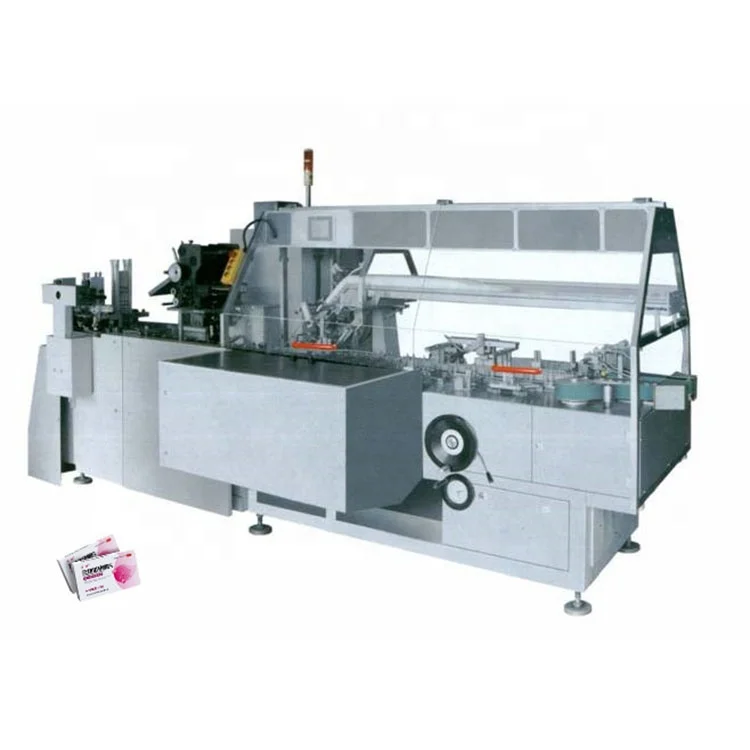

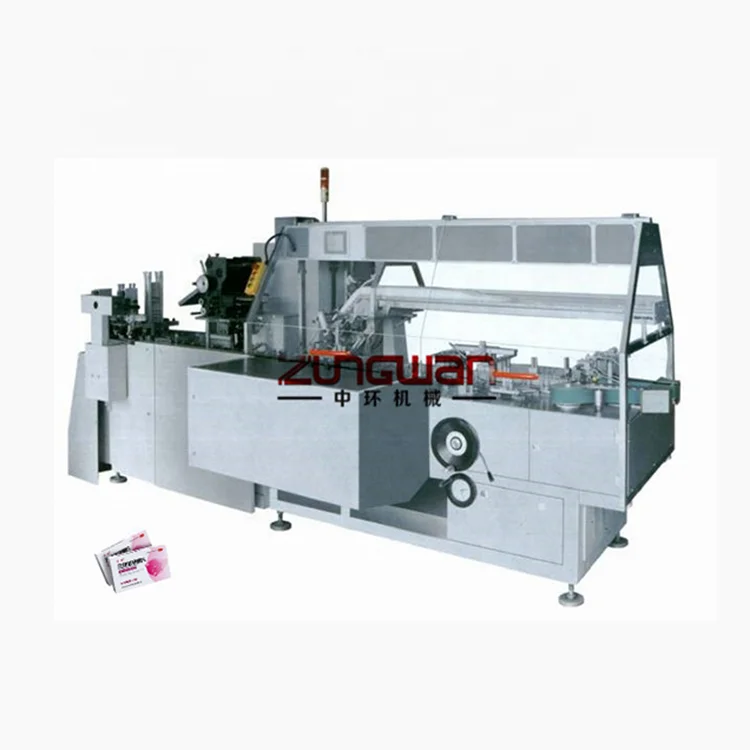

HDZ 180 Multifunctional automatic carton machine

Name

Multifunctional automatic carton machine

Model

HDZ-180

Power of engine

2.2Kw

General power of electricity

380v 50Hz 3Kw

Capacity

140-180 case /min.

Air pressure

0.6MPa

Tolerance of consumption

≤75

Exterior dimension

4000×1450×1900

Weight

2000Kg

Feature:

The product collects light, engine, electricity, gas together, control by the computer, it’s fit for the machine of edition shape, bottle shape goods such as leechdom, foodstuff, health protection goods to cartoning automatically.

It finishes the conveying of the goods, puckering and conveying of the brochure, carton shaping and conveying, loading the goods and brochure into the carton, and encapsulation automatically, and eliminating the unfit parts.
