ASME Standard 20ft Bitumen Asphalt ISO Tank Container
US $17500-$20000
Дешевые товары из Китая, 40 футов битума танк контейнер с дымовых Отопительная система
- Category: Tank Containers >>>
- Supplier: Shenzhen Standard Automobile Co. Ltd.
Share on (62099044896):
Product Overview
Description
China cheap 40 ft bitumen tank container with flue heating system
Product Description
| Bitumen Tank Container Product Description |
| Specification | |
| 1. Recognized register | CCS |
| 2. Size | 20/40 feet, tank/box type |
| 3. Dimension | 6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm |
| 4. Capacity | 25/50 CBM |
| 5. Tare weight | 4000/8200 kg |
| 6. Payload | 25000/50000 kg, water load at 20 celsius |
| 7. Gross weight | 29000/58200 kg |
| Standard Configuration | |
| 1. Working pressure | 0.09 Mpa |
| 2. Working temperature | 250 celsius |
| 3. Temperature lapse rate | Less than 12℃/24h, feeding temperature more than 120 |
| 4. Tank material | Q345B, 5/6 mm |
| 5. End enclosure | 5/6mm, flanged flat head |
| 6. Stiffener | 6 mm, 4 pcs |
| 7. Heating pipe | φ57*3.5 mm, L = 77000/154000 |
| 8. Compound manhole | DN500 |
| 9. Bitumen filling hole | DN250 |
| 10. Anti-leaking breather valve | DN60 |
| 11. Overhead nitrogen blanketing valve | DN25 |
| 12. Sheet gasket | PTFE |
| 13. Bitumen protective frame | 800*750*150 mm, with bitumen flooding pipe |
| 14. Thermometer | 0 to 300 celsius |
| 15. Volumeter | Ball floating type |
| 16. Bitumen discharge valve | DN80 |
| 17. Quick coupling | DN80 |
| 18. Reserve feeding flange hole | DN50/100, 2 pcs |
| 19. Flange hole of bitumen | DN50/100 |
| 20. Bitumen detecting valve | DN25 |
| 21. Flange hole of heating pipe | DN50, 2 pcs |
| 22. Insulated layer | 100 mm, glass fiber wool |
| 23. External close plate | 1.5 mm, cold rolled plate |
| 24. Guardrail of ladder | W = 400 mm |
| Optional Configurations | |
| 1. Recognized register | BV or LR |
| 2. Heating system | Oil, Flue or Electricity |

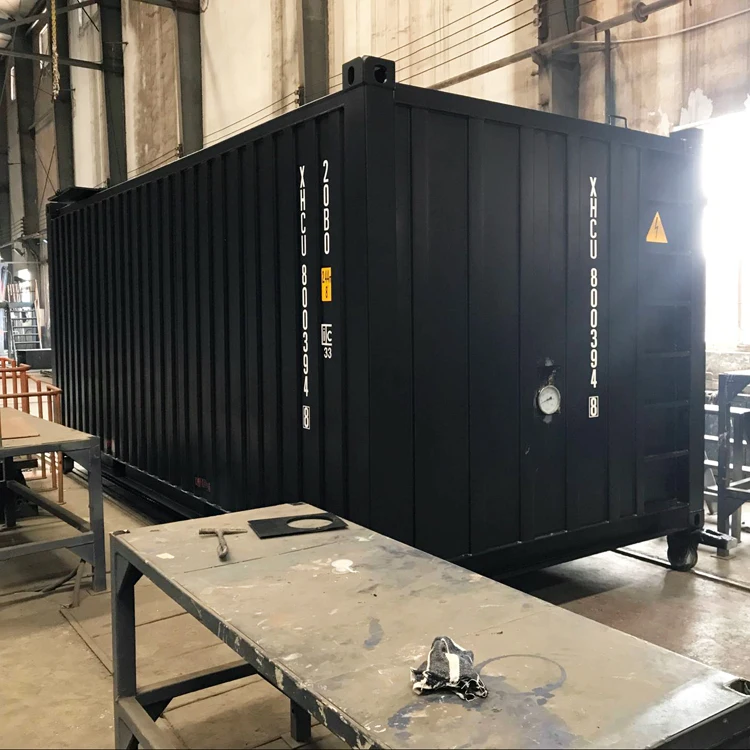

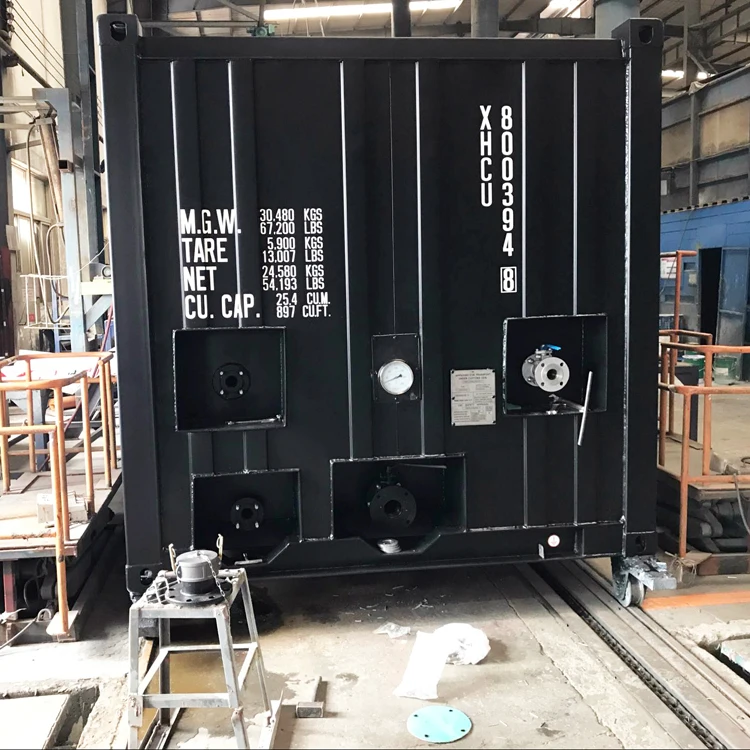

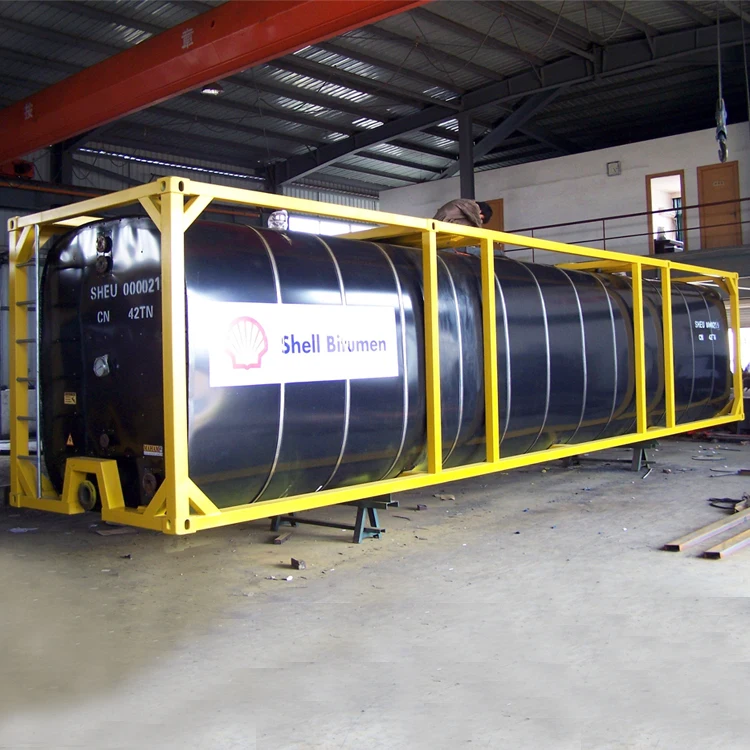

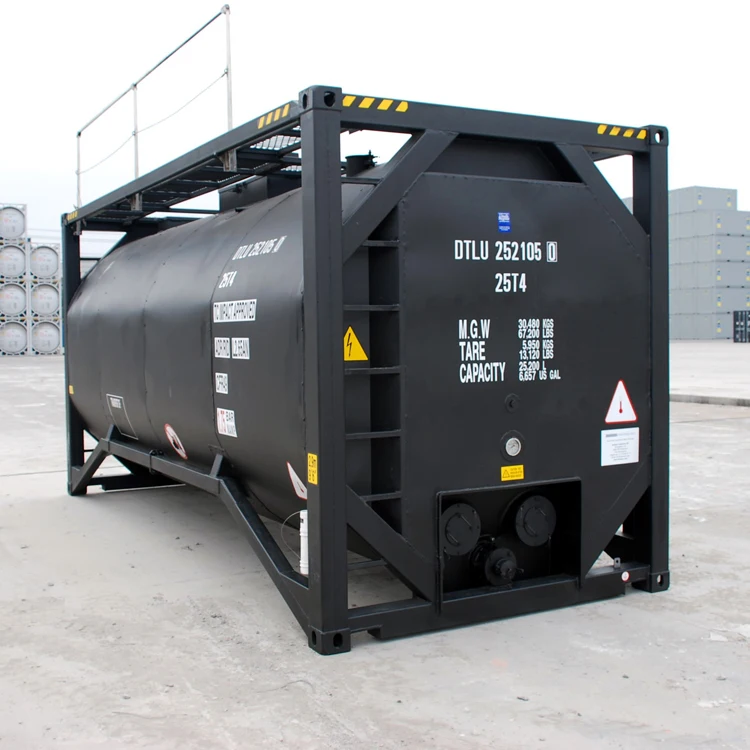

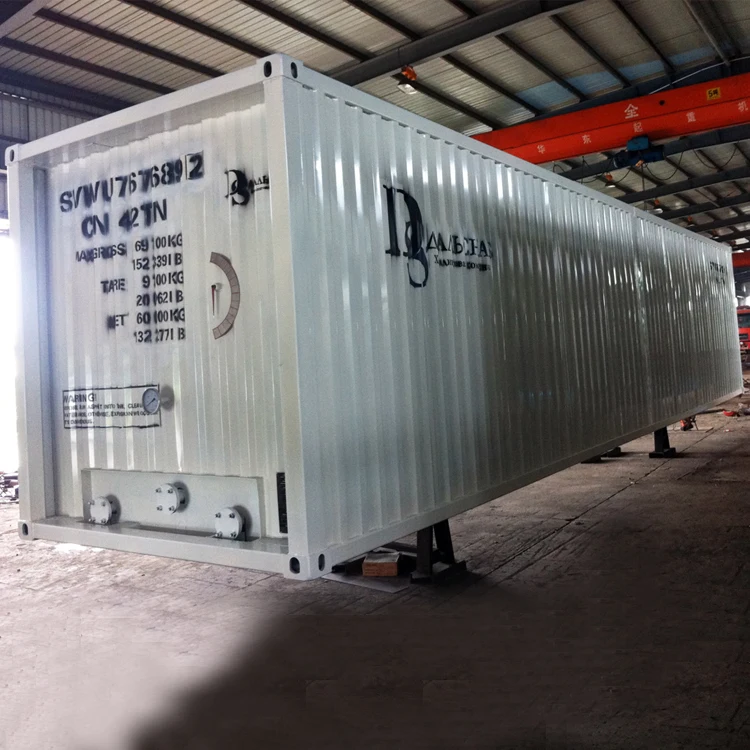

Detailed Images
| Bitumen Tank Container Detailed Images |
Related Products
| Related Products |
 |  |  |
Company Information
| Company Information |
About Us: Shenzhen Standard Automobile Co., Ltd (STD)
Shenzhen Standard Automobile Co., Ltd (STD) is established in 2012. An enterprise who perfectly combined design, manufacture and business trading. We focus on design and research of semi trailer
and shipping container, also supply with customized service.
Company is located in Shenzhen where is one of China's reform and opening-up city. We own a technical team who has engaged in semi trailer, shipping container and related fields for long time and best market team. we are mainly in charge with design, certificate, market and after-sales service. Our manufacturing base is located in Foshan, Guangdong province, covers area of 15,000 square meters which including 6000 square meters production department, dedicated to produce many kinds of semi trailer and special shipping container.
STD have much cooperation with the management department of China special vehicle industry, research institutes and large factories. We can offer full life-cycle solution from design, production, delivery to after-sales service. And also supply technical support for big customer.
Our main product including Container Trailer, Flatbed Trailer, Lowbed Trailer, Customized Trailer, Shipping Container, Reefer Container, Tank Container and Special Container totally eight series. STD's markets mainly including North America, West Europe, Southeast Asia, Middle East and Africa.
Packaging & Shipping
| Packaging & Shipping |
Production Flow
| Production Flow |
Certifications
| Certifications |
FAQ
| Frequently Asked Question |
1. What is your terms of packing ?
We usually transport tank container by regular container ship.
2. What is your terms of payment ?
T/T 40% down payment before production and T/T 60% balance before delivery.
3. What kind of tank container can you provide ?
We can manufacture fuel steel tank container, liquid food stainless steel tank container,
LPG tank container, LNG tank container and bitumen tank container.
4. What certificate can you provide us ?
We can provide clients CSC certificate of ISO tank shipping container.

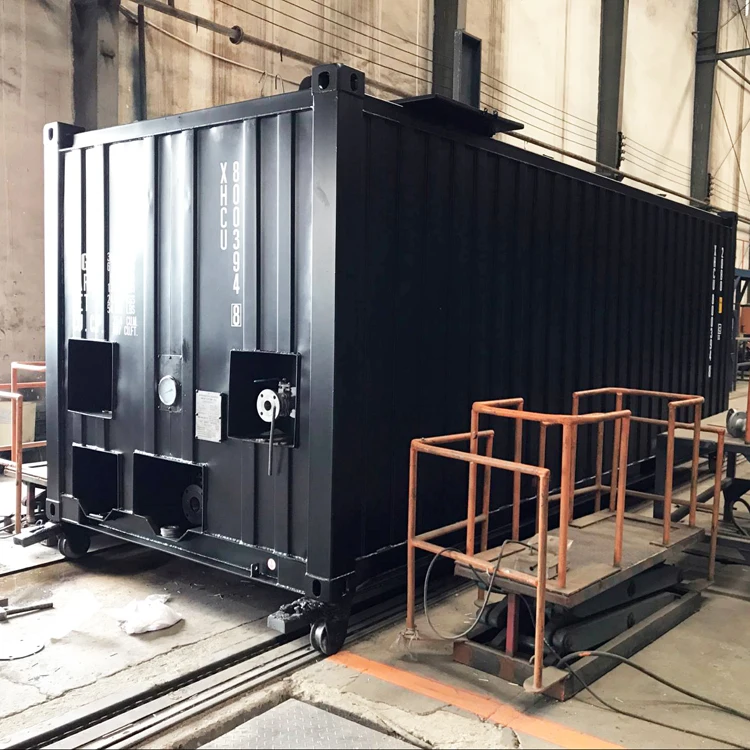

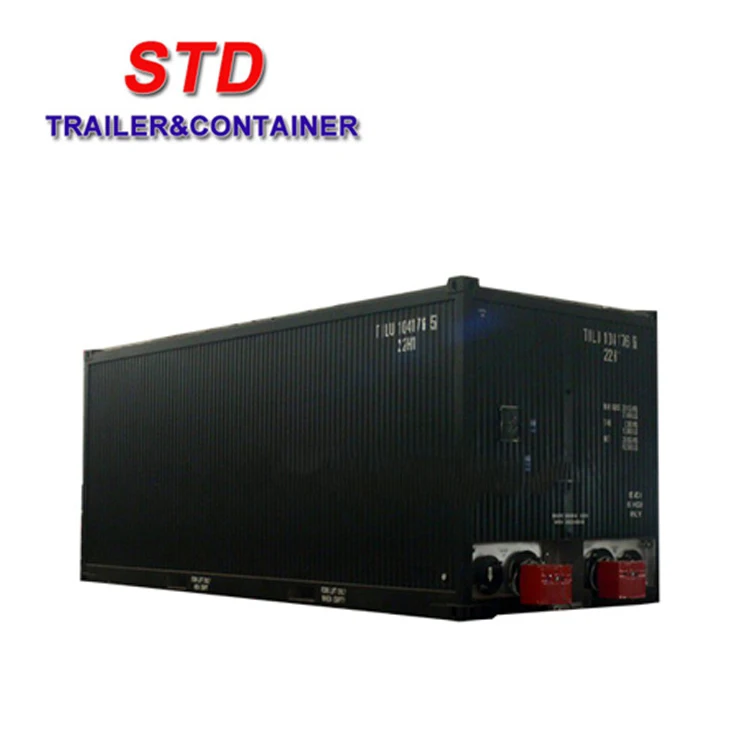

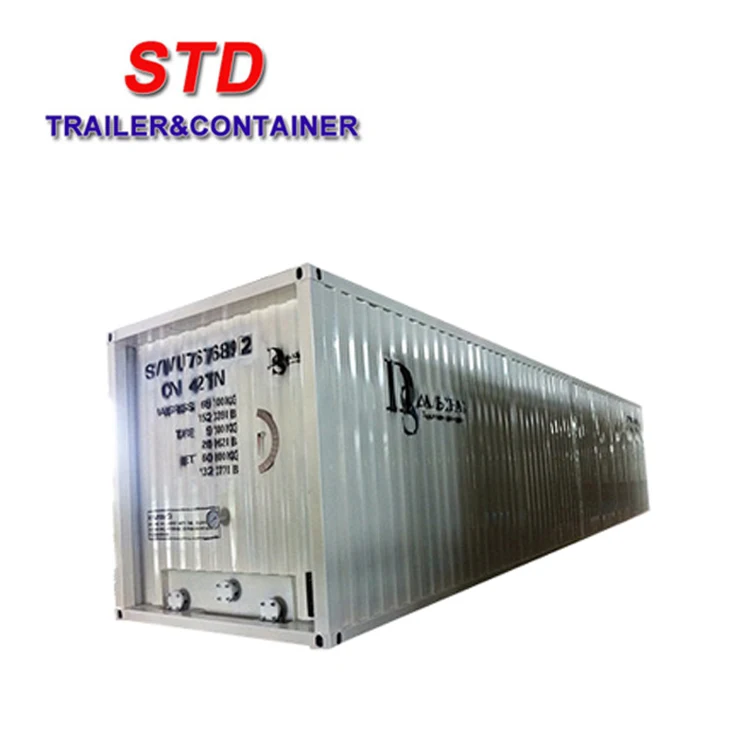

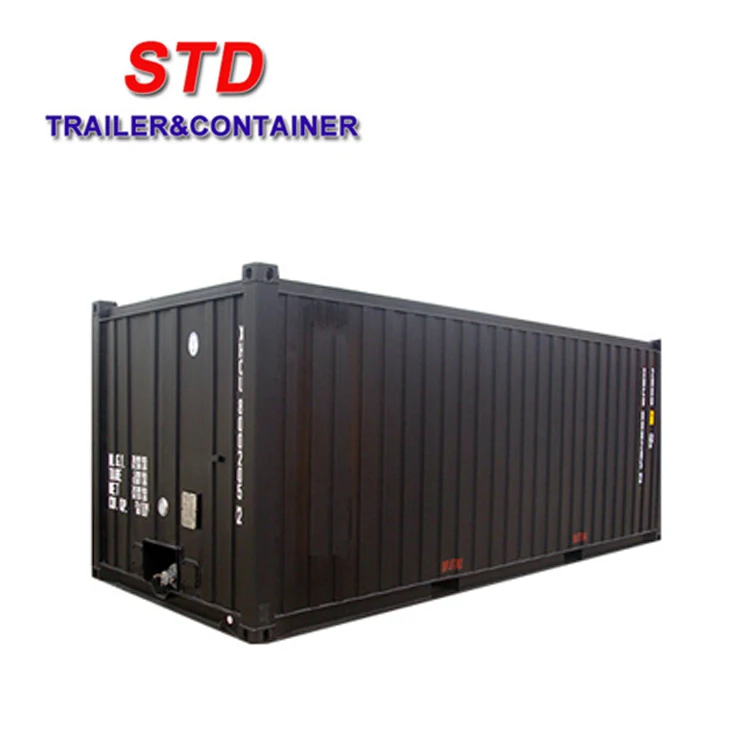

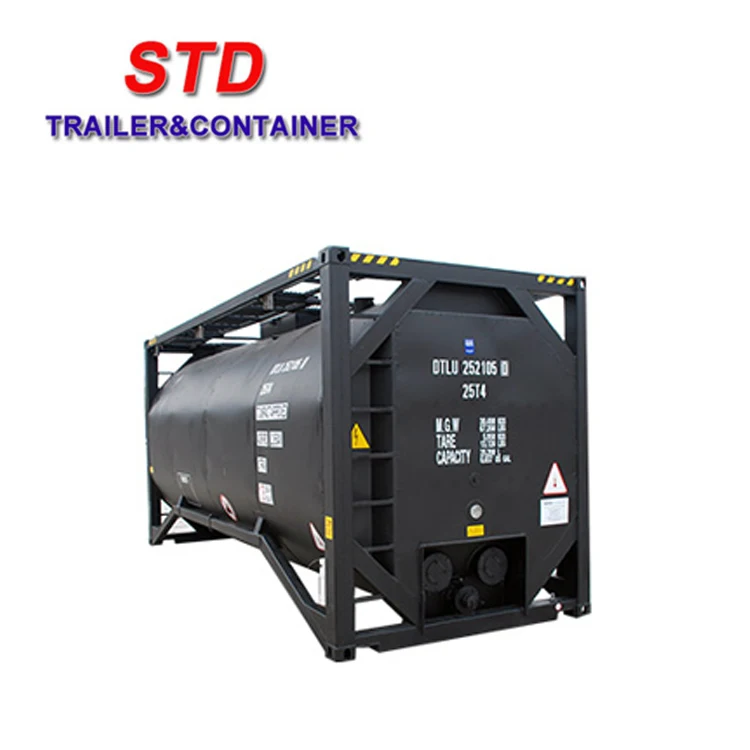

40 ft bitumen tank container
40 ft bitumen tank container
40 ft bitumen tank container
