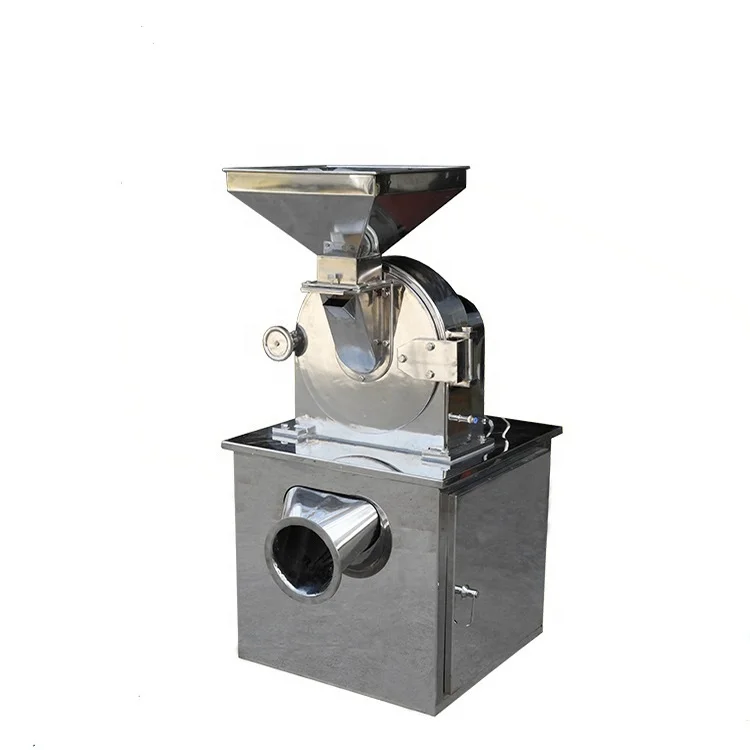

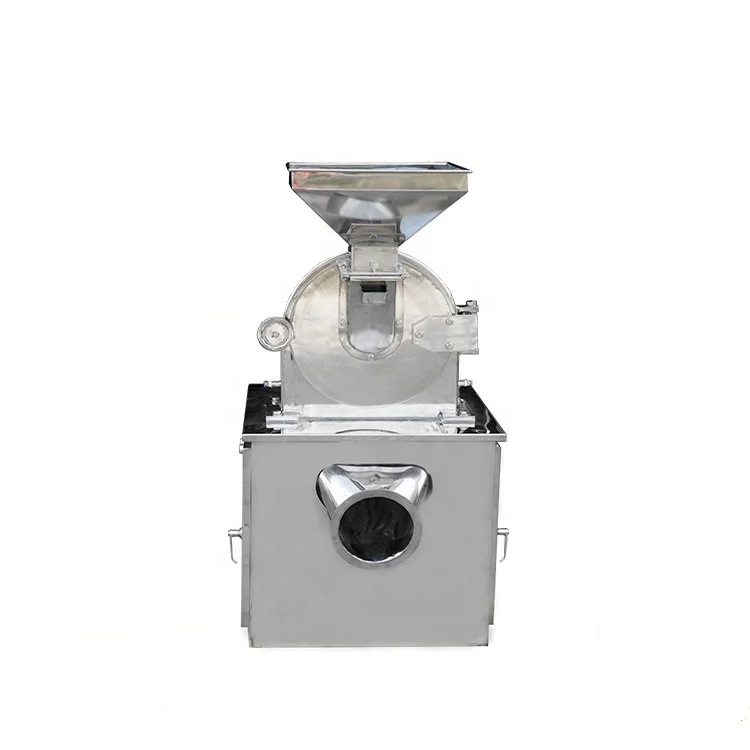

LFJ 30B high quality spices pulverizer grinding equipment

Share on (62102445795):


Price:$1,140.00 - $1,260.00

Quantity:


Product Overview

Description



Product Description

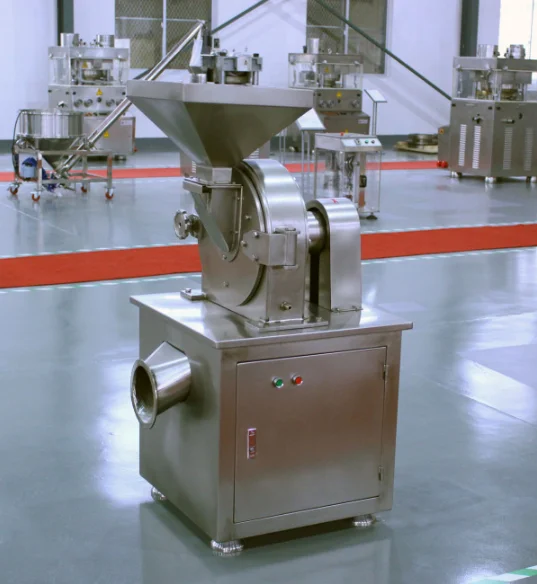

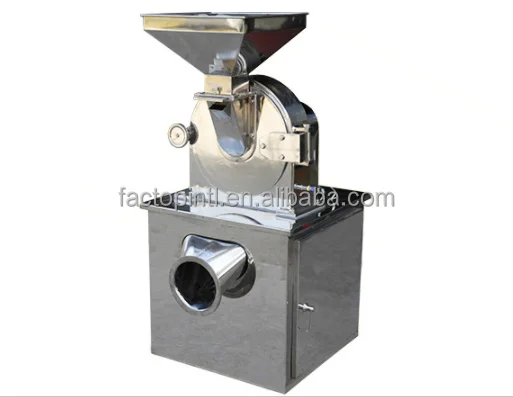

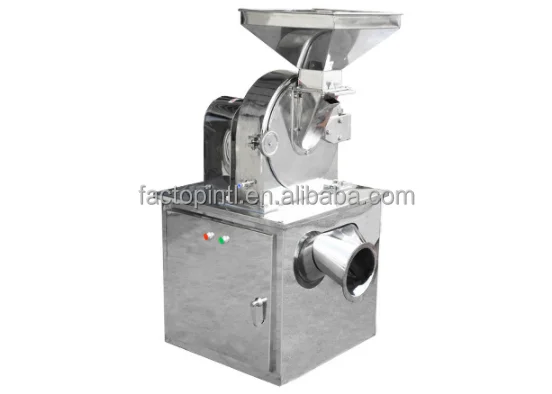

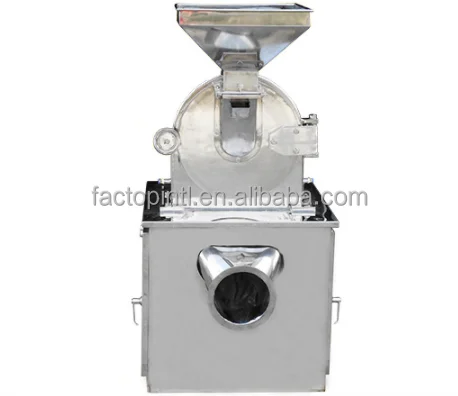

LFJ Series Pulverizer Machine

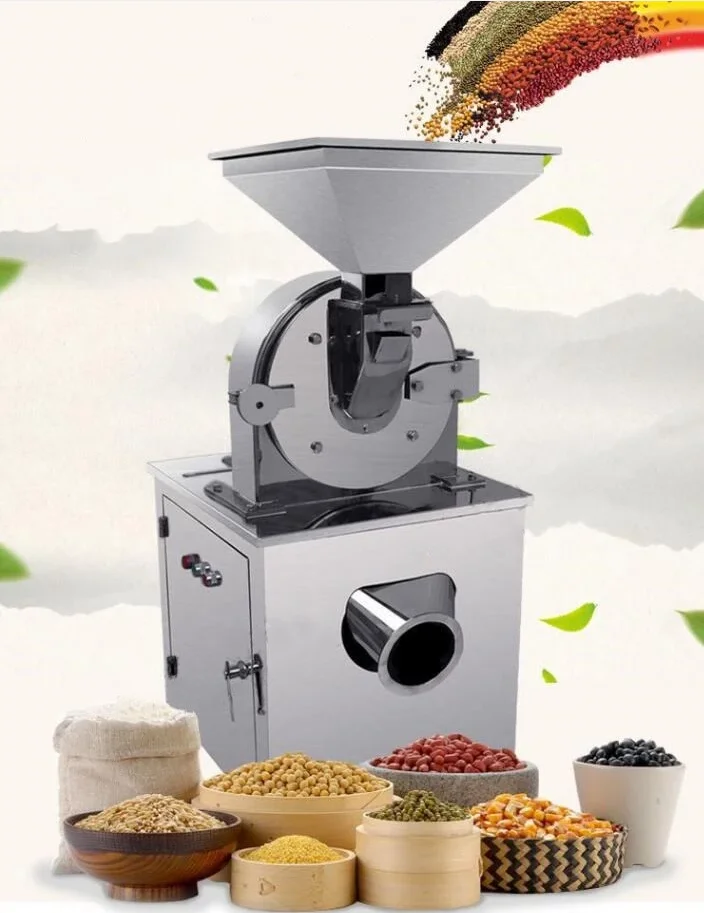

1: This machine is suitable for use in the pharmaceutical, chemical, pesticide, food and food industries. For fibrous materials and granular materials, it can be crushed.
2: The machine uses the high-speed relative motion between the movable toothed disc and the fixed toothed disc to make the crushed object crushed by the combined action of tooth impact, friction and material impact.
3: The structure of the machine is simple, firm, stable, and the pulverization efficiency is good. The pulverized material can be directly discharged from the grinding chamber of the main machine, and the particle size is obtained by replacing the screen with different apertures.
4: The inner wall of the casing is completely processed to achieve a smooth surface, which changes the phenomenon of rough and powder accumulation on the inner wall of the old model, so that the production of medicine, food, chemical and other products can meet the national standards and meet the requirements of GMP.





Main Technical


Model
LFJ-18B
LFJ-20B
LFJ-30B
Power(KW)
2.2
4
5.5
Crushing Fineness(head)
20-120
20-120
20-120
Production Capacity(kg/h)
10-50
15-150
30-300
Spindle Speed(r/min)
5800
5300
4500
Max Feed Particle Size(mm)
6
10
10

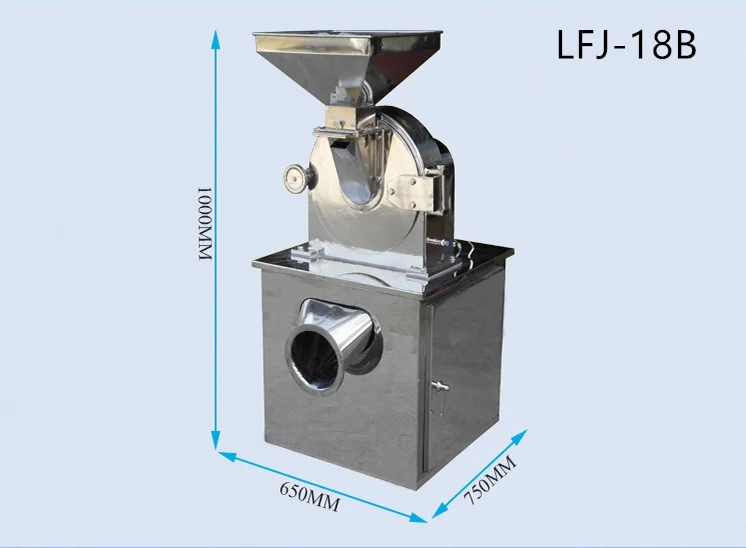

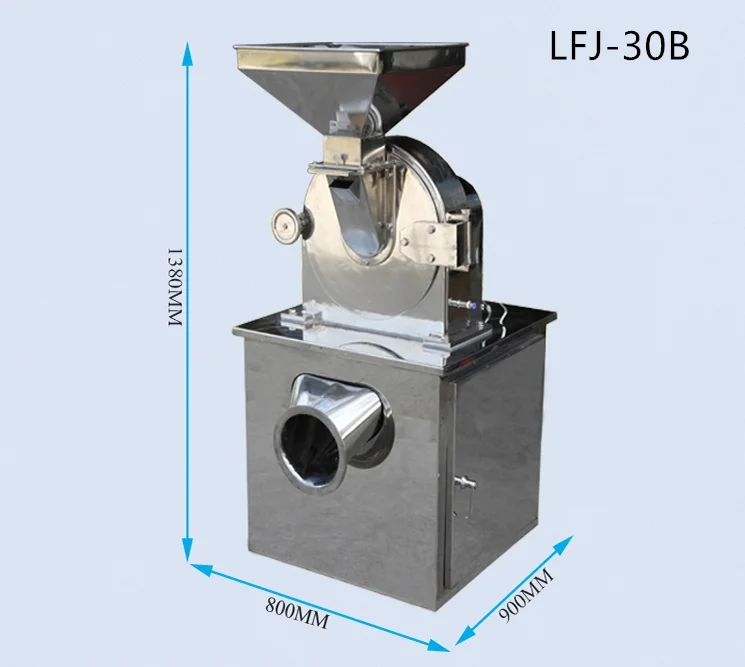

Dimension(mm)
650*750*1000
750*850*1250
800*900*1380
Weight(kg)
80
150
200

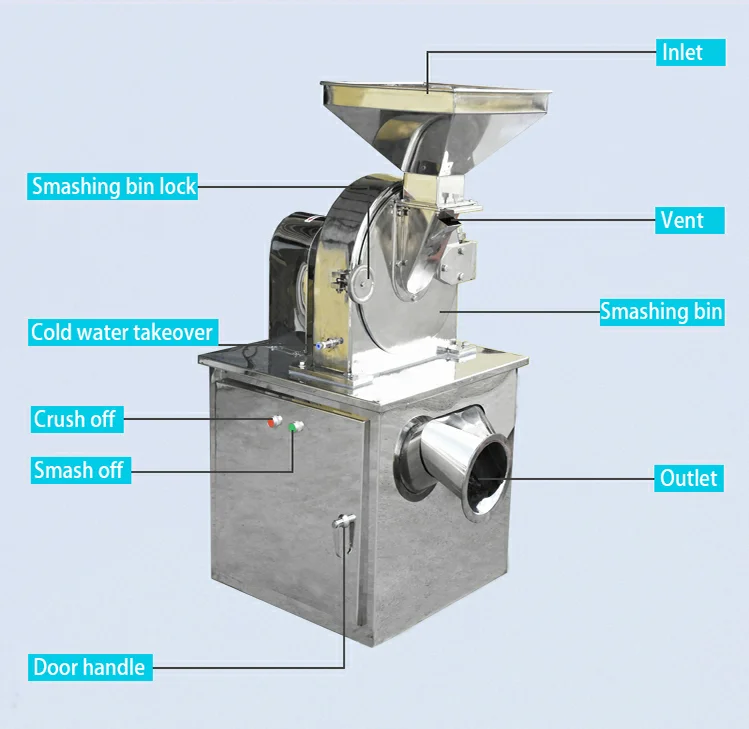

Product Detail

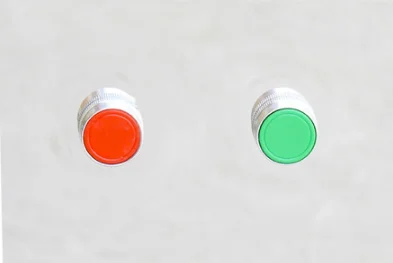

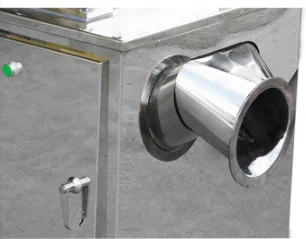

Switch
One button control for opening and closing, easy to operate and easy to use

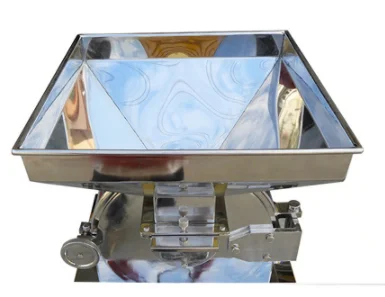

Material Inlet
Stainless steel material, clean and hygienic, in line with GMP requirements

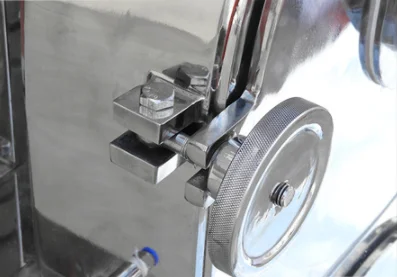

Crushing bin lock

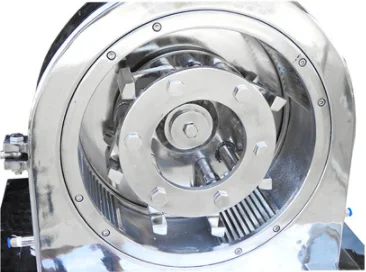

Crushing Bin
The high-speed operation of the moving knife cuts, collides and grinds the material in the middle of the toothed disc to achieve the crushing effect

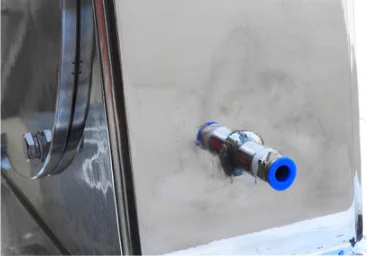

Water Cooling Pipe
It is easy to connect the water pipe, so that the machine can dissipate heat in time and ensure the machine runs for a long time
