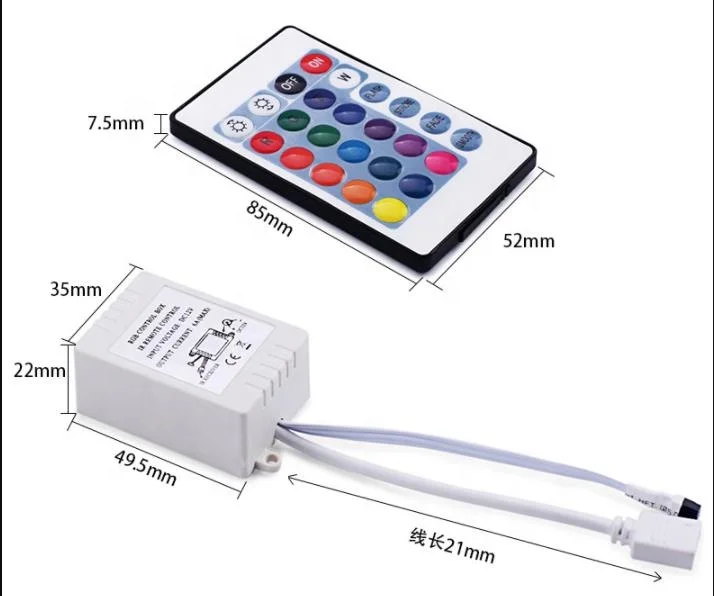

Operating temperature: -20-60℃ Power supply voltage: 5V-24V Output: 3 Channels Can make two outputs version. Net weight: 36.4 g Gross weight: 50.3 g Product size: L50*W35*H22 mm Remote control size: L85*W52*H7 mm Static power consumption: < 1 w Maximum load current: 2A per circuit Product packing size: L95*W55*H40mm Packing size: L410*W310*H240 Conventional packing: 100PCS per box With outer packing weight: 5.5kg PCB type: Single /Dual PCB There are 4 types of this product, please consult our customer service for details. Output power: 5V<30 w, 12 v <72 w, 24 v <144W
Product Name

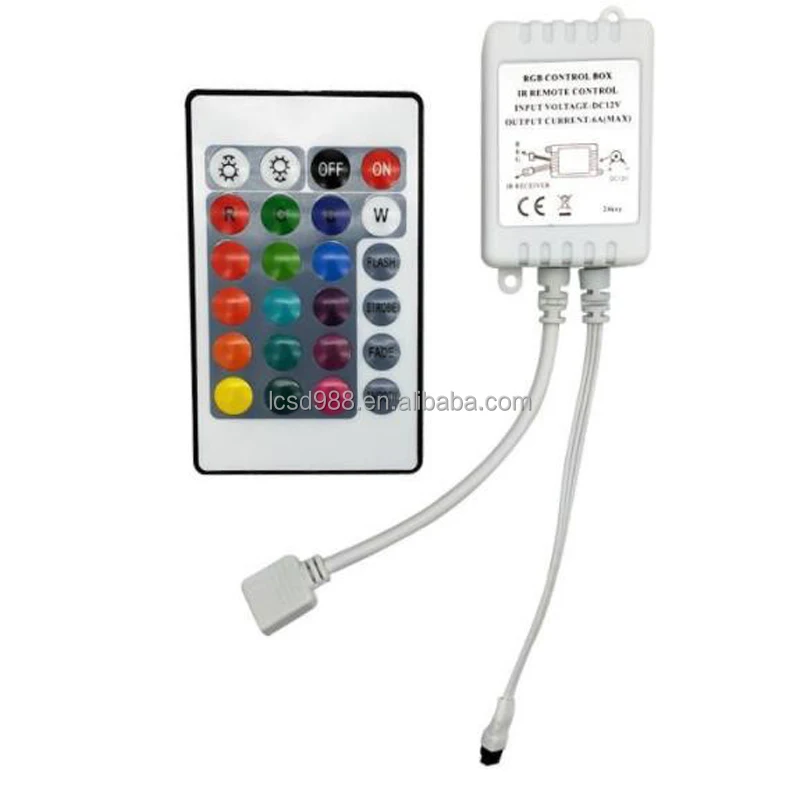

24 Keys IR Remote Controller
Material
plastic
Working temperature
-20~60°C
Connection mode
Common Anode
Input Voltage
DC 12V
Output Voltage
DC 12V
Output
Three CMOS drain-open output
Max load current
2A Each color
How to use:

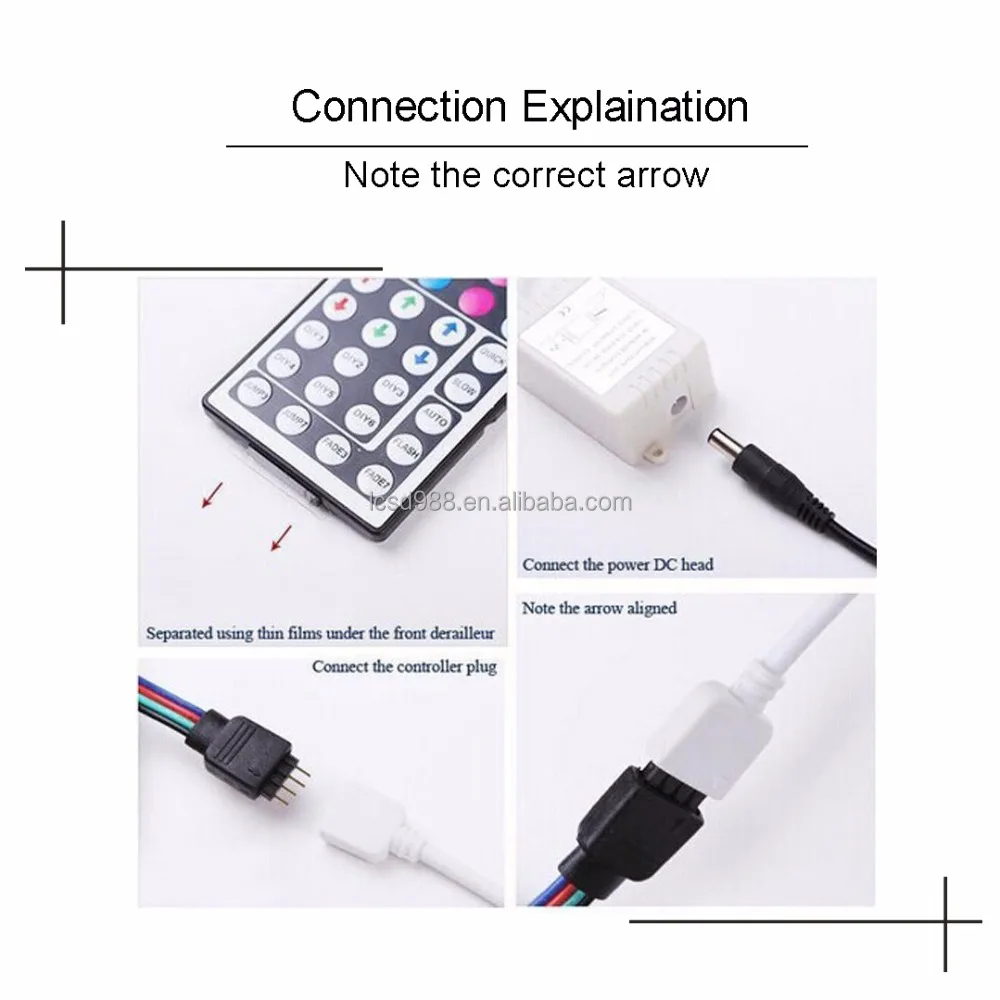

1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
2. Operation, you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote control and receiving head

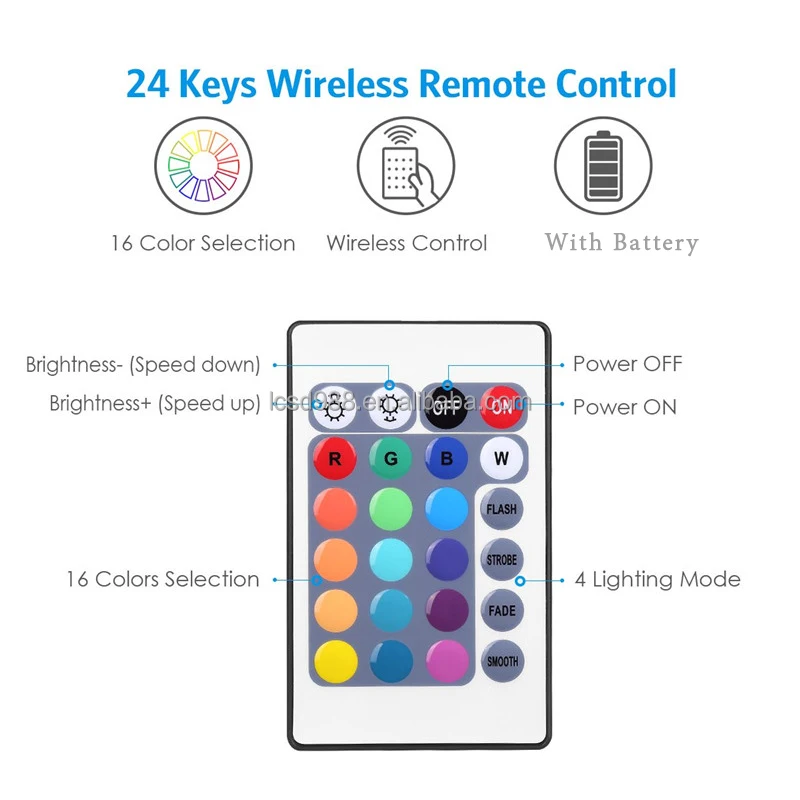

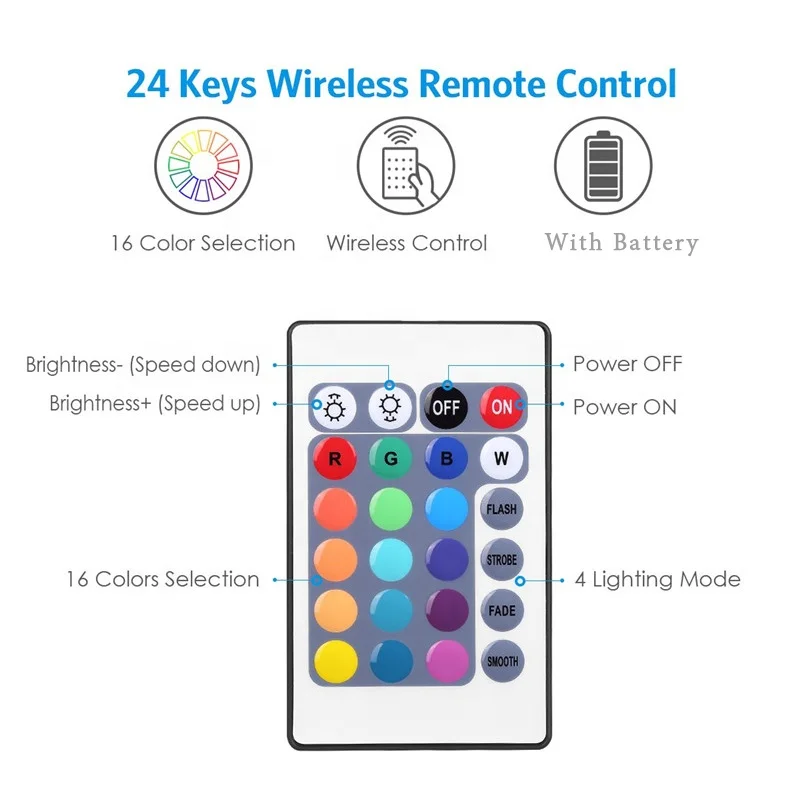

Brightness rise (a total of 8 levels) brightness drop (a total of 8 level) suspended / run on / off
Static red static green static blue static white
Static orange static light green static dark blue colorful jump
Static deep yellow static blue violet overall change
Static yellow static light blue static pink color gradient
Static static static blue purple yellow RGB
There are 16 kinds of default colors to choose from, each color has 8 brightness levels, can be reduced, you can freely control the color you like.
7 fast colour changes, colorful gradient, the overall change, RGB rapid changes four color change patterns, so the color of light group varied, colorful.

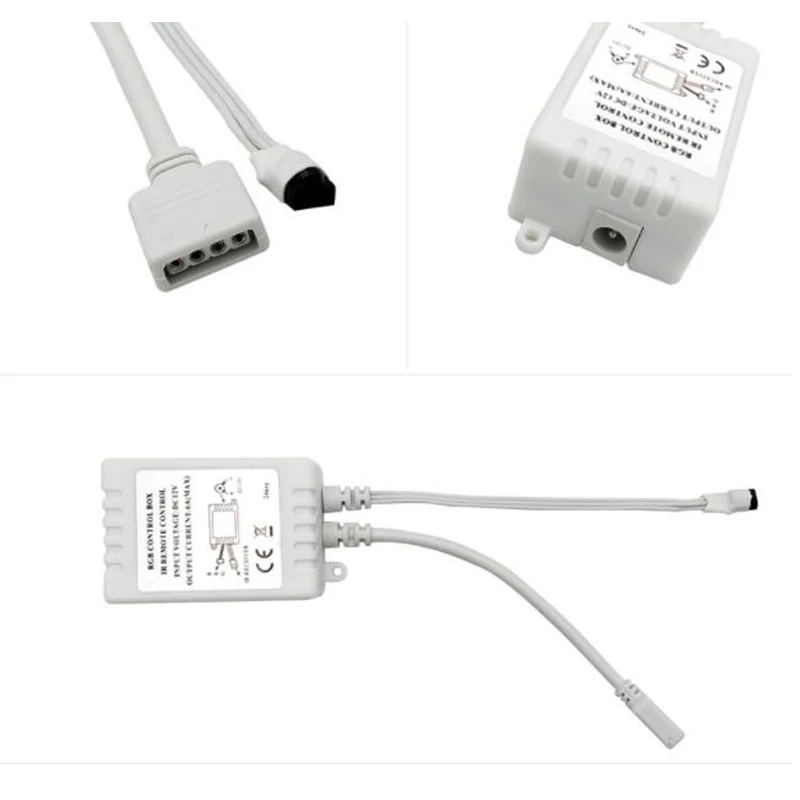

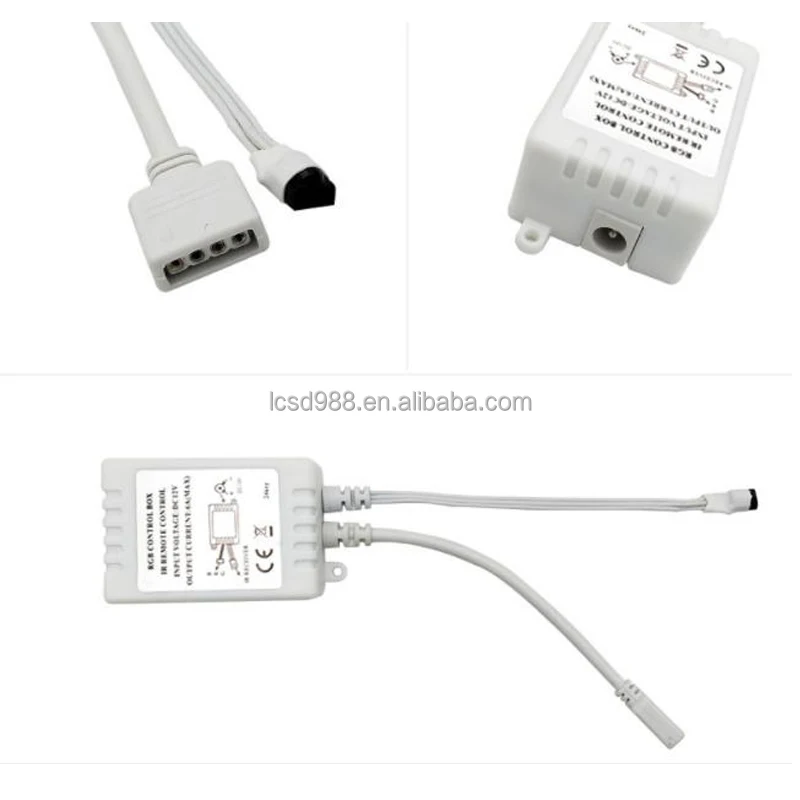

The interface is the terminal of 4P2.54, that is, plug and play, easy to install.
The furthest distance is 10 meters, the operation is flexible.
Suitable for a variety of working conditions, -20℃- 60℃
Package includes:

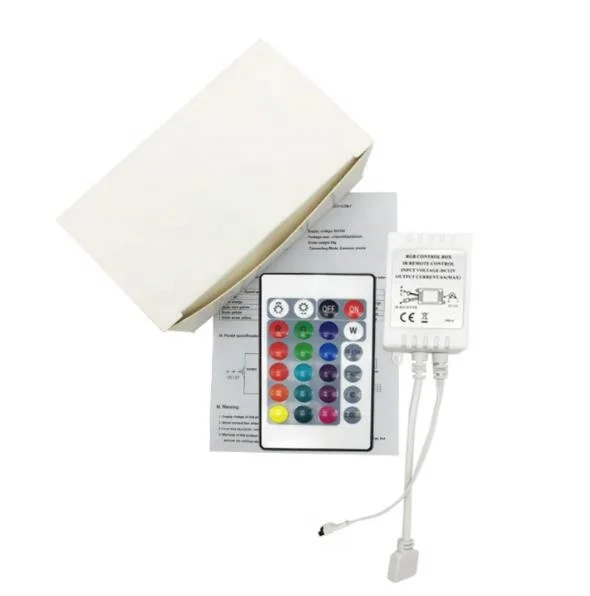

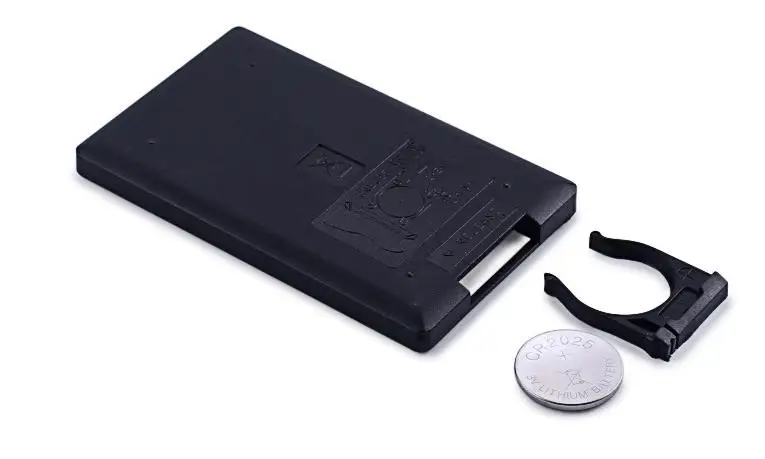

1 * 24 KEY IR Remote Controller and Receiver ( Batteries included)
Does not include the RGB LED strip in the reference picture
