[NW-BR105] 2012 Single O Ring Plastic RO And UF Membrane Housing
US $2.70-$10.00

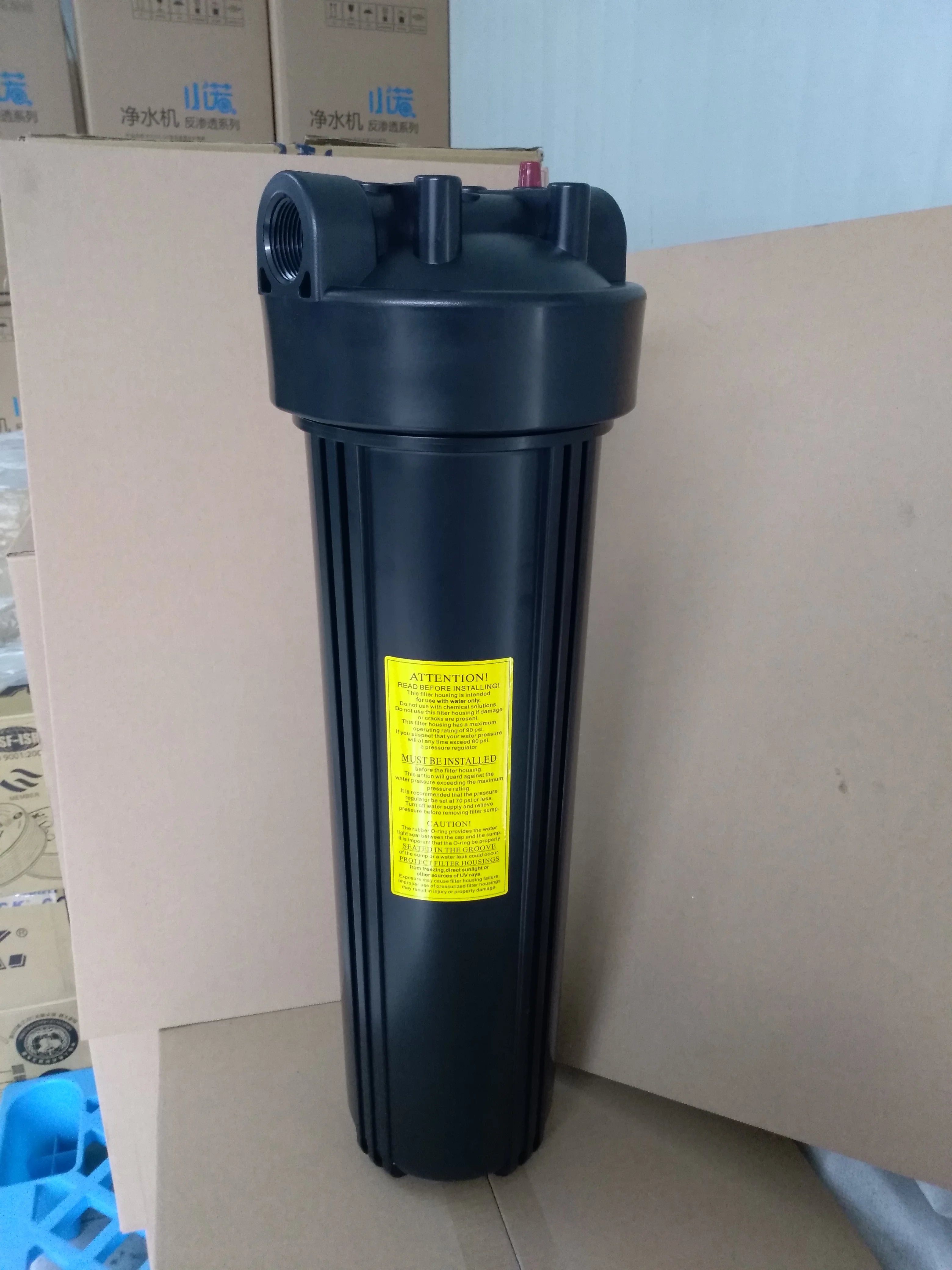

10" 20" black color big blue water filter housing / jumbo water filter housing manufacture
- Category: Water Treatment Appliance Parts >>>
- Supplier: Anhui Chiro Technology Co. Ltd.
Share on (62104855237):
Product Overview
Description
10" 20" big blue water filter housing manufacture
Product Description

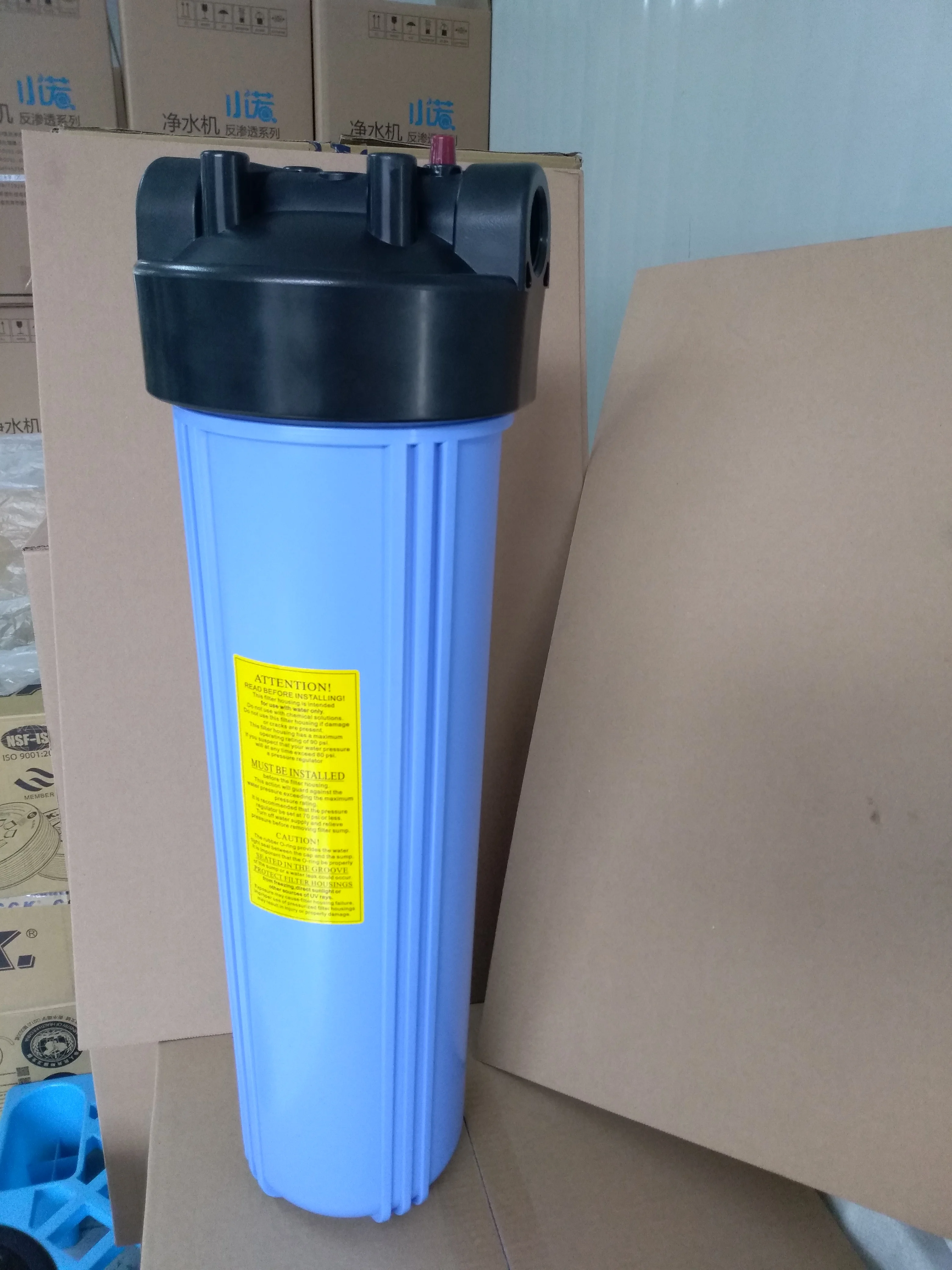

10 inch slim,blue water filter housing.
Black cap with air release,made by enhanced 100% pure polypropylene.
Item | BB-10 | BB-20 |
Filter cartridge size (sold separately) | 10”x4-1/2 inches | 20”x4-1/2 inches |
Product dimensions | 185mmx185mmx358mm | 185mmx185mmx608mm |
Material | 20%GFPP(Glass Fiber Polypropylene) | |
Inlet/Outlet | 3/4” | |
Maximum pressure | 115psi | |
Failure test pressure | 435psi | |
Cycle test pressure | 100,000cycles (0-115psi) | |
Maximum temperature | 100 degrees F (37.8 degrees C) | |
Length:10"
Cap inlet/oulet: 1/4",1/2",3/4",1",brass/plastic port
Max operating pressure:125psi
Max operating temperature:50C
Cycle test pressure:0-150psi,100,000 cycle
O-ring:silicon,EPDM,NBR
Accepts standard 2.5*10" filter cartridges
Thicker housing walls and rib design can withstand much pressure,and increased strength.
This style have two kinds blue:light blue/blue
.
