API 4F China Origin ZJ15 550hp truck mounted workover rig

Product Overview

Description

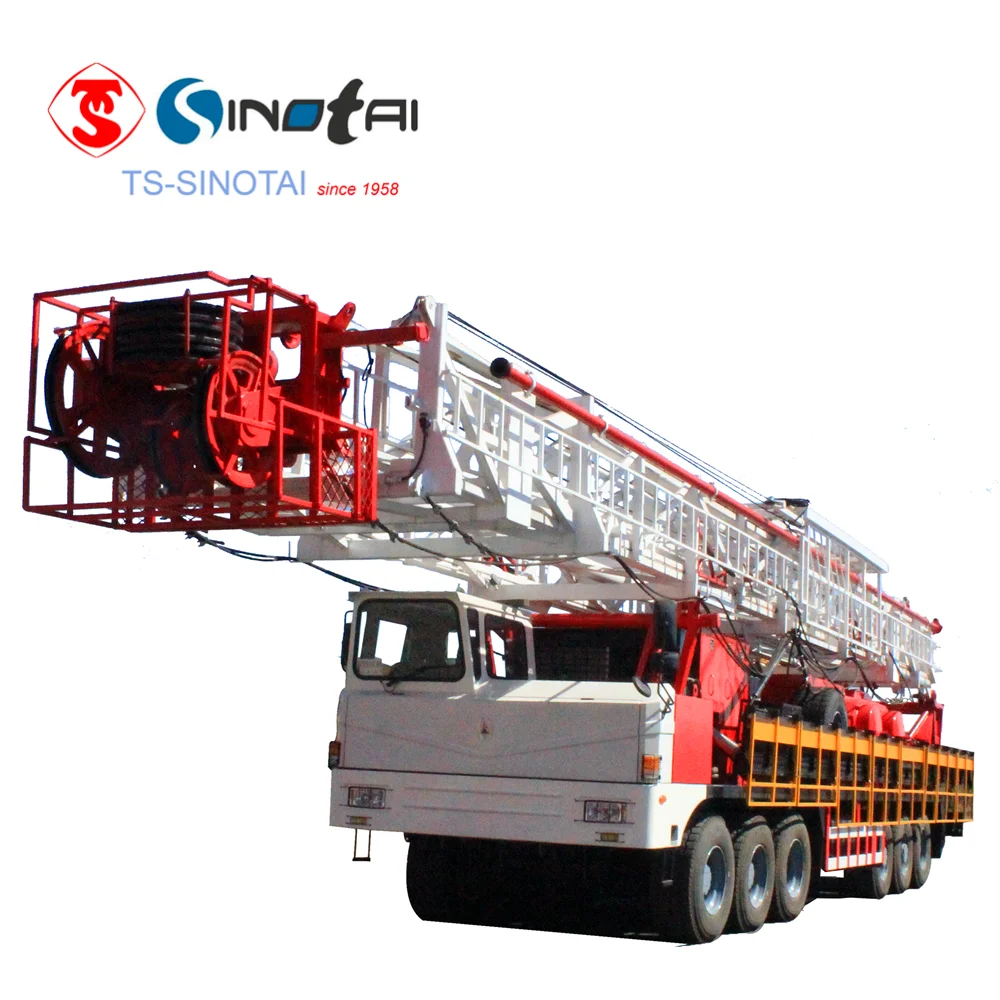

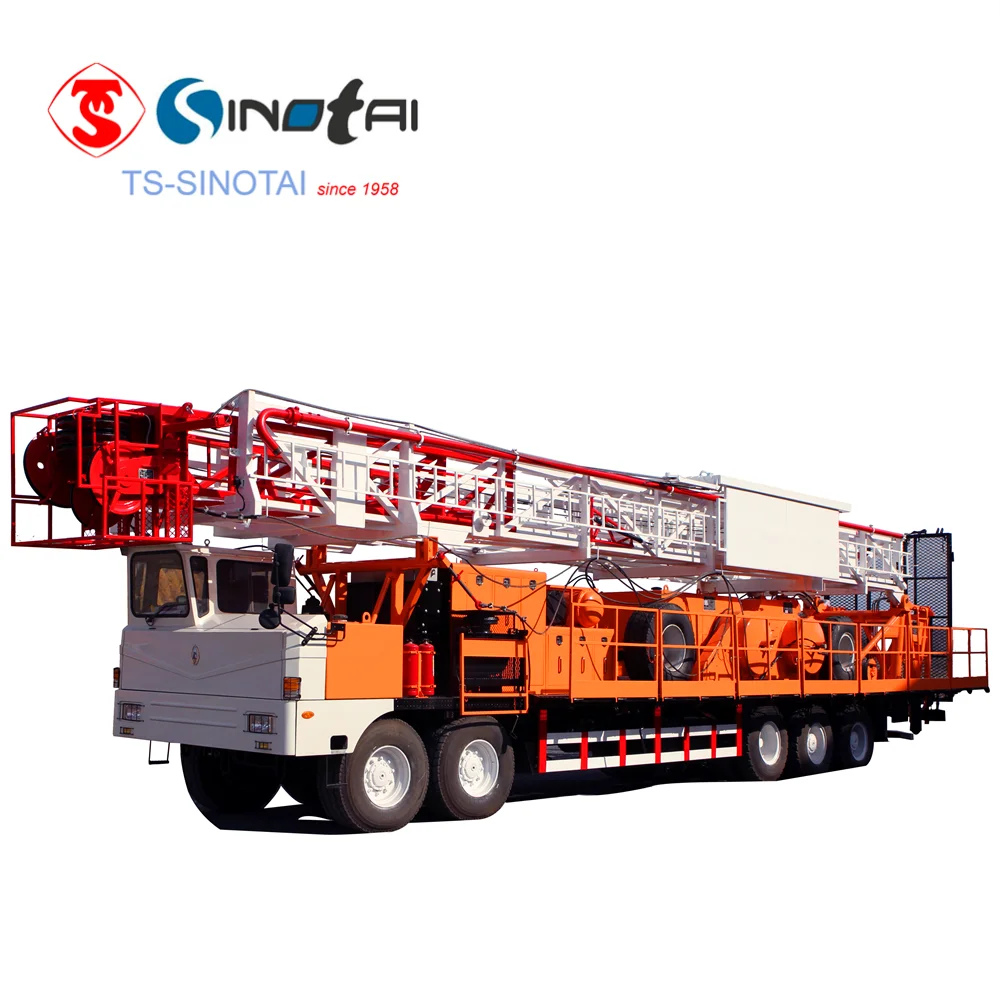

API 4F  China Origin ZJ15 100t 550hp truck-mounted workover rig



XJ550 (100t)workover& drilling rig is dedicated equipments for oilfield. The rig adopts 10x8 driven type chassis, Caterpillar engine and Allission transmission (can use China brand also),  and double drum draw-works. Max. hook load is 1350KN. The mast height is 35m. The rig equipped with rotary table, platform, and swivel etc.

       Adopts double section hydraulic lifting, flexible mast, the height is 35m.

       Equipped with double CAT C15 engine and Allission M5620AR transmission. The performance is stable and reliable.

       The driven model of chassis is 10x8. Single cab. With heater.

       The main drum adopts ATD324 disc brake, and assis brake is air control disk type brake.

       Anti-collision crown block.

       Fingerboard of monkey board is longitudinal arrangement, the beam space can be adjusted. Equipped with aid climbing implement and escape device.

       All pneumatic pipelines adopt FESTO quick-coupling and pipeline.

       Meter system adopts 24V DC, and lighting system supplied power by external AC power.



Technical Parameters



Description			XJ550(100t)
Workover depth	Φ73mm (2 7/8”upset tubing)	m	7000
Service depth	Φ73mm( 2 7/8”DP)	m	5800
	Φ88.9mm( 3 1/2”DP)	m	4500
	Φ114mm(4 1/2”DP)	m	3600
Drilling depth			1500
Rated hook load			1000
Max. hook load			1350
Engine model			CAT C15
Engine power			403(540)
Transmission			Allision M5620AR
Chasssis driving form			10x8
Approach/departure			25°/ 16°
Min.  ground clearance			310
Derrick height			35
Derrick type			front opened, double section hydraulic lifting, flexible mast
Valid rope number			8(4x5)
Hoist rope diameter			Φ26
Transportation dimensions(length x with x height)			19.87x3.10x4.20
Total weight			53000
Drum			Single / double drum
Main drum assist brake system			Air control disk type brake / hydraulic control disc brake / hydraulic brake
