Hot Sell Drinking Water Sterilization Equipment, Mineral Water Filling Machine Price 2000 15000BPH Water Bottle Capping Machine

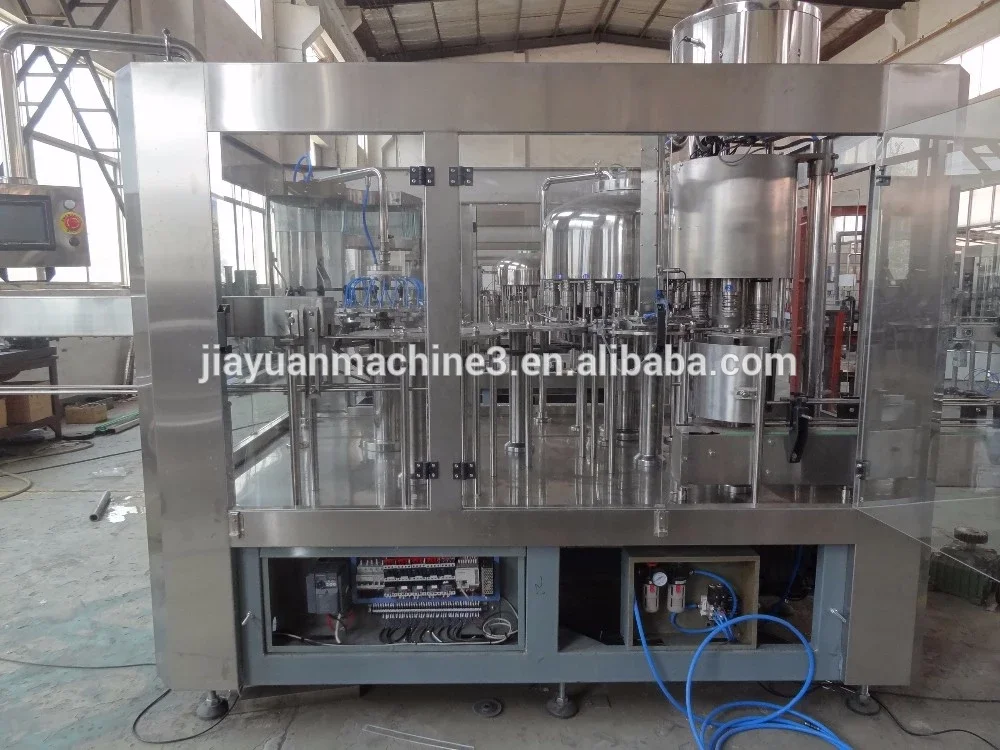

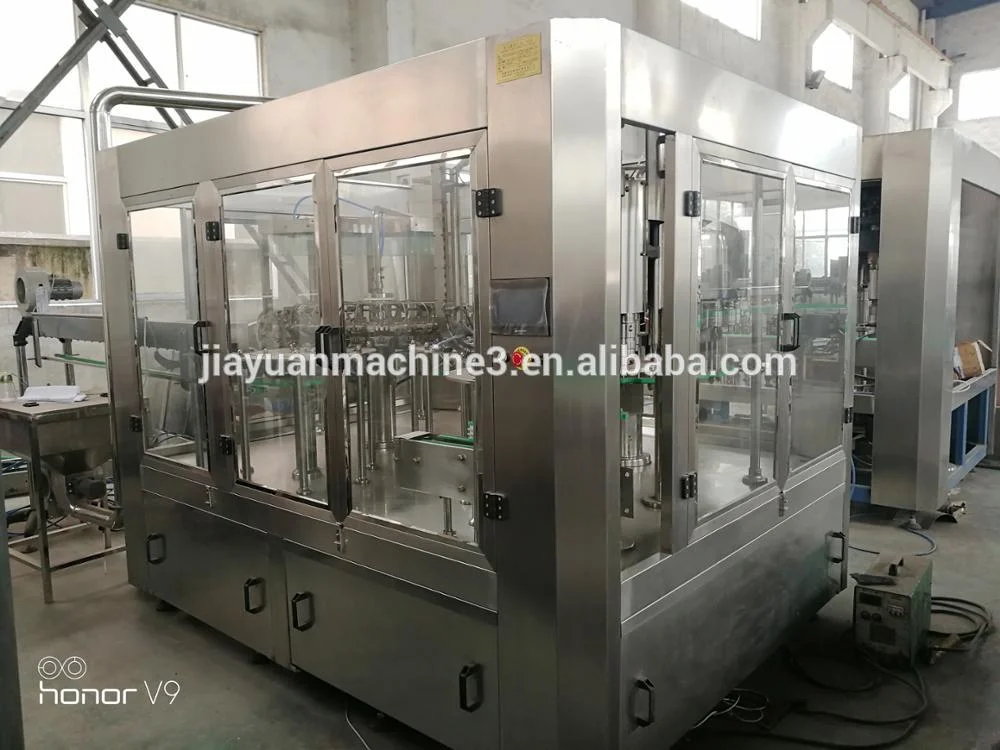

How drinking water machine set works

The plastic bottles are fed into the rotary rinser,filler capper by means of an input feed conveyor.A star wheel then transfers the bottle to neck holding gripper of the rinsing station.The rinsing robot indexes the bottle 180°and activates the rinsing value.Bottles after being rinsed are automatically transferred by a star wheel to the filling station.In the filling station the bottles are picked up by the neck and are allocated individual filling values.The state-of-art filling valve is so precise and accurate it gives even filling in all bottles.The filled bottles are then transferred to the capping station via a star wheel.The bottles automatically move for the capping stage where the caps release from the sorter on to the bottles.The caps are sealed automatically using special capping hands. The entire system is enclosed in a stainless steel/glass outer casing.After the capping stage the bottle are automatically ejected out to the out feed conveyor. The whole equipment is sleek and is capable of bottling various sizes of PET bottles ranging from 250 ml to 2 ltrs.

Drinking water machine set Features

1.Integrate Bottling Rinsing, Filling and Capping into one.

2.Including bottle infeed air conveyor,tri-bloc Rinser-Filler-Capper and outfeed conveyor and cap elevator.

3.All parts that contact the bottle and liquid are made of stainless steel or food grade plastic material

4.Infeed timing screw, indexing star wheel and guider are made from noise-reducing and low-wear plastic.

5.The sturdy base is supported by four feet and is made with stainless steel sheathing secured to the

tubular frame.

6.All drive train components located inside machine base to be protected from aggressive environment, extended life, clean and unobstructed cabinet surface.

7.Bottles are rinsed internally and externally, No bottle, No Rinsing.

8.Precise and Accurate GRAVITY filling valves give even filling in all bottles at the same level, No bottle, No filling.

9.Magnetic capping head eliminates over-tightening of caps, No bottle, No capping.

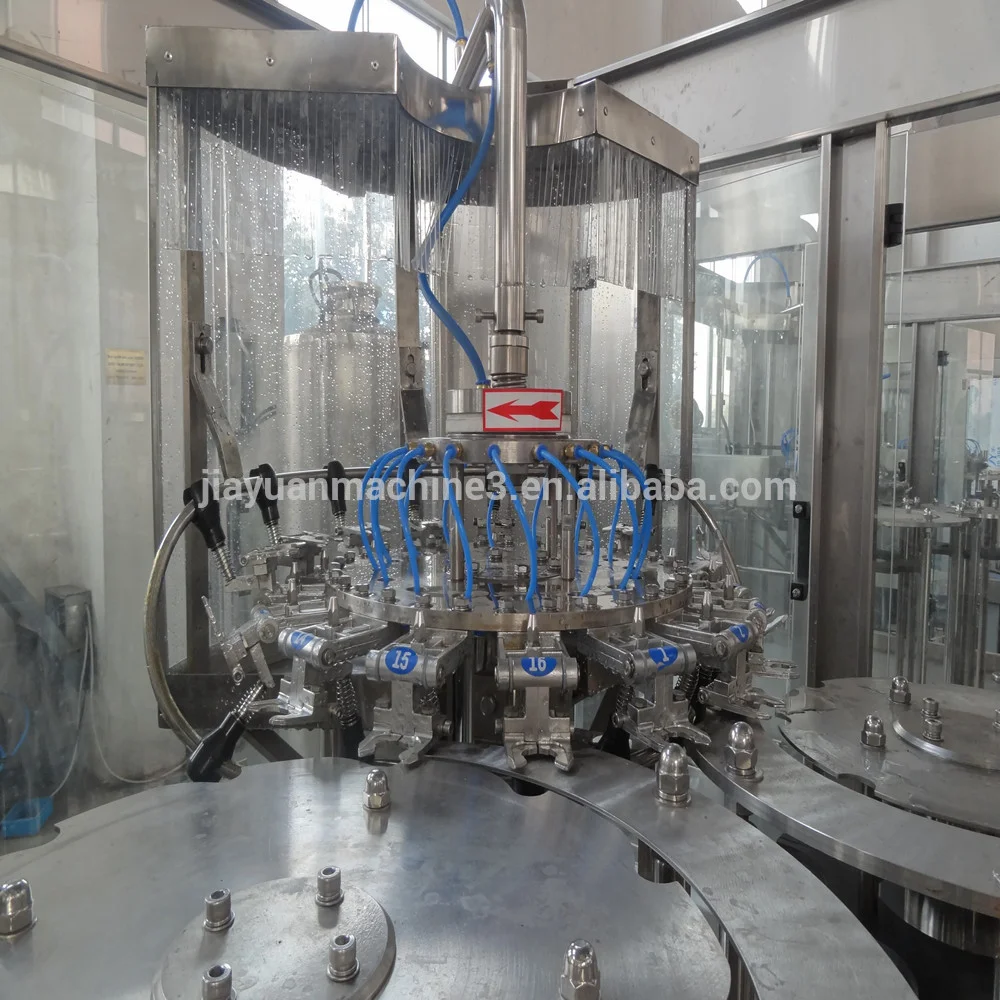

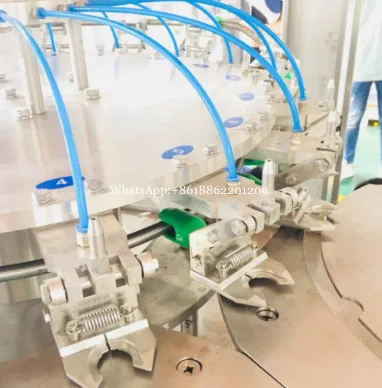

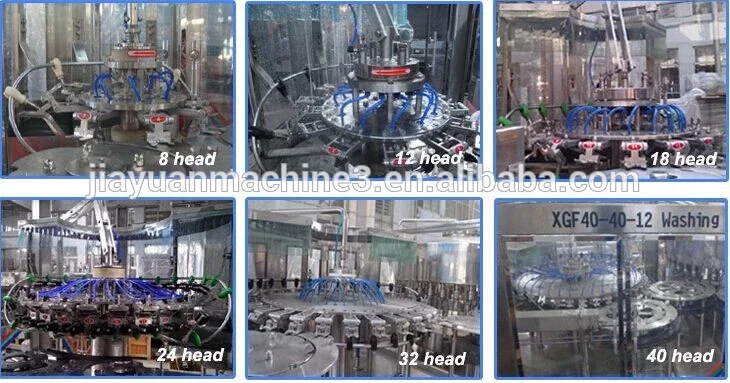

Washing Parts

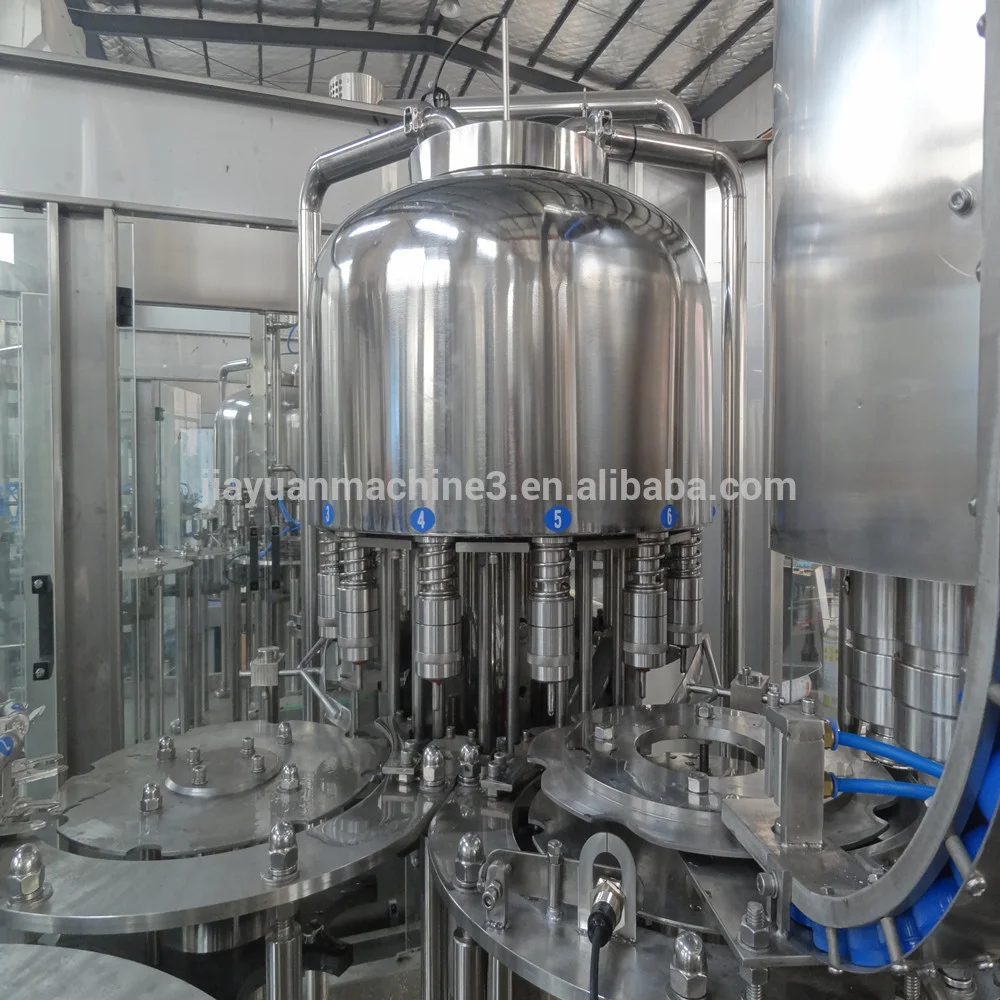

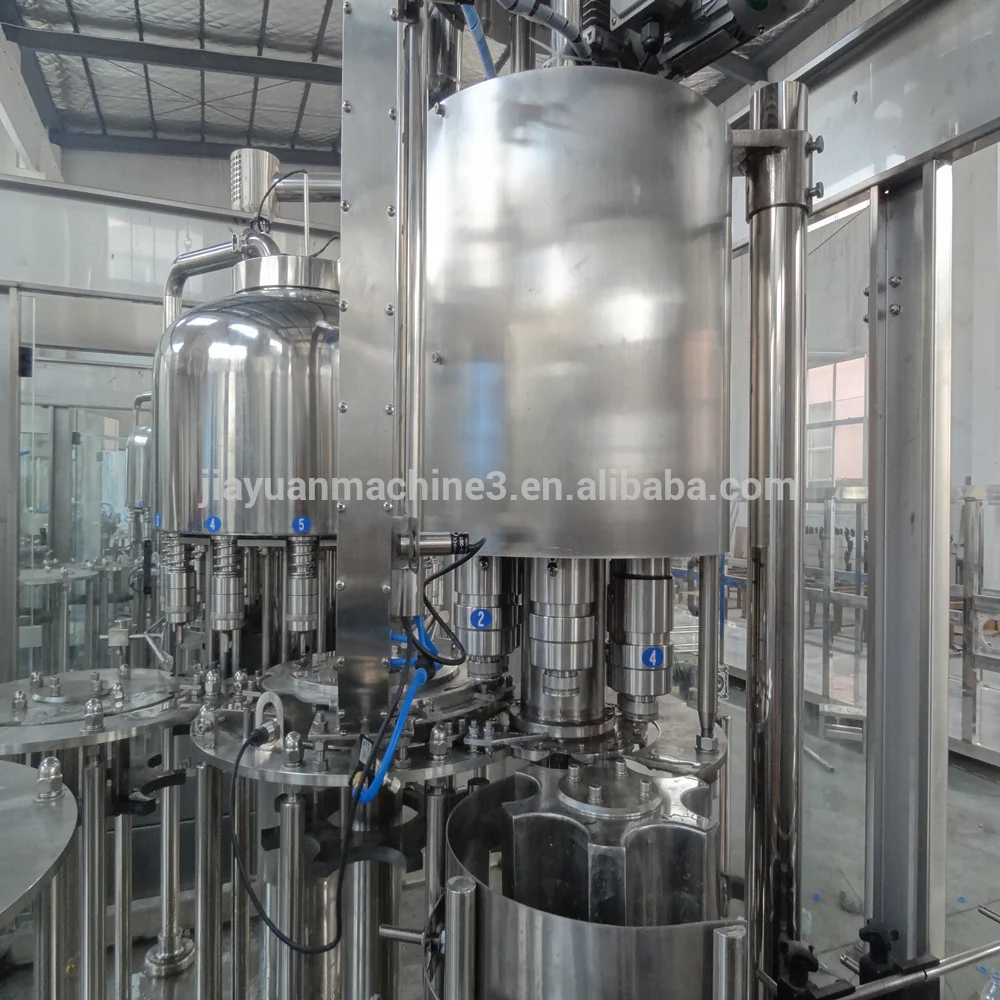

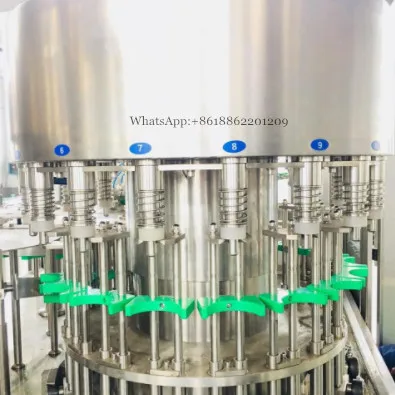

 Filling parts

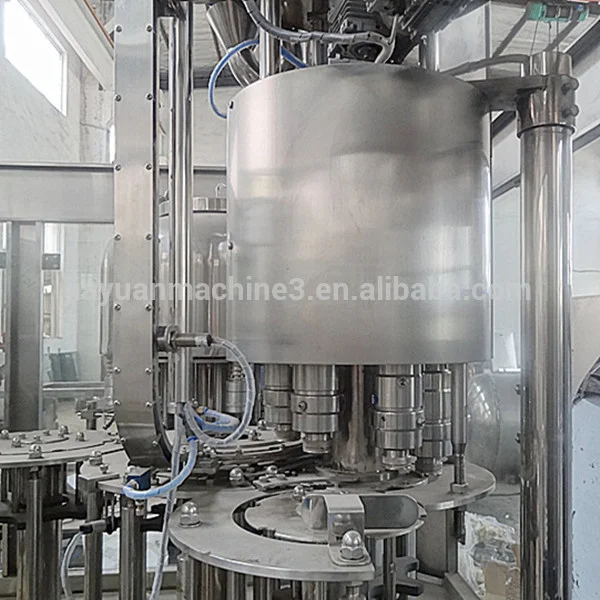

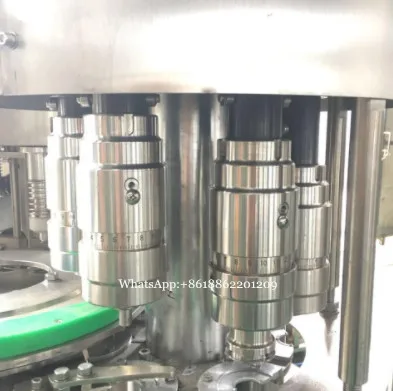

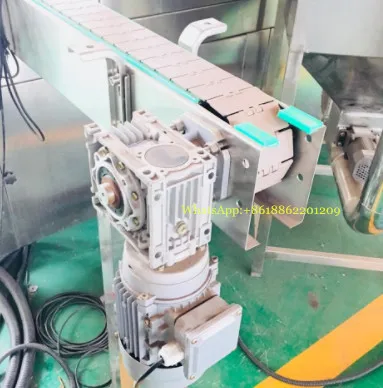

Capping parts                                                                         Conveyor

FAQ for businessman friend:

Want to buy pure water bottling equipment prices for pet bottle?

Q1: How is the machine quality, why I want to choose your machine.

A1: We have machine process in our factory, operation video, and if you want to, we can send oversea technician to fix your problem, just inform us (14 working day in adavance).

Q2: How we can get the spare parts?

A2: Depends on the valve, we will provice free spare parts one set, and we have list for Electrical elements,

you can get from us, or the match model in your country.

 Q3: What if I want to no troubles for the machine production.

A3: We can offer you the Shipment Port to Port, Door to Door, Installation and training with our technician and sales.

Pure water bottling equipment prices a few questions

Q1. I changed my preforms different standards, will this effect the mineral water filling machine price?

A1. Yes, it will, normally we suggest you find a suitable preform and then test with machine, before you make big order.

 Q2. The Stainless steel machine are rusted?

A2. Our machine stainless steel will not be rusted, the reason you can see it because some of the part(not touch with products) is #45 steel, cause it is strongger then stainless steel, in order to keep machine running stead.

 Q3. What about the machine main electri parts are broken under your guarantee.

A3. We send you a new one to replace right after we confirm the reason, and the DHL or UPS fee is cover by us.

Advise if the machine has a hugh price different, this is because they are not the same machine.

 Our machine has been sold to more than 40 countries,almost of the customers are satisfiedwith the machines and our service.
